Ukrainian UAV AN196 LUTYI deep strike air drone 3D Model

Description

The AN-196 Liutyi (Ukrainian: Лютий, “fierce/furious”) also spelled Lyutyi or Liutiy, is a Ukrainian one-way attack unmanned aerial vehicle (OWA-UAV) developed by "Ukroboronprom" in October 2022 as a response to russian attacks on Ukrainian cities by Shahed 136/Geran-2 drones (iranian drone and its russian counterpart - a copy) During the russian invasion of Ukraine, the Liutyi has seen use by Ukraine in attacks on russian territory, including oil refineries, industrial facilities, and military airfields, аmmunition depots and other military objectives. This is Ukraine's main and most mass-produced Long Range Strike Drone.

Type: Loitering munition

Place of origin: Ukraine

Service history: Used by Ukraine

Wars:Russian-Ukraine

Production history

Designer: "Antonov" ASTC

Designed: October 2022

Manufacturer: "Antonov" ASTC

Unit cost: $200,000

Specifications

Mass: 250–300kg (550–660 lb)

Length: 4.4 metres

Wingspan: 6.7 metres

Warhead weight: 50–75 kg

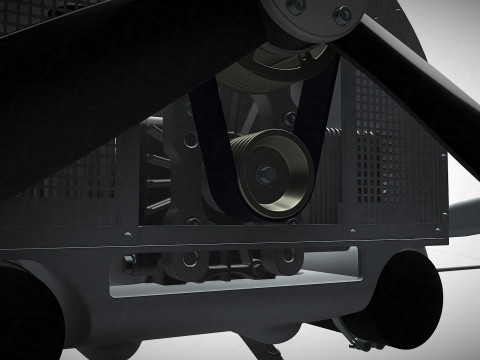

Engine: HIRTH ENGINES GMBH (F23)

Operational range:1,000–2,000 km (620–1,240 mi)

Guidance system: Inertial system, satellite navigation.

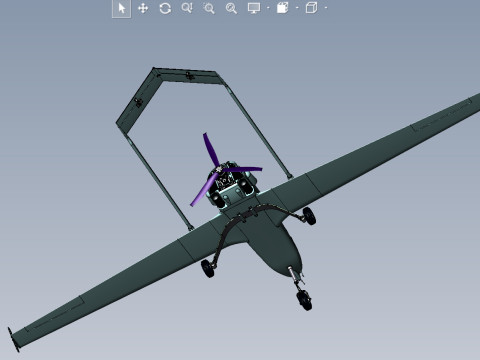

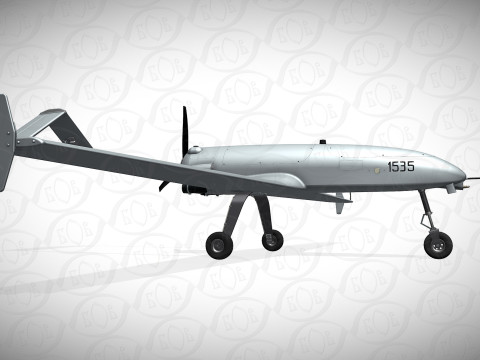

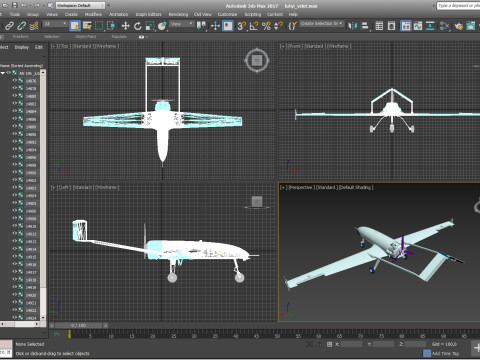

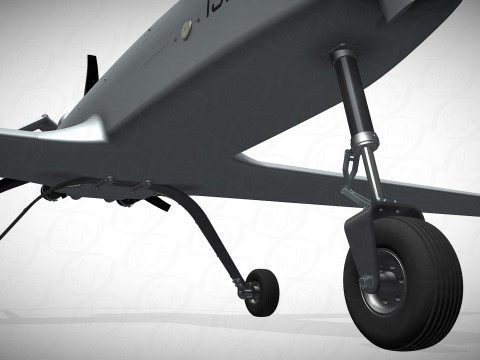

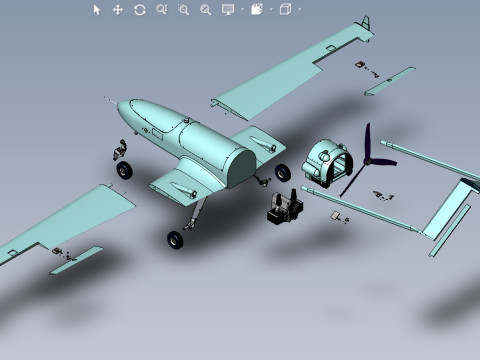

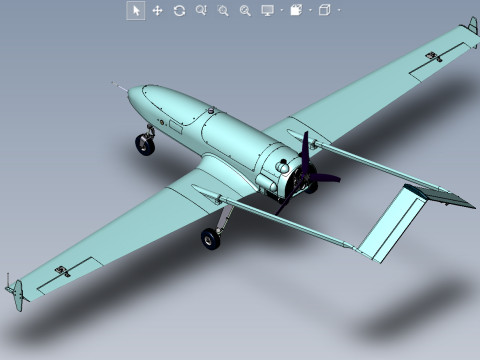

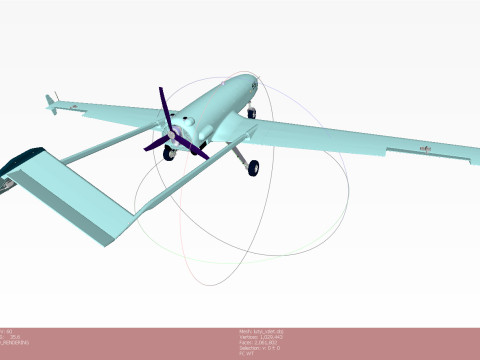

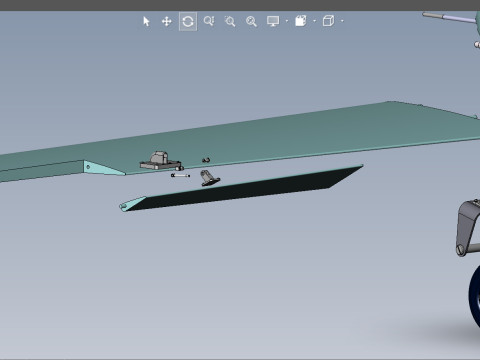

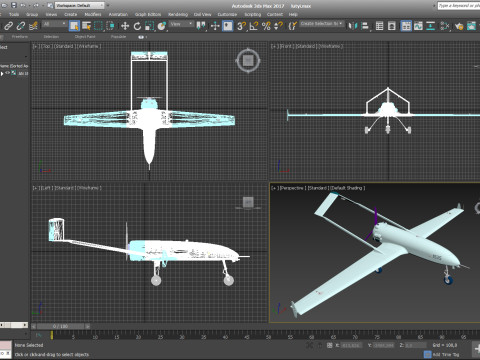

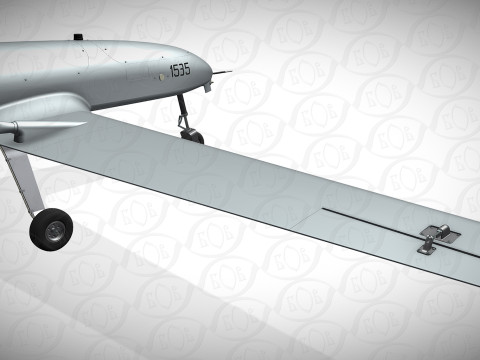

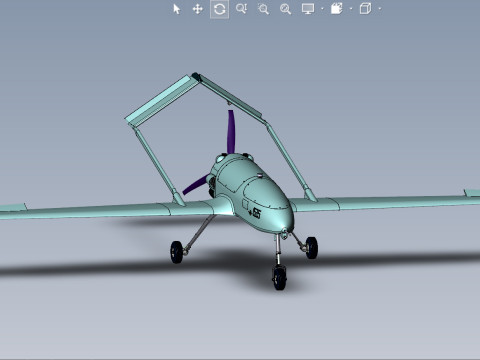

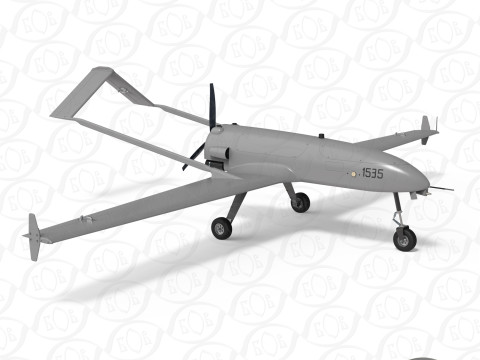

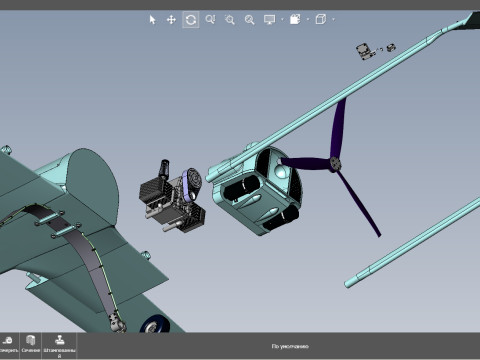

Unique development of 3D model - maximally detailed, reflecting in the model almost all external elements of the design. The model is made with СAD quality in assembly version - propeller, elevation and attitude rudders, wheels, front wheel stand - can rotate (to be able to create animations of this model). Tail and Wings can be detached as in a real airplane drone. All elements of the model, including markings are made in full 3D format and do not require the mandatory, additional use of special 2D textures.Additionally, the kit includes files for assembling the model in the takeoff position (rudders in the up position).The model is ready for realistic 3D visualization in virtually any application designed for this purpose using a standard set of "materials" - all surfaces are ready for this and marked - "Assigned materials" surfaces with conditional color markings. See examples of realistic rendering in Keyshot 5.0 and Sketch fab (A Package file for visualization in KeyShot (ksp) is included in the kit). The model is technically accurate and is made as close as possible to the original and in the original dimensions, including the elements. Even the screw heads, rivets which are not filled with putty and sealant in the real product, correspond to real metric fasteners. Everything is made as accurately as possible, as much as possible relying on the little information from available open sources - photo and video materials. The model can be successfully used for detailed study of the external design of the product, creating realistic 3D visualizations of high quality and pixel resolution - much higher than 4K (smooth surfaces and high detail). As well as can be used for the production of high-quality stand models-models for training and for exhibition purposes. The model is assembled, all moving elements are made by separate parts, fan of Engine , swivel blades     Attitude and position rudders, which if desired, allows you to use the model to create 3D animation.   The model was originally developed in technical-engineering 3D format (solid model CAD). In addition to solid model file formats, converted highly detailed polygonal file formats are additionally provided.

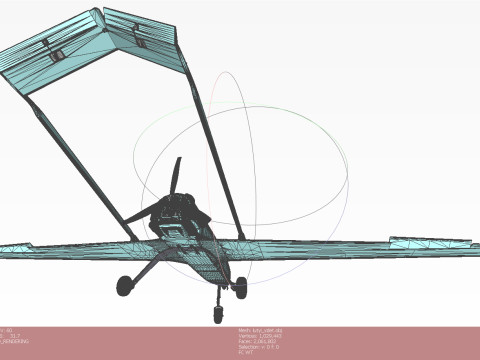

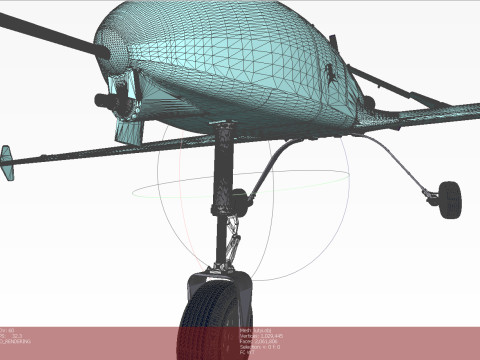

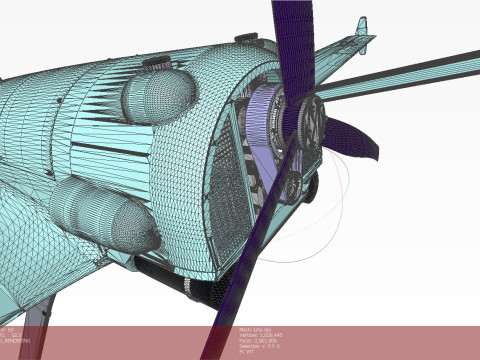

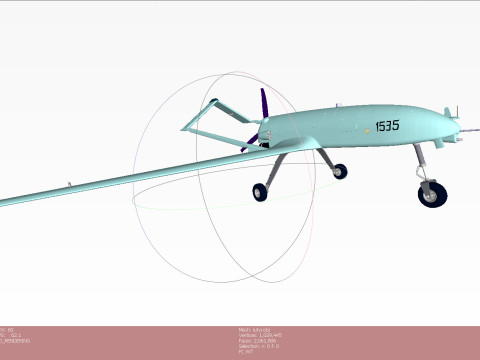

Mesh:

Vertices 1029445

Faces 2061806

 (lutyi.obj)

Please rate and write a review about this model. If you have any questions, please message me. Always willing to consider your price offer.
