Machine à disque à main Spider SolidWorks modifiable Modèle 3D

Description

Spider hand disc machine SolidWorks editable

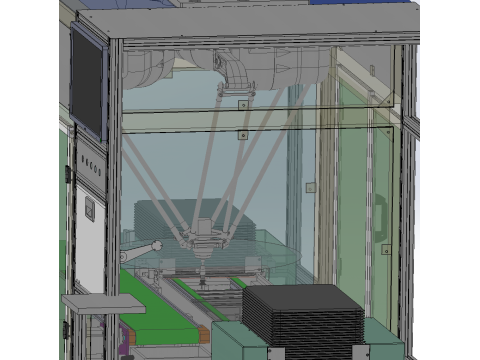

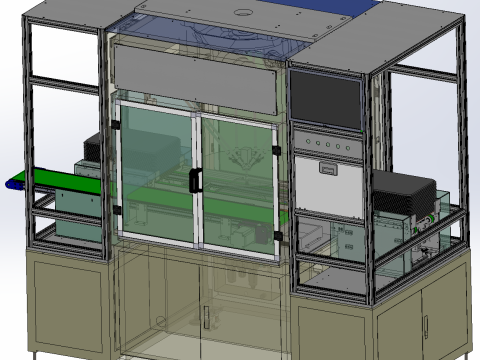

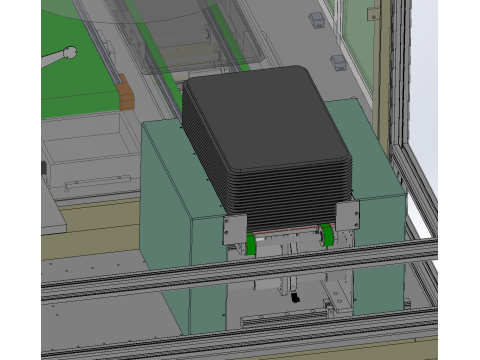

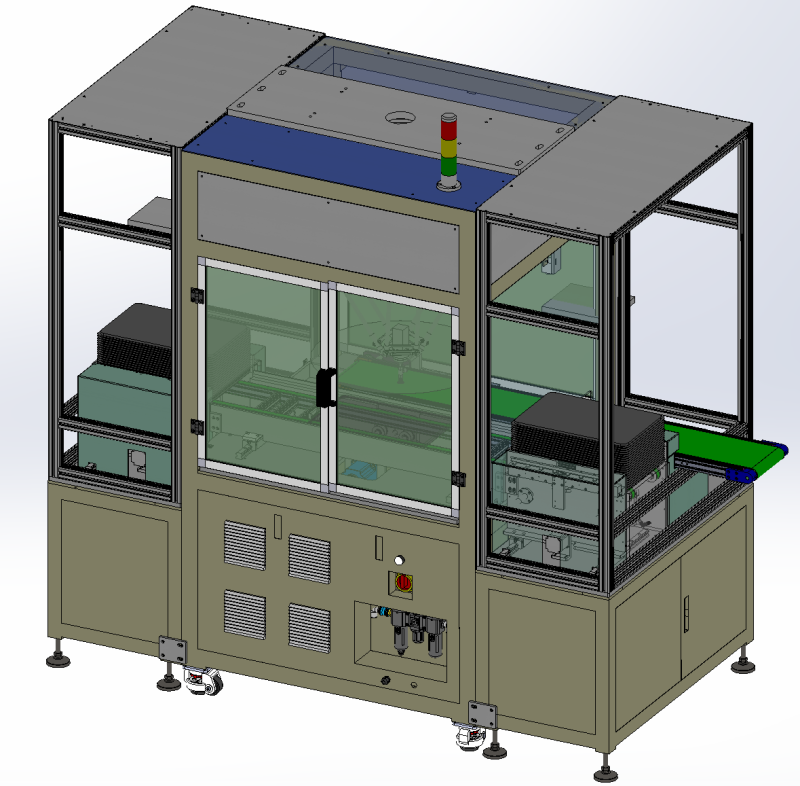

Spider hand disc machine is an automated equipment that uses three-axis or four axis parallel robots, mainly used for automatic disc loading and swinging work. It is equipped with visual inspection (on demand) and quickly draws materials into steel trays through suction tools. The spider hand disc machine has the characteristics of high speed and excellent stability, and is an essential key equipment for bagged materials (with sterilization process requirements) to enter and exit the sterilization kettle. The main components of a spider hand disc machine include a material conveying device, a spider hand parallel robot, and a disc conveying device. The material conveying device is responsible for transporting the materials to be loaded onto the tray to the designated location; The spider hand parallel robot is responsible for grabbing materials and moving them along a predetermined trajectory to achieve automatic loading and swinging of the tray; The plate conveying device transports the plates loaded with plates to the next stage. By introducing a spider hand parallel robot, the spider hand disc placement machine has achieved automatic disc loading and placement. In addition, the spider hand disc machine also has the following advantages: the robot's operating speed is much higher than manual labor, and it can process a large amount of materials in a short period of time. Improve accuracy: The operational accuracy of robots is higher than that of manual labor, ensuring that each material is placed on the plate according to a uniform standard. Reduce labor costs: Robots can work continuously without taking breaks, thereby reducing labor costs. Improving product quality: Due to the high operational accuracy of robots, the quality of products can be guaranteed. Looking ahead, with technological advancements, the application areas of spider hand parallel robots will continue to expand. In addition to the field of food processing, spider hand plate placement machines can also be applied to other fields that require automatic plate loading and placement, such as medicine, logistics, etc.
