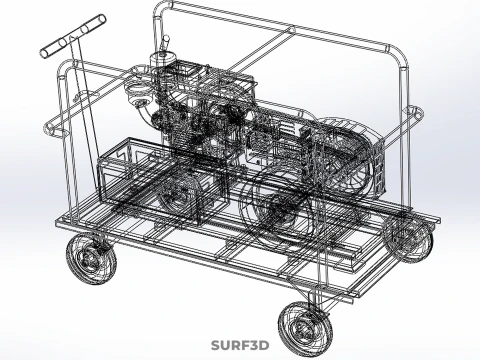

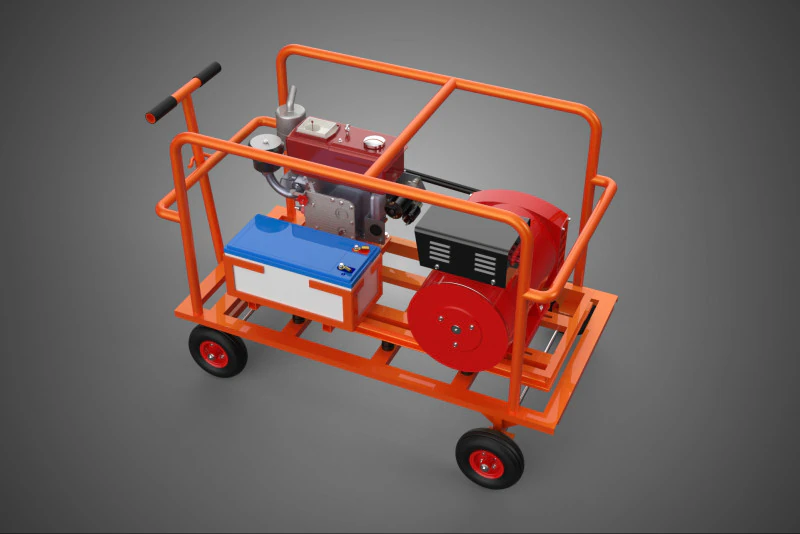

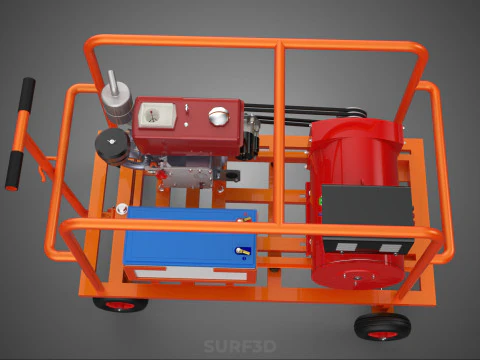

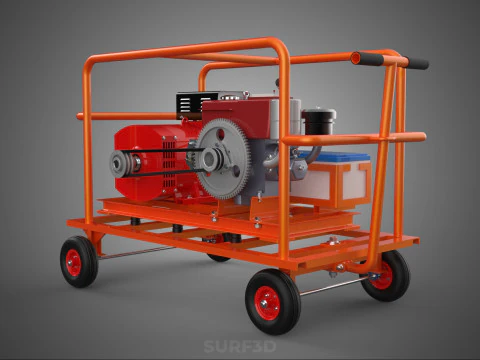

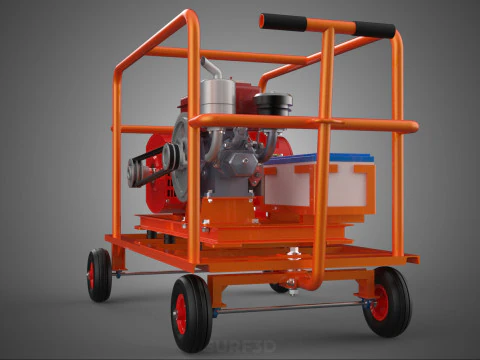

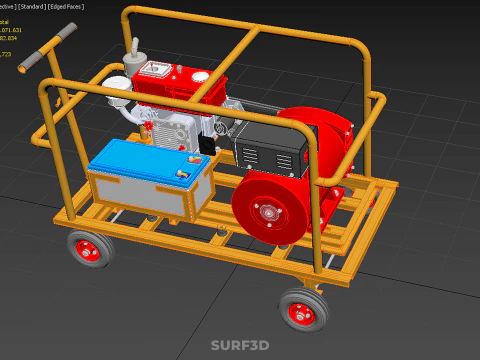

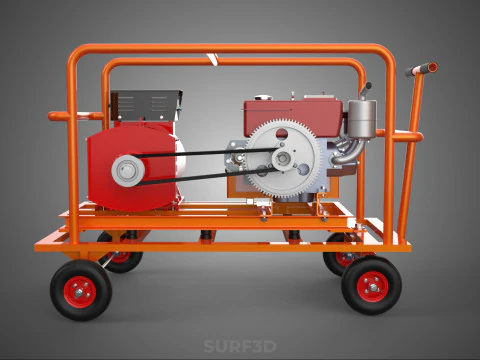

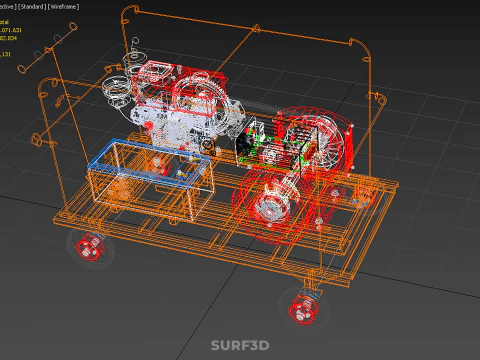

ऑटो स्टार्टर इलेक्ट्रिक डीजल मोटर डायनेमो फ्लाईव्हील जेनरेटर सेट 3D मॉडल

विवरण

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An **Auto Starter Electric Diesel Motor Dynamo Flywheel Generator Set** (often abbreviated as a Diesel Genset with integrated inertial stabilization and automated starting capabilities) is a specialized electromechanical apparatus designed for the reliable conversion of chemical energy (stored in diesel fuel) into electrical energy. This complex system integrates a robust internal combustion engine, an electrical generation unit, a mechanism for inertial smoothing, and an automated auxiliary system for initiating the operational cycle.

### Nomenclature and Core Function

The primary function of this set is to provide stable alternating current (AC) power, either as a primary source (prime power) or as a backup supply (standby or emergency power). The terms "Dynamo" and "Generator" are often used synonymously in generalized descriptions, though modern systems invariably utilize an Alternator (Generator) for AC output, while "Dynamo" might refer specifically to the component used for battery charging or an older direct current (DC) system.

The integration of the Auto Starter and the Flywheel differentiates this assembly from simpler, manually-cranked or unstable generation units, focusing on rapid deployment, reduced vibration, and superior frequency stability.

### Component Breakdown

#### 1. The Prime Mover (Diesel Motor)
The heart of the set is a high-compression, four-stroke diesel engine. The efficiency and power output of the Genset are directly related to the engine’s displacement, turbocharging, and governing mechanism. Modern diesel motors utilize precise electronic fuel injection and speed governing systems to maintain a near-constant rotational speed (RPM) critical for generating electricity at a fixed frequency (e.g., 50 Hz or 60 Hz).

#### 2. The Auto Starter (Electric Starting System)
The "Auto Starter" is an auxiliary electric motor, typically powered by a battery bank, employed to provide the initial torque necessary to crank the diesel engine past its compression cycle and initiate self-sustaining combustion. This system often uses a solenoid-actuated drive gear (such as a Bendix drive) that engages the engine's ring gear on the flywheel during the starting sequence and automatically disengages once the engine achieves self-sustaining speed, preventing damage to the starter motor.

#### 3. The Flywheel
The Flywheel is a massive, precisely balanced disc physically coupled to the crankshaft of the diesel engine and the rotor shaft of the generator. Its primary functions are:
* **Torsional Dampening:** Absorbing the cyclic fluctuations in torque inherent to piston engine operation, thereby protecting the generator bearings and reducing mechanical stress.
* **Speed Regulation:** Storing kinetic energy (inertial mass). This stored energy is crucial for maintaining stable rotational velocity during transient conditions, such as sudden application or removal of electrical load, ensuring the generated electrical frequency remains within acceptable operational tolerances.

#### 4. The Generator (Dynamo)
The electrical component converts the mechanical kinetic energy supplied by the prime mover into electrical energy. Typically, this is a synchronous alternator, often brushless, connected via a flexible coupling. The generator includes a stator (stationary windings) and a rotor (rotating field coils). Power quality is ensured by an Automatic Voltage Regulator (AVR), which monitors and adjusts the field excitation current to maintain a consistent output voltage irrespective of the load conditions, provided the frequency remains stable.

### Operational Principle

In an automated system, the initiation sequence is managed by a control panel (often a micro-controller unit):

1. A demand signal (e.g., utility grid failure) triggers the control system.
2. The Auto Starter engages the flywheel ring gear and begins cranking the diesel engine.
3. Once the engine achieves ignition and stabilizes its RPM (at the synchronous speed required for the target frequency), the Auto Starter disengages.
4. The generator rotor, driven by the diesel engine via the flywheel, induces voltage in the stator windings.
5. The AVR stabilizes the output voltage, and transfer switches connect the generated power to the load or grid.

The flywheel ensures that during the subsequent running phase, minor fluctuations in combustion or sudden load changes do not cause significant dips or spikes in the engine's RPM, safeguarding the electrical frequency stability essential for sensitive equipment.

KEYWORDS: Diesel generator, Genset, Prime mover, Flywheel, Synchronous alternator, Electric starting system, Auxiliary motor, Automatic Voltage Regulator, Torsional dampening, Inertial mass, Power generation, Standby power, Emergency power, Internal combustion engine, Frequency regulation, AC power, Electrical conversion, Engine-generator coupling, Rotary inertia, Brushless generator, Speed governor, Battery system, Self-starting, Electromechanical system, Power reliability, Backup system, Load response, Crankshaft, Rotating assembly, Prime mover coupling.
