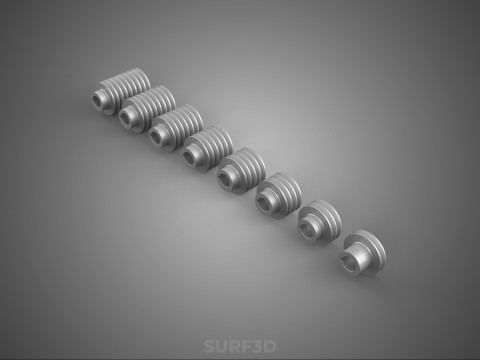

कलेक्शन स्टैंडर्ड पुली शेव मल्टी ग्रूव ट्रैक व्हील ड्राइव 3D मॉडल

विवरण

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The collection of components described under the title "COLLECTION STANDARD PULLEY SHEAVE MULTI GROOVE TRACK WHEEL DRIVE" constitutes a formalized set of mechanical elements critical for the transmission of rotational power and motion control across various industrial and engineering disciplines. These components are characterized by adherence to established industry standards regarding material composition, dimensional tolerances, and groove geometry, ensuring interchangeability and predictable operational performance.

### Nomenclature and Functionality

The terminology encompassed by the title refers specifically to rotating mechanical devices designed to interface with flexible tension members, such as V-belts, synchronous belts, or wire ropes, to transfer energy between parallel or non-parallel shafts.

1. **Pulley/Sheave:** Although often used interchangeably, a *pulley* typically denotes a component in a belt drive system designed for torque transmission, while a *sheave* historically refers to a grooved wheel used to guide or redirect wire ropes or cables, especially in hoisting or lifting applications. Both function by converting torque on the input shaft into tension on the flexible linkage.
2. **Standard:** This designation emphasizes that the components conform to national or international specifications (e.g., ISO, DIN, ANSI, or specific manufacturer standardization series). Standardization governs critical parameters such as pitch diameter, groove angle, mounting bore dimensions, and acceptable runout tolerances, facilitating reliable system design and maintenance.
3. **Multi Groove:** This is the defining characteristic of the collection. Multi-groove sheaves and pulleys feature several parallel circumferential tracks designed to accommodate multiple belts or a multi-ribbed (Poly-V) belt. This configuration dramatically increases the effective surface area for frictional contact, consequently enhancing the system's load capacity, reducing belt slip, and improving redundancy and longevity compared to single-groove systems. Multi-groove assemblies are essential for high-power density drives.
4. **Track Wheel Drive:** This term refers to the entire rotating element assembly when integrated into a system designed for guided, continuous, or indexed motion, often ensuring the belt or cable maintains a precise lateral path ("tracking") throughout operation. The track wheel configuration is paramount in preventing lateral belt migration, especially under variable loading conditions or high speeds.

### Design and Technical Specifications

Standard multi-groove sheaves are typically manufactured from robust materials to withstand high radial loads and operational stresses. Common materials include high-grade cast iron (e.g., GG25/EN-GJL-250), steel alloys, or, for reduced inertia applications, lightweight aluminum or advanced composites.

**Groove Profiles:** The profile geometry is specific to the type of belt used. Standard V-belt multi-groove profiles include classical sections (A, B, C, D) and narrow sections (3V, 5V, 8V). For extremely high power density and thin cross-section drives, Poly-V (multi-ribbed) sections (J, L, M) are utilized, which necessitate shallower, finer grooves across the face of the sheave. Precision machining is required to ensure uniform groove depths and angles, which guarantees equitable load distribution across all contacting belts or ribs.

**Operational Integrity:** Due to the inherent complexity of distributing dynamic load equally across multiple grooves, these assemblies require meticulous adherence to standards concerning **dynamic balancing**. Static and dynamic imbalance correction (often according to ISO 1940 standards) is mandatory for operation at high peripheral speeds to minimize vibration, reduce bearing fatigue, and ensure operational stability of the "Track Wheel Drive" system.

### Applications

Standard multi-groove pulley and sheave collections are foundational components in mechanical engineering, deployed extensively where reliable, high-torque power transfer is necessary. Key applications include:

* Industrial heavy machinery (presses, mixers, conveyors).
* High-power pump and compressor drives.
* Heating, Ventilation, and Air Conditioning (HVAC) systems.
* Automotive and off-road transmission systems.
* Specialized material handling and indexing equipment requiring synchronized motion.

KEYWORDS: Pulley, Sheave, Multi-groove, V-belt, Power transmission, Standardization, Track wheel, Load capacity, Torque transfer, Dynamic balance, Industrial machinery, Synchronous drive, Belt drive, Groove profile, Pitch diameter, Cast iron, Steel alloy, Compressor drive, HVAC systems, ISO 4183, Precision engineering, Mechanical linkage, Conveyor systems, High speed, Reliability, Poly-V belt, Tension member, Rotational component, Material handling, Mechanical efficiency.
