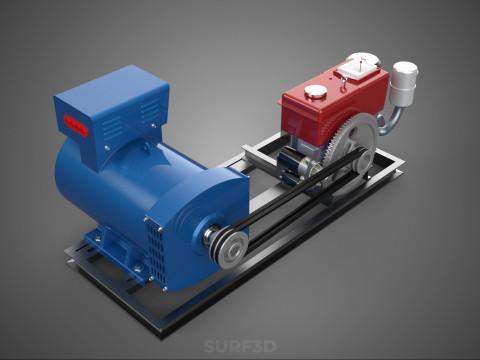

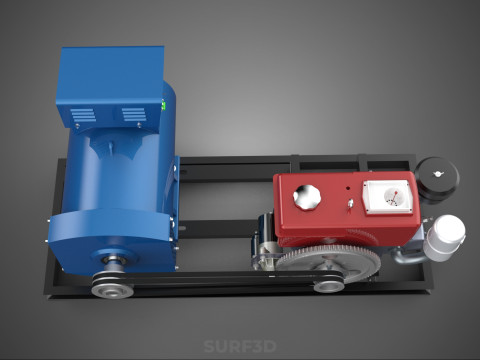

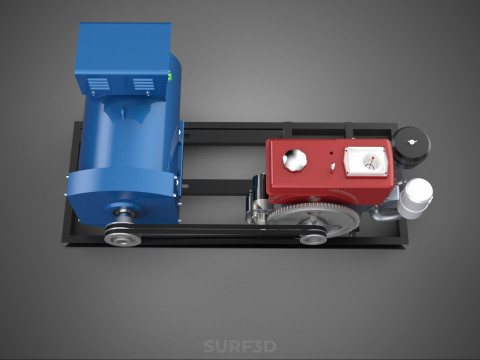

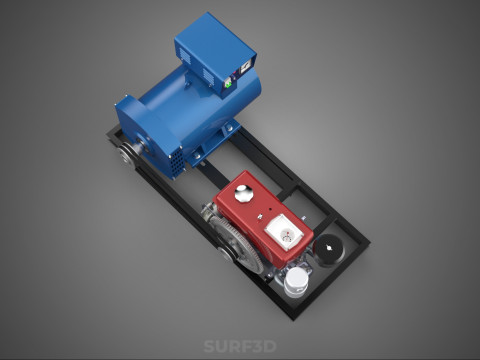

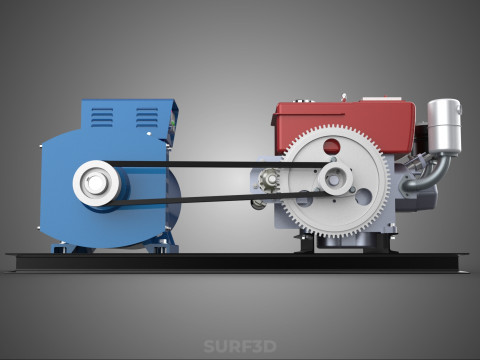

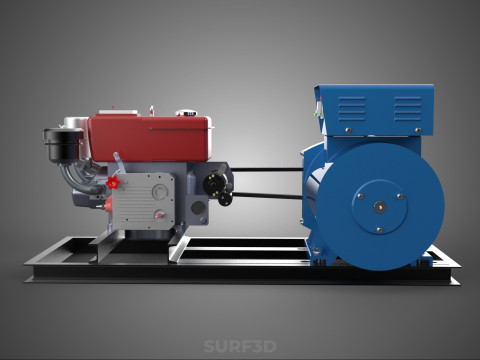

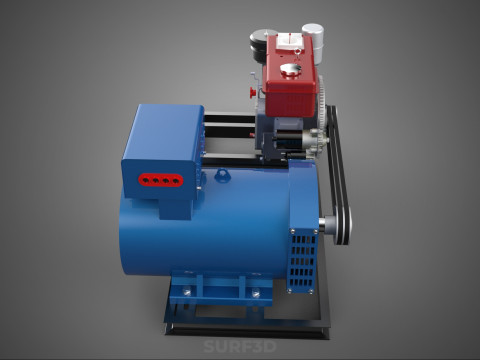

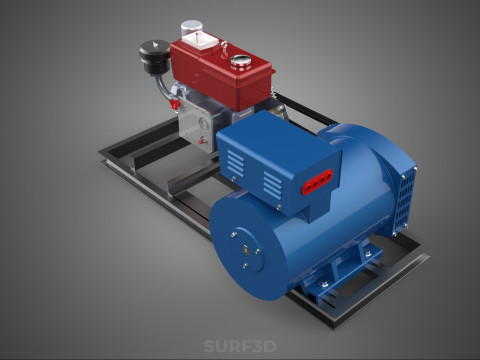

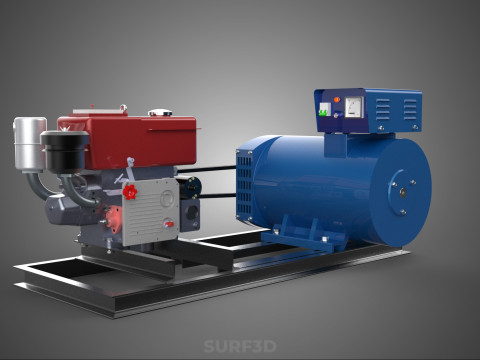

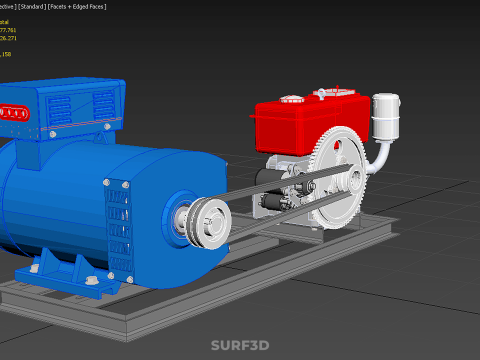

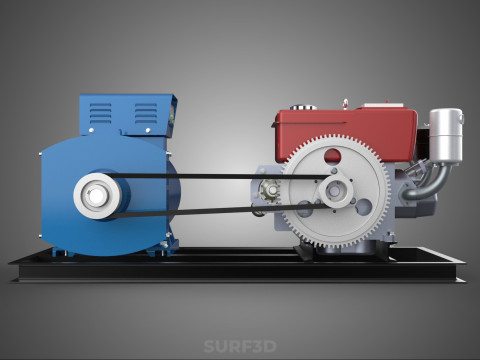

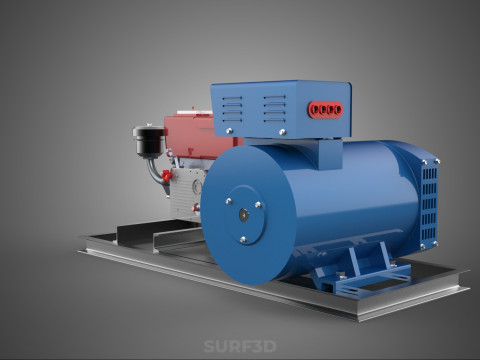

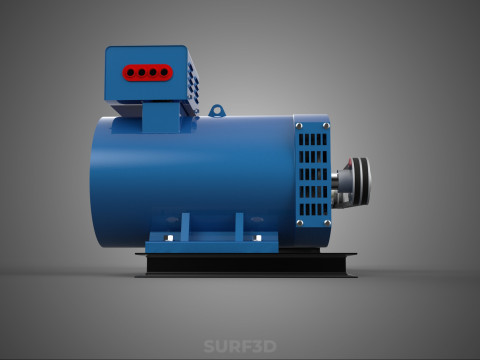

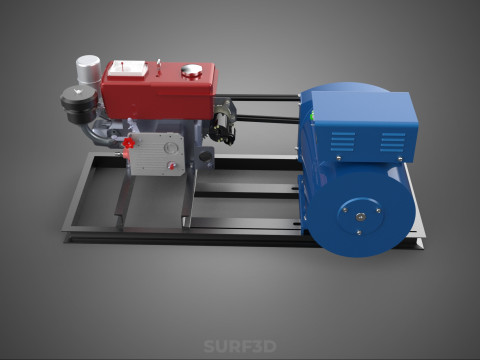

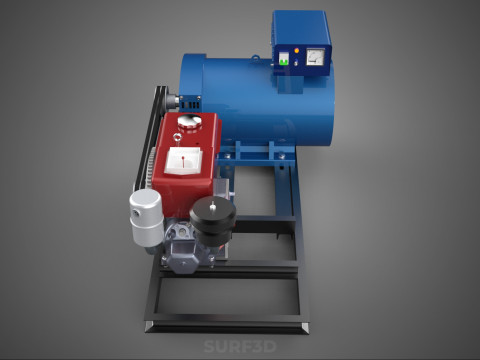

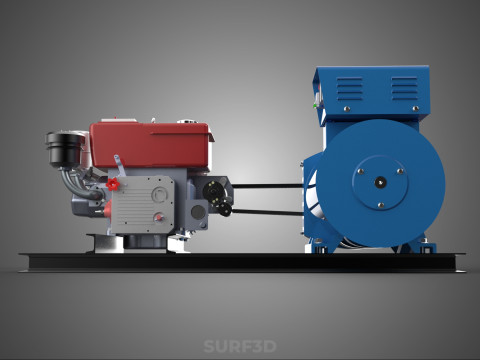

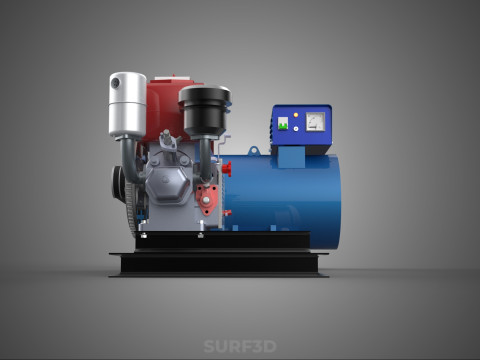

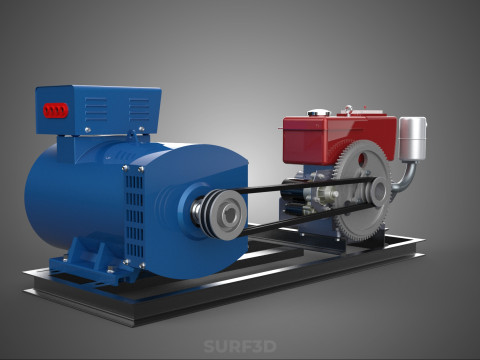

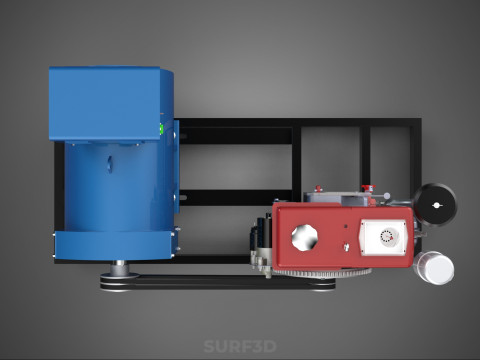

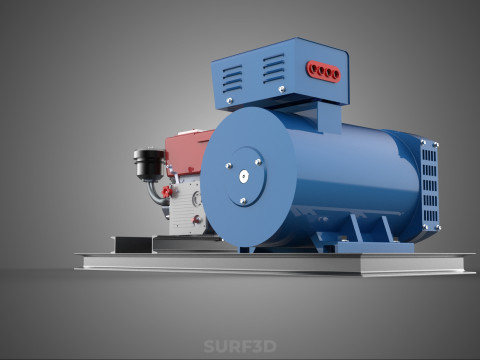

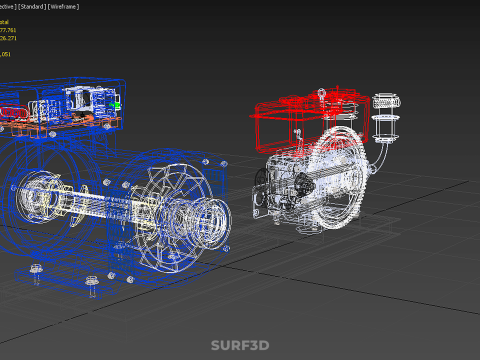

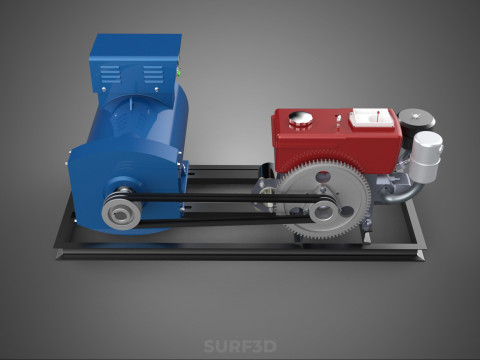

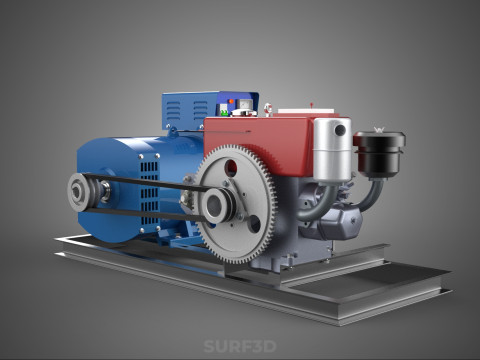

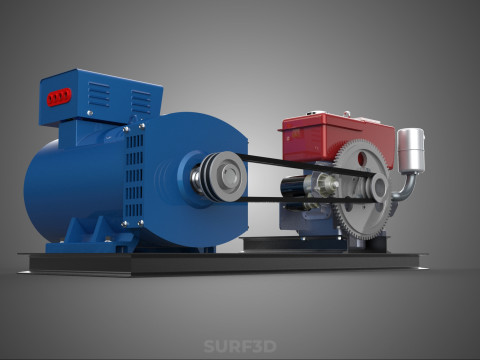

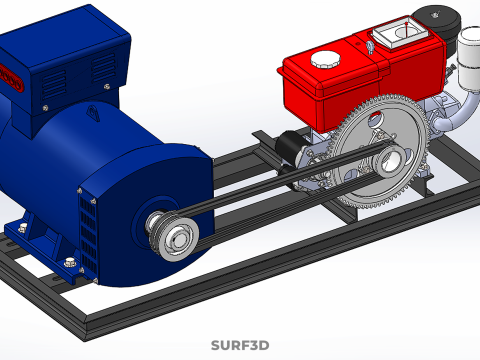

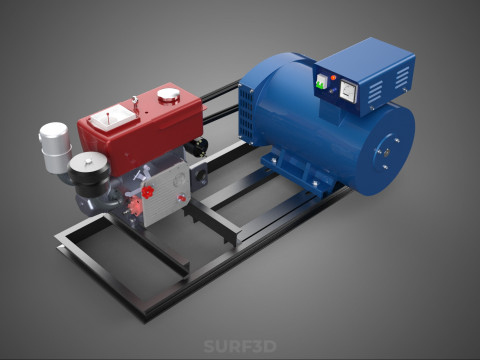

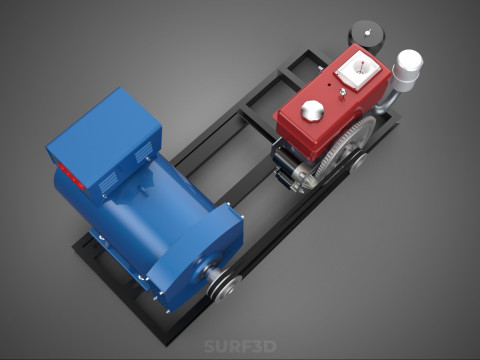

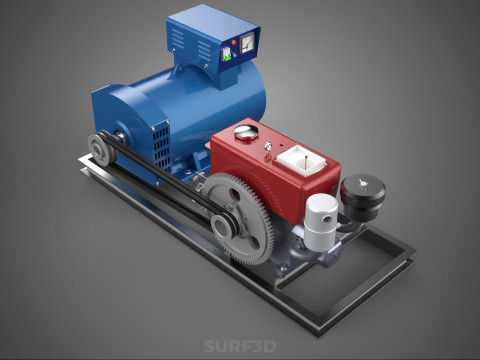

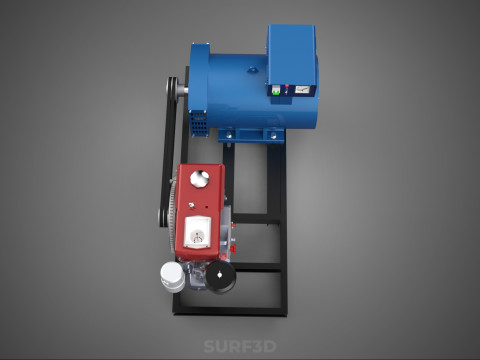

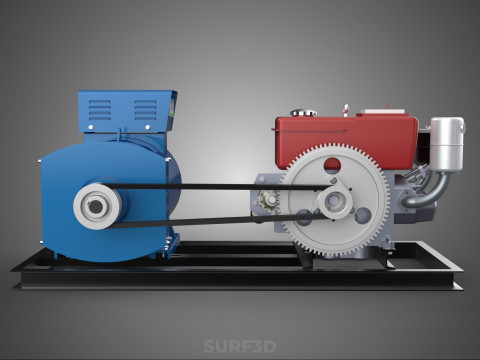

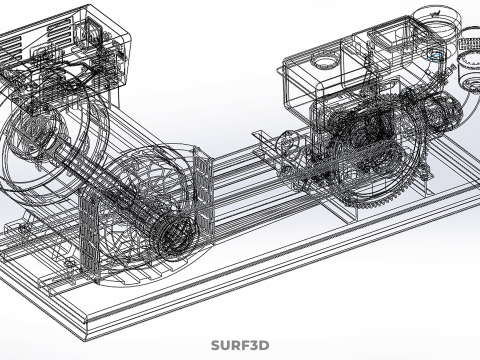

डीजल इंजन पावर जेनरेटर सेट जेनसेट अल्टरनेटर डायनमो मोटर 3D मॉडल ^नया

विवरण

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A diesel engine power generator set, commonly abbreviated as a genset, is an integrated assembly consisting of a diesel engine coupled to an electric generator (alternator or dynamo) to generate electrical energy. It functions as an electromechanical power conversion system, with the diesel engine acting as the prime mover, converting the chemical energy stored in fuel into mechanical rotational energy, which the generator then converts into electrical energy through electromagnetic induction.

### Nomenclature and Component Definition

The terminology associated with these units often varies by region and application:

1. **Diesel Engine (Prime Mover):** A compression-ignition internal combustion engine that supplies the mechanical torque required to rotate the generator shaft. Diesel engines are preferred in gensets due to their high thermal efficiency, durability, and robust performance under varying loads.
2. **Alternator / Generator:** The electrical component that produces AC electricity. Modern gensets almost universally employ synchronous alternators, which feature a rotating magnetic field (rotor) and a stationary winding (stator).
3. **Dynamo:** Historically refers to a direct current (DC) generator. While less common in modern utility or industrial gensets, DC generators are sometimes used in smaller, specialized charging systems.
4. **Motor:** In the context of a genset, the term "motor" is a misnomer, as the primary function of the assembly is power generation, not the conversion of electrical energy into mechanical motion.

### Operational Principles

The operation of a diesel genset is predicated on maintaining a stable rotational speed (RPM) of the engine, as this speed directly dictates the output frequency of the alternator. For standard grid systems, synchronous speeds are fixed: 1500 RPM for 50 Hz systems and 1800 RPM for 60 Hz systems.

#### The Diesel Engine

The prime mover employs compression ignition, where air is heavily compressed in the cylinder, causing its temperature to rise significantly. Diesel fuel is then injected into this hot air, igniting spontaneously. Fuel delivery and engine speed are meticulously controlled by a governing system (either mechanical-hydraulic or electronic) to counteract load fluctuations and maintain constant RPM, thereby ensuring frequency stability within established tolerances (typically ±0.25% for critical applications).

#### The Alternator (Synchronous Generator)

The alternator converts mechanical energy into electricity. Key components include:

* **Rotor:** The rotating element, which creates the magnetic field. This field is established either by dedicated field windings supplied with direct current (DC) via an exciter system or, in smaller units, by permanent magnets.
* **Stator:** The fixed component containing the main output windings, where the voltage is induced by the rotating magnetic field.
* **Automatic Voltage Regulator (AVR):** An electronic circuit that monitors the output voltage and adjusts the exciter current supplied to the rotor windings. The AVR is critical for maintaining stable output voltage regardless of the connected load (power factor).

### System Integration and Ancillary Systems

A comprehensive genset includes several subsystems mounted on a rigid base frame (skid):

1. **Coupling:** The engine and alternator shafts are typically connected via a flexible coupling or integrated into a single-bearing, close-coupled configuration to ensure mechanical alignment and dampen torsional vibrations.
2. **Cooling System:** Most industrial gensets utilize liquid cooling via a radiator and fan assembly, although some larger or marine units employ heat exchangers using external water sources. Proper cooling is vital for maintaining engine efficiency and longevity.
3. **Control Panel:** Houses the instrumentation necessary for monitoring engine parameters (e.g., oil pressure, coolant temperature, RPM), electrical output (voltage, current, frequency, power factor), and safety shutdowns. Advanced units include digital controllers capable of automated start/stop sequences (e.g., Automatic Transfer Switches or ATS).
4. **Enclosure:** Gensets are often housed in weather-resistant and acoustic enclosures to protect components from environmental factors and reduce noise emissions, especially in sensitive urban areas.

### Applications

Diesel generator sets are indispensable sources of electrical power across numerous sectors due to their high power density and reliable startup capabilities:

* **Standby Power (Emergency):** Used in facilities where power interruption is catastrophic, such as hospitals, data centers, airports, and telecommunication hubs.
* **Prime Power:** Providing the sole source of electricity in remote locations, offshore drilling platforms, or mining operations where utility grid connection is impractical or unavailable.
* **Peak Shaving:** Operated by large industrial consumers or utilities to supplement grid power during periods of exceptionally high demand, helping to stabilize energy costs and grid loads.
* **Portable Power:** Smaller, transportable units used in construction sites or temporary event settings.

***

KEYWORDS: Diesel generator set, Genset, Alternator, Prime mover, Compression ignition, Standby power, Prime power, Synchronous speed, Automatic Voltage Regulator, AVR, Excitation system, Stator, Rotor, Governor, Skidding, Backup power, Peak shaving, Emergency power, Thermal efficiency, Medium speed, High speed, Cogeneration, Diesel fuel, Power factor, Kilovolt-ampere, kVA, Megawatt, Cooling system, Frequency regulation, Load bank testing.
