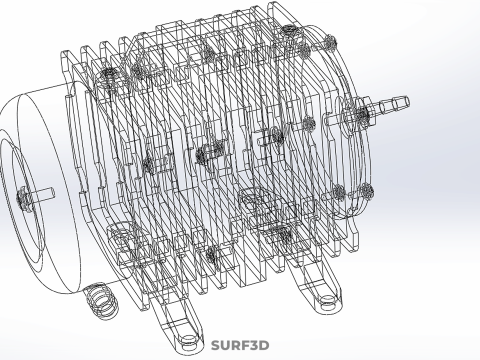

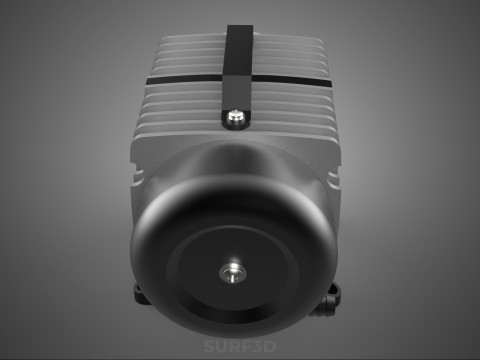

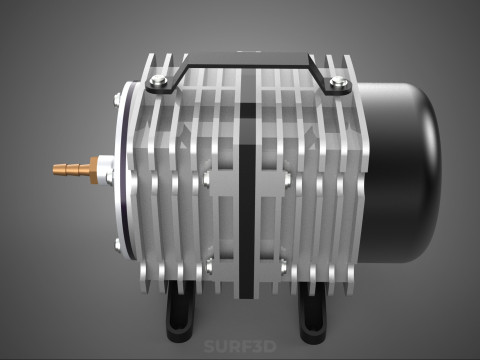

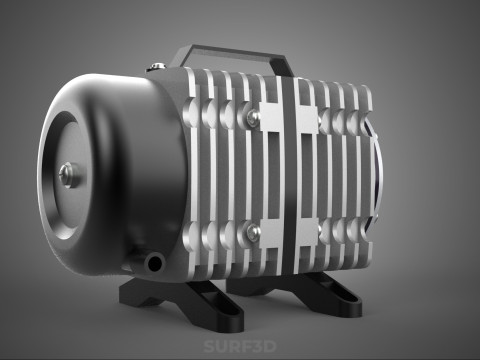

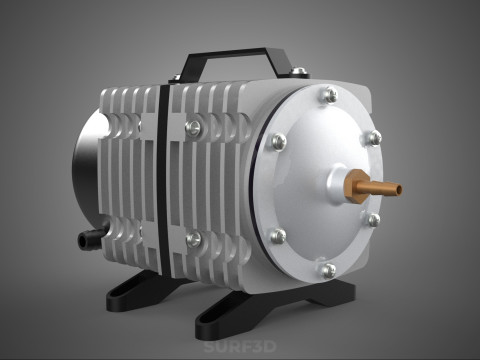

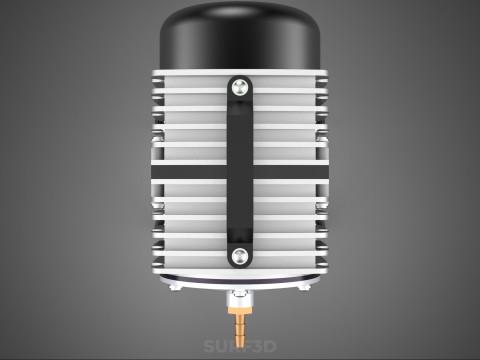

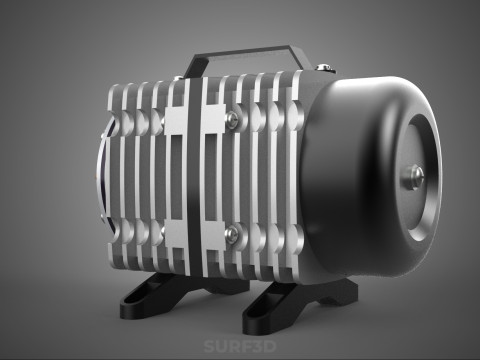

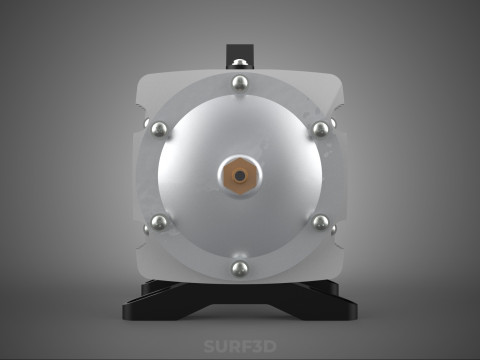

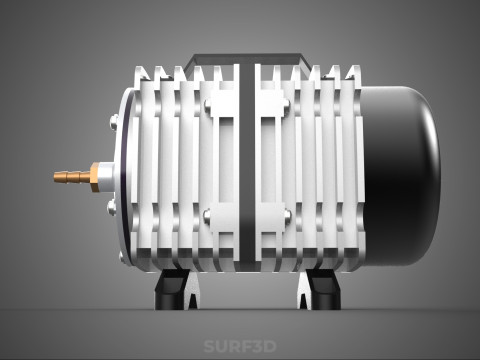

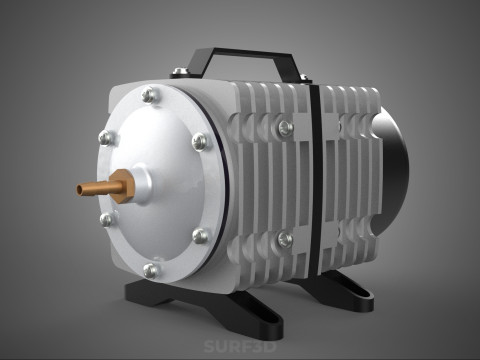

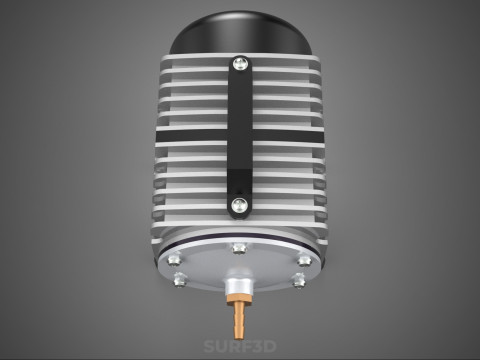

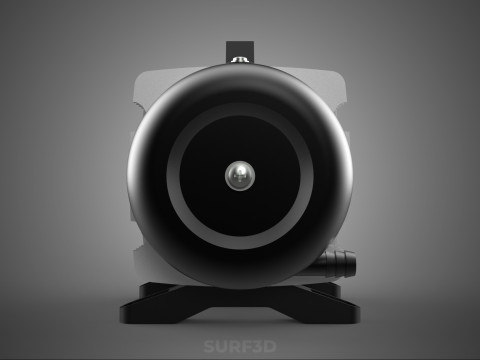

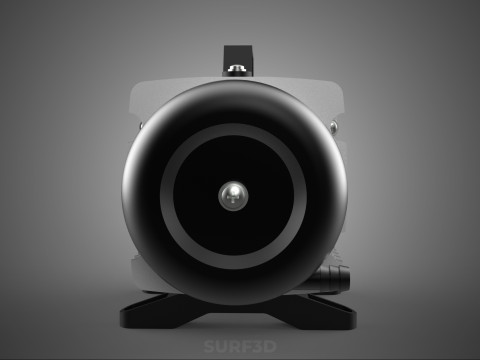

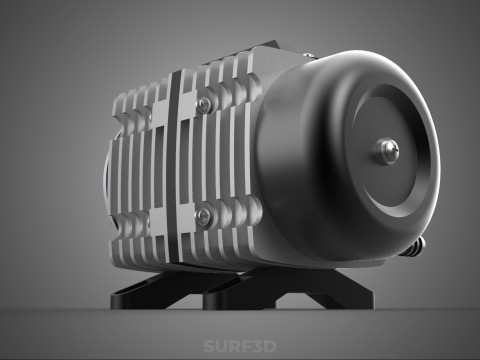

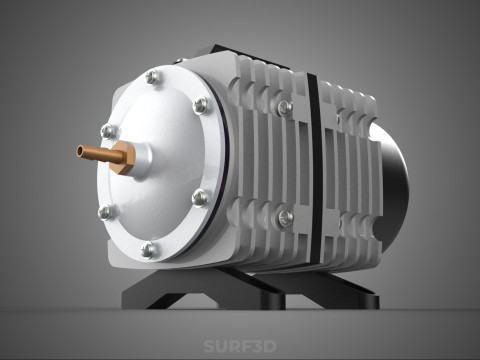

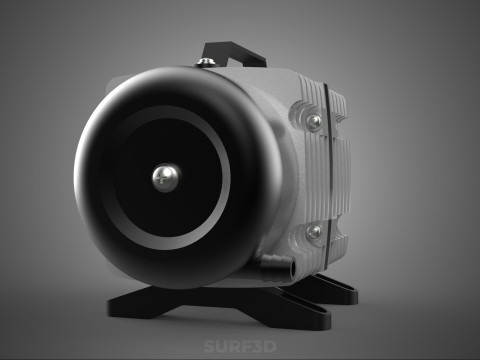

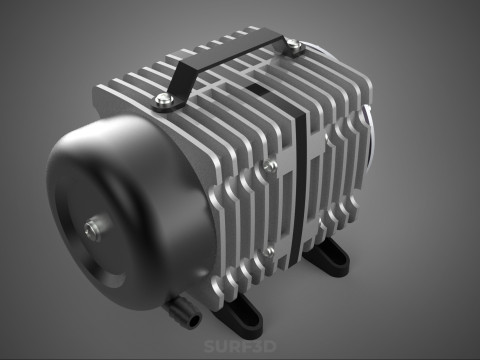

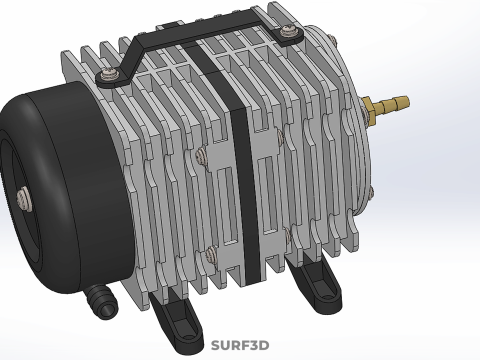

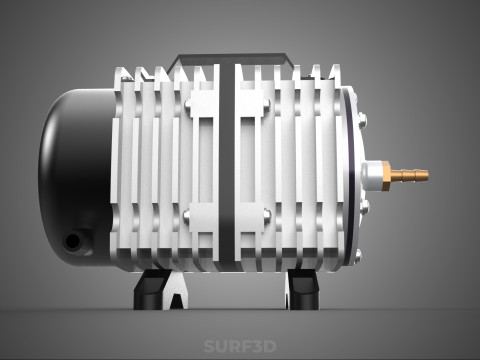

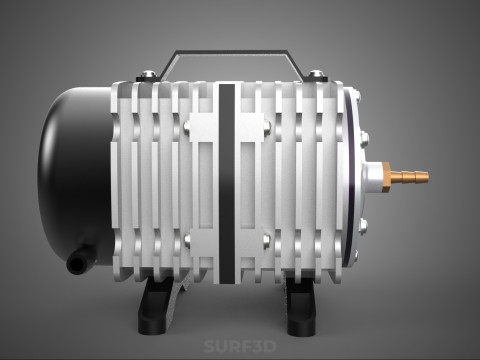

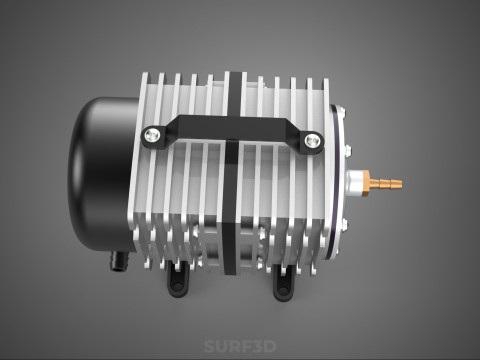

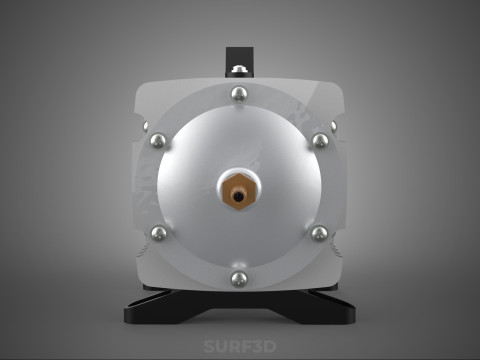

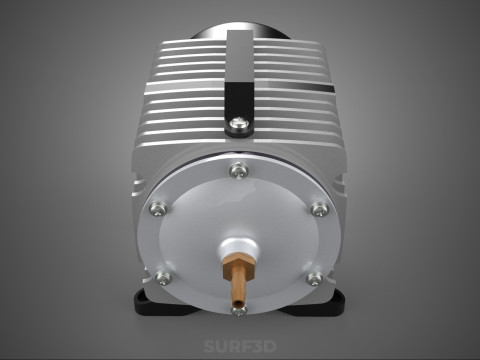

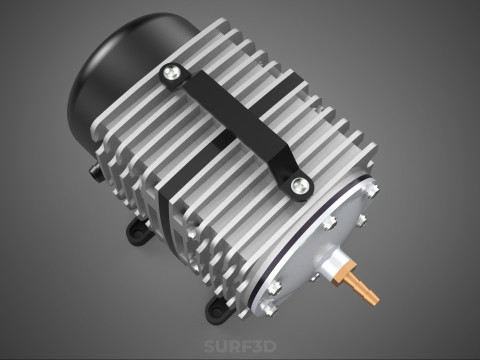

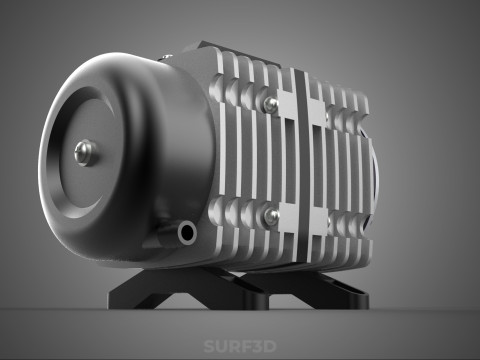

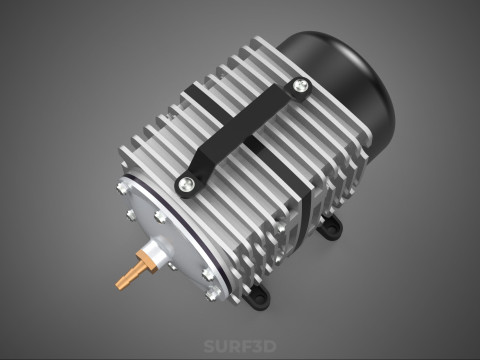

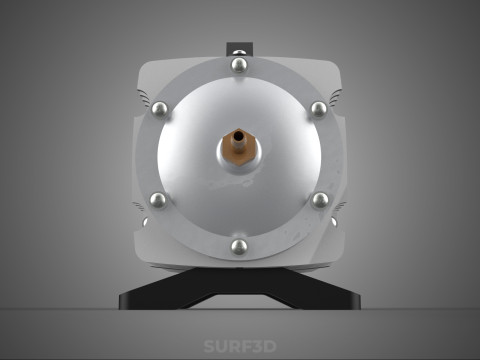

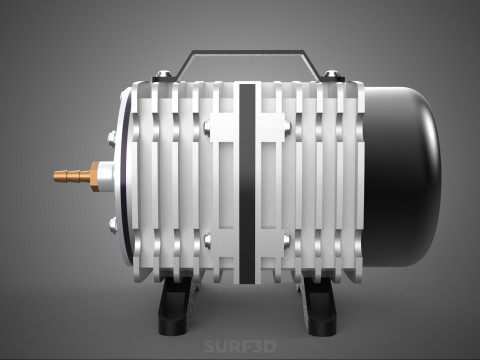

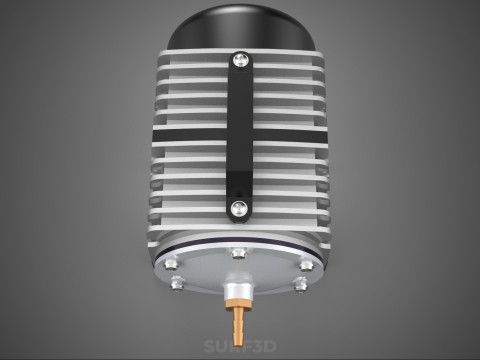

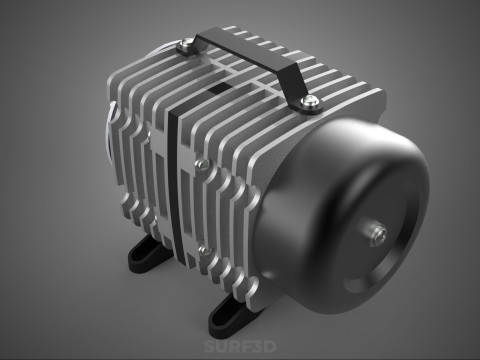

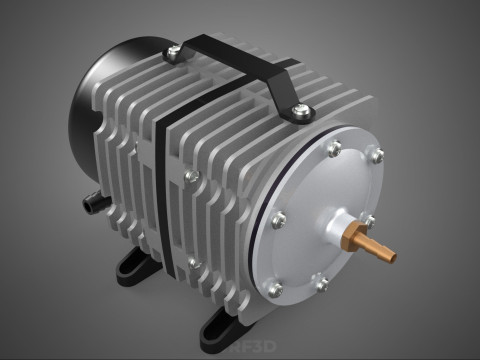

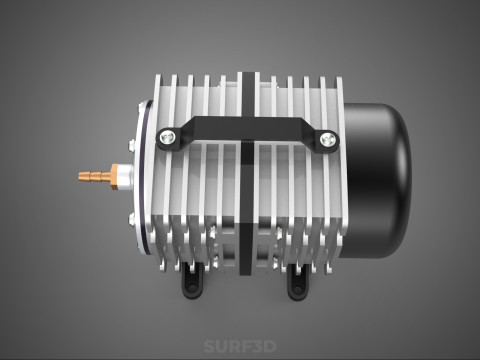

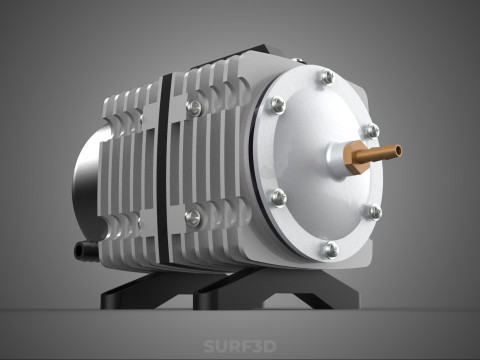

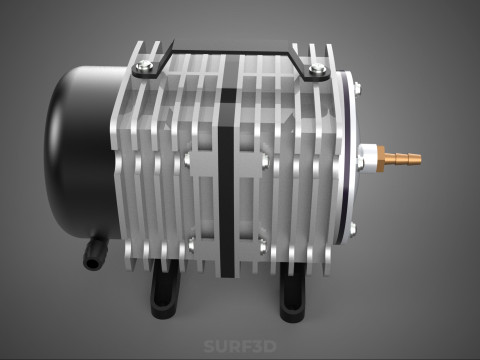

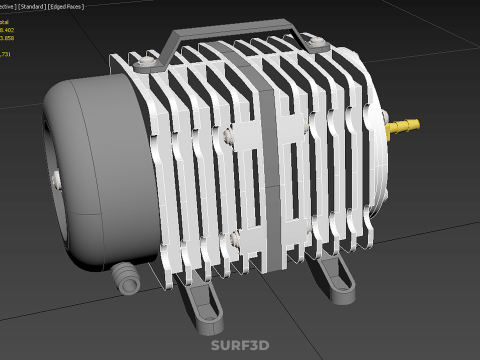

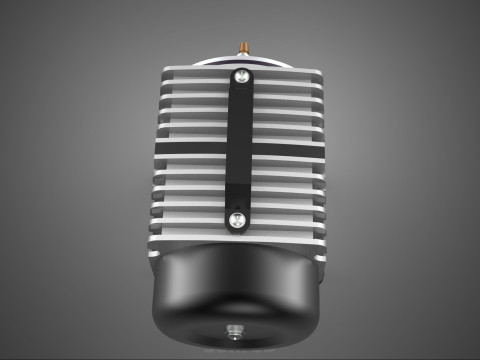

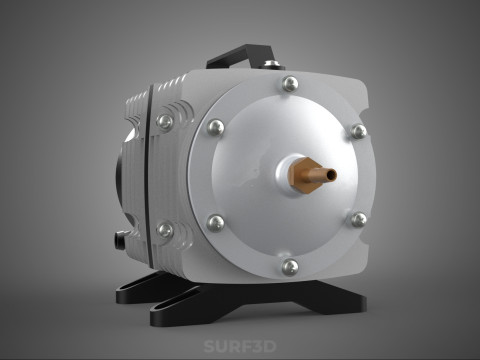

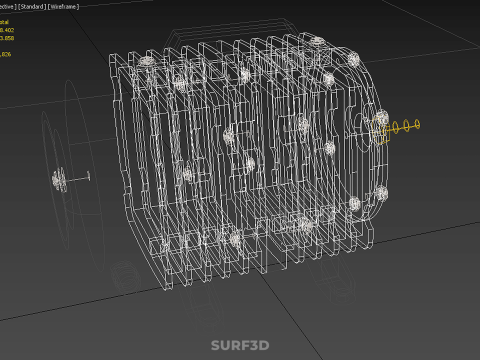

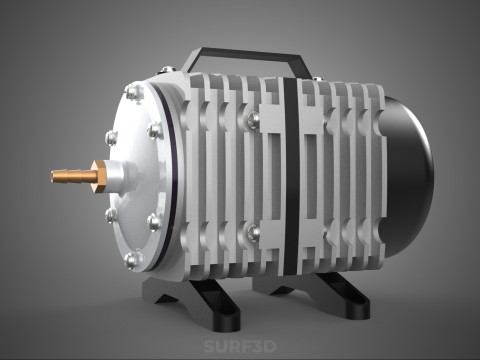

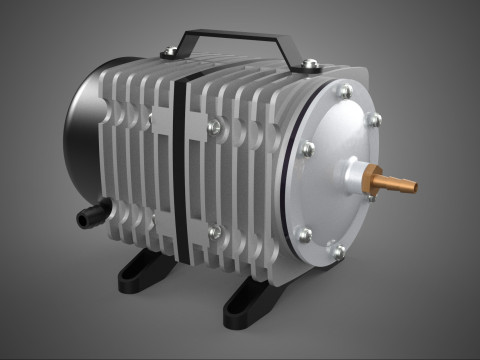

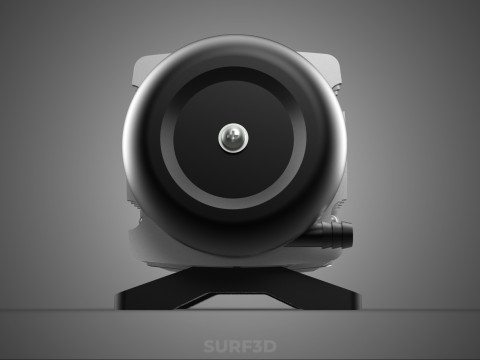

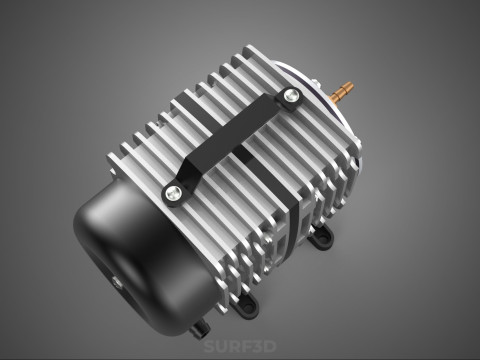

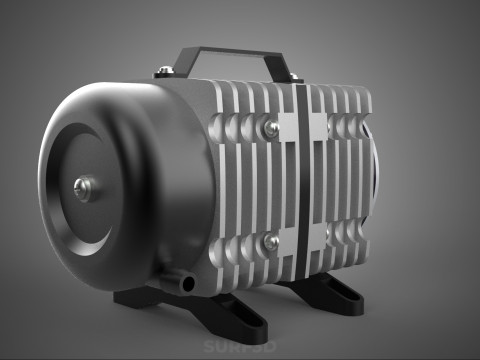

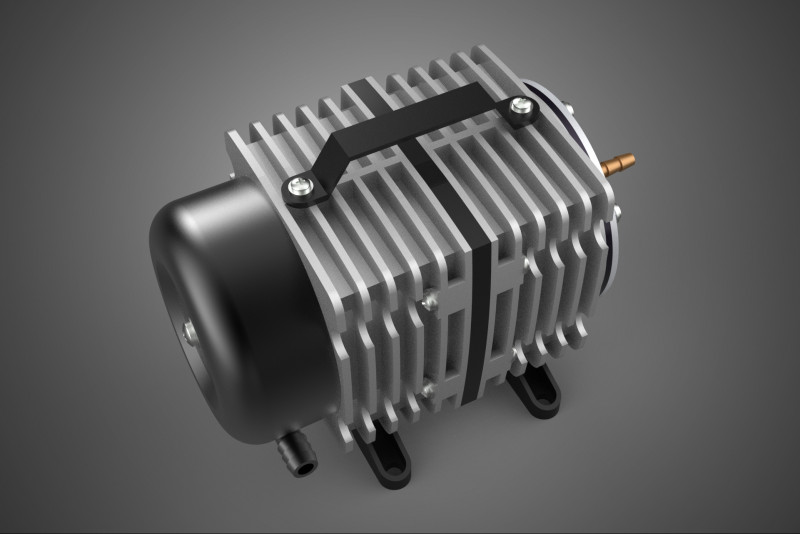

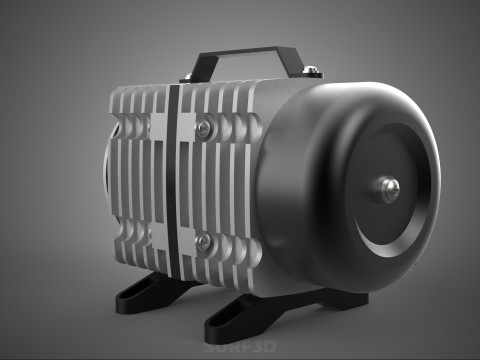

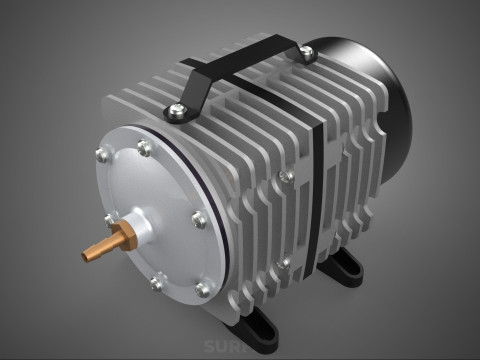

विद्युत चुंबकीय वायु पंप कंप्रेसर ब्लोअर एरेटर मोटर एसीओ 3D मॉडल

विवरण

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The device broadly categorized under the title "ELECTRICAL MAGNETIC AIR PUMP COMPRESSOR BLOWER AERATOR MOTOR ACO" refers to a class of electromechanical fluid dynamic machines engineered for the efficient displacement of gaseous media, primarily atmospheric air, characterized by low-pressure, high-volume output. Often utilized in applications requiring continuous, oil-free airflow, these mechanisms operate based on the principles of electromagnetism to generate linear reciprocating motion.

### Mechanism of Operation (Electromagnetic Drive)

The core operational principle is the conversion of alternating electrical current (AC) into mechanical oscillation without traditional rotating components (like brush motors or centrifugal fans). These devices typically employ a powerful electromagnet surrounding a resilient armature, often suspended by rubber or spring elements.

1. **Solenoid Actuation:** When AC voltage is applied, the solenoid coils generate a rapidly fluctuating magnetic field.
2. **Linear Reciprocation:** This fluctuating field attracts and repels the ferrous armature, causing it to oscillate at the frequency of the power supply (e.g., 50 or 60 Hz).
3. **Diaphragm/Piston Drive:** The oscillating armature is physically connected to either a flexible diaphragm or a close-tolerance piston head situated within an air chamber. The movement forces air through one-way check valves (typically reed valves), creating a pulsing flow.

The design minimizes friction, often eliminating the need for lubrication, rendering the output air inherently "oil-free," a critical requirement for sensitive applications like aquaculture and medical aeration.

### Functional Nomenclature and Classification

The compound name reflects the diverse functions and design characteristics of this equipment:

* **Electrical Magnetic Motor:** Defines the energy source (electrical) and the mechanical driver (electromagnetic oscillation) replacing a conventional rotary motor.
* **Air Pump/Compressor:** Defines the primary function of increasing the pressure of the air. Due to their design limitations, these devices generally produce pressures significantly lower than industrial compressors (typically below 0.5 Bar or 7 PSI). They are best classified as low-pressure compressors or blowers.
* **Blower:** Highlights the capacity for moving large volumes of air (high flow rate, low head pressure), distinguishing them from high-pressure, low-volume compressors.
* **Aerator:** Denotes the common application wherein the pressurized air is used to introduce oxygen into a liquid medium, facilitating biological processes (e.g., wastewater treatment or aquatic life support).
* **ACO (Air Compressor/Aerator):** Often used as a general model series designation by manufacturers (e.g., specific series numbers like ACO-318, ACO-009) to denote high-efficiency linear electromagnetic pumps.

### Technical Characteristics and Applications

These pumps are renowned for high operational stability, relatively low power consumption compared to rotary equivalents, and simplicity of maintenance (mainly periodic diaphragm replacement).

**Key Performance Indicators:**
1. **Flow Rate (LPM/CFM):** Determined by the diaphragm size and stroke distance. These pumps prioritize volume over pressure.
2. **Max Pressure (PSI/Bar):** Limited by the elastic strength of the diaphragm material and the magnetic force. Exceeding the maximum pressure significantly degrades efficiency and component lifespan.
3. **Noise Level:** While inherently generating mechanical vibration, modern designs often utilize sound-dampening enclosures and rubber feet to maintain low operational noise.

**Primary Applications:**
* **Aquaculture and Aquaria:** Providing essential oxygenation (aeration) for fish tanks, ponds, and commercial grow-out systems.
* **Wastewater Treatment:** Agitating and aerating septic systems and small-scale municipal wastewater plants to support aerobic bacterial digestion.
* **Medical and Laboratory Equipment:** Supplying air to air mattresses, certain nebulizers, and analytical instrumentation where oil-free delivery is mandatory.
* **Industrial Processes:** Small-scale pneumatic transfer, agitation, and vacuum packaging systems.

The ELECTRICAL MAGNETIC AIR PUMP (or Linear Diaphragm Pump) represents a highly specialized niche within pneumatic machinery, optimized for continuous, reliable, low-pressure air delivery.
