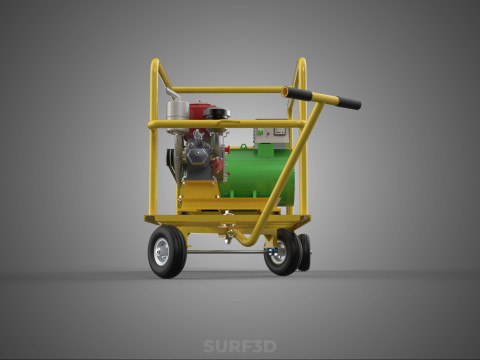

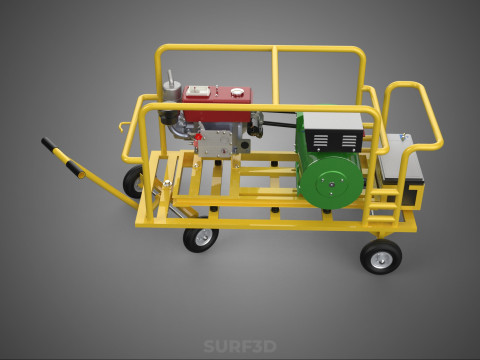

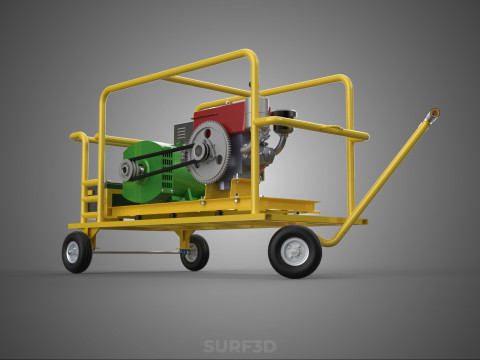

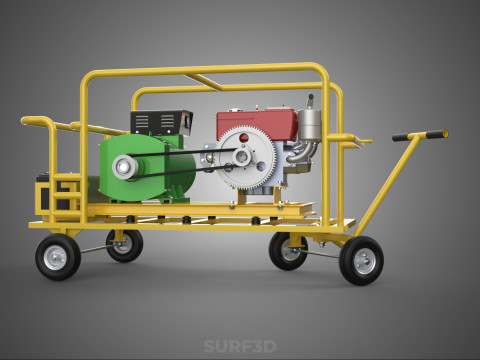

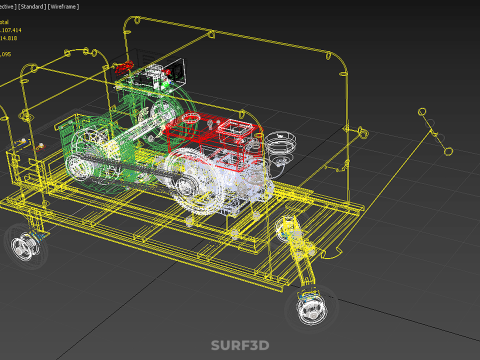

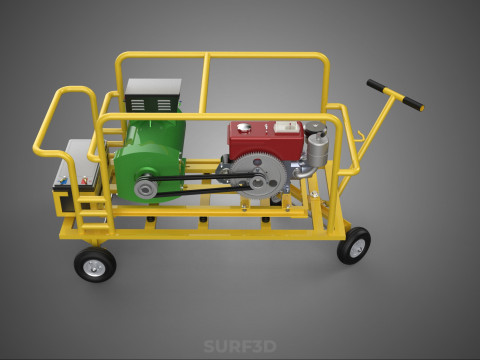

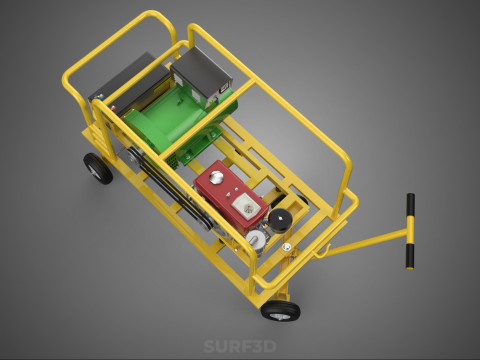

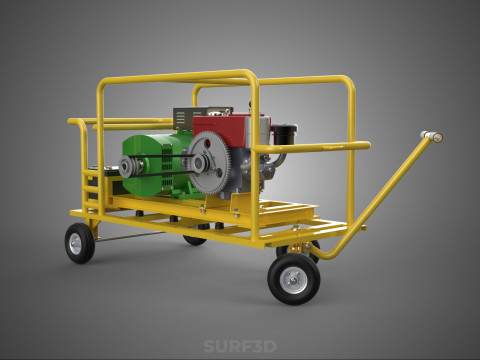

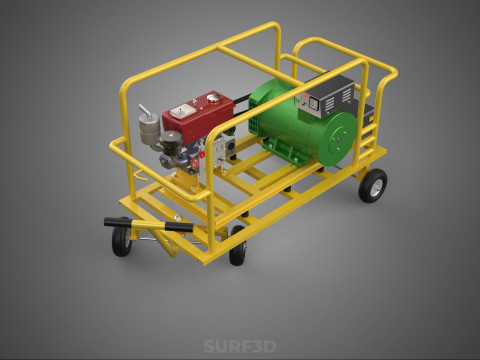

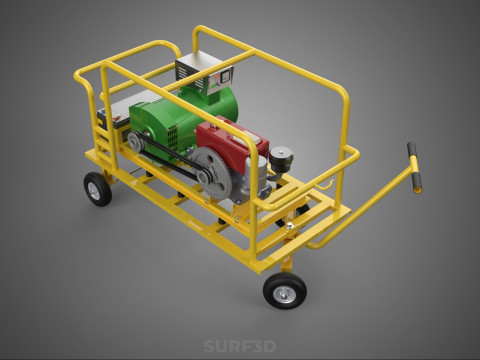

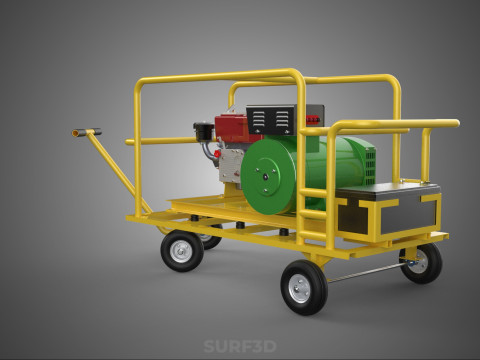

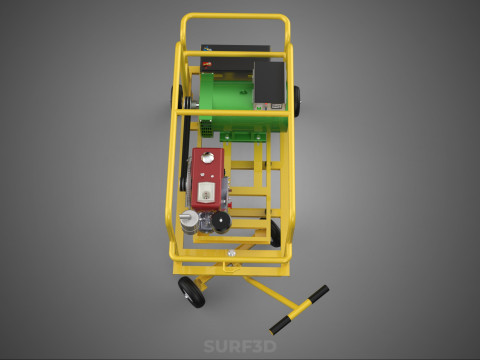

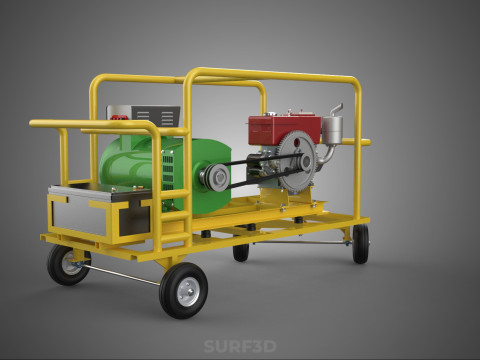

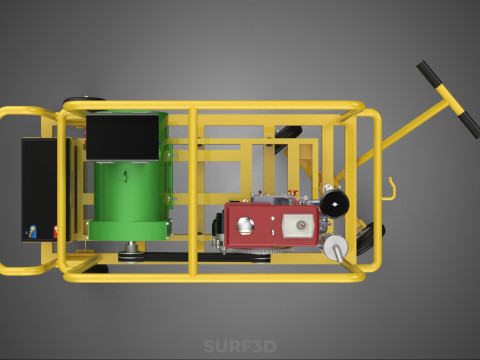

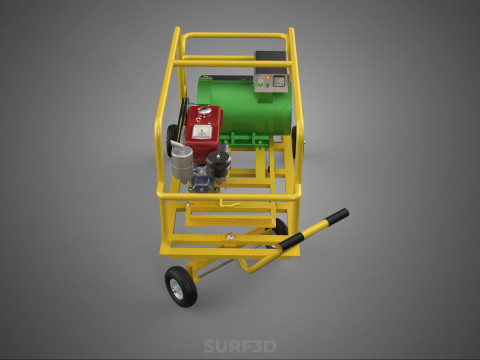

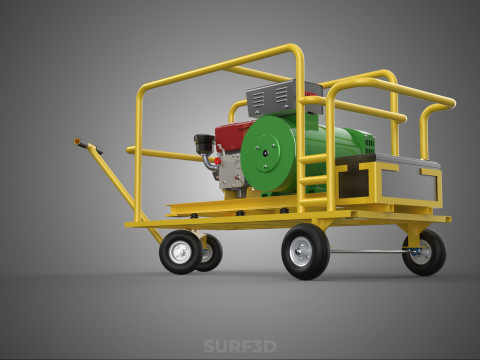

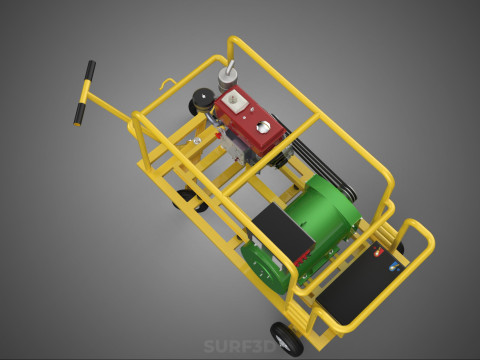

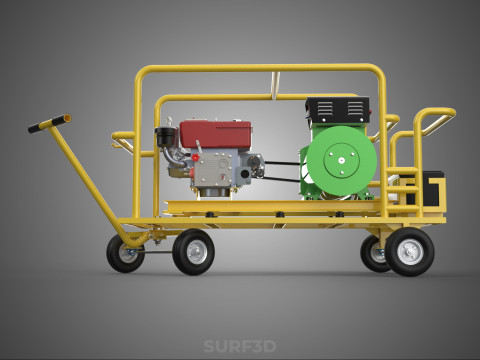

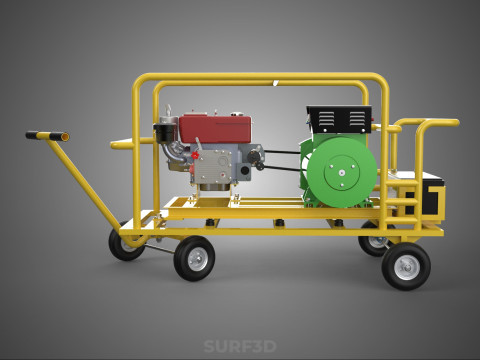

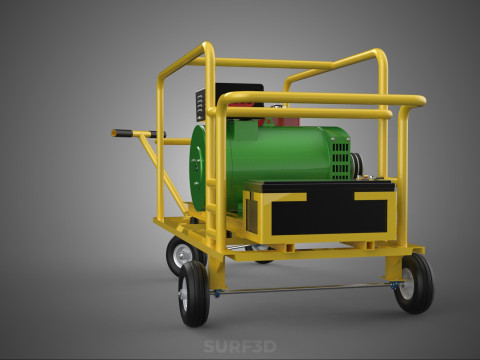

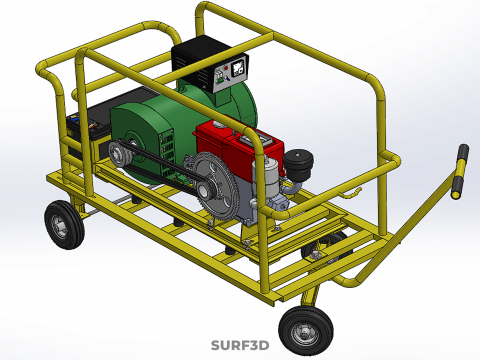

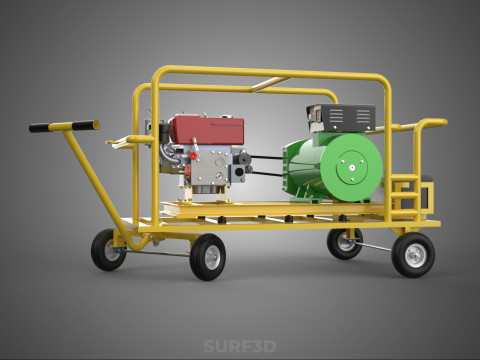

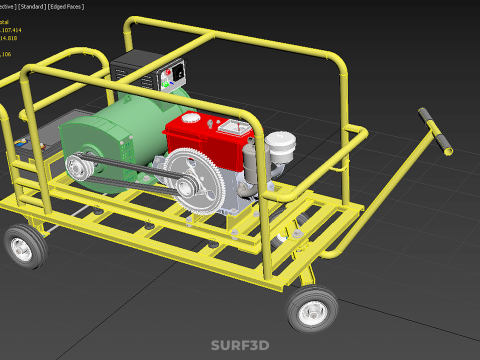

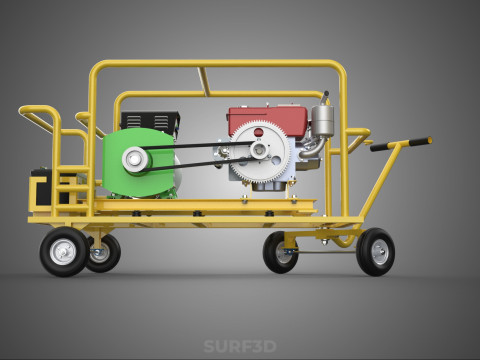

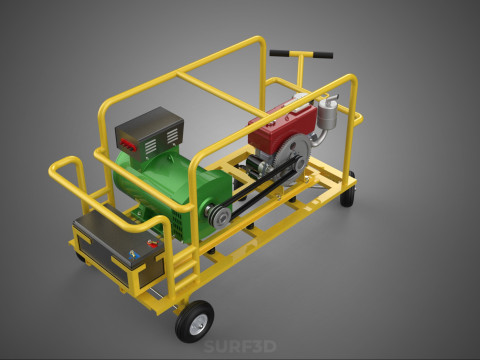

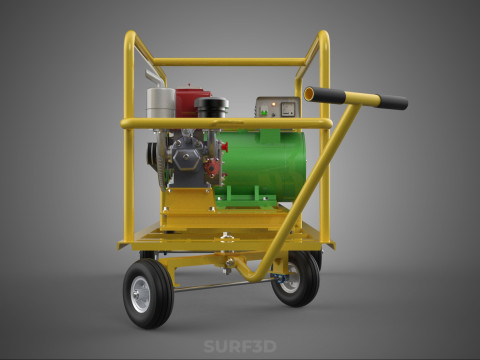

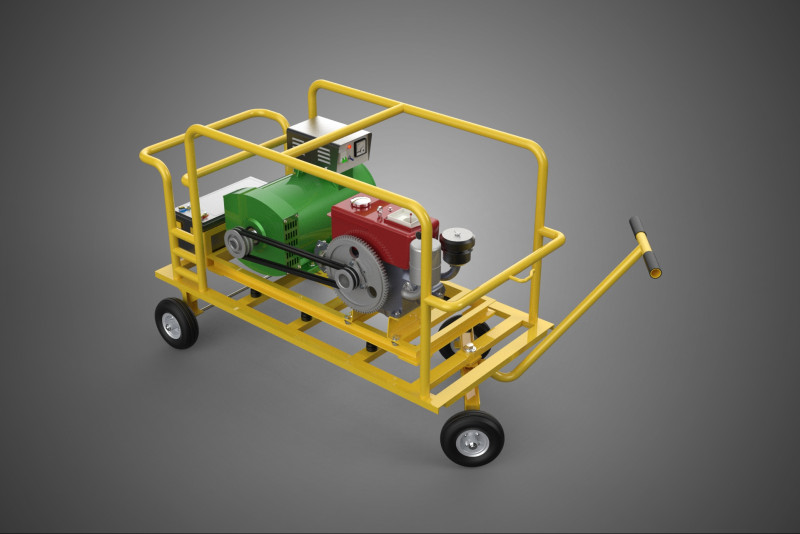

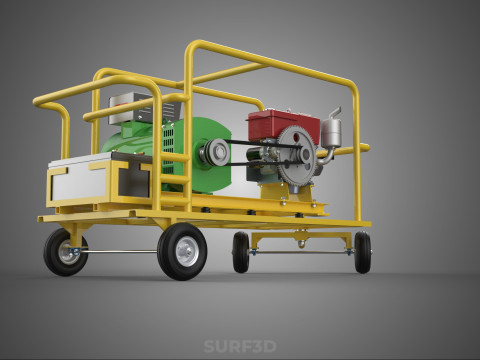

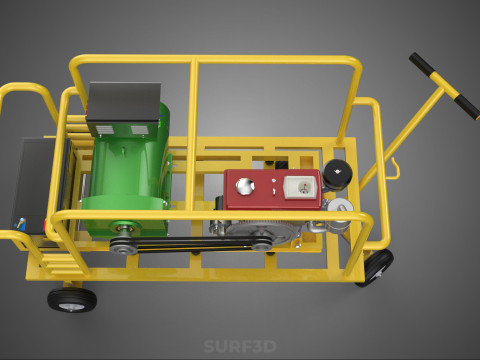

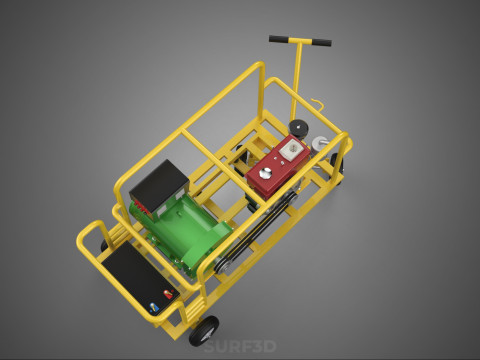

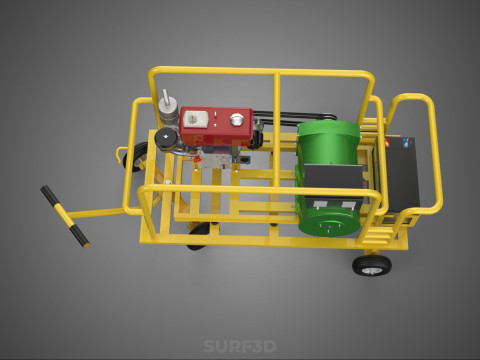

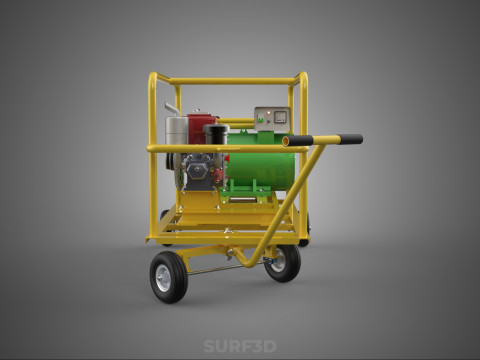

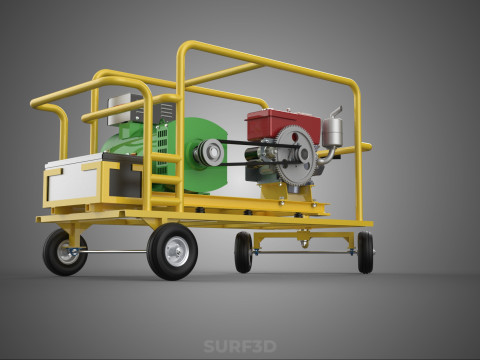

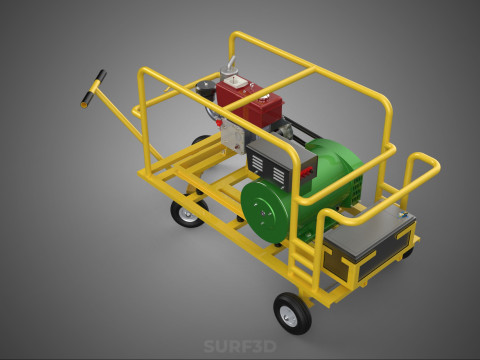

जेनसेट डीजल इंजन पावर जेनरेटर सेट डायनेमो अल्टरनेटर मोटर 3D मॉडल

विवरण

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A **Diesel Generator Set (Genset)** is an integrated system designed to generate electrical power by converting the mechanical energy produced by a diesel engine (the prime mover) into electrical energy via an electrical generator (alternator or dynamo). This apparatus is critical for applications requiring reliable, independent electrical supply, including standby power, primary power in isolated locations, and peak shaving operations.

### Nomenclature and Component Analysis

The title aggregates several distinct and often redundant technical terms, which collectively describe the functionality and components of the system:

**1. GENSET / Power Generator Set:**
Genset is the industry standard acronym for Generator Set. It defines the assembly of the prime mover (the diesel engine) and the electrical machine (the alternator) mounted together on a common base frame, typically including a fuel supply, cooling system, exhaust system, and control panel. These systems are rated based on their output capacity, usually measured in kilovolt-amperes (kVA) or megawatts (MW).

**2. Diesel Engine (The Prime Mover):**
The diesel engine operates on the principle of compression ignition, where air is highly compressed within the cylinder, raising its temperature above the ignition point of the injected diesel fuel. It serves as the prime mover, transforming the chemical energy stored in the fuel into rotational mechanical energy, which is subsequently input to the generator shaft. Diesel engines are favored in generation applications due to their high thermal efficiency, durability, robustness, and ability to handle rapid load changes. Engine speed is precisely regulated by a governor system to maintain a constant output frequency (e.g., 50 Hz or 60 Hz).

**3. Alternator / Dynamo (The Electrical Generator):**
This component converts the mechanical energy from the engine into electrical energy through electromagnetic induction.

* **Alternator:** In modern Gensets, the alternator is almost universally a **synchronous AC generator** that produces alternating current (AC). It operates using a rotor (which creates the rotating magnetic field, often via an excitation system) and a stator (where the voltage is induced). The output voltage and frequency must be tightly controlled for stability and synchronization with existing grids, if applicable.
* **Dynamo:** This term refers to an electrical machine that specifically produces direct current (DC). While dynamos were used in early generation technology, they are rare in modern high-capacity Gensets, although the term is occasionally used colloquially to refer generally to any electrical generator.

**4. Motor:**
The inclusion of "Motor" in the aggregate description is technically inaccurate regarding the generator’s primary function. A motor is a device that converts electrical energy into mechanical energy (the reverse of a generator). However, this term may be associated with:
a) The integrated electrical **starting motor** required to initiate the diesel engine’s compression cycle.
b) The operational principle of a synchronous machine, which can function reversibly as a motor or a generator depending on the direction of power flow (a characteristic relevant only when synchronized to a grid).

### Operational Principles

The operation of a Genset relies on a synchronized energy conversion cycle:

1. **Fuel Delivery and Combustion:** Diesel fuel is injected and combusted under high compression within the engine cylinders, producing torque.
2. **Mechanical Coupling:** The crankshaft rotation (mechanical energy) is transferred directly to the alternator rotor.
3. **Electromagnetic Induction:** The rotating magnetic field of the rotor cuts across the windings of the stator, inducing voltage and current (electrical energy).
4. **Regulation:** Control systems monitor and adjust the engine governor (to stabilize frequency) and the alternator's automatic voltage regulator (AVR) and excitation system (to stabilize output voltage) to meet load demands precisely.

### Applications

Diesel Gensets are deployed across various critical sectors:

* **Standby/Emergency Power:** Installed in hospitals, data centers, and commercial buildings, they activate automatically via an Automatic Transfer Switch (ATS) upon utility power failure.
* **Prime Power:** Used as the sole source of electricity in remote locations (e.g., mining camps, islands) where connection to a central grid is economically or physically impractical.
* **Distributed Generation (DG) / Peaking Power:** Used by utilities or large industrial consumers to generate power only during periods of peak electrical demand, thereby reducing costs associated with high grid tariffs.
* **Portable Power:** Smaller units mounted on trailers are used for temporary power supply on construction sites or during disaster relief operations.

***
