컴팩트 FPV 카메라 시스템 3D 프린트 모델 ^신규

설명

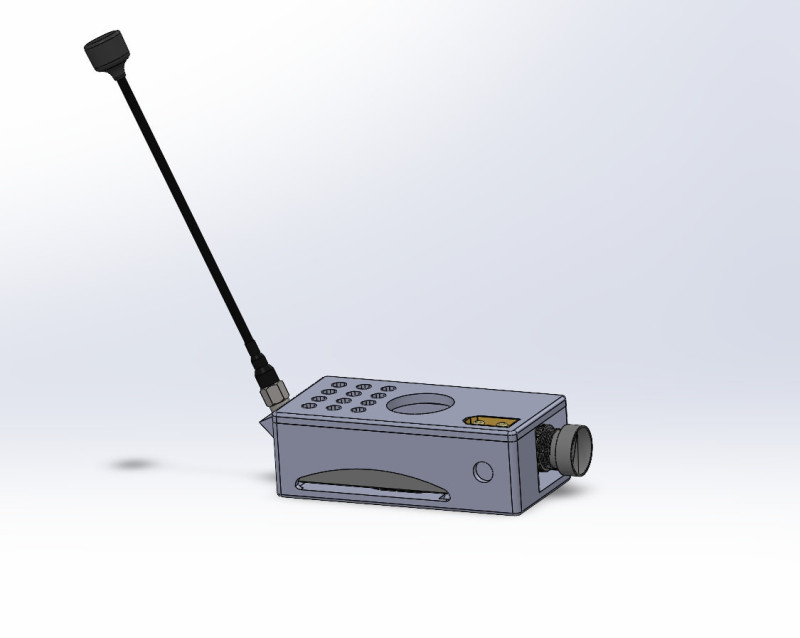

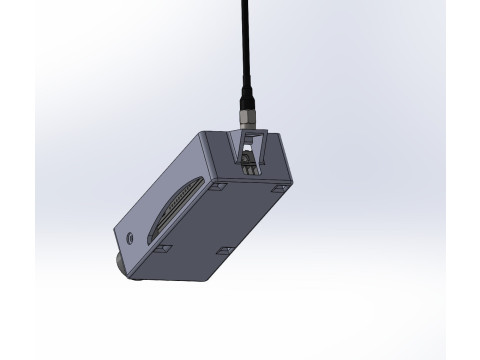

This compact and lightweight case is designed to house any FPV camera and VTX module, with a convenient XT60 connector for easy power supply. It's a perfect tool for any FPV enthusiast or field tester, allowing long-range video transmission from a remote location.

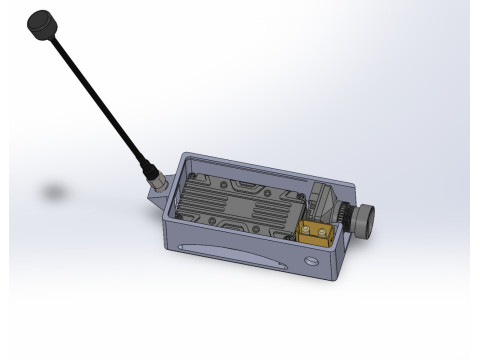

The VTX can be secured using zip ties inside the case. For optimal performance and heat management, it's recommended to install a small cooling fan on top.

Ideal for quick setups, remote camera placement, or experimental FPV systems, this discreet enclosure keeps everything protected and organized.

3D-Printing:

Wall:

Wall Loops: 5

Top/Bottom Shells:

Top Surface Pattern: Hilbert Curve

Top Shell Layers: 4

Top Shell Thickness: 0.8 mm

Bottom Surface Pattern: Monotonic

Bottom Shell Layers: 4

Bottom Shell Thickness: 0 mm

Infill:

Infill Density: 55%

Sparse Infill Pattern: Gyroid

Internal Solid Infill Pattern: Monotonic

Apply Gap Fill: Everywhere

Support:

Enable Support: Yes

Support Type: Tree (Auto)

Threshold Angle: 10°

Support Placement: On Build Plate Only

Material:

Filament: PETG
