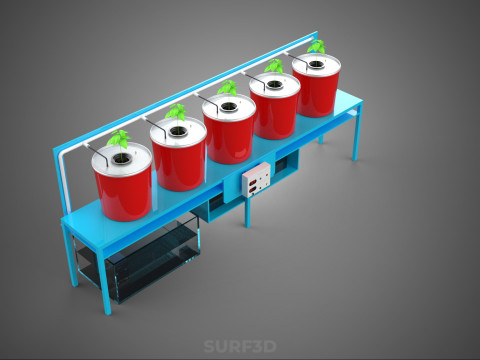

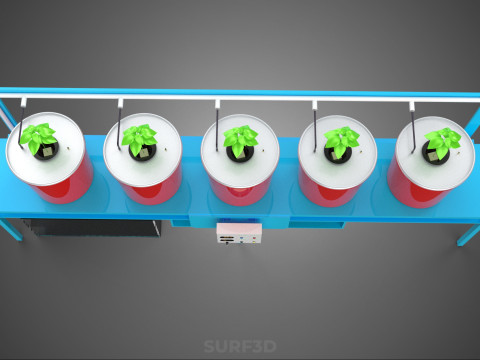

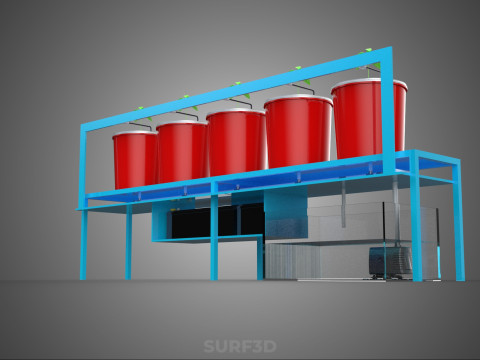

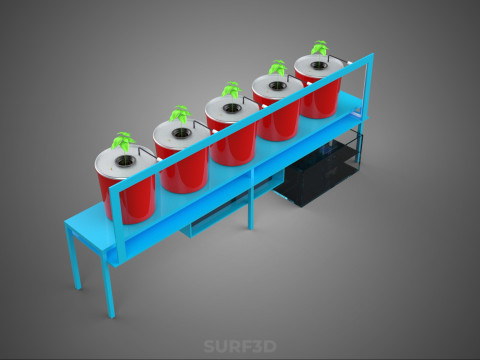

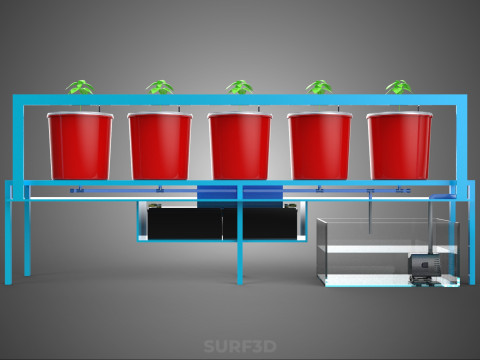

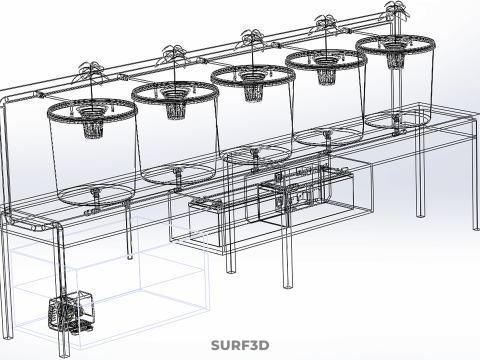

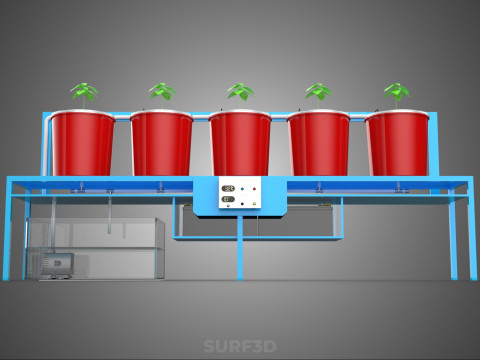

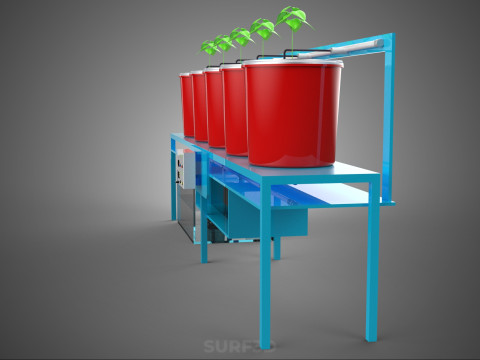

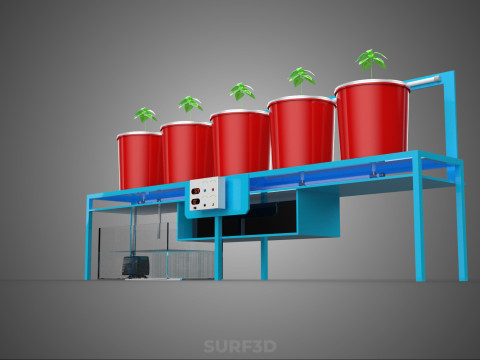

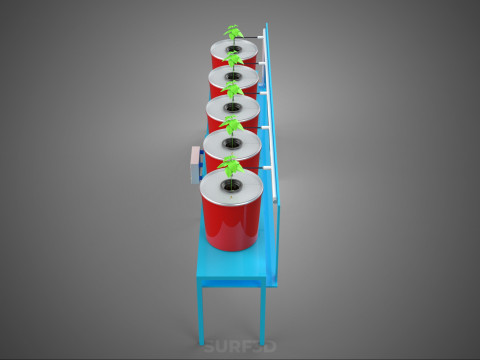

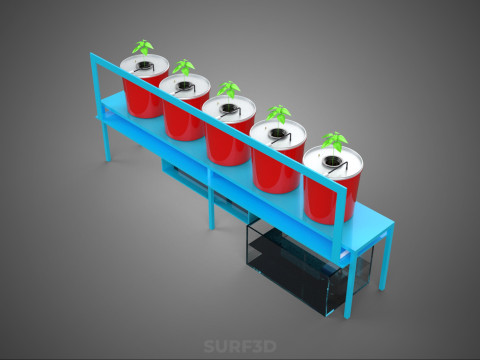

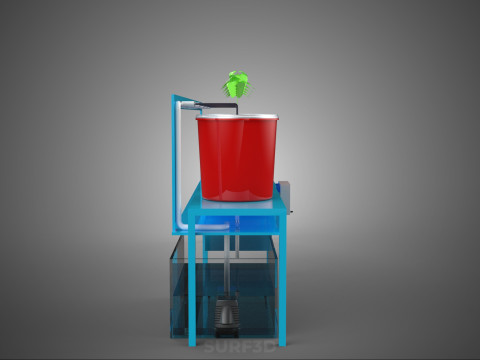

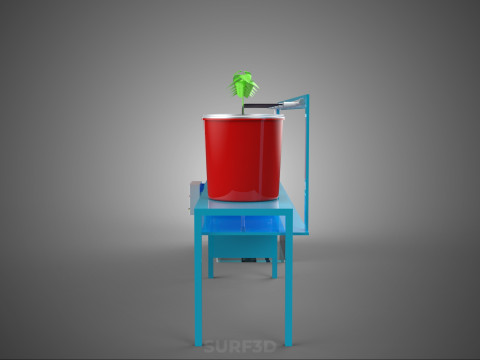

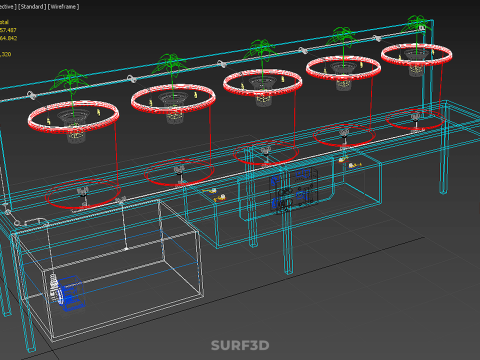

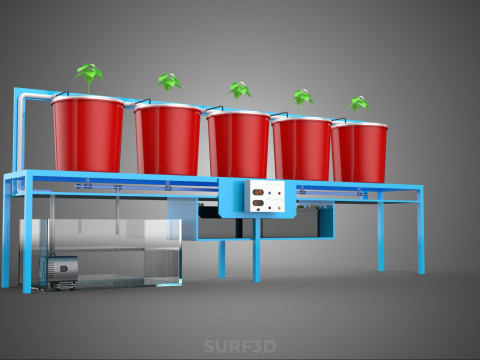

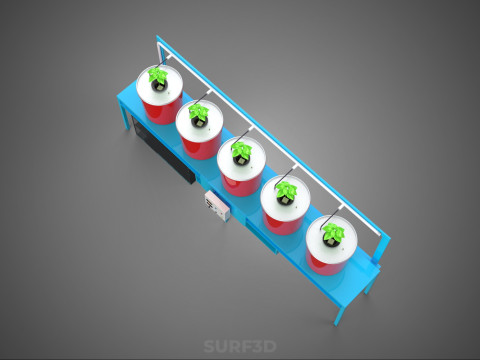

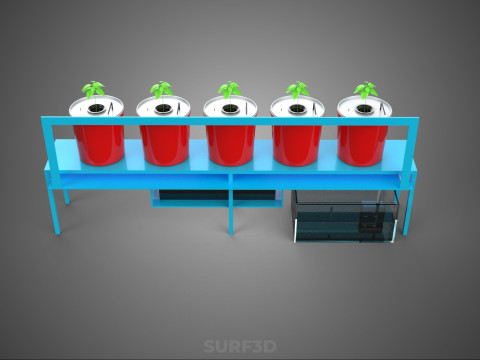

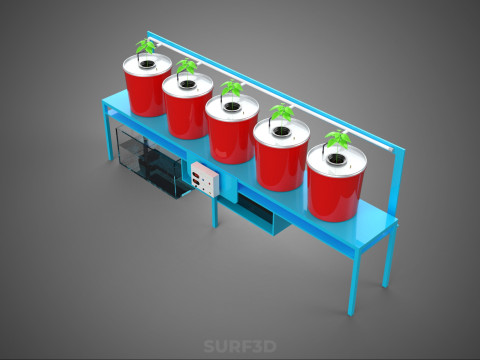

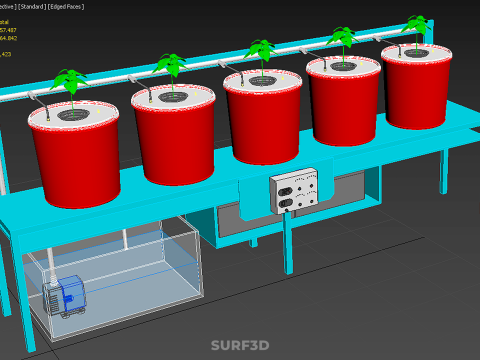

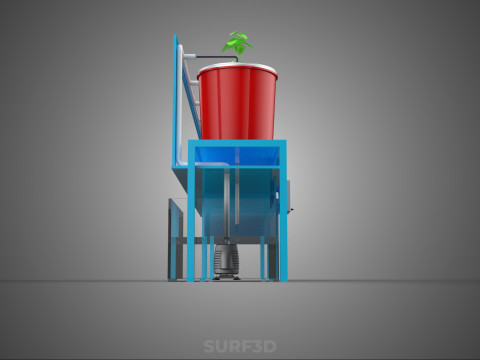

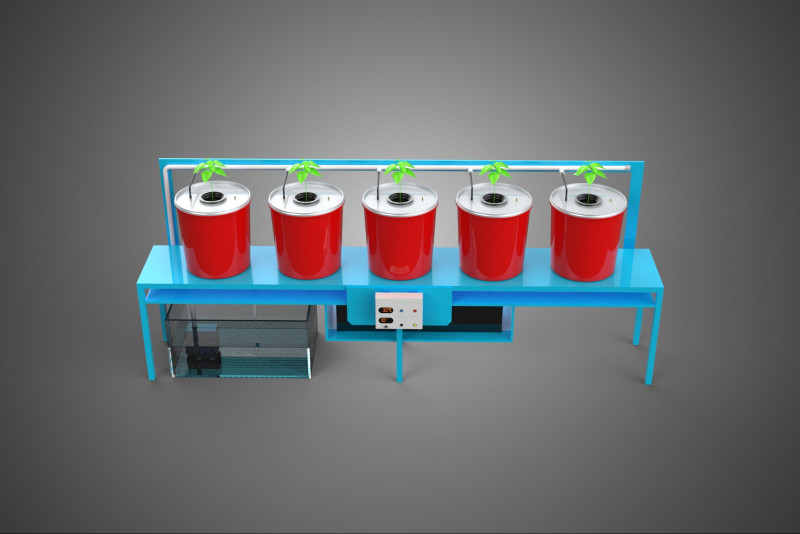

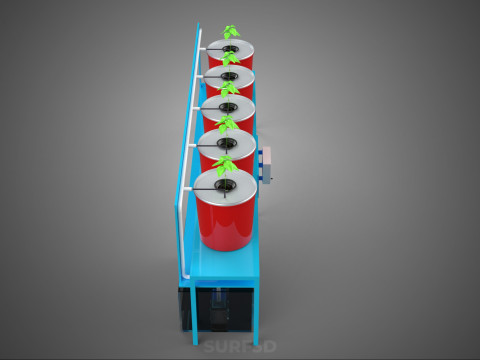

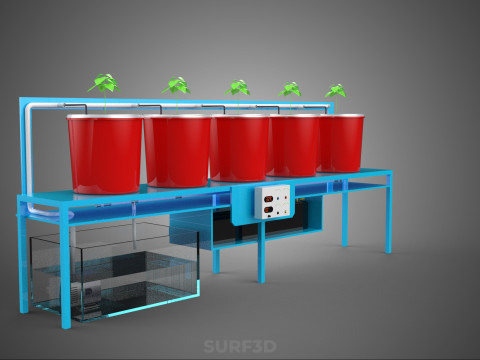

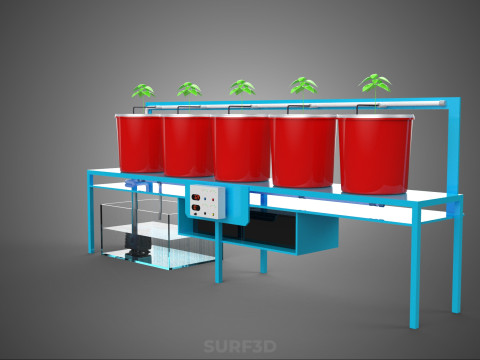

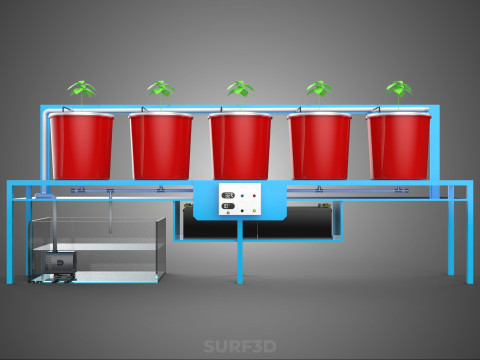

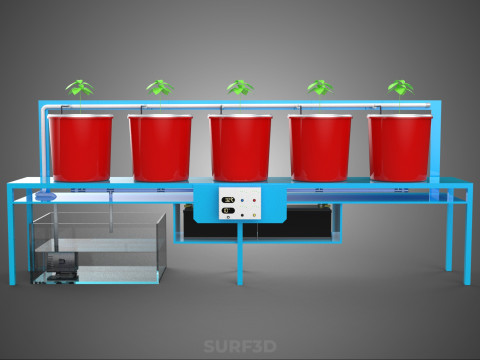

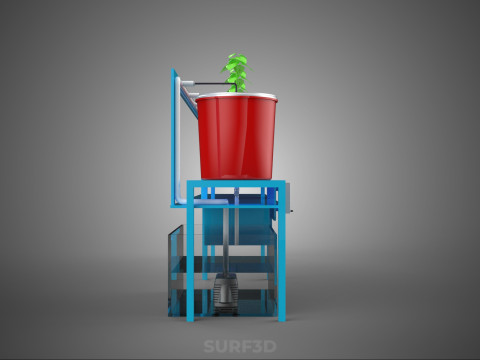

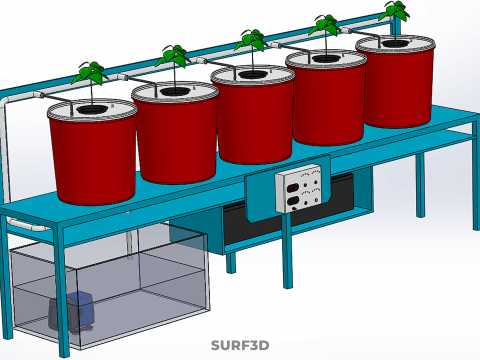

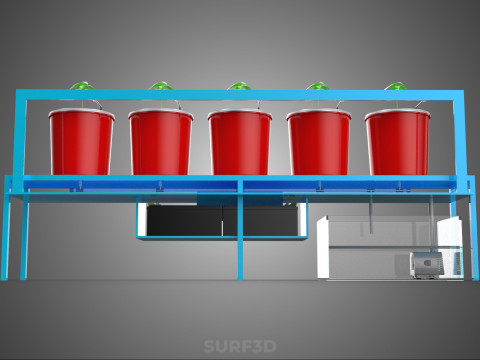

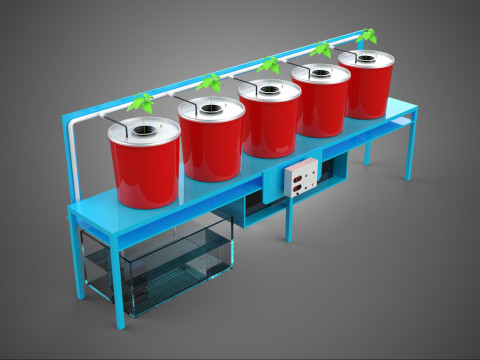

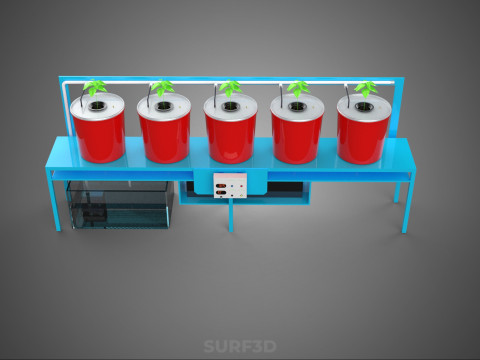

IOT 자동 재순환 더치 버킷 수경재배 시스템 3D 모델

설명

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The IOT Auto Recirculating Dutch Bucket Hydroponic Aeroponic System represents a sophisticated integration of Controlled Environment Agriculture (CEA) techniques, leveraging Internet of Things (IOT) technology for automated monitoring and precision management of crop cultivation. This system is designed primarily for high-yield production of large, vining crops such as tomatoes, cucumbers, peppers, and various fruit-bearing plants, offering significant advancements in resource efficiency compared to traditional agriculture.

### System Architecture and Mechanism

The core physical structure is based on the Dutch Bucket method, also known as the Bato Bucket system. In this closed-loop hydroponic configuration, individual containers (buckets) are filled with an inert, non-soil medium (e.g., perlite, coco coir, rockwool) which provides physical support for the plant roots while offering high drainage capacity.

**Recirculation and Nutrient Delivery:**
Nutrient solution, formulated to specific macro and micronutrient requirements, is stored in a central reservoir. A pump system delivers the solution via drip emitters directly to the base of each plant bucket on a scheduled, intermittent basis. The solution permeates the inert substrate, delivering moisture and nutrients to the roots. Excess solution drains from the bottom of the bucket via siphonic elbows or drain lines and is returned to the main reservoir for filtration, replenishment, and reuse. This **auto recirculating** mechanism minimizes water and nutrient waste, establishing a highly efficient closed-loop system.

**Hydroponic-Aeroponic Hybridization:**
While the Dutch Bucket method is fundamentally a recirculating deep-culture or drip-hydroponic technique, the designation "Aeroponic" in this hybrid system refers to the optimization of the root zone environment. This typically involves maximizing the **Dissolved Oxygen (DO)** content in the nutrient solution through vigorous aeration apparatus (e.g., air stones, venturi injectors) and ensuring high root zone air exposure (air pruning) between drip cycles. For some advanced implementations, fine misting nozzles may be incorporated below the substrate line to enhance oxygenation and nutrient absorption, a technique bridging true aeroponics and standard hydroponics.

### IOT Integration and Automation

The system’s advanced capabilities stem from its IOT infrastructure, which utilizes a network of sensors, microcontrollers, and cloud connectivity to establish a comprehensive feedback control loop.

**Sensor Monitoring:**
Critical parameters of the nutrient solution and growing environment are continuously monitored by high-precision sensors. These include:
1. **Electrical Conductivity (EC):** Measures the concentration of dissolved nutrient salts.
2. **pH Level:** Determines the acidity or alkalinity, crucial for nutrient uptake efficiency.
3. **Temperature (Solution and Ambient):** Impacts root health and metabolism.
4. **Dissolved Oxygen (DO):** Directly correlates with root respiration and health.
5. **Humidity and Light Intensity (DLI/PAR):** Managed for optimal photosynthetic activity.

**Actuation and Control:**
Sensor data is transmitted to a centralized IOT gateway or micro-controller unit (MCU). The MCU processes the data and executes automated corrective actions. Automation functions include:
* **Nutrient Dosing:** Peristaltic pumps automatically inject concentrated stock solutions (A, B, and pH regulators) to maintain target EC and pH levels.
* **Water Management:** Automated refilling of the reservoir to compensate for evapotranspiration losses, ensuring solution stability.
* **Environmental Regulation:** Automated control of LED lighting spectra, ventilation fans, humidifiers, or HVAC systems based on ambient sensor data.

**Data and Remote Access:**
All operational data is logged and transmitted to a cloud server or local database. This connectivity allows cultivators to remotely monitor system health, adjust schedules, and override automated settings via web or mobile applications. Furthermore, the extensive data collection supports predictive analytics, enabling optimization of nutrient recipes and proactive identification of system anomalies.

### Advantages and Applications

The IOT Auto Recirculating Dutch Bucket system offers several distinct benefits:

1. **Precision Agriculture:** Provides granular control over the root environment, leading to minimized nutrient stress and optimized yields.
2. **Resource Efficiency:** Achieves up to 90% reduction in water usage compared to soil-based farming due to the closed-loop recirculation.
3. **Scalability:** The modular nature of Dutch Buckets allows for easy expansion in commercial vertical farms or large-scale greenhouses.
4. **Reduced Labor:** Automation of nutrient adjustments, pH balancing, and irrigation cycles significantly lowers manual intervention requirements.
