FOLDING HYDRAULIC JIB CRANE MANUAL HAND CRANK WINCH TRUCK PICKUP 3D Модель
$69.00 -50%
$ 34.50
Видалити! Додати в закладки
  • Доступні формати:
    GLB (.glb / .gltf) 6.41 MB
    ACIS(.sat) 15.85 MB
    Blender3D (.blend) 13.02 MB
    Collada (.dae) 13.02 MB
    Autodesk 3DS MAX (.max) 27.99 MB
    Autodesk AutoCAD (.dwg) 18.91 MB
    STEP (.step) 7.77 MB
    3D Studio (.3ds) 4.98 MB
    Rhinoceros (.3dm) 33.17 MB
    Wavefront OBJ (.obj) 10.03 MB
    Autodesk FBX (.fbx) 16.98 MB
    IGES (.iges) 8.17 MB
    Stereolithography (.stl) 10.32 MB
    SketchUp (.skp) 12.38 MB
  • Полігони:
    743623
  • Вершини:
    564820
  • Анімована:
    No
  • Текстури:
    No
  • Скелет:
    No
  • Матеріали:
  • Лоу-полі:
    No
  • Колекція:
    No
  • UVW зображення:
    No
  • Плагіни:
    No
  • Готовність до друку:
    No
  • 3D Скан:
    No
  • Зміст для дорослих:
    No
  • PBR:
    No
  • ШІ Навчання:
    No
  • Геометрія:
    Poly NURBS
  • Розгорнуті UVs:
    Unknown
  • Перегляди:
    198
  • Дата: 2025-08-16
  • ID Товару:
    592919

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

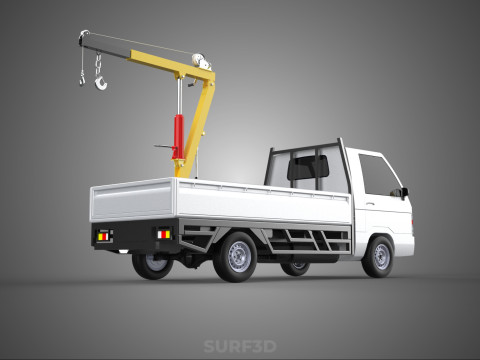

A "Folding Hydraulic Jib Crane with Manual Hand Crank ***ch Attached on a Truck Pickup" describes a specialized, vehicle-mounted lifting apparatus. This integrated system combines the versatility of a jib crane, the power of a hydraulic lift mechanism, the manual control of a hand-cranked ***ch, and the mobility of a pickup truck, primarily designed for localized material handling and lifting tasks in diverse environments. Its folding capability enhances transport and storage efficiency.

The core of the system is the **jib crane**, comprising a vertical mast or column affixed to a robust **mounting base** within the truck bed, and a horizontally extending **boom** (or jib) that can be articulated. The **folding mechanism** typically involves hinged sections in the boom or mast, allo***g it to collapse into a more compact form when not in use, reducing its profile for travel or storage. The **hydraulic system** is central to its lifting and luffing (raising/lowering the boom) capabilities. This system includes a hydraulic pump (either manually operated via a lever or electrically driven by the truck's power), hydraulic cylinders (single or double-acting) that extend and retract to articulate the boom and lift the load, a reservoir for hydraulic fluid, and associated control valves. The **manual hand crank ***ch** is typically mounted on the boom or mast. It consists of a drum, a hand crank for manual rotation, a gearing system for mechanical advantage, and a cable or rope with a hook. This ***ch provides an independent or supplementary means of hoisting loads, particularly beneficial for precise positioning, lighter loads, or in scenarios where hydraulic power is not preferred or available. The **attachment mechanism** secures the crane to the truck pickup's bed, often utilizing a reinforced mounting plate bolted through the truck bed to the chassis or an integrated subframe, ensuring stability during operation.

Operation involves deploying the crane by unfolding its sections and securing them. Hydraulic power is then activated to raise the boom to the desired height and extend its reach. The load is attached to the hoist hook. Lifting can be performed either by the hydraulic cylinder, which raises the entire boom, or by the manual hand crank ***ch, which independently raises or lowers the load hook along the boom's length. Articulation (sle***g) of the jib is often manual, allo***g the operator to s***g the boom horizontally over the work area. The folding process reverses the deployment, allo***g compact storage.

This configuration offers several key functionalities:
* **Variable Lift Capacity**: Dependent on the crane's design, ranging from a few hundred pounds to over a thousand kilograms.
* **Adjustable Reach**: The boom length can be fixed or extendable, offering varying horizontal reach.
* **Dual Hoisting Methods**: The combination of hydraulic lifting for heavy loads and a manual ***ch for fine control or lighter items enhances versatility.
* **Mobility**: Being truck-mounted, it allows for rapid deployment to various job sites, eliminating the need for dedicated lifting equipment at each location.
* **Compact Storage**: The folding design minimizes the space occupied on the truck bed, leaving room for other tools or materials.
* **Independent Operation (***ch)**: The manual ***ch can operate without truck power, useful in remote locations or during power failures.

The primary advantages include enhanced mobility and on-site accessibility for lifting operations, making it suitable for field service, construction, and agricultural applications where traditional cranes are impractical. Its folding capability conserves valuable truck bed space. The hydraulic system provides powerful, controlled lifting, while the manual ***ch offers an economical, precise, and power-independent alternative. This combination provides flexibility in operation and cost-effectiveness compared to larger, more specialized lifting apparatuses.

Limitations include generally lower lift capacities and more restricted reach compared to industrial-grade mobile cranes. Stability is crucial; proper outrigger deployment (if equipped) and load distribution are paramount to prevent vehicle tipping. Operational efficiency can be lower than fully powered systems, particularly with manual sle***g and ***ch operation for frequent lifts. The truck's suspension and chassis must be adequately rated for the crane's weight and the maximum load it will handle.

Common applications include:
* **Construction**: Lifting building materials, tools, or small equipment on job sites.
* **Field Service**: Loading and unloading parts, machinery, or supplies for repairs in remote locations.
* **Agriculture**: Handling feed sacks, equipment, or produce.
* **Landscaping**: Moving rocks, trees, or heavy bags of soil.
* **Utility Work**: Assisting with the installation or removal of utility components.
* **Marine Operations**: Launching or retrieving small boats or equipment from docks.

Regular inspection of hydraulic lines, cylinders, the ***ch mechanism, cables, and structural integrity is essential. Operators must adhere to load charts, understand the center of gravity, and ensure the truck is stable before lifting. Proper training on both hydraulic and manual ***ch operation is critical.

The "Folding Hydraulic Jib Crane with Manual Hand Crank ***ch Attached on a Truck Pickup" represents a highly adaptable and practical solution for mobile lifting requirements. It effectively bridges the gap ***ween manual labor and large-scale crane operations, offering a versatile tool for professionals across numerous industries who require reliable, on-demand lifting capabilities coupled with vehicle mobility.
