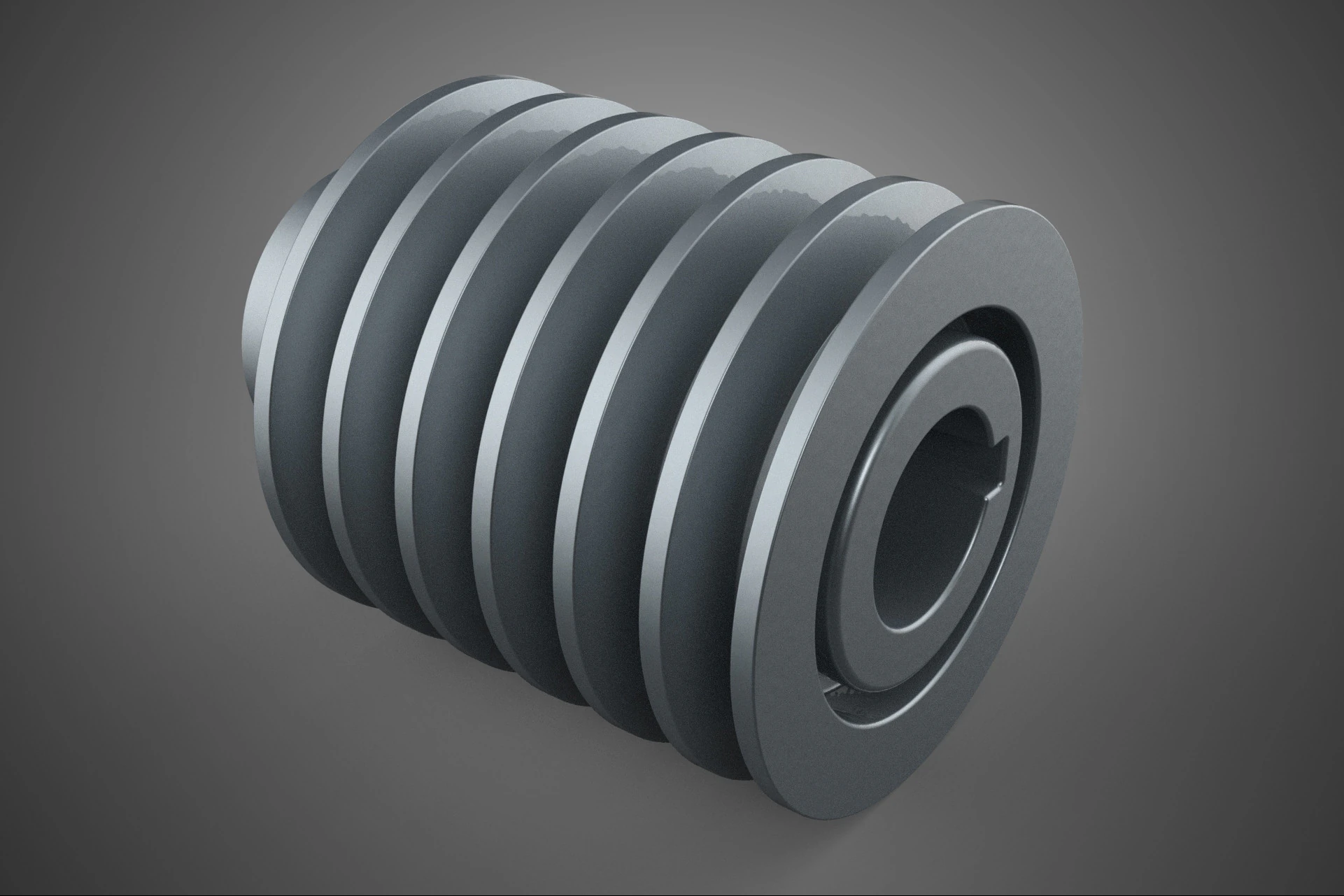

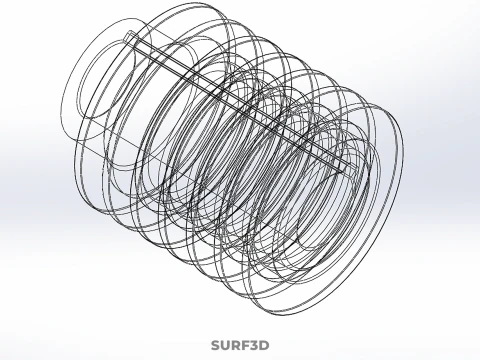

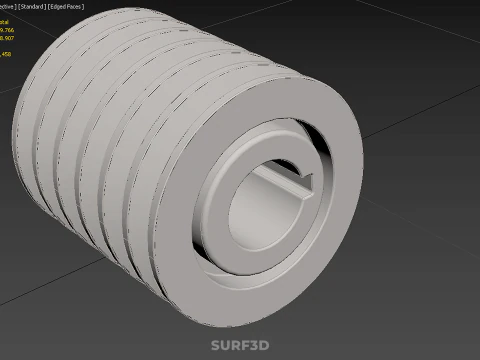

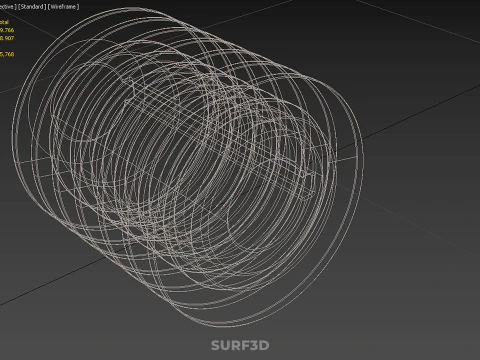

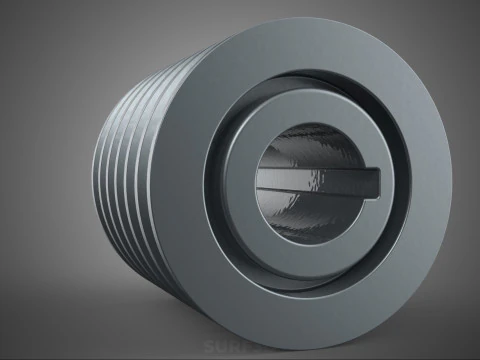

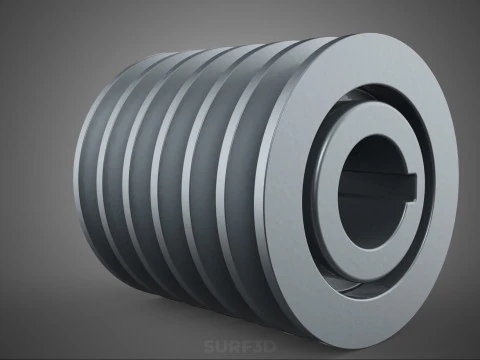

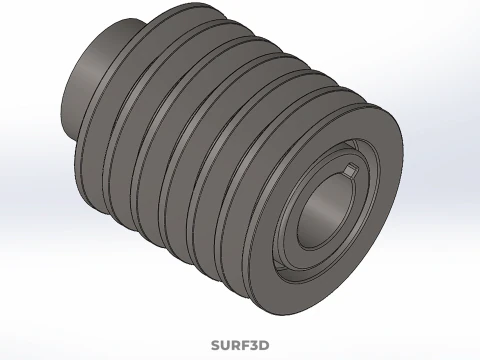

PADRÃO 6 SEIS SEXTUPLE GROOVE TRILHA POLIA RODA CORREIA V Modelo 3D

Descrição

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Standard Six-Groove (Sextuple Groove) Track Pulley Sheave Wheel for V-Belts is a specialized mechanical component central to high-capacity power transmission systems. It is engineered to efficiently transfer rotational energy and torque between parallel shafts using an array of six standardized V-belts operating simultaneously.

### Definition and Nomenclature

The component, frequently termed a pulley, is more accurately defined as a *sheave* due to its circumferential grooves designed specifically to seat and guide flexible belts. The "sextuple groove" designation indicates the presence of six parallel, contiguous tracks machined into the wheel's circumference. This configuration is essential in applications where single or dual belts cannot handle the required horsepower or where redundant load paths are necessary for operational reliability.

### Design and Geometry

The design of the sextuple-groove sheave is dictated by the requirements of standardized V-belt profiles (e.g., classical profiles such as A, B, C, or narrow profiles such as 3V, 5V, 8V). Each groove is contoured with precise angles (typically 34° to 38°) and depth to ensure optimal wedging action of the corresponding V-belt cross-section, maximizing frictional grip and minimizing slippage.

**Critical Specifications:**

1. **Pitch Diameter (PD):** The theoretical diameter measured at the pitch line of the belts. Accuracy in PD is critical for maintaining the proper speed ratio (velocity ratio) between the driving and driven shafts.
2. **Groove Spacing (Pitch):** The precise distance between the centers of adjacent grooves. In a sextuple system, uniform spacing ensures that the tension and power load are distributed equally across all six belts. Deviations in groove spacing lead to unequal load sharing, premature belt failure, and excessive vibration.
3. **Static and Dynamic Balancing:** Due to the mass and size typical of six-groove sheaves, dynamic balancing is mandatory, particularly for operations exceeding peripheral speeds of 6,500 feet per minute. Balancing corrects uneven mass distribution, reducing centrifugal forces, minimizing shaft vibration, and extending bearing life.

### Standardization and Interchangeability

The physical dimensions, including the cross-sectional shape of the groove, are rigorously standardized by international bodies such as the International Organization for Standardization (ISO) and domestic standards organizations like ANSI/RMA (American National Standards Institute / Rubber Manufacturers Association). These standards ensure that sheaves manufactured globally are compatible with standardized V-belts of the designated profile (e.g., a 5V six-groove sheave will universally accept 5V narrow V-belts). Standardization facilitates component interchangeability and predictable drive performance calculations.

### Materials and Manufacturing

Six-groove sheaves are constructed from materials selected for their hardness, machinability, and resistance to wear and fatigue:

* **Cast Iron (e.g., Class 30 or higher):** The most common material, offering excellent dampening characteristics and reasonable cost for typical industrial speeds.
* **Ductile Iron:** Utilized when higher strength and shock resistance are required, especially in intermittent heavy-load applications.
* **Steel (Forged or Fabricated):** Used in applications involving extremely high speeds or excessive shock loads, often requiring specialized coatings for corrosion resistance.
* **Aluminum Alloys:** Used infrequently for extremely large or highly specialized applications where weight reduction is prioritized, often employing hard anodizing for surface durability.

Manufacturing involves precise casting or forging, followed by high-tolerance CNC machining of the bore, face, and, critically, the six grooves. Many sheaves utilize a Taper-Lock or similar tapered bushing system to facilitate a secure, zero-slip connection to the drive shaft, simplifying installation and removal compared to fixed keyed bores.

### Industrial Applications

The Standard Six-Groove V-Belt Sheave is specifically employed in demanding industrial environments where robust, continuous power transmission is necessary. Typical applications include:

* Large-scale hydraulic pumps and fluid handling systems.
* Heavy-duty compressors and refrigeration units.
* Centralized HVAC (Heating, Ventilation, and Air Conditioning) systems requiring high airflow.
* Crushing equipment, mixers, and large aggregate processing machinery.
* Main drives in machine tools and large processing equipment requiring high starting torque.

The utilization of six belts inherently provides redundancy; should one belt fail, the remaining five can often sustain operation until scheduled maintenance, enhancing system reliability.
