STANDARD 4 FOUR QUADRUPLE GROOVE TRACK PULLEY SHEAVE WHEEL BELT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

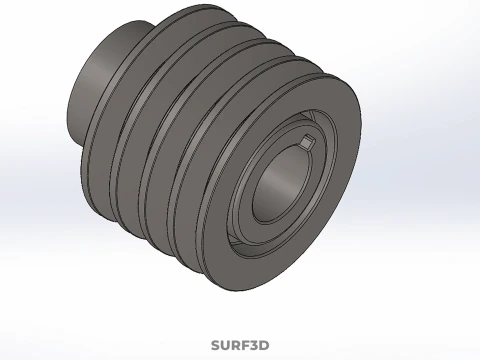

## Standard Four-Groove Track Pulley Sheave Wheel Belt

A standard quadruple-groove track pulley, frequently referred to as a four-groove sheave or multi-V-belt sheave, is a specialized rotary machine element designed for the efficient transmission of mechanical power between parallel shafts using multiple contiguous V-belts. Its configuration is dictated by standardized industrial norms to ensure dimensional compatibility, optimal power transfer capacity, and interchangeability within synchronous or asynchronous belt drive systems.

### 1. Definition and Nomenclature

The apparatus serves as the central component in a four-belt drive system, providing four distinct, geometrically identical channels (grooves or tracks) around its circumference. These channels are contoured to precisely seat the tension members (V-belts), utilizing the principle of wedging action to maximize the frictional force necessary for torque transmission while minimizing radial loading on shaft bearings.

The terminology "pulley," "sheave," and "wheel" are often used interchangeably, though "sheave" traditionally refers to grooved wheels used with ropes or cables, and "pulley" is the generic term for belt drives. The inclusion of "STANDARD" signifies that critical dimensions, such as the pitch diameter, groove angle ($\alpha$), depth, and width, conform strictly to established bodies like the International Organization for Standardization (ISO), the American National Standards Institute (ANSI), or organizations governing the Rubber Manufacturers Association (RMA) specifications (e.g., classical A, B, C sections, or narrow 3V, 5V, 8V profiles).

### 2. Structural Characteristics and Materials

#### 2.1 Groove Geometry (Track Configuration)

The quadruple-groove arrangement is utilized in applications requiring high power capacity, reduced belt tension per strand, increased reliability through load redundancy, and minimized belt slip compared to single-belt drives. The grooves are precisely machined to maintain tight tolerances on the included angle, which typically ranges from 34° to 38° depending on the pulley diameter and the specific belt profile standard. The consistent spacing between the grooves (center distance) is critical for ensuring equal tension distribution among the four belts, thereby preventing premature wear or catastrophic failure of individual strands.

#### 2.2 Material Selection and Manufacturing

Four-groove sheaves are typically manufactured from materials exhibiting high tensile strength, wear resistance, and the capacity for precise machining and balancing. Common materials include:

1. **Cast Iron (e.g., ASTM Class 30/35):** Preferred for high-torque, low-to-moderate speed industrial applications due to excellent vibration damping and cost-effectiveness.
2. **Ductile Iron or Steel Alloys:** Used for extremely heavy-duty drives or applications requiring exceptionally high shock resistance.
3. **Aluminum Alloys:** Employed where weight reduction and high circumferential velocity are primary design constraints, often treated with hard anodizing for surface wear resistance.

To operate smoothly at high rotational speeds, quadruple-groove pulleys must undergo static and dynamic balancing procedures (ISO 1940 standards) to mitigate centrifugal forces and vibration, which could otherwise compromise system efficiency and lifespan.

### 3. Functional Principle

The power transmission mechanism relies on the kinematic chain established between the drive pulley, the driven pulley, and the four tensioned V-belts. Unlike flat belts, V-belts derive their high tractive effort from the wedging effect: as tension is applied, the belt sides engage the groove sidewalls, increasing the effective frictional coefficient. The total torque capacity ($T_{total}$) is the summation of the torque transmitted by each individual belt ($T_{total} = 4 \times T_{belt}$).

Mounting onto the shaft is frequently achieved through a split tapered bushing system (e.g., Taper-Lock, QD, or standard bore), which ensures a highly secure, non-slip friction grip between the pulley hub and the shaft, simplifying installation and removal.

### 4. Applications

Quadruple-groove pulleys are essential components in heavy industrial machinery where reliable, continuous, high-power transfer is mandatory. Typical applications include:

* Large air compressors and vacuum pumps
* Heavy-duty HVAC systems (fans and blowers)
* Crushers, mixers, and processing equipment in mining and aggregate industries
* Machine tools and stamping presses requiring substantial starting torque
* Agricultural machinery requiring robust drive trains

***
KEYWORDS: Pulley, Sheave, Quadruple Groove, Four Groove, V-Belt Drive, Power Transmission, Multi-V Pulley, Taper-Lock Bushing, Kinematic Efficiency, Torque Capacity, Standardized Component, High Power, Load Distribution, Grooved Wheel, Pitch Diameter, Belt Track, Industrial Machinery, Cast Iron, Dynamic Balancing, RMA Standard, ISO Specification, Synchronous Drive, Asynchronous Drive, Frictional Drive, Belt Profile, 3V, 5V, 8V, Shaft Mounting, Machine Element, Rotary Component.
