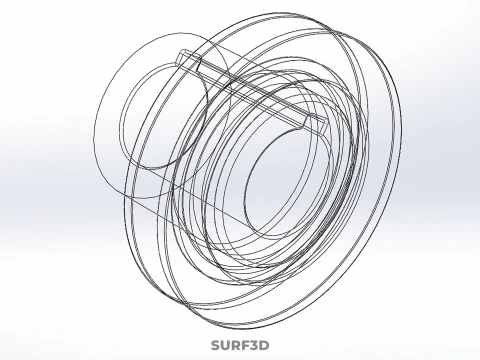

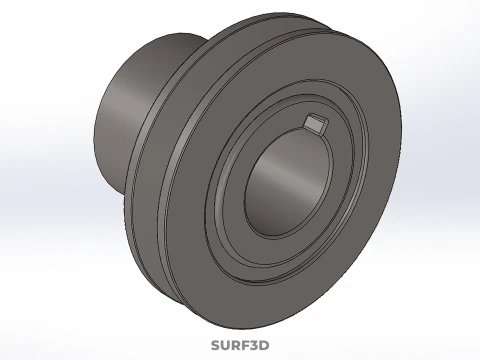

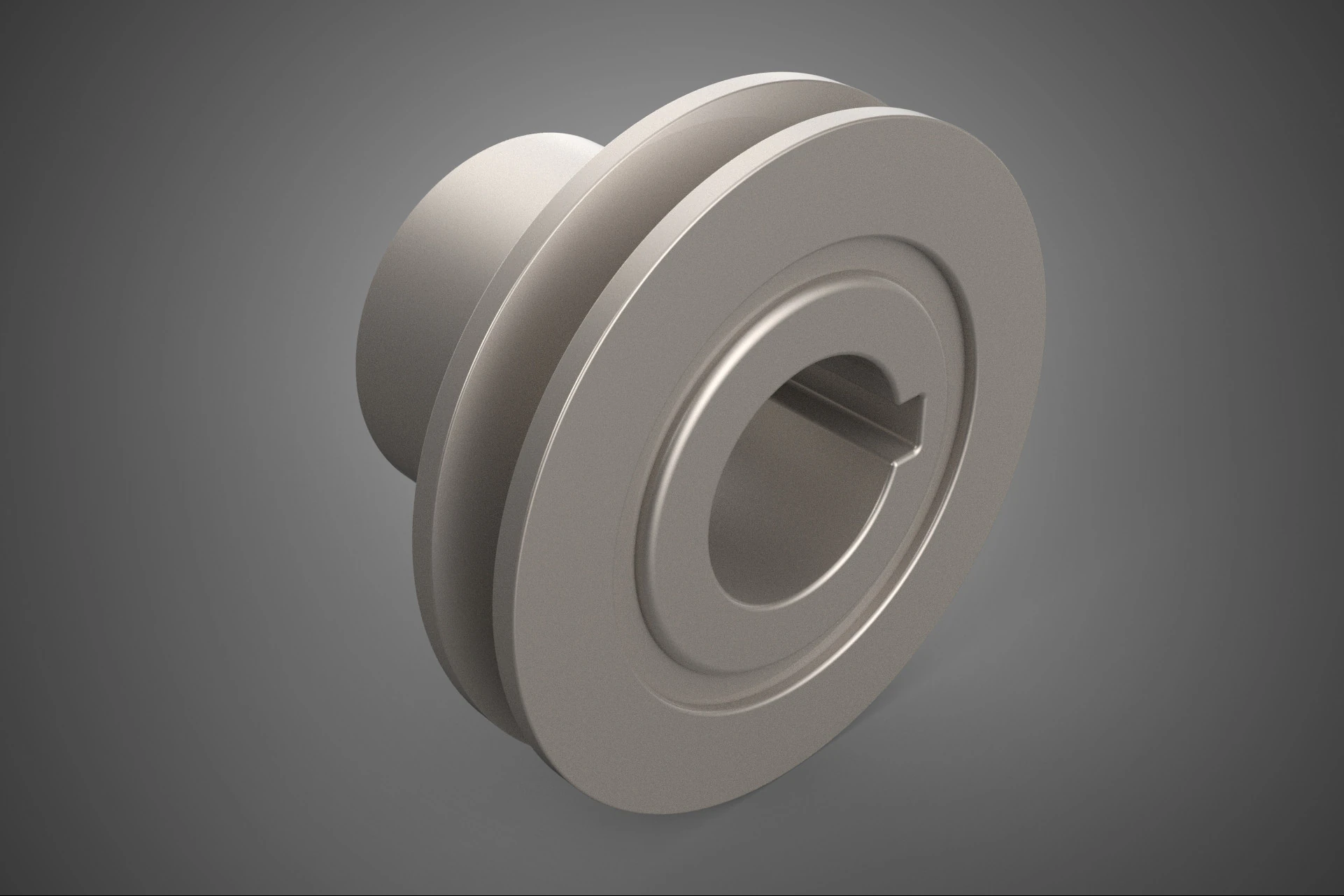

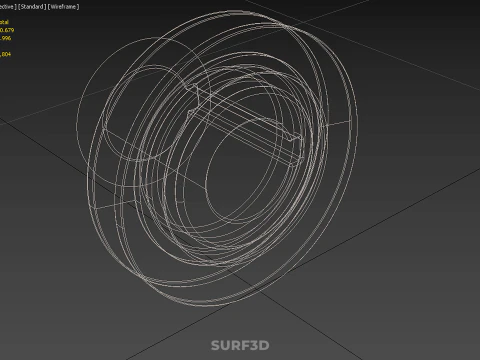

STANDARD 1 ONE SINGLE GROOVE TRACK PULLEY SHEAVE WHEEL BELT GEAR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**STANDARD 1 ONE SINGLE GROOVE TRACK PULLEY SHEAVE WHEEL BELT GEAR**

A single-groove track pulley, frequently referred to in engineering nomenclature as a sheave or a belt wheel, is a fundamental mechanical component designed for the efficient transmission of rotational power or the redirection of tensile force within a linear or angular motion system. The designation "Standard 1 One Single Groove" explicitly identifies a wheel featuring a solitary circumferential channel, or track, engineered to precisely cradle and guide a single flexible element, typically a V-belt, flat belt, rope, or cable.

### Nomenclature and Definition

The terms pulley, sheave, and wheel are often used interchangeably, though "sheave" traditionally refers to the component used in hoisting or cable systems, while "pulley" is more common in belt-driven power transmission. As a "Belt Gear" component, the single-groove pulley acts as the driven or driver element in a belt drive system, converting torque from one shaft to another via friction. Its standard nature implies adherence to established industry dimensional protocols (such as ISO, DIN, ANSI, or specific regional specifications for V-belt cross-sections like those defined by the Rubber Manufacturers Association, RMA), ensuring interoperability and reliable kinematic performance.

### Design and Functional Principle

The primary function of the single-groove pulley in a friction drive is to transfer tangential force via the belt. The mechanical advantage or speed modification (drive ratio) is determined by the ratio of the pitch diameters of the driving and driven pulleys.

#### Groove Profile
The defining characteristic is the single track, the geometry of which is highly optimized for its specific application:
1. **V-Groove:** Predominantly used for V-belts, this profile features angled sidewalls (typically between 30° and 40°). The wedging action of the belt against the groove walls increases the normal force and consequently the static friction, maximizing torque transfer efficiency and minimizing the required belt tension compared to flat drives.
2. **Semi-Circular or U-Groove:** Employed for rope or cable applications (hoisting or tensioning), these grooves are designed to support the element fully, minimizing stress concentrations and reducing wear on the rope jacket.
3. **Flat or Crowned:** Although technically a "track," a flat profile is typically used with flat belts, relying purely on surface friction and requiring higher initial tension.

#### Construction and Materials
Standard single-groove pulleys are manufactured to withstand radial and tensile loads commensurate with industrial applications. Common materials include:
* **Gray Cast Iron (e.g., ASTM A48 Class 30):** Favored for its excellent dampening properties, rigidity, and low cost, suitable for moderate to high-speed industrial drives.
* **Steel (e.g., Carbon Steel):** Used when extreme strength, shock resistance, or smaller diameters are required. Steel pulleys are often dynamically balanced for high-velocity operation.
* **Aluminum Alloys:** Utilized in applications where weight reduction, corrosion resistance, and thermal dissipation are critical (e.g., automotive or aerospace ancillary systems).
* **Engineering Plastics (e.g., Nylon, Acetal):** Employed for lighter duty, low-noise environments, or when inherent chemical resistance is necessary.

### Specifications and Standardization

Standardization ensures that critical parameters align precisely. Key specifications for a single-groove pulley include:
* **Pitch Diameter (PD):** The theoretical diameter at which the centerline of the belt operates, critical for calculating precise speed ratios.
* **Outside Diameter (OD):** The maximal diameter of the pulley.
* **Bore Diameter and Keyway:** Dimensions specifying the shaft interface, often machined to precise tolerance classes (e.g., H7) to ensure proper press fit or keyed attachment, preventing slippage.
* **Static and Dynamic Balancing:** Pulleys intended for speeds exceeding 6,500 feet per minute (fpm) or high centrifugal loads are dynamically balanced to minimize vibration and bearing wear.

### Applications

Due to their simplicity, reliability, and ease of maintenance, single-groove pulleys are highly versatile. They are essential components in:
* Small and medium-sized machine tools (e.g., drill presses, lathes).
* Industrial compressors, fans, and pump drives.
* HVAC systems (blower motors).
* Agricultural machinery and simple conveyor systems.
* Mechanical advantage systems utilizing wire rope or cable (e.g., block and tackle).

KEYWORDS: Pulley, Sheave, Single-Groove, Belt Drive, Power Transmission, V-Belt, Standard Specification, Mechanical Component, Kinematics, Groove Profile, Cast Iron, Machine Element, Standardization, Pitch Diameter, Friction Drive, Industrial Machinery, Drive Ratio, V-Groove, Sheave Wheel, Track, Bore, Torque Transfer, Compressor Drive, Radial Load, Static Balance, High Speed, Conveyor Component, Wire Rope, Cable Sheave, ANSI.
