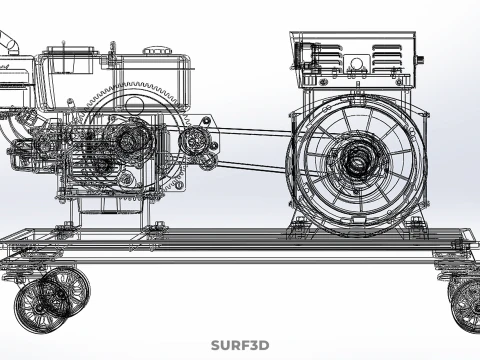

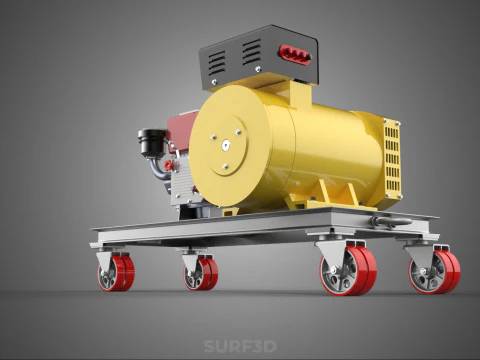

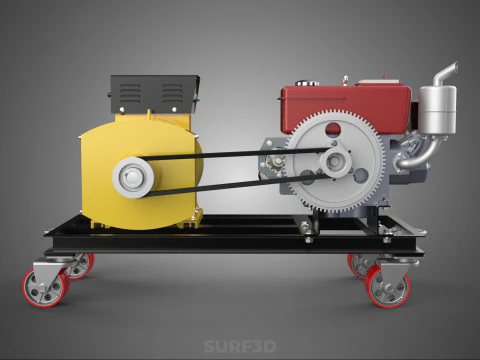

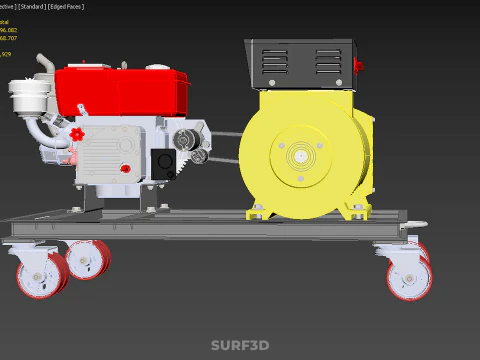

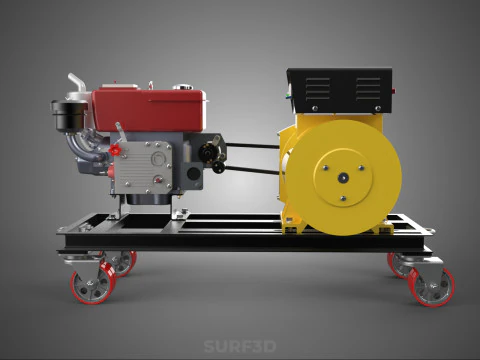

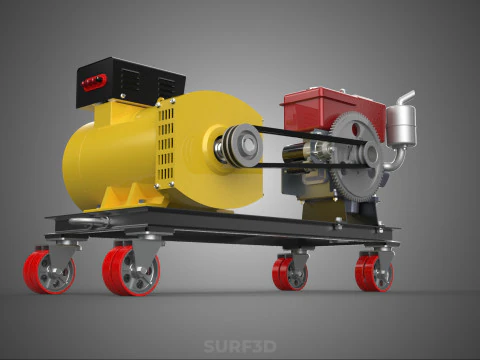

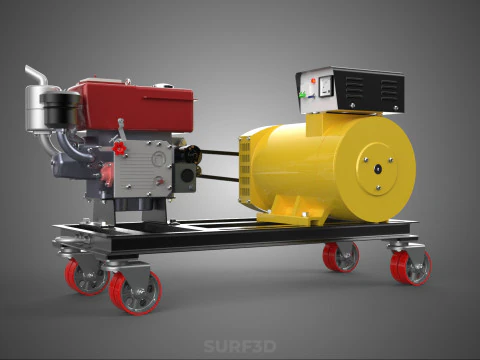

WHEELED ENGINE DIESEL POWER GENERATOR SET GENSET DYNAMO MOTOR AC 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Wheeled Diesel Power Generator Set (Genset) is a self-contained, integrated system designed for the efficient conversion of the chemical energy stored in diesel fuel into usable Alternating Current (AC) electrical power. Characterized by its inherent mobility, afforded by an integrated trailer chassis or heavy-duty wheel kit, the Diesel Genset serves as a critical source of primary, standby, or emergency power in diverse operational environments.

### 1. Nomenclature and System Definition

The term **Genset** is a portmanteau for Generator Set, denoting the unified assembly of the prime mover (the diesel engine) and the electrical generator (the alternator). While the title includes terms such as **Dynamo** (historically referring to a Direct Current generator) and **Motor AC** (referring to the system's output capability), the modern apparatus fundamentally operates as an engine-driven synchronous alternator producing regulated AC electricity suitable for industrial and commercial loads.

### 2. Core Components and Subsystems

The functionality of the Wheeled Diesel Genset relies upon the seamless integration of three primary subsystems:

#### A. The Prime Mover (Diesel Engine)
The engine utilizes the compression-ignition principle, leveraging the high energy density and stability of diesel fuel. These engines are specifically engineered for continuous duty and are coupled directly or indirectly to the alternator via a resilient coupling mechanism. Key operational characteristics include high torque at lower RPMs and superior fuel efficiency relative to spark-ignition counterparts, making them suitable for sustaining substantial electrical loads for extended durations. Engine systems include integral lubrication, cooling (air- or liquid-based), and specialized governing mechanisms to maintain precise rotational speed necessary for frequency regulation.

#### B. The Alternator (AC Generator)
The alternator is the electrical component that transforms the mechanical energy provided by the engine into electrical energy. Modern units are typically brushless, synchronous AC generators, engineered to produce stable sine wave power at standard frequencies (50 Hz or 60 Hz). Essential components include:

* **Rotor and Stator:** Interaction between the magnetic field of the rotor and the windings of the stator induces the alternating current.
* **Automatic Voltage Regulator (AVR):** An electronic circuit that monitors and adjusts the field excitation to maintain the output voltage within defined tolerances, crucial for protecting sensitive electrical equipment.

#### C. The Mobile Chassis and Ancillary Systems
The "Wheeled" designation signifies that the entire integrated unit is mounted upon a structurally rigid base frame (skid or trailer). This chassis incorporates axles, tires, and often a tow hitch, enabling rapid transportation.

* **Enclosure (Canopy):** Most wheeled units are housed within weather-resistant, sound-attenuating enclosures. These canopies mitigate environmental exposure, reduce operational noise levels (critical for urban or event applications), and provide physical security.
* **Fuel System:** Includes integrated fuel tanks sized for specific run times (e.g., 8 to 24 hours at full load) and transfer pumps.
* **Control Panel:** A sophisticated interface featuring microprocessor controls for starting, stopping, monitoring engine parameters (oil pressure, temperature), and displaying electrical output data (voltage, amperage, frequency). High-end systems often include synchronization capabilities for parallel operation.

### 3. Operational Principle and Deployment

The operational efficacy of the wheeled Genset is rooted in the constant rotational speed required to maintain output frequency. The engine governor dynamically adjusts fuel delivery to match changes in electrical load, ensuring the mechanical input remains consistent.

Wheeled Diesel Gensets are indispensable for applications demanding robust, rapidly deployable electrical infrastructure, including: construction sites, emergency disaster relief, mobile medical facilities, telecommunications hubs, military field operations, and temporary staging for large outdoor events. Their mobility mitigates geographical constraints, allowing power to be brought directly to the point of need.
