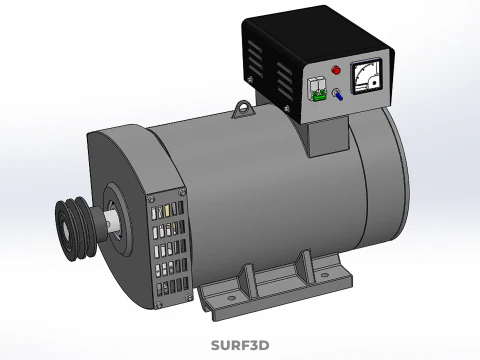

ENGINE MOTOR GENERATOR ALTERNATOR DYNAMO GENSET CONTROL PANEL KW 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An electromechanical power generation system, often referred to collectively under the generalized term **Genset (Generator Set)**, represents an integrated assembly designed to convert mechanical energy into electrical energy. The system comprises a prime mover (**Engine** or **Motor**), an electrical conversion apparatus (**Generator**, **Alternator**, or **Dynamo**), and sophisticated management hardware (**Control Panel**), all quantified by their output capacity, typically measured in **KW (Kilowatts)**.

### Prime Mover (Engine and Motor)

The prime mover supplies the requisite rotational kinetic energy for the conversion process. In the context of industrial and emergency power generation, the term **Engine** typically refers to an Internal Combustion Engine (ICE), most commonly fueled by diesel, natural gas, or propane. The engine’s performance characteristics—including speed (RPM), torque, and thermal efficiency—directly determine the maximum achievable electrical output.

Alternatively, a **Motor** (specifically, an electric motor) is utilized in specialized Motor-Generator (MG) sets. MG sets function primarily for frequency conversion, voltage conditioning, or creating electrical isolation between sensitive loads and the utility supply, rather than primary fuel-based power generation.

### Electrical Conversion Apparatus

The electrical machine is an electromechanical transducer that operates on the principle of electromagnetic induction, converting the engine’s rotational force into electrical current.

* **Generator:** This is the general classification for any machine converting mechanical power into electrical power.
* **Alternator:** The most prevalent form in modern Gensets, the alternator produces Alternating Current (AC). It operates as a synchronous machine, where mechanical rotation excites a magnetic field (usually in the rotor) to induce voltage in the stationary windings (stator). Alternators are favored for grid connection and industrial loads due to their efficiency and ease of voltage regulation.
* **Dynamo:** Historically significant, the dynamo produces Direct Current (DC). Utilizing a commutator to mechanically reverse connections and maintain unidirectional current flow, dynamos are now largely superseded by alternators combined with solid-state rectification for high-power applications, though they remain relevant in low-power and specialized DC excitation systems.

### Genset and Power Metrics (KW)

A **Genset** is the complete, factory-integrated assembly of the engine and the alternator, typically mounted on a common skid or base frame. Its rating dictates its intended application: standby (emergency use), prime (primary source with limited annual hours), or continuous (24/7 operation).

**KW (Kilowatt)** is the standard unit used to measure the rate of real power output. It represents the actual power available to perform work (resistive load). The relationship between real power (kW), reactive power (kVAR), and apparent power (kVA) is crucial for sizing Gensets correctly, ensuring the machine can handle both resistive and inductive loads without overheating or suffering voltage drop.

### Control and Monitoring (Control Panel)

The **Control Panel** is the operational and protective hub of the Genset. It is typically a microprocessor-based system that manages system startup, synchronization, load management, and safety protocols.

Key functions include:

1. **Monitoring and Instrumentation:** Real-time display of critical operational parameters, including voltage, current, frequency, engine temperature, oil pressure, and fuel level.
2. **Protection:** Utilizing protective relays and integrated circuit breakers to automatically shut down the unit upon detection of fault conditions, such as overspeed, overcurrent, high coolant temperature, low oil pressure, or reverse power flow.
3. **Automatic Voltage Regulation (AVR) and Frequency Control:** Maintaining the output voltage and frequency within strict tolerances essential for sensitive electronic equipment and grid synchronization.
4. **Synchronization and Load Sharing:** For applications requiring parallel operation with the utility grid or other Gensets, the control panel manages automatic synchronization routines, matching phase angle, voltage, and frequency before closure of the breaker, and subsequently manages equitable load distribution among parallel units.

The complexity of the control panel ranges from simple manual start systems to sophisticated Programmable Logic Controllers (PLCs) enabling remote monitoring via Supervisory Control and Data Acquisition (SCADA) systems.

KEYWORDS: Power generation, electromechanical conversion, prime mover, internal combustion engine, diesel engine, natural gas, Alternator, synchronous machine, excitation, stator, rotor, Dynamo, DC generation, Genset, auxiliary power, standby power, continuous operation, control system, PLC, AVR, synchronization, load sharing, protective relay, fault detection, monitoring interface, Kilowatt, real power, apparent power, frequency regulation, voltage regulation.
