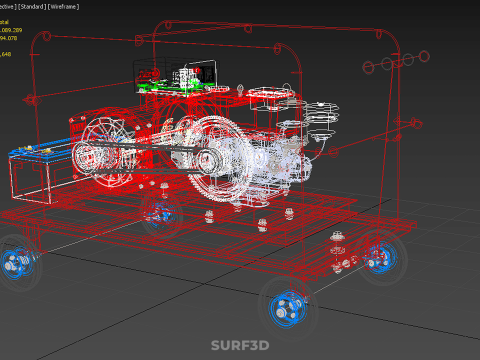

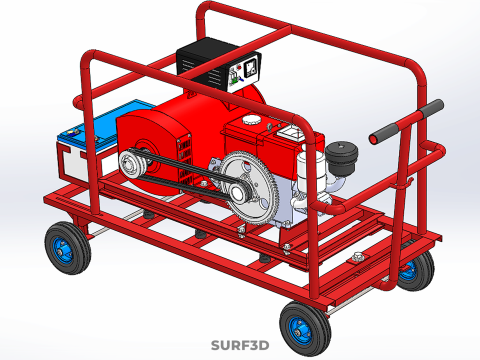

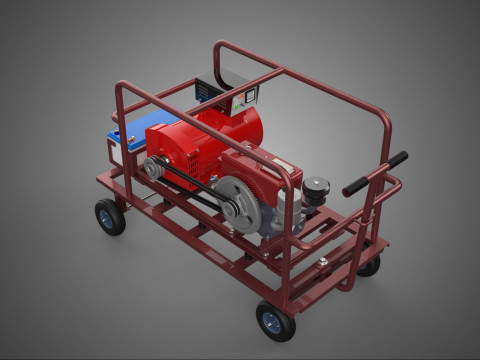

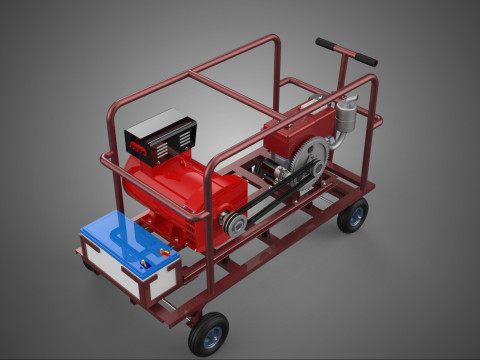

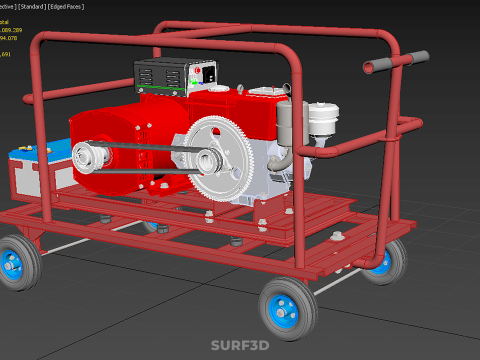

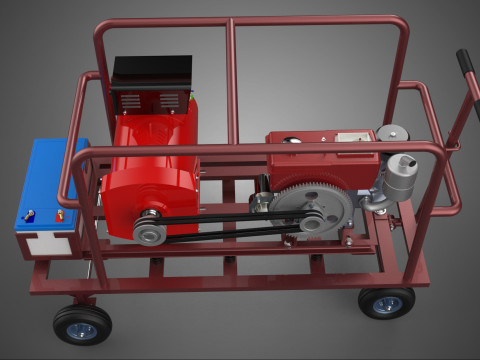

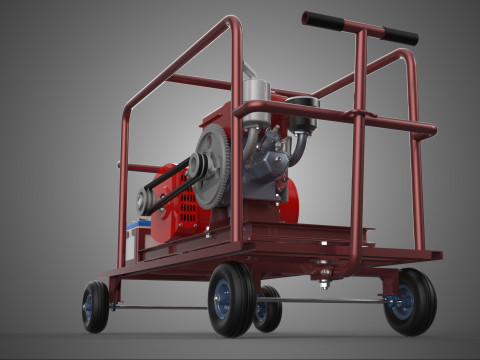

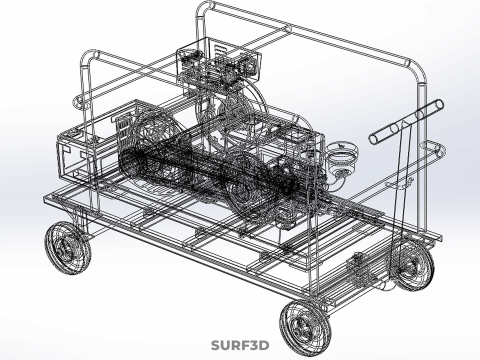

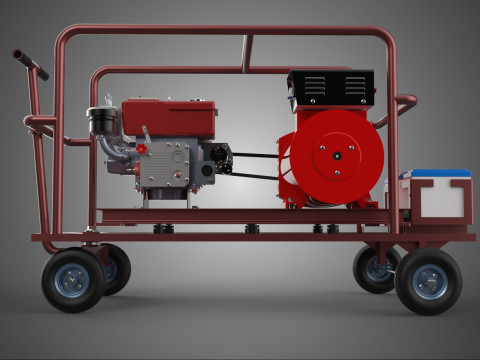

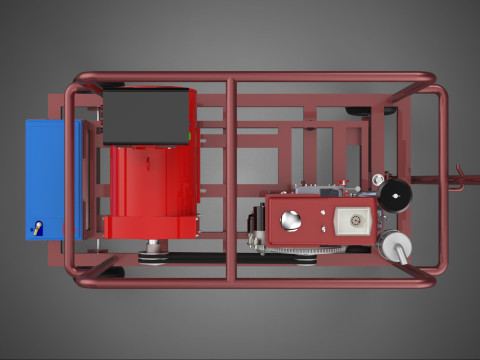

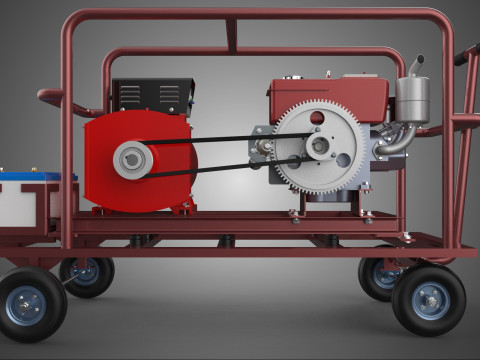

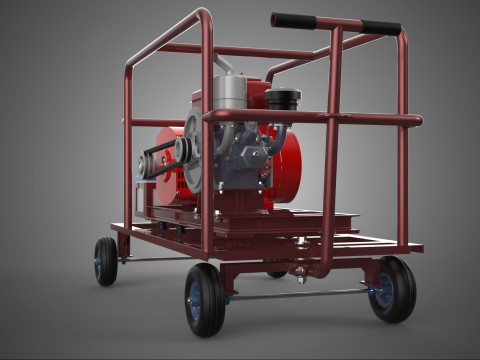

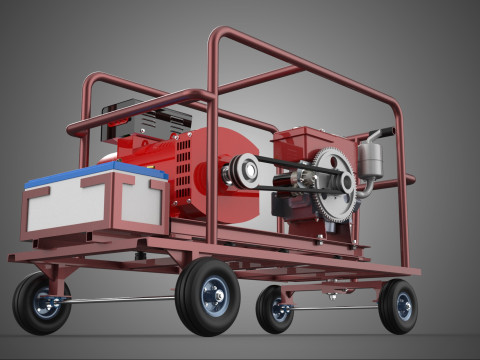

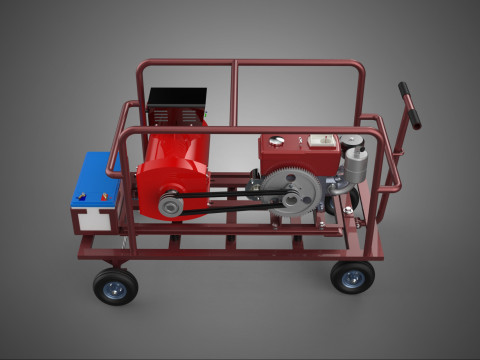

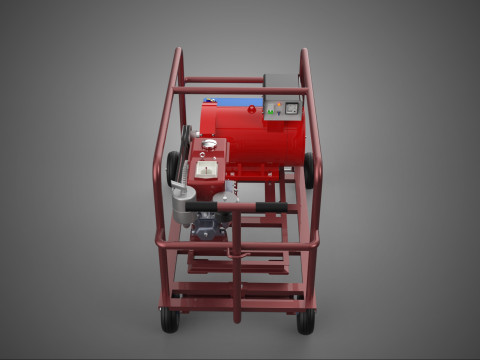

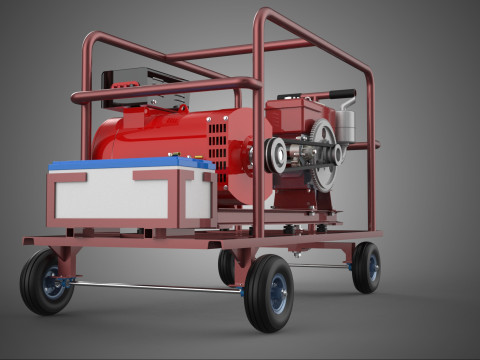

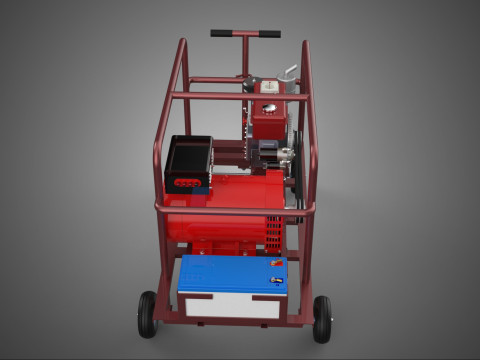

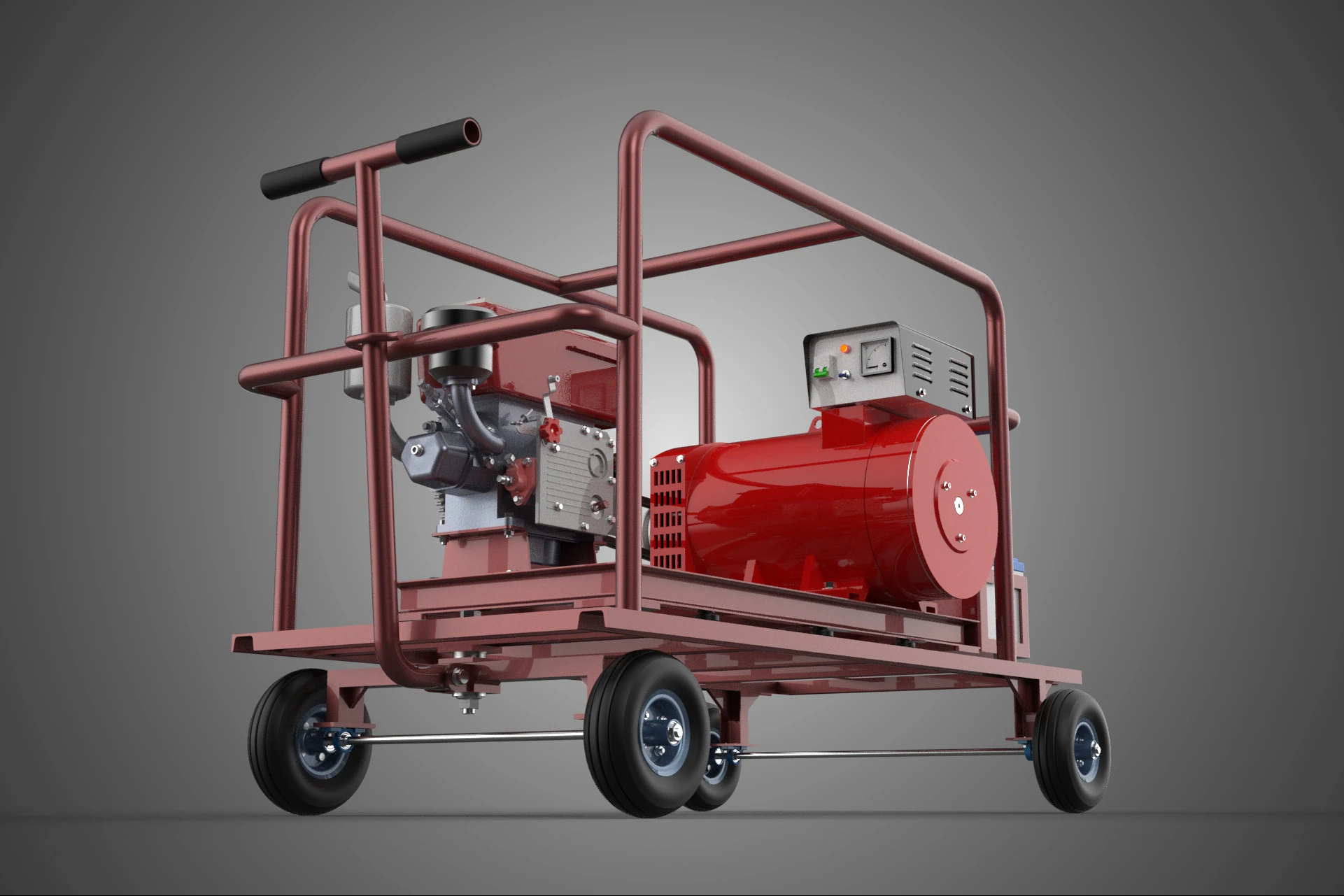

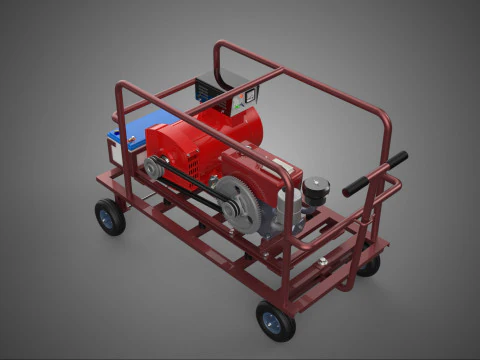

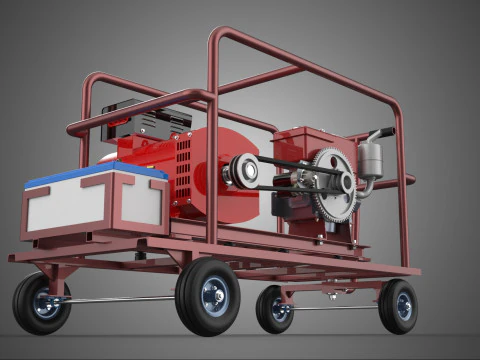

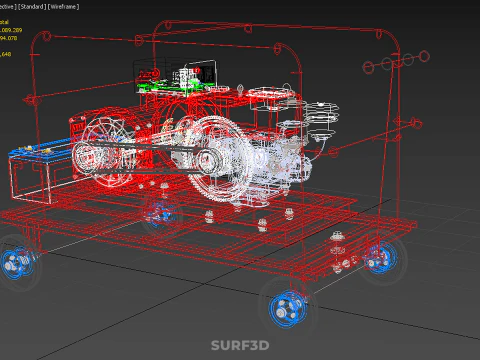

SMALL SCALE POWER PLANT MOBILE GENERATOR CART SET GENSET DIESEL 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
## Small Scale Power Plant Mobile Generator Cart Set (Genset Diesel)

A **Small Scale Power Plant Mobile Generator Cart Set**, often abbreviated as a **Mobile Diesel Genset Cart** or **Portable Diesel Power Unit**, is a self-contained, integrated system designed for the efficient generation of electrical power in situations demanding mobility, rapid deployment, or temporary power supply. Functionally, it operates as a localized, small-scale power plant, capable of servicing critical loads, construction sites, remote operations, emergency standby applications, or supplementary power needs.

### Nomenclature and Definition

The terminology combines several defining characteristics:

1. **Small Scale Power Plant:** Denotes an electricity generation capability significantly smaller than utility-scale or industrial facilities, typically ranging from a few kilowatts (kW) up to approximately 500 kW, suitable for localized loads (e.g., a small factory, a cluster of residential units, or a field hospital).
2. **Mobile Generator Cart Set (Genset):** Indicates that the core components—engine, alternator, control panel, and ancillary systems—are structurally integrated onto a robust, wheeled chassis or cart (skid) designed for non-permanent installation and ease of transport. The term "Genset" (Generator Set) is the standard industry nomenclature for the assembly of an engine coupled to an electrical generator.
3. **Diesel:** Specifies the prime mover utilized is a compression-ignition internal combustion engine, chosen for its fuel efficiency, high torque output, reliability, and long service intervals compared to spark-ignition (gasoline or natural gas) equivalents within this power range.

### Technical Configuration and Components

The standard mobile diesel genset cart comprises several critical subsystems mounted on a rigid frame (often a structural skid or trailer):

#### 1. Prime Mover (Diesel Engine)
The engine converts the chemical energy stored in diesel fuel into mechanical rotational energy. These are typically heavy-duty, multi-cylinder engines, often turbocharged and intercooled for optimized performance and compliance with emissions standards (e.g., Tier 4 Final in North America or Stage V in Europe). Critical engine auxiliaries include:
* **Fuel System:** Tanks (day tanks or integrated chassis tanks), filters, and injection pumps.
* **Lubrication System:** Oil sump, pumps, and coolers.
* **Cooling System:** Radiator, fans, and coolant circulation pumps (typically closed-loop liquid cooling).

#### 2. Electrical Generator (Alternator)
The alternator converts the mechanical energy from the engine shaft into electrical energy. In small-scale power generation, synchronous alternators are standard. Key characteristics include:
* **Voltage Regulation:** Achieved via an Automatic Voltage Regulator (AVR) to maintain stable output voltage under varying load conditions.
* **Excitation System:** Often brushless designs to reduce maintenance requirements.
* **Output Specifications:** Typically configured for three-phase (e.g., 480V/277V) or single-phase output, operating at grid frequencies (50 Hz or 60 Hz).

#### 3. Control and Monitoring System
This panel houses the instrumentation necessary for operational control, protection, and monitoring. Modern systems feature sophisticated digital controllers (microprocessor-based) offering:
* **Engine Monitoring:** Speed, oil pressure, coolant temperature.
* **Electrical Monitoring:** Voltage, current, frequency, power factor, and kilowatt output.
* **Safety Shutdowns:** Automatic protection against overspeed, low oil pressure, high temperature, and electrical faults (e.g., overcurrent, short circuit).
* **Connectivity:** Often includes remote monitoring capabilities (telemetry) via cellular or satellite links.

#### 4. Structural and Acoustic Enclosure
To ensure mobility and environmental protection, the entire assembly is mounted within a robust framework.
* **Cart/Skid:** Heavy-duty steel base frame with integrated lifting points and often incorporating anti-vibration mounts (AVMs) to isolate the vibration of the running machinery.
* **Enclosure:** Weatherproof, sound-attenuated canopy constructed of metal (e.g., galvanized steel or aluminum). Sound attenuation is crucial for deployment in populated areas, minimizing noise pollution and meeting regulatory standards.

### Applications and Operational Context

Mobile diesel genset carts fill the operational gap between very small portable generators (under 10 kW) and very large trailer-mounted generators (over 500 kW). Their primary applications include:

* **Emergency Standby Power:** Hospitals, data centers, and telecommunications facilities during grid outages.
* **Construction and Infrastructure Projects:** Providing primary power for tools, lighting, and temporary site offices where grid access is unavailable.
* **Disaster Relief and Humanitarian Aid:** Rapid deployment to provide essential services (medical, communications, water pumping) following natural disasters.
* **Events and Filming:** Temporary power for outdoor events, concerts, or remote location filming.
* **Military and Field Operations:** Providing reliable, self-contained power for forward operating bases or mobile command centers.

### Advantages and Limitations

**Advantages:**

* **Mobility and Rapid Deployment:** Can be quickly transported and activated, minimizing downtime.
* **Reliability:** Diesel engines are known for high torque, durability, and sustained load capacity.
* **Energy Density:** Diesel fuel offers excellent energy density, allowing for longer run times relative to the volume stored.
* **Scalability:** Multiple units can be synchronized (paralleled) to meet higher power demands or provide redundancy.

**Limitations:**

* **Environmental Impact:** Diesel combustion produces regulated emissions (NOx, PM, CO2), necessitating adherence to strict environmental regulations.
* **Noise:** Despite sound attenuation, diesel units generate significant operational noise requiring careful placement.
