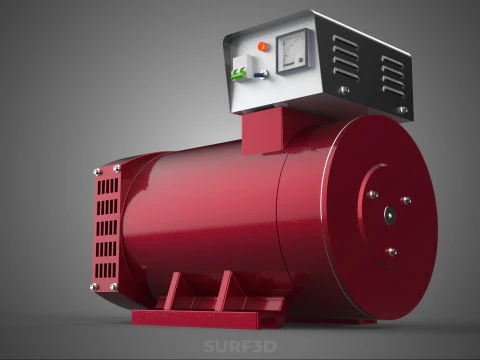

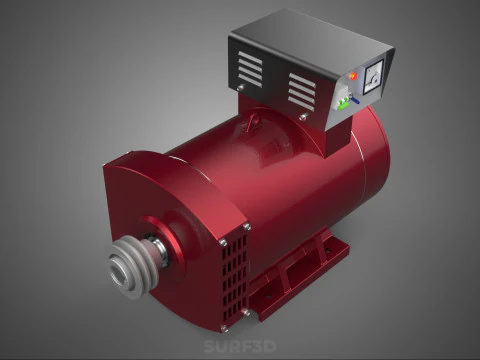

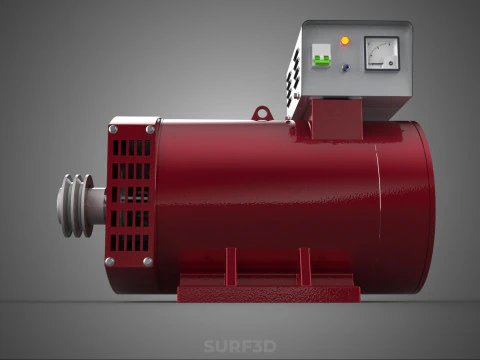

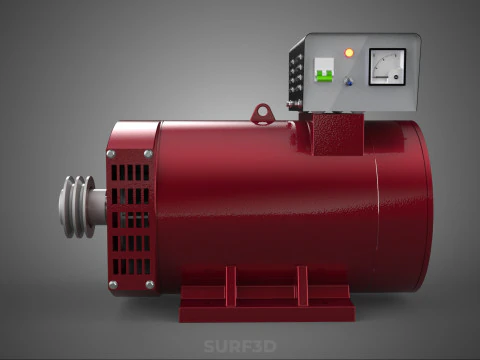

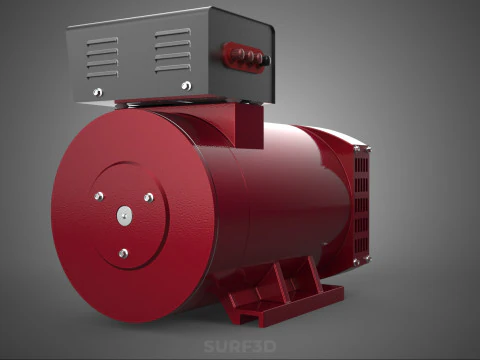

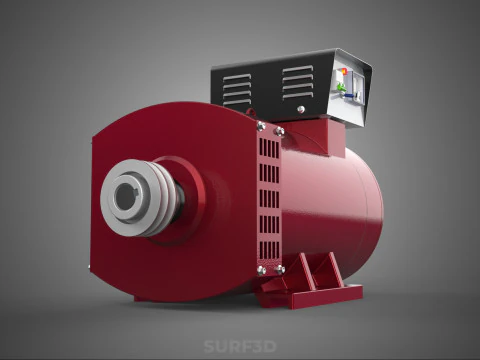

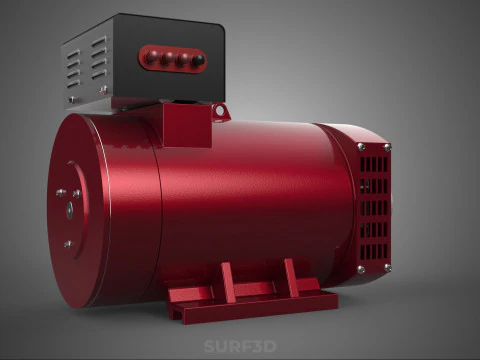

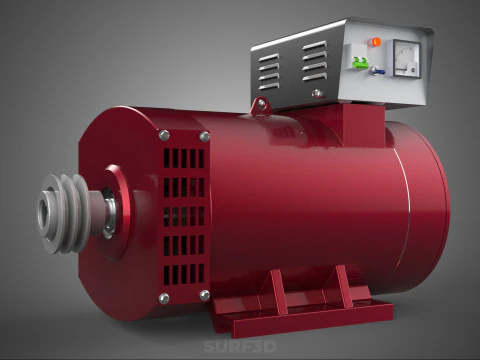

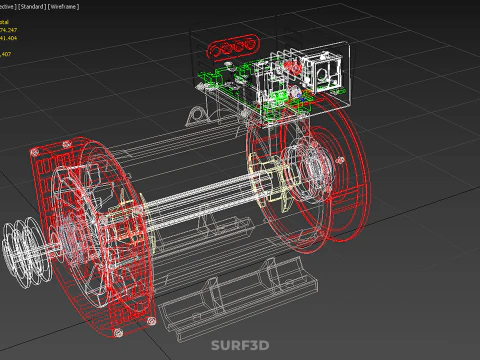

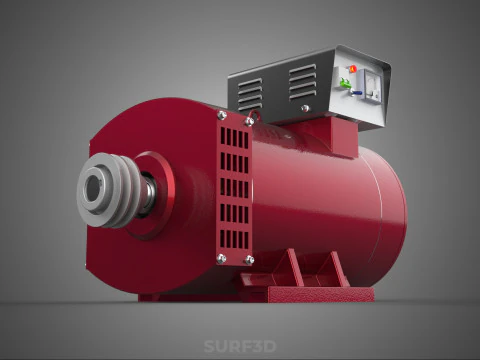

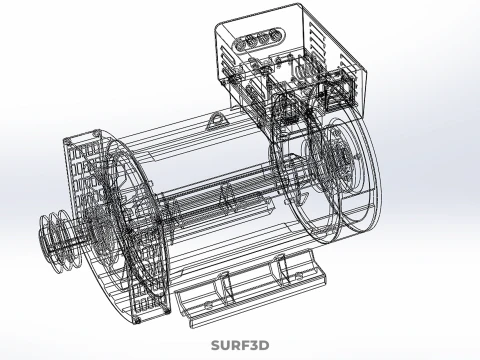

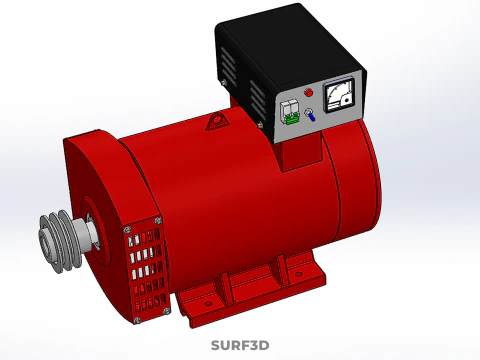

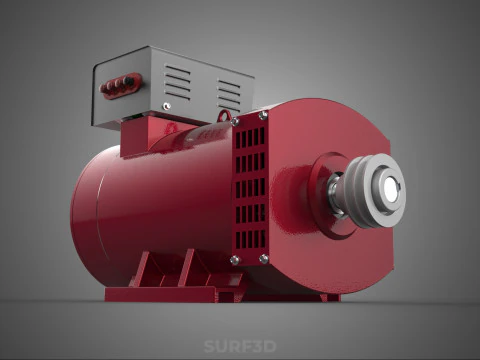

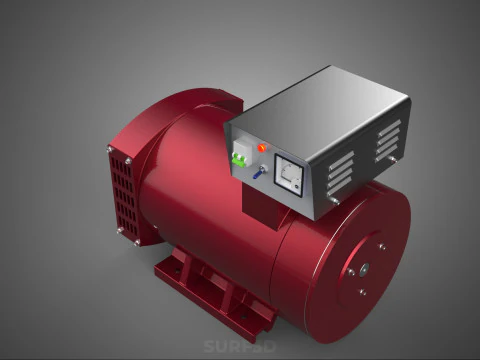

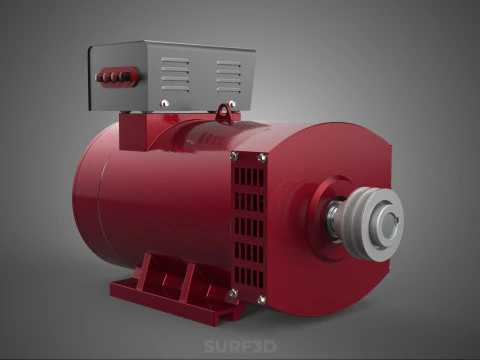

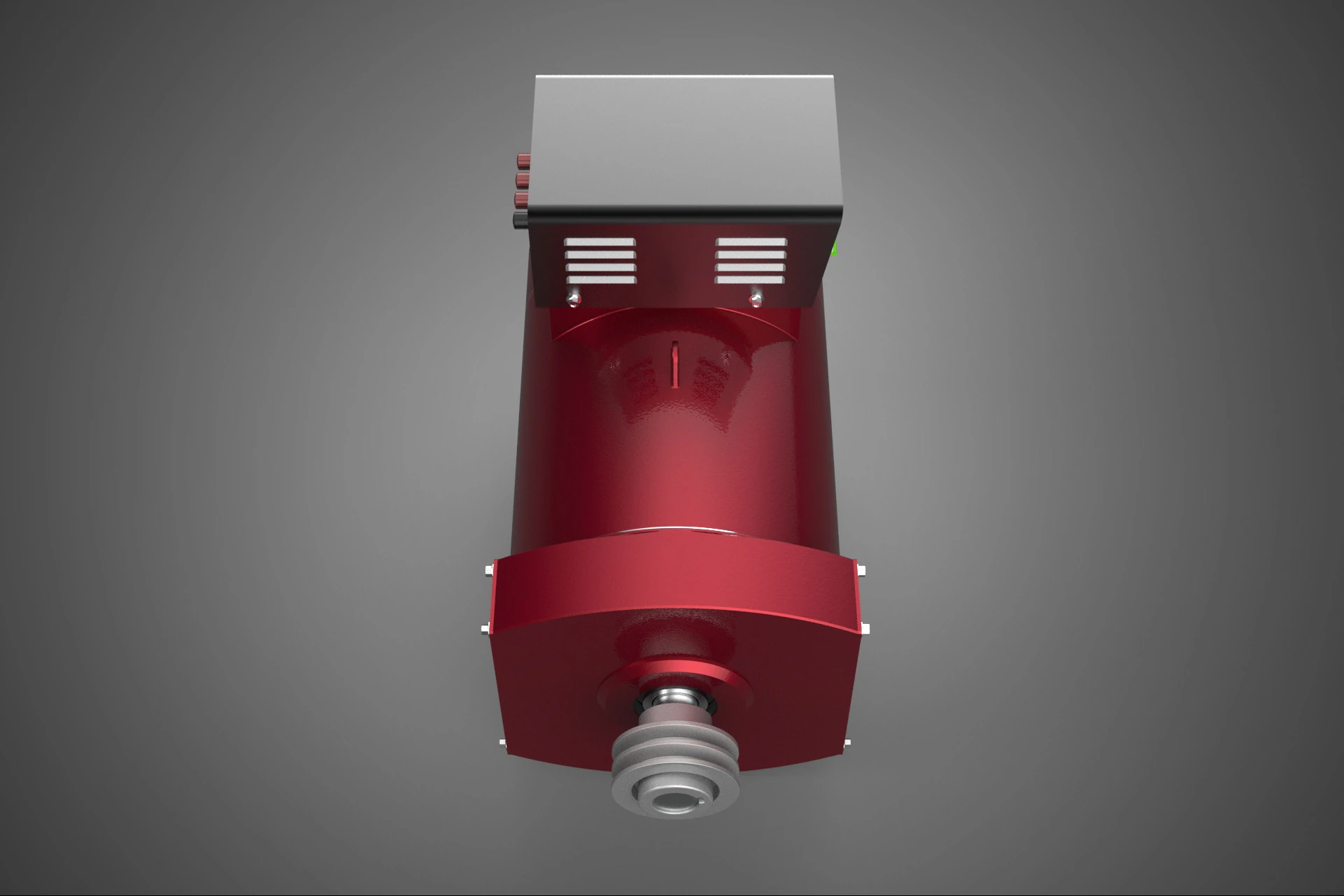

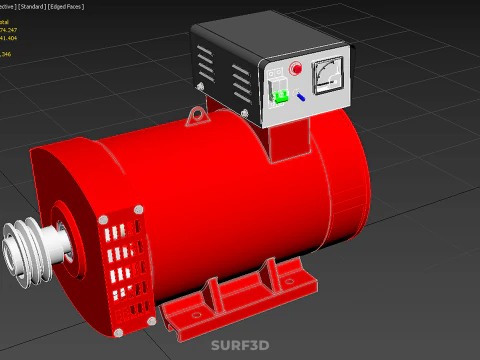

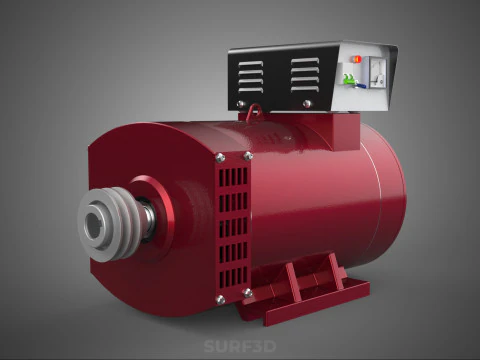

ELECTRICAL POWER GENERATOR MOTOR ALTERNATOR DYNAMO GENSET PULLEY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The terms Electrical Power Generator, Motor, Alternator, Dynamo, Genset, and Pulley describe interconnected concepts and components essential to electromechanical energy conversion technology. These devices collectively represent the machinery used for converting mechanical energy into electrical energy (generation) or electrical energy into mechanical energy (motive force).

### 1. Fundamental Principles and Device Duality

The core mechanism governing all these devices is the principle of electromagnetic induction, specifically Faraday's Law of Induction, coupled with the Lorentz force. Structurally, many electrical machines exhibit duality: they can function as both a **Generator** and a **Motor**.

**Generator:** An electrical machine that converts mechanical energy supplied by a prime mover into electrical energy, based on the induction of voltage across conductors moving relative to a magnetic field.

**Motor:** An electrical machine that converts electrical energy supplied by a power source into mechanical energy (torque and rotation), based on the force exerted on current-carrying conductors within a magnetic field.

### 2. Types of Electrical Generators

Generators are broadly classified by the type of current they produce: alternating current (AC) or direct current (DC).

**Alternator (Synchronous Generator):** A specific type of generator that produces Alternating Current. Modern power systems predominantly rely on alternators, which are characterized by the absence of a commutator. Most alternators operate as synchronous machines, meaning the speed of rotation (RPM) is directly proportional to the frequency of the generated output current ($f = (P \times N) / 120$, where $P$ is the number of magnetic poles and $N$ is the rotational speed). Large power stations utilize alternators exclusively. They typically use slip rings to transfer excitation current to the rotating field winding, while the armature (power producing) winding is stationary (stator).

**Dynamo (Commutated DC Generator):** The historical term for an electrical generator designed specifically to produce Direct Current. Dynamos operate internally by generating AC but utilize a mechanical rectifier, known as a **commutator**, to convert the induced alternating voltage into pulsating direct voltage at the output terminals. While largely replaced by rectifiers and electronic power supplies, dynamos were crucial for early power distribution systems.

### 3. System Integration: The Genset

A **Genset** (Generating Set) is an integrated, self-contained unit combining an electrical generator or alternator with a **prime mover**, typically an internal combustion engine (diesel or gasoline), gas turbine, or steam turbine. Gensets are designed for independent operation, providing electrical power for backup, emergency, or remote primary applications. The integration includes a mechanical coupling system, often a direct drive shaft or belt system, linking the prime mover’s output shaft to the generator’s input shaft. The Genset provides a complete power generation solution, encompassing fuel supply, cooling, and output control systems.

### 4. Mechanical Power Transmission: The Pulley

The **Pulley** is a simple machine and a crucial mechanical interface component. Within electromechanical systems, particularly smaller generators, motors, or auxiliary devices (like excitation systems or cooling fans), a pulley system facilitates the transfer of rotational mechanical energy. Pulleys, utilized in conjunction with belts (V-belts or synchronous belts), allow for efficient torque transmission and modification of rotational speed (speed ratio adjustment) between the prime mover and the generator shaft, ensuring the generator operates at the required RPM to maintain the specified frequency (in AC systems).

In summary, the functionality described by these terms spans the entire electromechanical energy conversion process: the fundamental duality of the **Motor** and **Generator**; the distinction between AC (**Alternator**) and rectified DC (**Dynamo**); the integrated, mobile power unit (**Genset**); and the essential mechanical component used for kinematic transmission (**Pulley**).

KEYWORDS: Electromechanical Conversion, Synchronous Machine, Direct Current, Alternating Current, Prime Mover, Commutator, Rotor, Stator, Excitation, Armature, Slip Rings, Torque, RPM, Faraday's Law, Power Generation, Internal Combustion Engine, Diesel Generator, Turbine, Mechanical Coupling, V-Belt, Speed Ratio, Power System, Backup Power, Emergency Power, Brushless Alternator, Commutated Generator, Electrical Machine, Genset Controller, Output Frequency.
