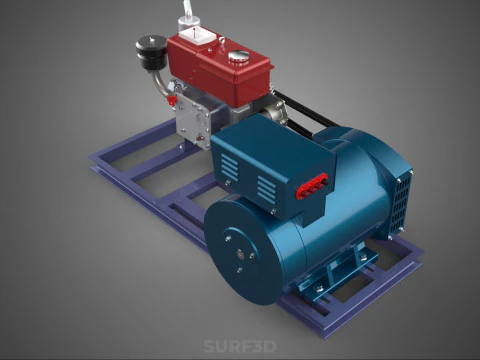

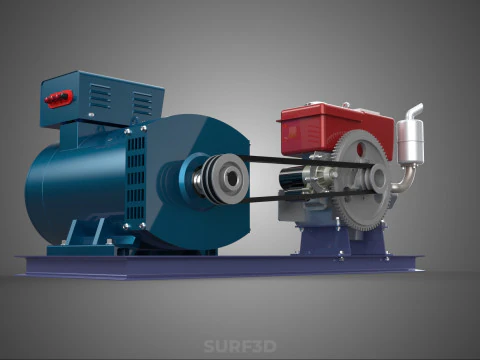

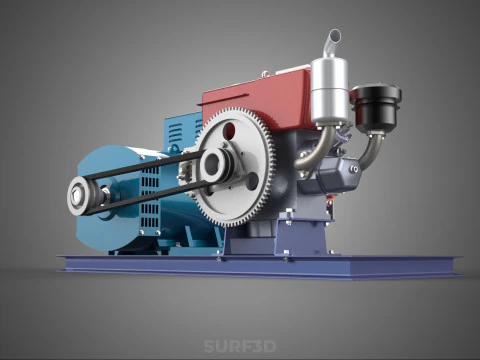

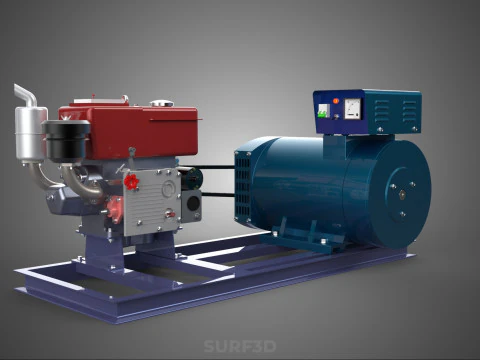

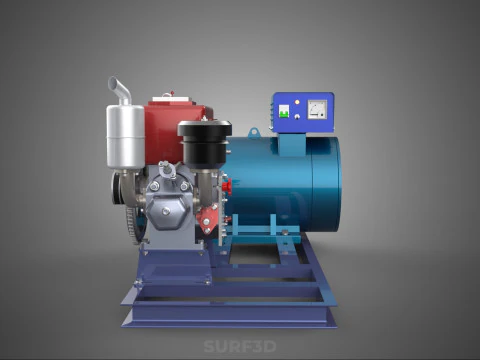

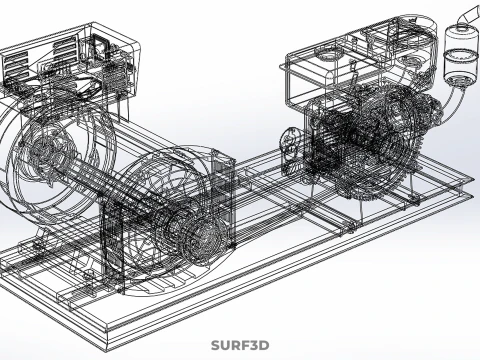

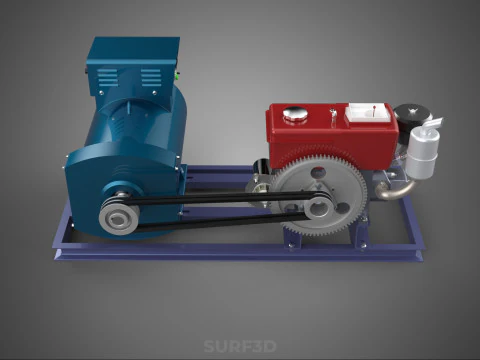

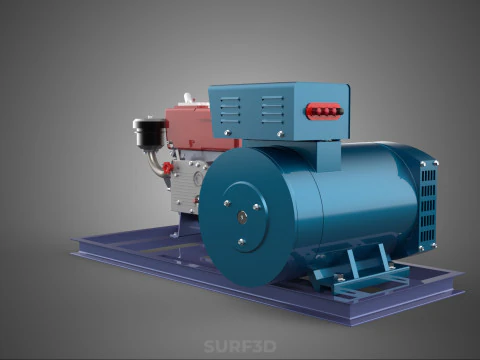

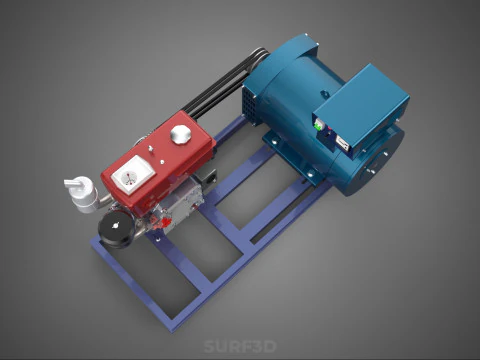

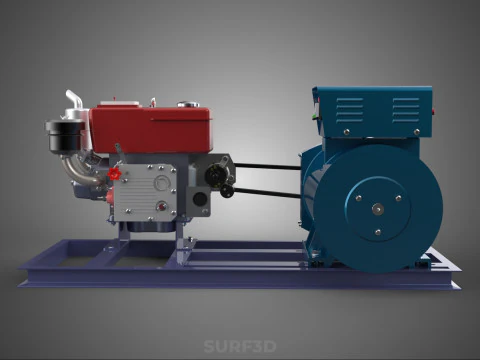

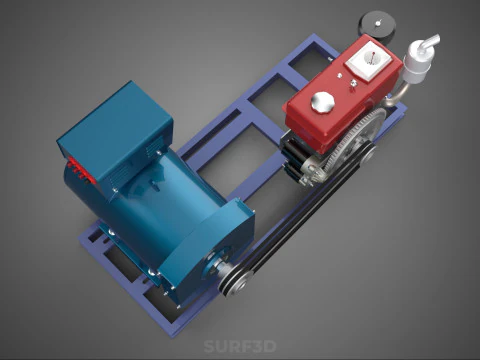

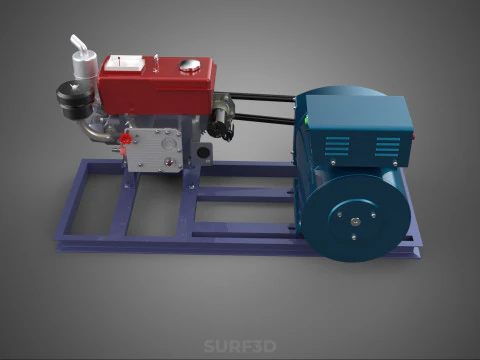

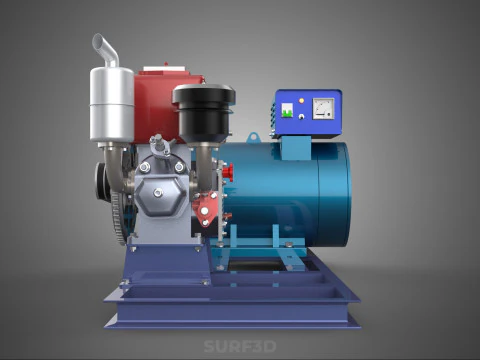

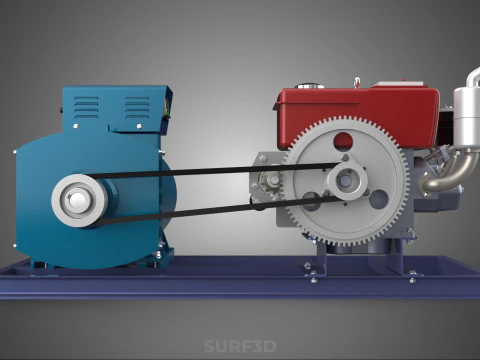

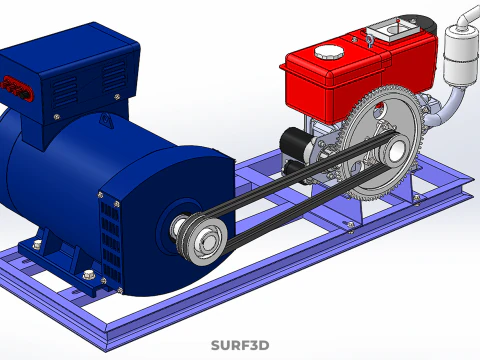

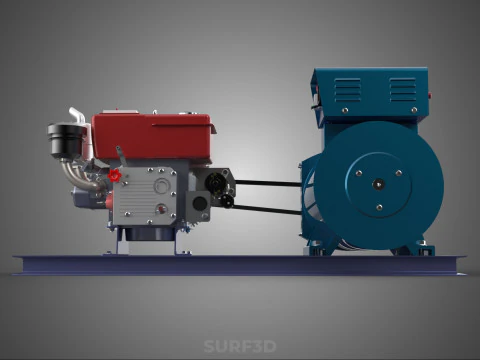

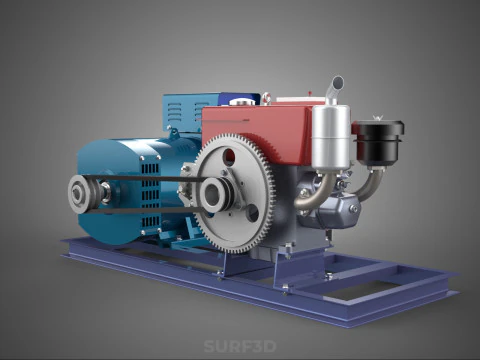

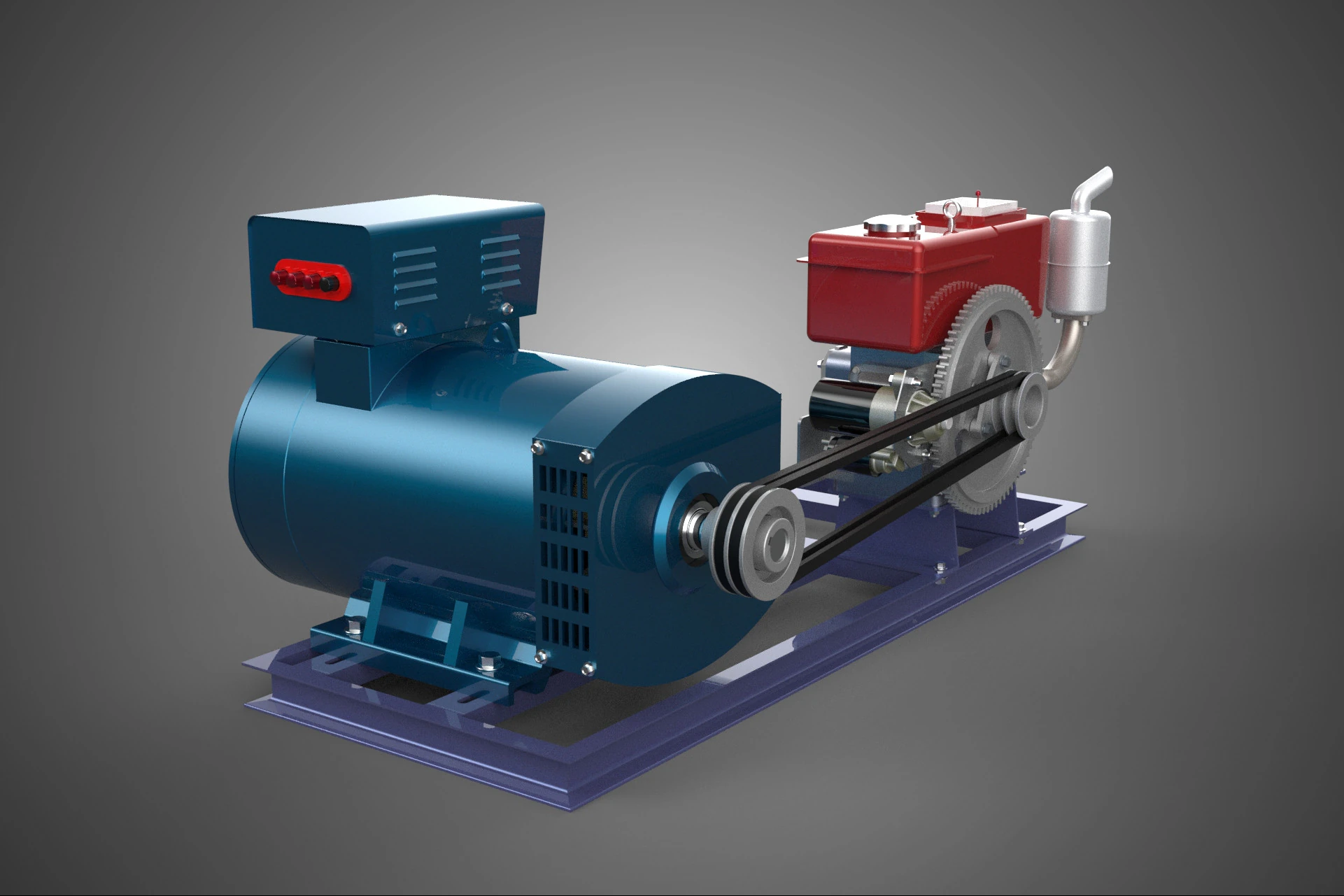

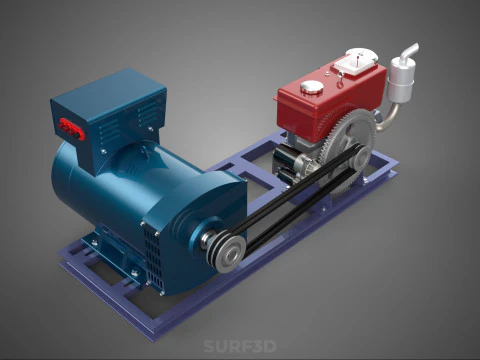

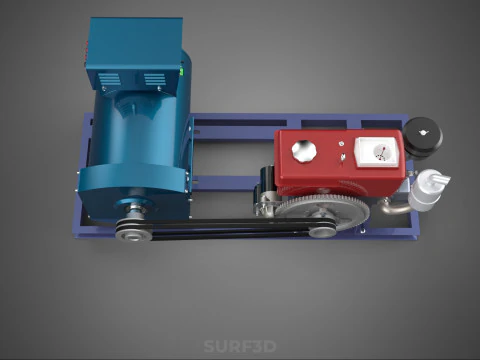

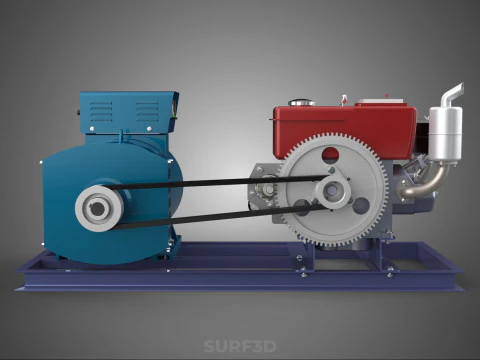

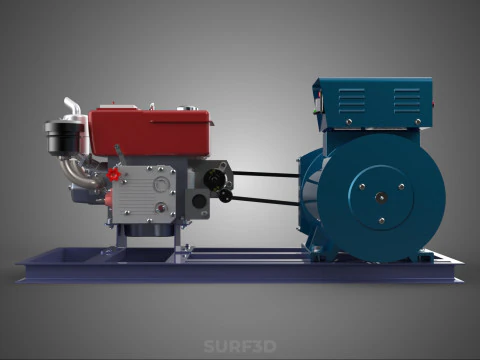

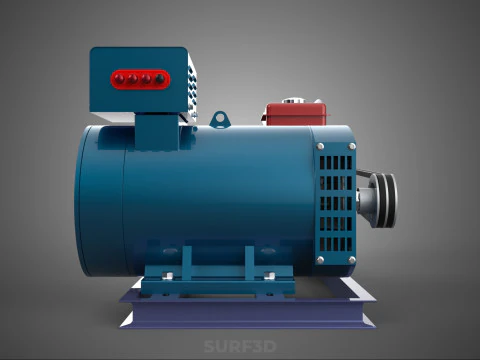

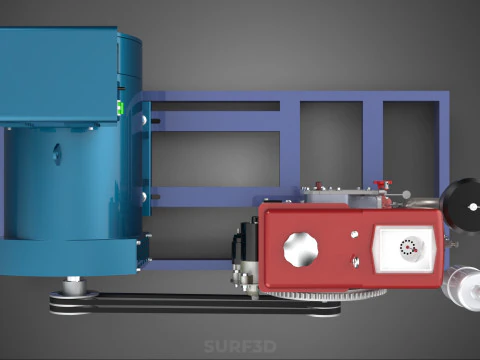

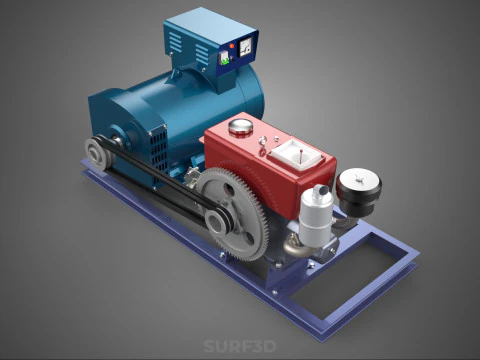

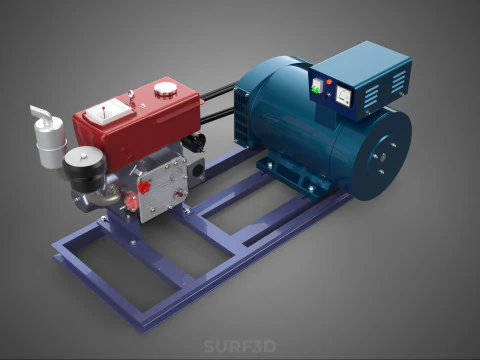

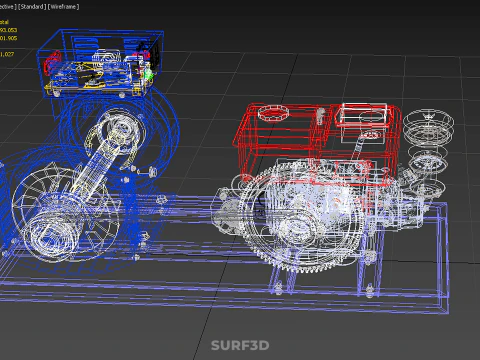

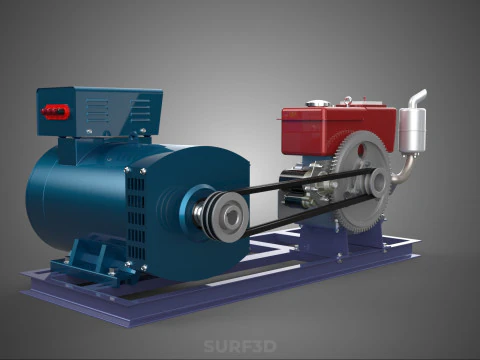

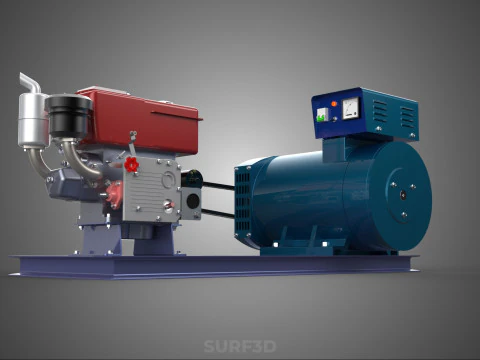

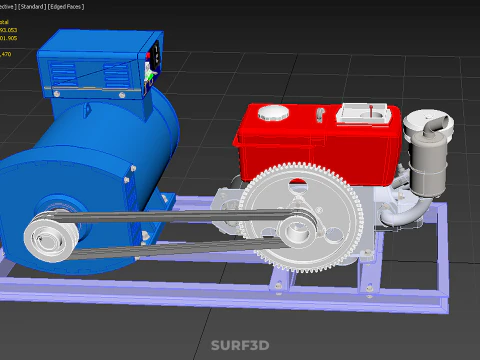

ENGINE DIESEL POWER GENERATOR SET GENSET ALTERNATOR DYNAMO MOTOR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A diesel power generator set (commonly referred to as a genset) is an integrated electromechanical system designed for the efficient conversion of the chemical energy stored in diesel fuel into usable electrical energy. These units are critical components of auxiliary and primary power infrastructure globally, providing reliable alternating current (AC) electricity across a vast range of applications, from small-scale residential use to industrial baseload operations.

### Nomenclature and Composition

The term "ENGINE DIESEL POWER GENERATOR SET GENSET ALTERNATOR DYNAMO MOTOR," while redundant, encompasses the fundamental components and operational principles of the assembly. A genset consists essentially of two mechanically coupled principal sub-systems: the prime mover and the electrical generator.

#### 1. The Prime Mover (Diesel Engine)

The diesel engine acts as the prime mover, converting fuel energy into rotational mechanical energy. It operates on the principle of compression ignition, where air is highly compressed until its temperature exceeds the auto-ignition point of the injected diesel fuel. Diesel engines are favored in power generation applications due to their high thermal efficiency, robustness, durability, and superior torque characteristics compared to spark-ignition gasoline engines. The engine’s speed (Revolutions Per Minute, RPM) must be precisely governed to ensure the output frequency of the electricity remains stable (typically 50 Hz or 60 Hz, corresponding to standard grid specifications).

#### 2. The Electrical Generator (Alternator/Dynamo)

The generator receives the mechanical input from the engine and converts it into electrical output via electromagnetic induction (Faraday's Law).

* **Alternator:** In modern AC gensets, the generator is a synchronous alternator. It utilizes a rotating magnetic field (rotor) induced by direct current (DC) excitation, which cuts across stationary conductor coils (stator), inducing AC voltage. Alternators are characterized by their ability to maintain constant voltage and frequency under varying load conditions.
* **Dynamo/Motor Terminology:** The term "dynamo" refers specifically to a DC generator, largely superseded by alternators for large-scale power generation. While the synchronous alternator is primarily a generator, the title's inclusion of "motor" reflects the capability of many synchronous machines to function reversibly, potentially operating as synchronous motors or compensators, or as starting motors during the initial crank cycle.

#### 3. Integration and Auxiliary Systems

The engine and generator are typically coupled directly via a flexible coupling and mounted together on a common fabricated steel base frame (skid). Auxiliary systems ensure sustained, controlled operation:

* **Fuel System:** Storage tanks, pumps, and sophisticated filtration apparatus.
* **Cooling System:** Utilizing radiator-based air cooling or closed-loop liquid cooling systems to dissipate waste heat from the engine block and turbocharger.
* **Exhaust System:** Manifolds, turbochargers (for enhanced efficiency), mufflers, and emissions control devices (e.g., catalytic converters or particulate filters).
* **Control Panel:** A microprocessor-based system that manages key parameters, including engine starting/stopping, fault detection, and synchronization (for parallel operation). It contains the **Governor** (for mechanical speed control) and the **Automatic Voltage Regulator (AVR)**, which modulates the field excitation current of the alternator to maintain a consistent output voltage under fluctuating load demands.

### Applications and Operational Modes

Diesel gensets are classified by their operational role:

1. **Standby or Emergency Power:** These units operate only during utility grid failure (outages). They are critical for infrastructure such as hospitals, data centers, telecom facilities, and financial institutions where continuous power supply is mandatory.
2. **Prime Power:** Used in locations where connection to the main electrical grid is impractical or unavailable (e.g., mining sites, remote settlements, or isolated construction projects). They run continuously, providing the primary source of electricity.
3. **Peak-Shaving:** Used by commercial entities or utilities to temporarily supplement grid supply during periods of maximum demand, reducing reliance on higher-cost utility power during peak hours.
