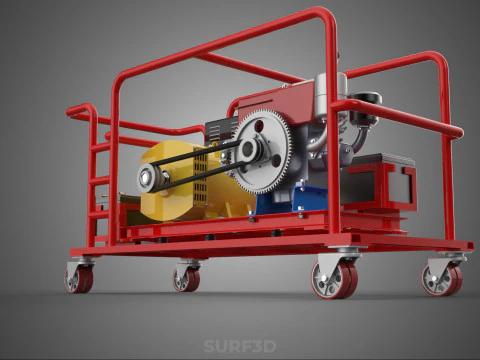

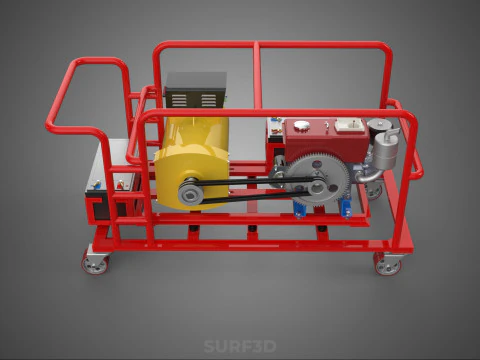

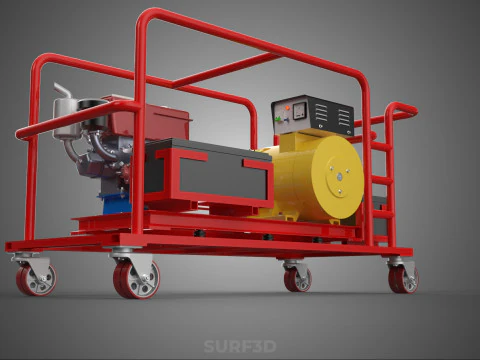

MOBILE BACKUP POWER DIESEL GENSET GENERATOR SET BATTERY SYSTEM 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**MOBILE BACKUP POWER DIESEL GENSET GENERATOR SET BATTERY SYSTEM**

A Mobile Backup Power Diesel Genset Generator Set Battery System, often referred to as a Mobile Hybrid Power Solution (MHPS) or Containerized Backup Power Unit, is an integrated, transportable energy architecture designed to provide highly reliable, redundant, and efficient electrical power generation and storage for critical applications. This system combines the high-energy density and long-duration capability of a diesel generator set (genset) with the fast-response, transient stability, and reduced environmental impact of a modern Battery Energy Storage System (BESS). The resulting platform is optimized for rapid deployment in scenarios such as disaster relief, remote site operations, temporary infrastructure support, or supplementation of strained utility grids.

### I. System Architecture and Components

The MHPS is fundamentally defined by the synergistic operation of three primary components: the Diesel Genset, the Battery Energy Storage System (BESS), and the centralized Energy Management System (EMS).

#### A. Diesel Genset (DG)

The genset serves as the primary long-duration power source and the mechanism for recharging the BESS. Typically housed in sound-attenuated, weather-resistant enclosures or ISO containers, the diesel engine drives a synchronous alternator to produce AC electricity. These units are often compliant with stringent regulatory standards (e.g., EPA Tier 4 Final or EU Stage V) to minimize particulate and nitrogen oxide emissions. The genset is responsible for load following during high-demand periods or when the battery state of charge (SoC) falls below a predefined threshold. Its operation is intermittent, significantly reducing fuel consumption and engine wear compared to continuous use.

#### B. Battery Energy Storage System (BESS)

The BESS is the cornerstone of the hybrid system, providing instantaneous power and enabling periods of silent operation. Modern mobile systems predominantly utilize high-density lithium-ion chemistries (e.g., NMC or LFP) due to their superior cycle life, high depth of discharge, and relatively low maintenance requirements.

The BESS incorporates several subsystems:
1. **Battery Modules:** The energy storage cells.
2. **Power Conversion System (PCS):** High-efficiency, bi-directional inverters that convert the battery’s DC power to usable AC power (or vice versa during charging). These are essential for seamless power transfer and grid synchronization.
3. **Battery Management System (BMS):** A crucial safety and operational subsystem that monitors voltage, current, temperature, and SoC across all modules, preventing thermal runaway and optimizing longevity.

#### C. Energy Management System (EMS)

The EMS, or Hybrid Control Unit (HCU), is the operational intelligence of the MHPS. It continuously monitors load demand, fuel levels, battery SoC, operational efficiency targets, and environmental constraints (e.g., noise restrictions). The EMS algorithm determines the optimal power dispatch strategy, deciding whether to run the genset for direct load supply and charging, discharge the battery for load support, or utilize both simultaneously (peak shaving or load leveling). The EMS ensures that the genset operates within its most fuel-efficient load factor range, minimizing the costly and inefficient operation common in low-load scenarios (wet stacking).

### II. Functional Integration and Operational Modes

The integration of the genset and BESS allows for multiple sophisticated operational modes not possible with standalone systems:

1. **Hybrid Load Following:** The BESS handles rapid load fluctuations and transient demands. The genset runs at a steady, efficient set point, avoiding unnecessary ramping.
2. **Silent Operation (Peak Shaving):** The genset is shut down entirely, and the BESS supplies 100% of the power, critical for noise-sensitive environments or nighttime operations.
3. **Black Start Capability:** The system is capable of initiating power generation without external electrical support, typically utilizing the BESS to energize the control circuitry before starting the diesel engine.
4. **Microgrid Stabilization:** When connected to a local microgrid, the BESS provides critical frequency and voltage regulation, stabilizing the power quality often superior to that of a standalone genset.

### III. Mobility and Deployment

Mobility is achieved through ruggedized physical configurations. Systems are mounted on heavy-duty skids, road-legal trailers, or standard 10-foot, 20-foot, or 40-foot ISO containers, facilitating global logistics via road, rail, or sea. These units are designed for “plug-and-play” deployment, requiring minimal on-site infrastructure or specialized personnel for connection and commissioning. The robust chassis and protective enclosures ensure operability in extreme climates and harsh operating conditions.

### IV. Advantages and Applications

The hybrid configuration provides substantial benefits over traditional standalone diesel generators:

* **Fuel Efficiency:** Reduced genset runtime typically yields 30% to 50% fuel savings.
* **Reduced Emissions and Noise:** Lower operational hours directly translate to decreased CO2, NOx, and particulate matter emissions, alongside significantly lower acoustic output during battery-only operation.
* **Enhanced Reliability and Redundancy:** The BESS provides immediate, uninterrupted power during genset start-up or potential maintenance failures (UPS functionality).
* **Operational Lifespan:** Reduced engine stress and operating hours extend the Mean Time Between Overhaul (MTBO) for the diesel engine.
