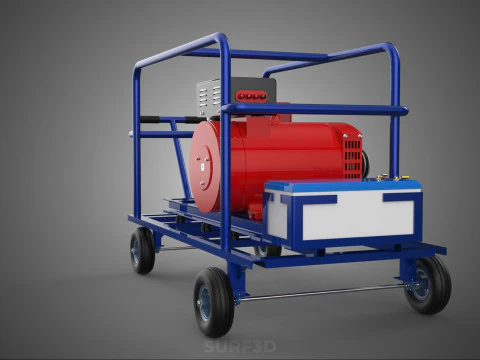

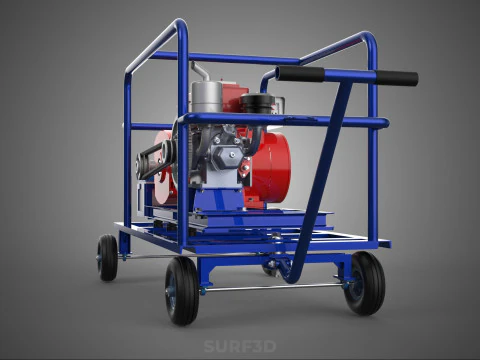

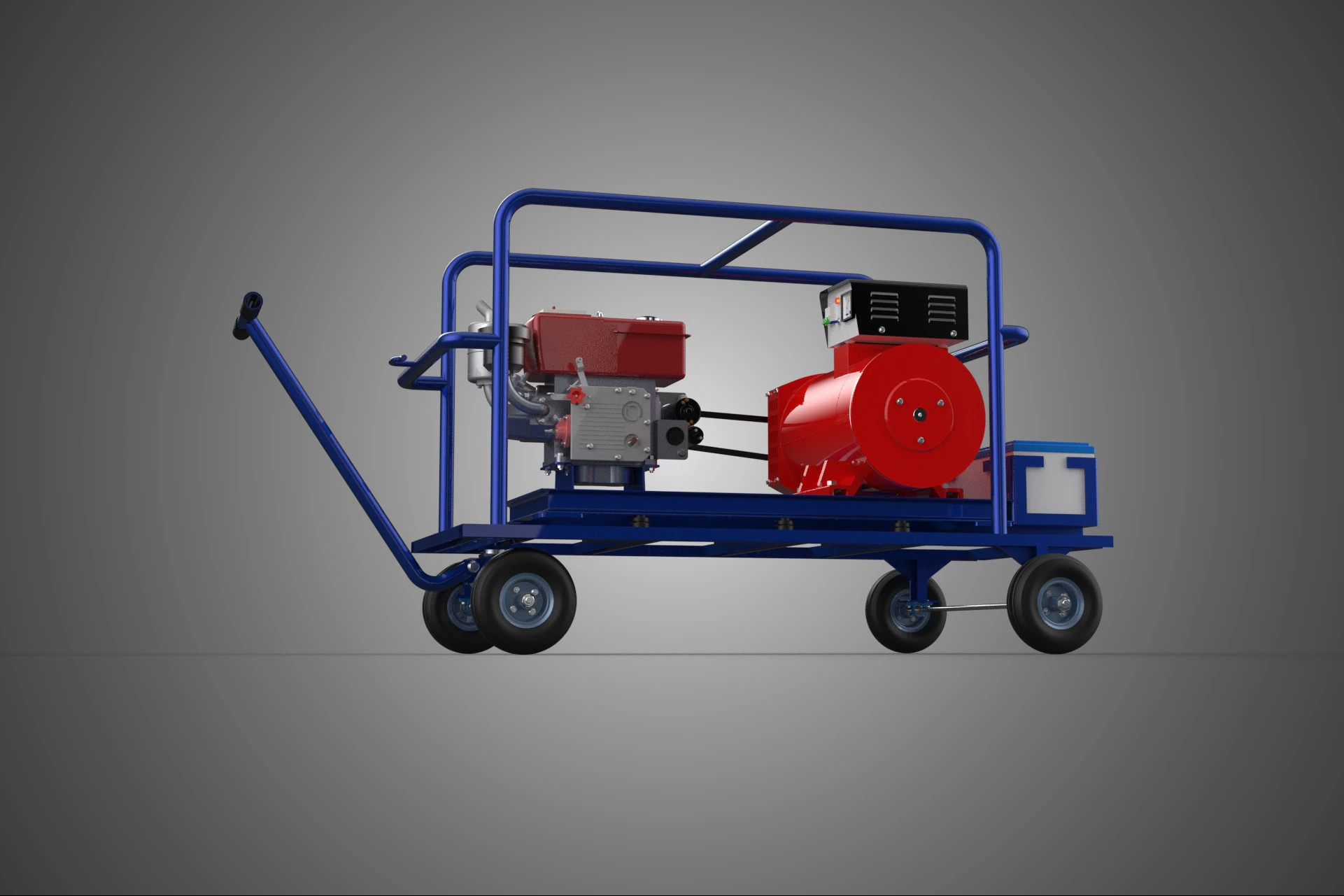

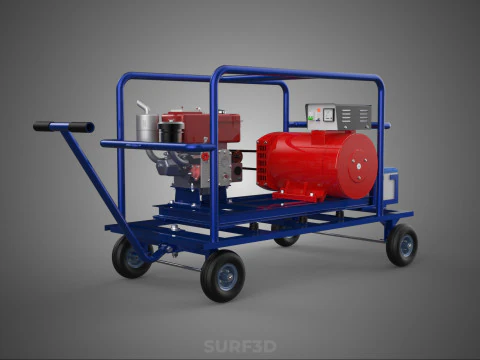

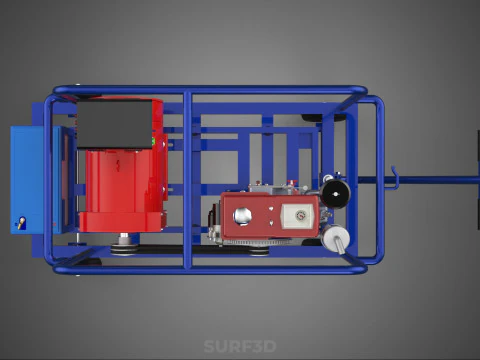

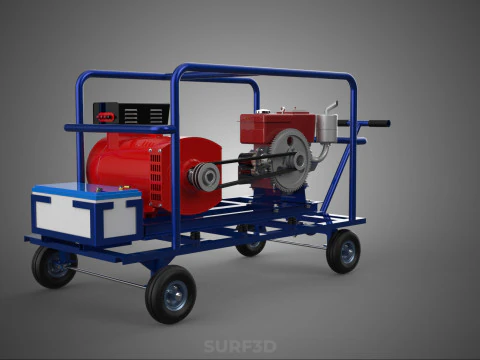

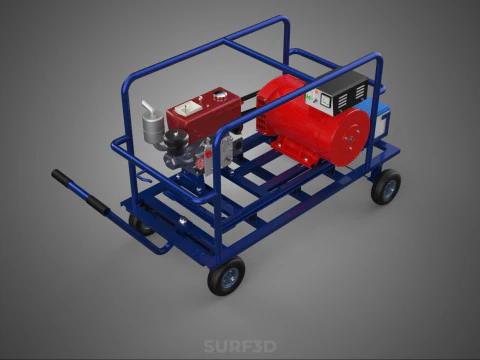

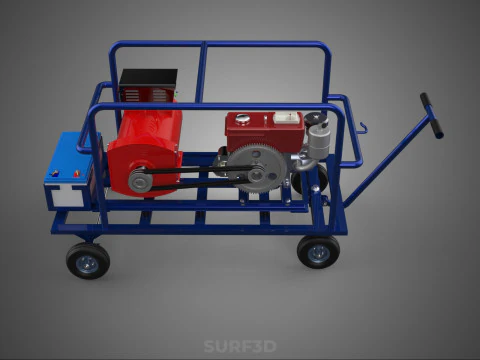

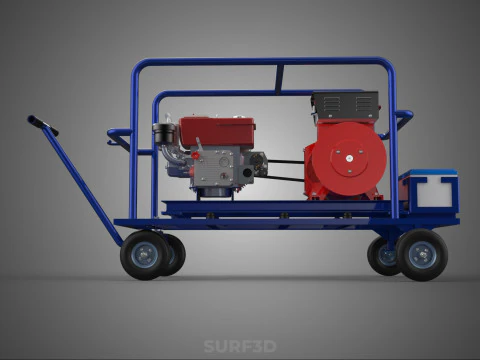

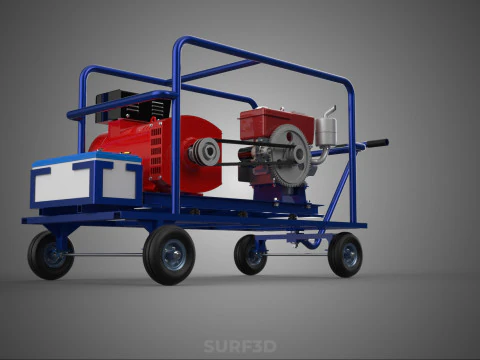

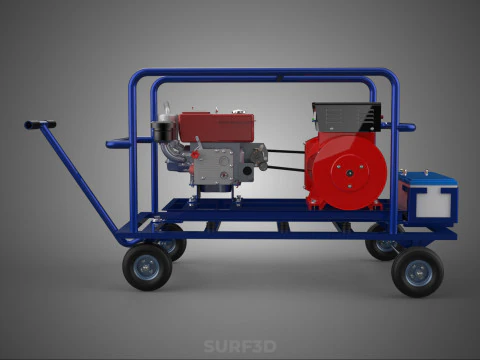

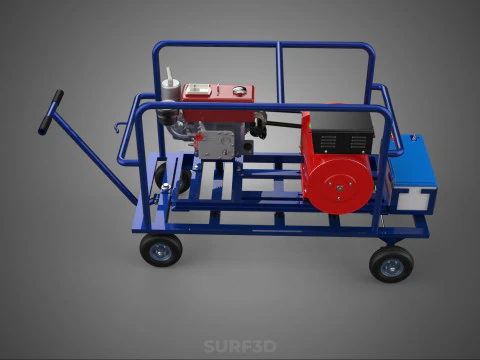

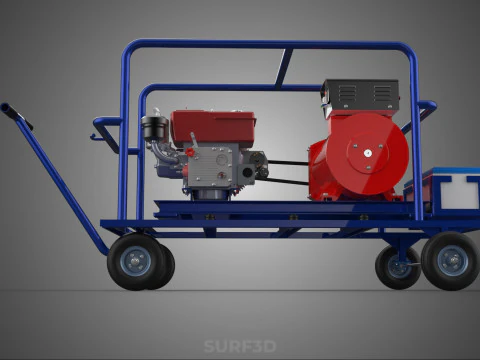

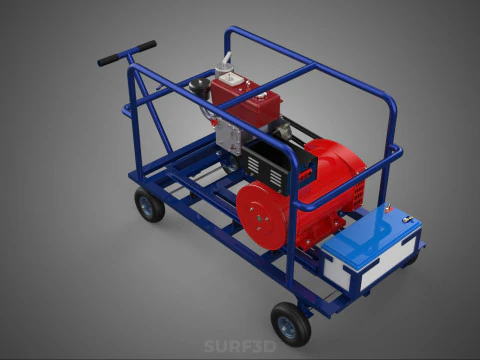

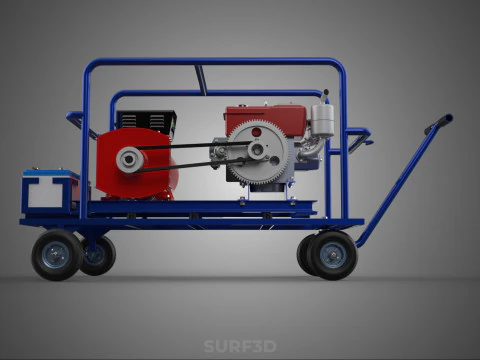

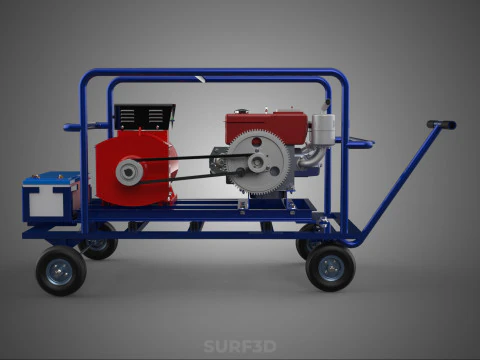

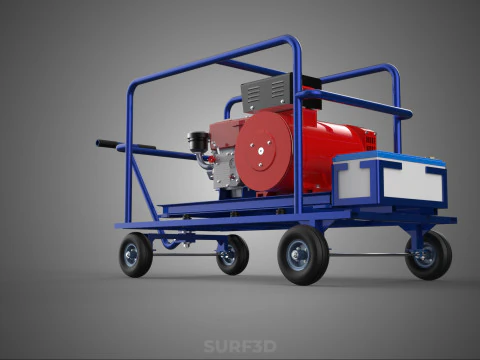

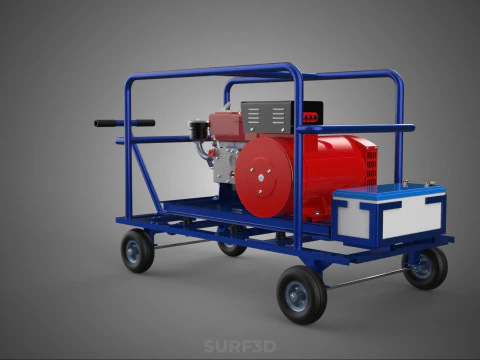

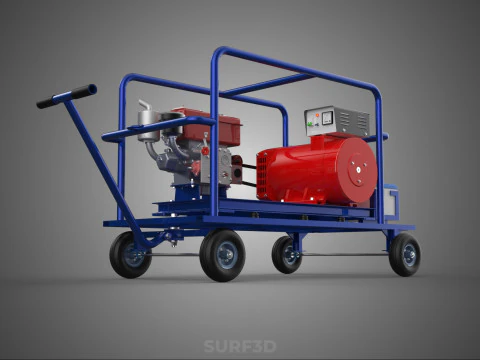

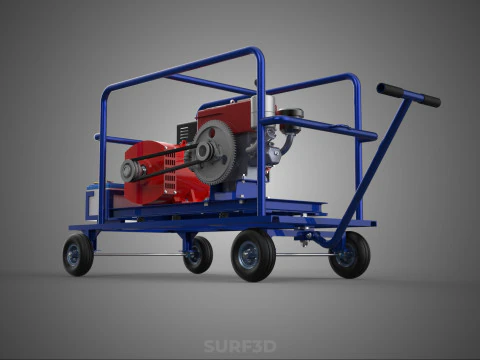

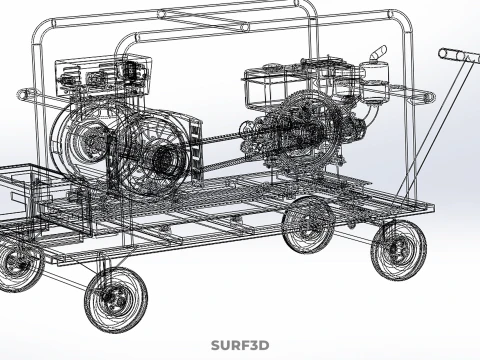

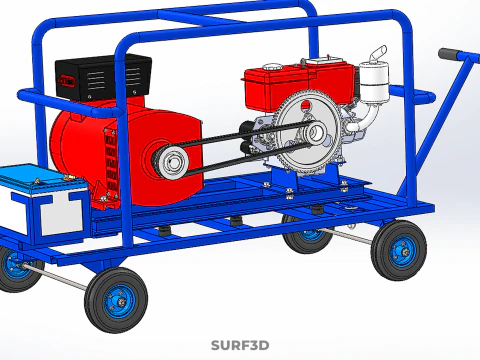

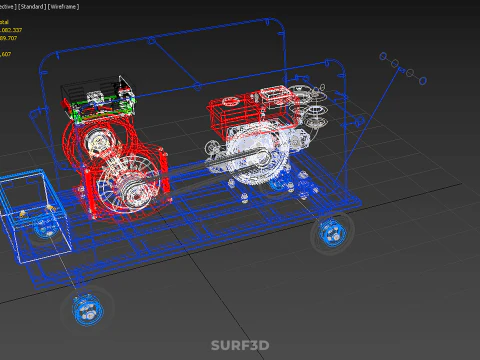

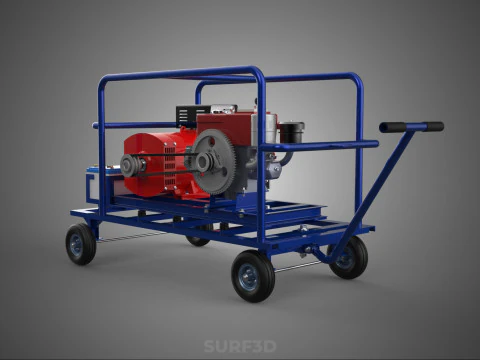

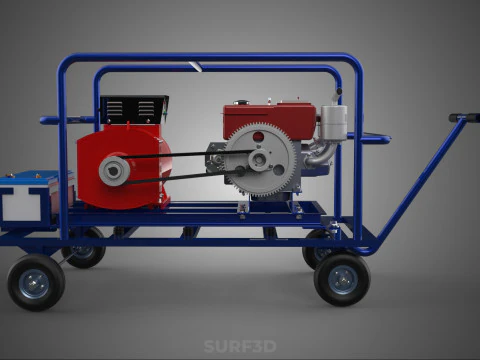

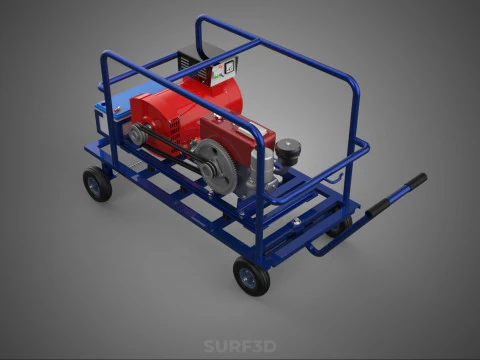

MOBILE DIESEL GENERATOR SET GENSET PUSH PULL HANDLE WAGON CART 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**MOBILE DIESEL GENERATOR SET GENSET PUSH PULL HANDLE WAGON CART**

A mobile diesel generator set (genset) mounted upon a push-pull handle wagon cart is a specialized category of portable power generation equipment designed for localized, autonomous electrical supply requiring high maneuverability and manual transportation. This apparatus integrates a complete power generation system onto a purpose-built, manually-propelled chassis, prioritizing operational flexibility and precise positioning within confined or infrastructure-limited environments.

### Classification and Functionality

This specific configuration falls under the classification of highly portable industrial or commercial-grade power units. The fundamental function is the conversion of chemical energy stored in diesel fuel into usable alternating current (AC) electricity. The design differentiates itself from larger trailer-mounted gensets by employing an integrated cart chassis and manual propulsion system rather than vehicular towing mechanisms.

The system is composed of three interconnected primary subsystems:

#### 1. The Power System (Genset)
The core power unit typically consists of a compact, liquid-cooled or air-cooled diesel engine acting as the prime mover. This engine is mechanically coupled to a synchronous alternator or generator head. The electrical output capacity of these manual-cart configurations generally ranges from 3 kVA to approximately 15 kVA, balancing sufficient power output for professional tools and lighting with the necessity of maintaining a manually manageable total system weight. The unit includes vibration isolation mounts to minimize the transfer of engine vibrations to the chassis and ground, thereby protecting internal components and ensuring stable operation.

#### 2. The Electrical Conditioning and Control System
All mobile gensets include an integrated control panel that provides monitoring, output control, and safety features. This panel typically includes instrumentation for measuring voltage, frequency (Hz), operating hours, oil pressure, and coolant temperature. Output is delivered through standardized receptacles (e.g., 120V, 240V, or 480V, depending on regional requirements) protected by circuit breakers. Advanced units may incorporate automatic voltage regulation (AVR) to ensure clean, stable power suitable for sensitive electronic equipment.

#### 3. The Mobility System (Wagon Cart)
The defining element is the robust, integrated chassis, often fabricated from welded steel or aluminum structural components, configured as a low-profile wagon or utility cart.

* **Chassis:** The frame is engineered for heavy loads and high torsional stress, crucial for supporting the mass of the engine, fuel, and alternator package.
* **Wheels:** The wheels are typically large-diameter, pneumatic (air-filled) or solid-rubber, designed for traversing rough terrain, construction debris, or uneven field surfaces without binding or failure. The axle configuration often includes a front steering mechanism coupled directly to the handle.
* **Push-Pull Handle Mechanism:** The push-pull handle is an articulated, T-shaped or loop handle attached to the steerable axle. It is designed for ergonomic operation, allowing a single operator (or tandem operators) to manually guide, steer, and transport the heavy unit at low speeds. The leverage afforded by the handle geometry facilitates starting the load and maintaining control during transport and precise placement.

### Design Characteristics and Applications

The design emphasizes ruggedization for demanding environments. Key characteristics include fuel tanks integrated into the frame or mounted externally with appropriate baffling, and often a protective external enclosure (canopy) constructed of sound-attenuating and weather-resistant material.

The mobile diesel genset wagon cart is indispensable in applications where power is needed intermittently and must be highly localized:

1. **Construction and Maintenance:** Providing temporary power for welding equipment, power tools, and lighting systems on sites inaccessible to vehicular trailers or requiring frequent repositioning.
2. **Field Service and Utilities:** Powering specialized equipment (e.g., pumps, compressors, diagnostic tools) during remote infrastructure repair or utility work.
3. **Agriculture:** Supplying power for remote irrigation control, temporary lighting, or mobile repair workshops away from fixed power lines.
4. **Emergency and Disaster Relief:** Offering rapidly deployable electrical generation for localized communication hubs or critical life support equipment.

The principal advantage of the push-pull handle cart design is the ability to navigate through narrow openings, doorways, and congested areas where vehicle access is impractical, making it a critical asset for small-scale, high-mobility power requirements.
