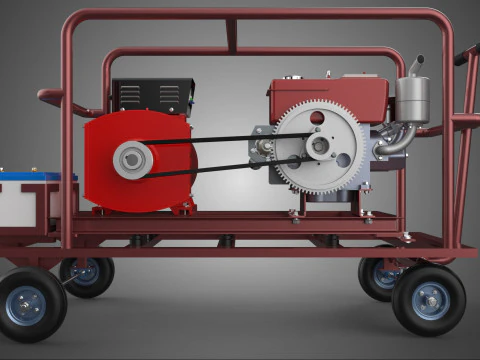

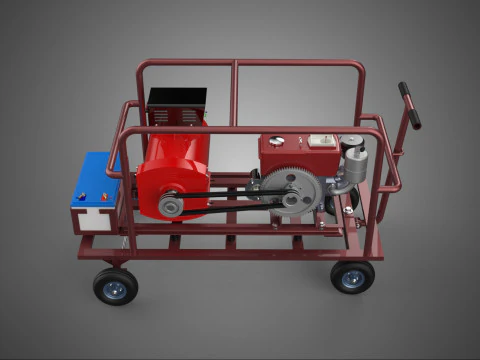

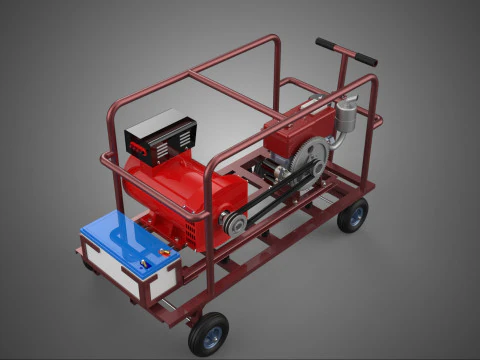

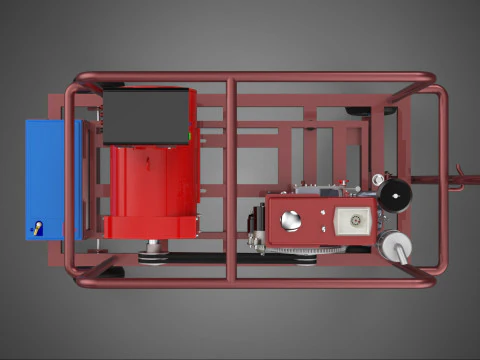

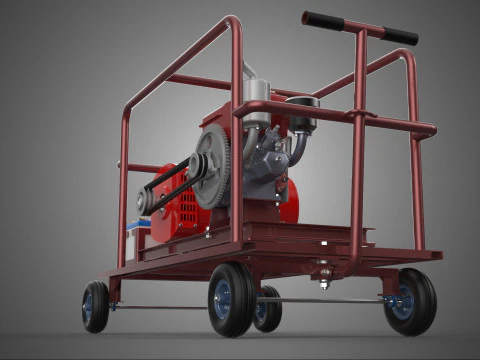

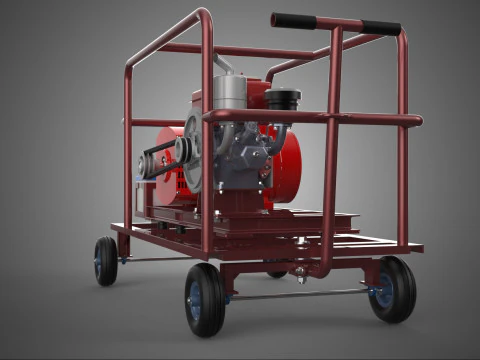

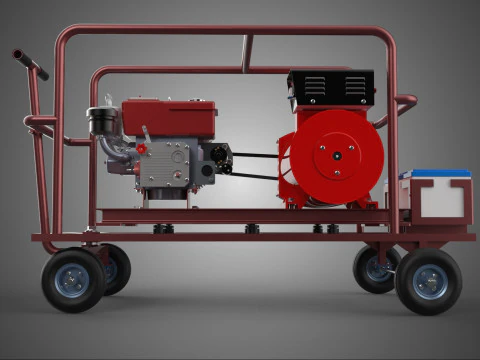

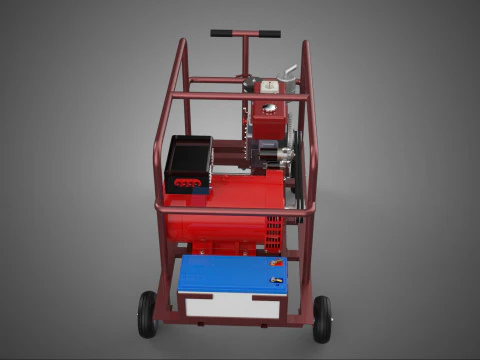

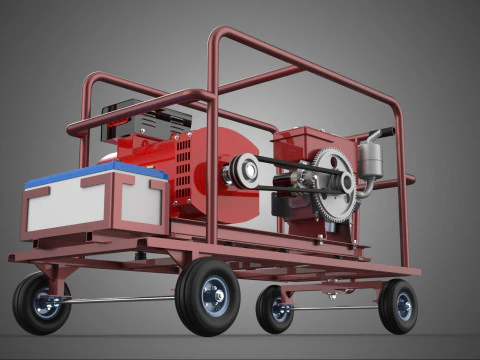

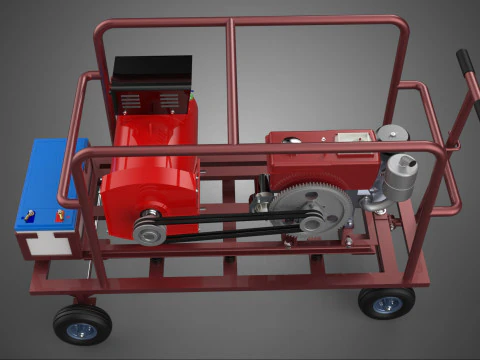

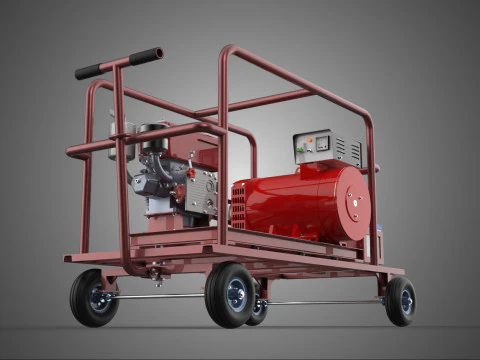

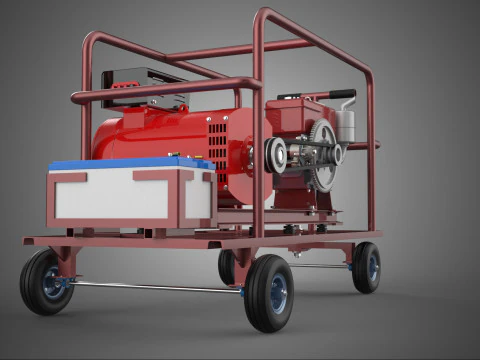

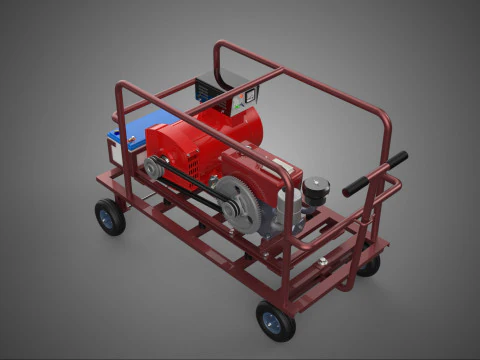

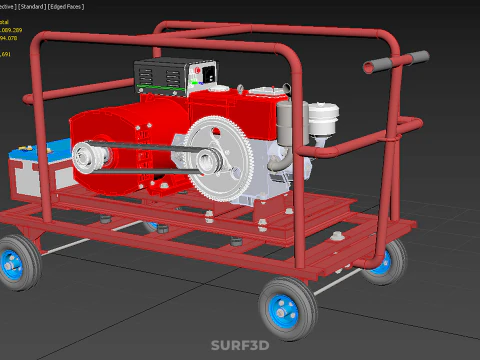

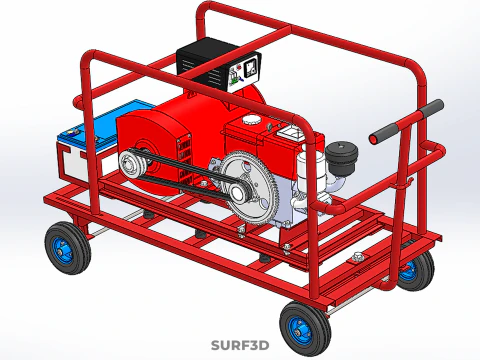

MOBILE POWER PALLET DIESEL ENGINE GENERATOR SET GENSET TROLLEY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Mobile Power Pallet Diesel Engine Generator Set (Genset) Trolley is a fully integrated, self-contained system designed to provide electrical power in locations lacking fixed utility infrastructure or as a source of temporary or emergency backup electricity. This apparatus distinguishes itself by combining industrial-grade power generation capabilities with high structural rigidity and inherent portability, making it suitable for dynamic operational environments.

### I. Definition and Architecture

The system is fundamentally a generating set wherein a diesel engine acts as the *prime mover* driving an electrical generator (alternator). The designation "Mobile Power Pallet Trolley" specifies the structural foundation: a robust, heavy-duty skid (pallet) that encapsulates the components, mounted upon a wheeled chassis (trolley) for facile relocation. These units are engineered for demanding field use, providing reliable power typically ranging from small (5 kVA) to mid-size (250 kVA) capacities.

### II. Core Components

#### A. Prime Mover (Diesel Engine)
The choice of a diesel engine is predicated on its superior thermal efficiency, durability, reliability under continuous load, and higher torque output compared to gasoline alternatives in industrial applications. The engine converts the chemical energy stored in diesel fuel into rotational mechanical energy. Critical engine subsystems include:
1. **Fuel System:** Incorporating filtration, injection pumps, and an often integrated, anti-slosh fuel tank built directly into the pallet frame for enhanced stability and extended run times.
2. **Cooling System:** Typically liquid-cooled (radiator-based) or, for smaller units, air-cooled, ensuring operational temperature maintenance under varying ambient conditions.
3. **Control and Protection:** Features sophisticated electronic or mechanical governors to regulate engine speed (RPM) and maintain a stable frequency output (50 Hz or 60 Hz). Safety mechanisms include automatic shutdown protocols for low oil pressure, high engine temperature, and overspeed conditions.

#### B. Electrical Generator (Alternator)
The alternator is the electrical component coupled directly to the engine's crankshaft (direct drive being the most common configuration). It functions to convert mechanical rotational energy into alternating current (AC) electrical energy. Key characteristics include:
1. **Output:** Designed to deliver single-phase or three-phase power at standardized voltages (e.g., 120/240V or 277/480V).
2. **Excitation:** Utilizes brushless excitation systems combined with an Automatic Voltage Regulator (AVR) to maintain output voltage stability regardless of fluctuating load demands.
3. **Insulation:** The stator and rotor windings are generally designed with high-temperature insulation materials to withstand industrial duty cycles.

#### C. Control Panel and Distribution
The control panel is centralized, housing instrumentation for monitoring engine parameters (oil pressure, coolant temperature, hours run) and electrical output (voltage, amperage, frequency). It also includes circuit breakers for protection against overcurrent and provides multiple electrical outlets or connection terminals for power distribution.

### III. Structural and Mobility Design

The integration of the "Power Pallet" and "Trolley" features is crucial for the unit's deployment profile:

1. **Power Pallet (Skid Frame):** This is a heavy-gauge welded steel structure that serves as the base. It ensures structural rigidity, maintains the precise alignment between the engine and alternator, and acts as a vibration dampener. Pallets often incorporate lifting eyes or fork pockets for crane or forklift handling.
2. **Trolley (Wheeled Chassis):** Attached beneath the pallet, the trolley provides mobility. This typically involves heavy-duty axles and wheels (pneumatic or solid rubber tires), allowing the unit to be towed by vehicles (trailer-style) or manually maneuvered using a handle or steering mechanism in confined spaces. The design emphasizes a low center of gravity to prevent tipping during transport.
3. **Enclosure:** While not universally present, many trolley-mounted units feature sound-attenuated, weather-resistant enclosures constructed from durable materials like steel or aluminum to protect the components from environmental elements (rain, dust) and minimize operational noise levels.

### IV. Applications

Mobile Power Pallet Diesel Genset Trolleies are integral assets across numerous sectors requiring flexible and immediate power solutions:
* **Construction and Mining:** Supplying electricity to tools, lighting, site offices, and temporary housing where utility access is unavailable.
* **Emergency Services and Disaster Relief:** Providing critical power for medical facilities, communication hubs, and temporary shelters following natural disasters.
* **Event Production:** Powering temporary lighting, sound systems, and concessions for outdoor events and festivals.
* **Military and Tactical Operations:** Delivering dependable, transportable power in rapidly changing forward operating bases.

The core utility lies in the ability to deliver reliable, high-density energy that can be rapidly transported, positioned, and activated (plug-and-play), minimizing setup time and maximizing operational flexibility.

KEYWORDS: Genset, Diesel Generator, Prime Mover, Mobile Power, Power Pallet, Trolley System, Skid Mount, Portability, Synchronous Alternator, Automatic Voltage Regulator, Emergency Power, Temporary Power, Industrial Power, Heavy Duty, Fuel Efficiency, Remote Operation, Construction Site, Three-Phase Power, Single-Phase Power, Vibration Damping, Control Panel, Enclosed Genset, Towable Generator, Load Regulation, Diesel Engine, Fuel Tank Integration, Mechanical Coupling, High Torque, Standby Power, Critical Infrastructure
