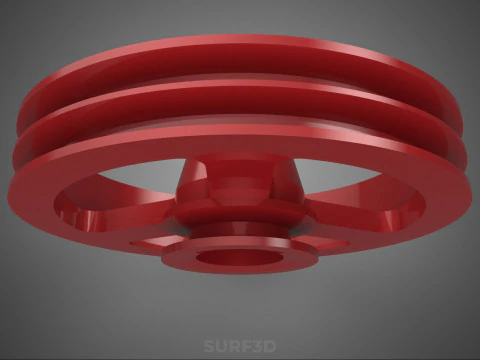

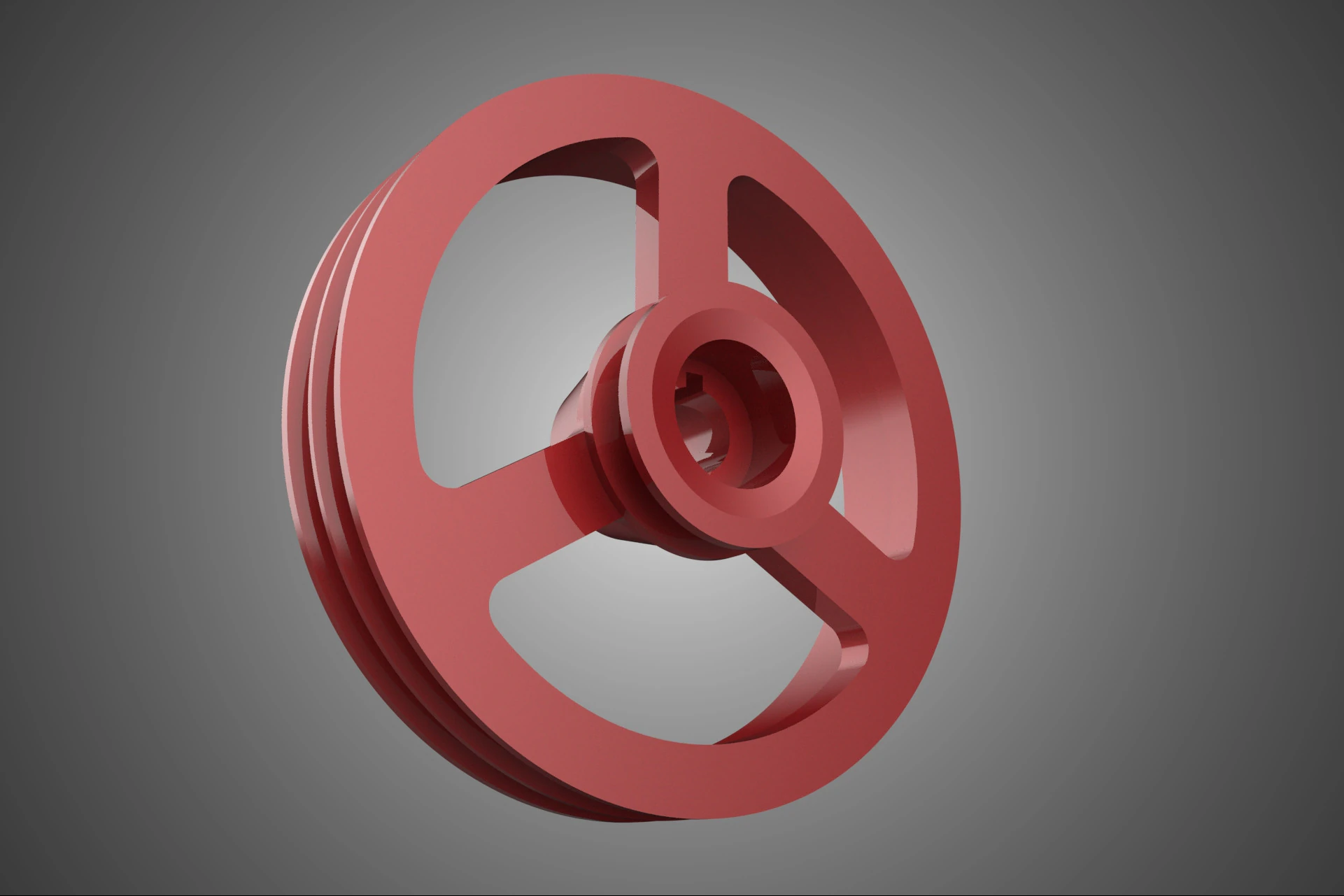

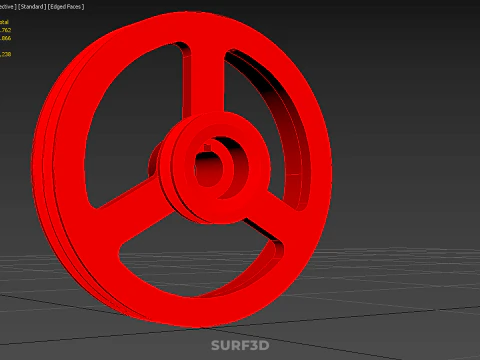

2 STEP STEPPED PULLEY DUAL TWO DOUBLE GROOVE TRACK SHEAVE BELT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The "2 Step Stepped Pulley Dual Two Double Groove Track Sheave Belt" is a specific classification of mechanical power transmission component utilized in belt drive systems to facilitate both rotational speed variation and robust power handling through parallel belt paths. This assembly is formally categorized as a multi-diameter sheave engineered for use with V-belts or equivalent track-engaging belts.

### Nomenclature and Structure

The designation specifies the pulley's critical architectural features:

1. **Stepped Pulley (2 Step):** The pulley body is cast or machined with two concentric, cylindrical diameters (steps). These steps provide two discrete pitch diameters, $D_1$ and $D_2$, which are utilized to establish fixed, predetermined speed ratios between the driving shaft and the driven shaft.
2. **Sheave/Pulley:** This identifies the component as a wheel with a grooved rim, designed to accommodate a flexible belt for the transmission of mechanical energy.
3. **Dual/Double Groove Track:** This critical feature denotes that the operational surface is configured with two distinct, parallel grooves. In the context of the stepped design, this typically means that both the larger and smaller steps possess two independent tracks. This configuration enables the deployment of two separate belts simultaneously (dual-path transmission), enhancing load capacity, minimizing belt slip, and improving the dynamic stability of the system.

The core structure includes the rim (containing the steps and grooves), the hub (the central body), and the bore (the internal diameter for shaft mounting), often incorporating keyways or taper-lock features for secure torque transfer.

### Functional Mechanics

The primary function of this specialized sheave is twofold:

**1. Speed Variation:** The stepped geometry allows for manual adjustment of the gear ratio ($\text{Ratio} = D_{\text{Driven}} / D_{\text{Drive}}$). By shifting the belt(s) from the smaller step on the drive sheave to the larger step on the driven sheave, or vice versa, the operator can rapidly change the output speed of the driven shaft. A two-step configuration provides two distinct operating speeds when used in conjunction with a matching two-step pulley on the complementary shaft.

**2. Load Distribution and Redundancy:** The dual groove design is employed in applications demanding high torque or increased reliability. By utilizing two belts, the total load is effectively shared, reducing the tensile stress and wear rate on individual belts. This redundancy minimizes the potential for power interruption and increases the operational lifespan of the drive system. Furthermore, the use of dual belts provides enhanced friction and traction, significantly reducing power loss attributable to slippage, particularly during periods of high transient torque or rapid acceleration.

### Materials and Applications

These sheaves are typically fabricated from materials offering high strength, wear resistance, and adequate dimensional stability, commonly including gray cast iron (for high damping), aluminum alloys (for reduced inertia), or specialized engineered plastics (for noise reduction). The grooves require precision machining to ensure optimal belt seating and even load distribution.

Applications for the 2 Step Stepped Pulley Dual Double Groove Sheave are prevalent in light-to-medium industrial machinery where readily accessible speed changes and high power density are required. Common applications include:

* **Machine Tools:** Drill presses, bench lathes, and small milling machines requiring discrete spindle speed adjustments.
* **HVAC Systems:** Blowers and fans where high volume airflow must be maintained across multiple operational speeds.
* **Conveyor Systems:** Specialized indexing or material handling equipment requiring precise, staged velocity control.

The sophisticated integration of stepping and dual grooving makes this component a highly efficient solution for controlled mechanical power transmission in environments prioritizing flexibility and durability.
