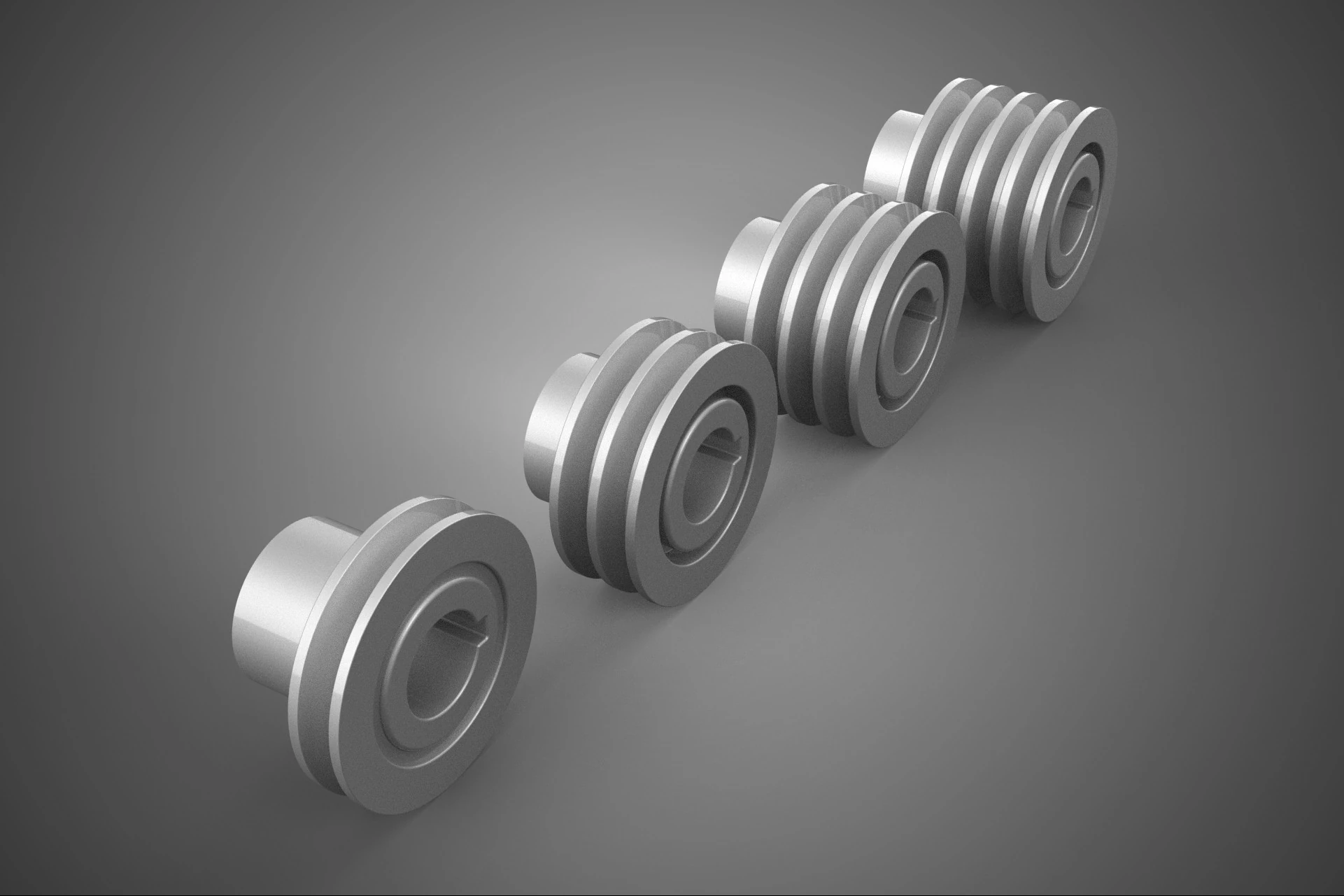

STANDARD PULLEY SHEAVE TRACK WHEEL DRIVE BELT GEAR MULTI GROOVE 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The component designated as a "STANDARD PULLEY SHEAVE TRACK WHEEL DRIVE BELT GEAR MULTI GROOVE" is a specialized mechanical element engineered for industrial power transmission and motion control systems, characterized by its versatility and high load-bearing capacity. This nomenclature describes an apparatus that integrates the primary functions of a rotary transmission element (pulley/sheave) with guidance capabilities (track wheel), optimized for robust power transfer using multiple friction or positive engagement belts (multi-groove drive belt).

### Nomenclature and Standardization

The terms *pulley* and *sheave* are often used interchangeably, although *sheave* typically refers to a grooved wheel designed specifically for use with rope, wire cable, or, in the context of industrial drives, specialized high-tension V-belts. The prefix "STANDARD" indicates that the component adheres to established industrial dimensional specifications (e.g., ISO, DIN, ANSI standards for pitch diameter, groove angle, and bore tolerance), ensuring interchangeability and compatibility within common transmission assemblies.

### Structural Anatomy and Design

The defining anatomical feature is the **multi-groove** design, consisting of multiple circumferential channels precisely machined into the rim. This configuration is critical for several reasons:

1. **Increased Torque Capacity:** Utilizing multiple parallel belts (e.g., multiple V-belts or poly-V belts) allows for the distribution of tensile load across a greater surface area, significantly increasing the maximum torque that can be transmitted compared to a single-belt system of comparable size.
2. **Redundancy and Reliability:** Should one belt fail or slip, the remaining belts continue to maintain system operation, enhancing overall reliability in critical applications.
3. **Stability:** Multi-groove sheaves minimize vibrational tendencies often associated with single-belt drives, providing a smoother, more balanced operation, especially at high rotational speeds.

Materials selection is based on required tensile strength, weight, and operating environment, commonly including gray cast iron (for damping and strength), steel alloys (for high stress and structural integrity), or aluminum (for reduced rotational inertia).

### Operational Modes

The composite nature of the title highlights two distinct operational modes:

#### 1. Drive Belt Transmission (Pulley/Sheave Function)

In this mode, the component functions as a conventional pulley, transferring rotational energy and torque between a driving shaft and a driven shaft. The grooves are typically dimensioned for standard industrial power belts, such as classical V-belts (A, B, C series), narrow V-belts (3V, 5V, 8V), or synchronous timing belts (where the groove pattern may resemble gear teeth to prevent slip, justifying the inclusion of the term "GEAR" in the functional description, relating to the fixed speed ratio achieved). The "gear" designation can also refer broadly to the achieved mechanical advantage (ratio) of the overall transmission system in which the sheave operates.

#### 2. Track Wheel Guidance (Track Wheel Function)

The incorporation of the "track wheel" function suggests the component may be utilized in material handling or conveyance systems. In this capacity, the wheel is designed to roll along a fixed rail, track, or I-beam. While still mounted on an axle, the primary purpose shifts from purely transmitting power to providing directed motion, support, or guidance. In some specialized designs, the multi-groove profile may be adapted to interface directly with the geometry of the track or cable guide, combining power transmission and linear guidance functions simultaneously, such as in specialized lifting hoists or cable tensioning systems.

### Applications

Standard multi-groove components are indispensable in machinery requiring reliable, high-torque power transfer and steady operational performance. Common applications include: heavy-duty HVAC systems (fans and compressors), industrial machine tools, pumps, crushers, continuous conveyance systems (e.g., elevators and escalators), and mechanical handling equipment where the track wheel functionality is critical for linear movement along established paths.
