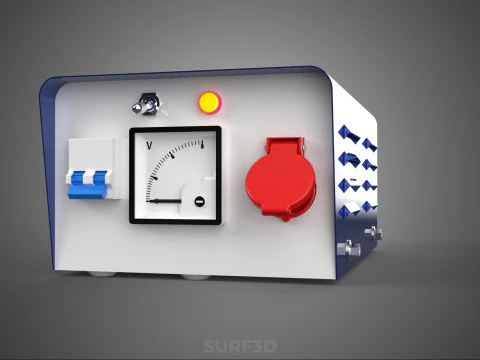

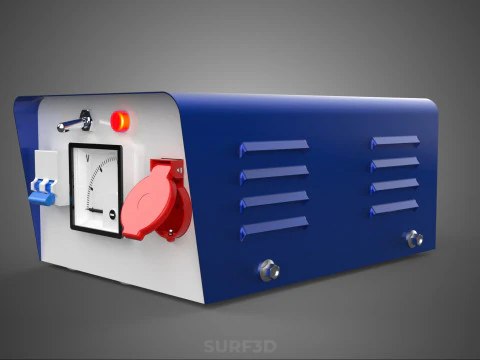

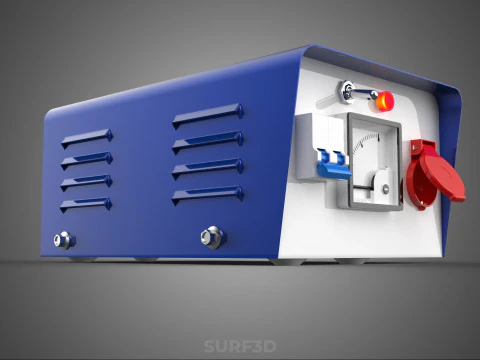

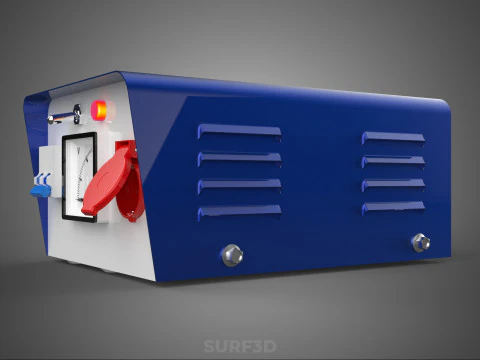

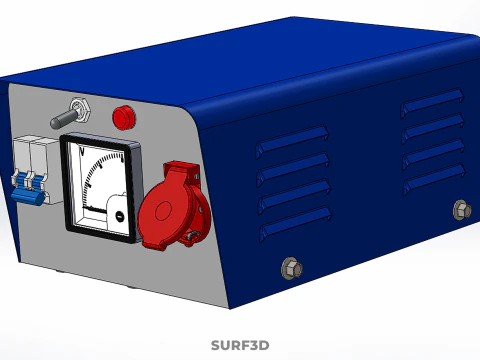

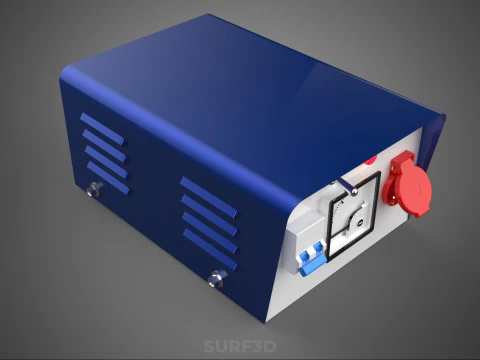

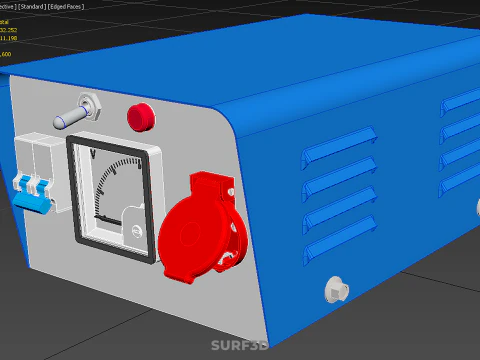

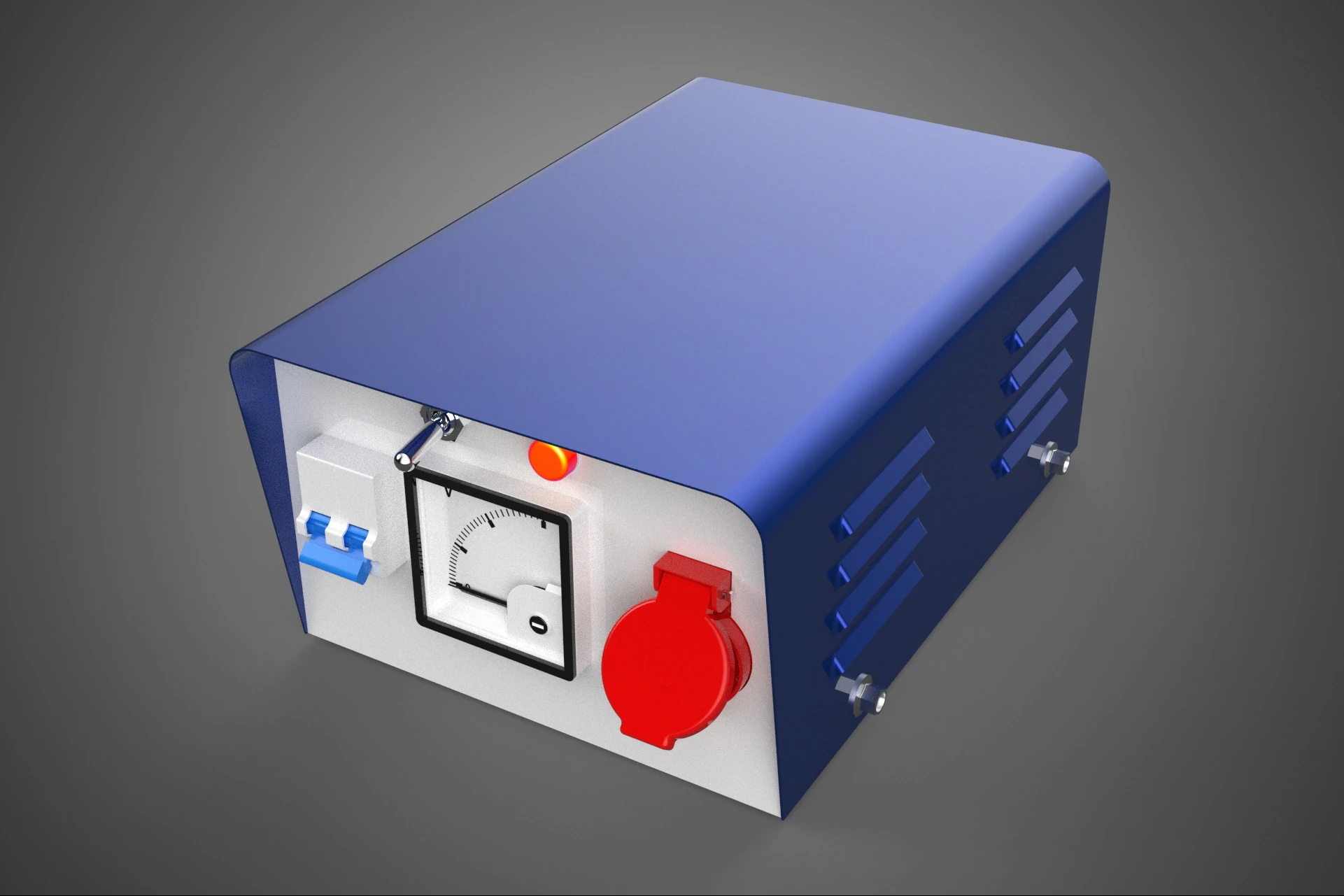

TRANSFORMER CONTROL PANEL VOLTAGE REGULATOR BOX AC DC POWER PSU 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **Transformer Control Panel Voltage Regulator Box AC DC Power PSU** describes a specialized, integrated electrical system designed to condition, stabilize, control, and distribute both alternating current (AC) and regulated direct current (DC) power for critical industrial, utility, or complex load applications. This consolidated unit combines the functions of galvanic isolation, voltage stabilization, comprehensive circuit protection, and localized supervisory control within a single enclosure, often suitable for harsh operational environments.

### 1. Architectural Definition and Purpose

The primary function of this integrated apparatus is to ensure the delivery of high-quality electrical power to sensitive loads by mitigating fluctuations in the primary input supply. It acts as an essential intermediary, taking raw utility power, stepping it down (or up, as required), and actively regulating the output voltage to maintain strict tolerances, typically within $\pm 1\%$ to $5\%$ accuracy, regardless of source instability or transient load changes.

The designation "Box" or "Enclosure" refers to the physical containment, which often provides ingress protection (IP-rated) and electromagnetic shielding for the enclosed high-voltage components, control circuitry, and instrumentation.

### 2. Core Functional Components

The system is fundamentally categorized by three inseparable subsystems: the Power Conversion Stage, the Regulation Stage, and the Control/Distribution Stage.

#### A. The Transformer Section

The integrated transformer performs two critical tasks: voltage scaling and galvanic isolation. It is typically a high-efficiency isolation transformer, designed to step down higher primary voltages (e.g., medium voltage distribution levels or standardized line voltages) to the required operational voltages for the load and the internal control systems. Galvanic isolation is essential for safety and for suppressing transient electrical noise and common-mode interference that could affect sensitive electronic components downstream.

#### B. The Voltage Regulator Box

The voltage regulator subsystem actively stabilizes the output voltage. Depending on the required capacity and response speed, regulation is achieved through:

1. **Electromechanical Regulation:** Utilizing motor-driven variable transformers, tap changers (off-load or on-load), or saturable reactors, suitable for high-power industrial applications requiring robustness over speed.
2. **Solid-State Regulation:** Employing technologies such as Silicon Controlled Rectifiers (SCRs), thyristors, or advanced Switch-Mode Power Supply (SMPS) architectures for instantaneous correction, higher efficiency, and tighter regulation tolerances, especially common in the DC supply components.

This stage continuously monitors the output and adjusts the input parameters to counteract sags, swells, and brownout conditions.

#### C. AC/DC Power PSU (Power Supply Unit) Integration

The unit incorporates a dedicated Power Supply Unit (PSU) necessary for both AC and DC outputs.

* **Regulated AC Output:** Provides stable sinusoidal power to standard AC loads (motors, heating, lighting).
* **Regulated DC Output:** Generated via rectification and filtering of the regulated AC supply. The DC output (commonly 12V, 24V, or 48V DC) is vital for powering internal control logic, protective relays, Supervisory Control and Data Acquisition (SCADA) interfaces, PLC systems, battery charging circuits, and external instrumentation. The DC subsystem often employs sophisticated filtering techniques to ensure low ripple and noise characteristics.

#### D. The Control Panel Interface

The control panel serves as the central Human-Machine Interface (HMI) and protective nerve center. Key features include:

* **Instrumentation:** Digital or analog metering for real-time monitoring of input/output voltage, current, frequency, and power factor.
* **Protection Circuitry:** Integrated circuit breakers, fuses, thermal overload relays, and protective relays (e.g., differential, overcurrent) to isolate faults rapidly.
* **Manual Control:** Switches and overrides for bypass, tap adjustment (if electromechanical), and emergency shutdown.
* **Communication Ports:** Interfaces (e.g., Modbus, Ethernet/IP) enabling remote status reporting, parameter adjustment, and integration into facility-wide energy management systems.

### 3. Applications and Deployment

These integrated power management systems are indispensable in scenarios where power quality and stability are critical to operational integrity. Typical deployment environments include: electrical substations (for control power), automated manufacturing facilities (powering PLCs and robotic cells), data centers (backup power conditioning), telecommunications infrastructure, medical imaging suites (MRIs, CT scanners), and sophisticated scientific research laboratories.

KEYWORDS: Voltage Regulation, Power Conditioning, Industrial Control, Transformer Isolation, AC/DC Conversion, PSU, Control Panel, Electromechanical Regulator, Solid-State Control, Power Quality, Supervisory Control, SCADA Integration, Load Stabilization, Galvanic Isolation, Power Distribution, Circuit Protection, Relays, Automation Systems, Rectification, Filtering, Tap Changer, Switch-Mode Power Supply, System Integration, UPS Interface, Electrical Enclosure, Monitoring, Instrumentation, Fault Detection, Step-Down Transformer, Critical Load.
