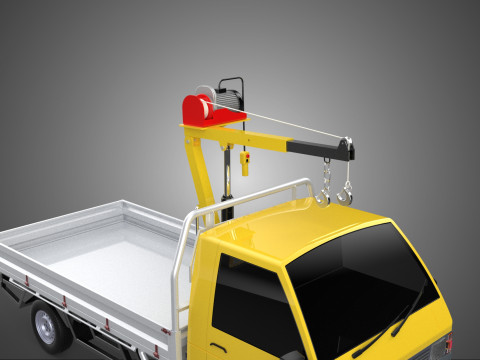

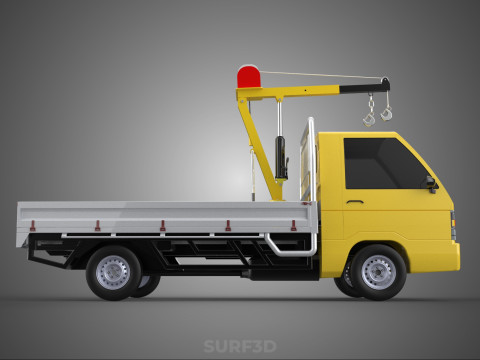

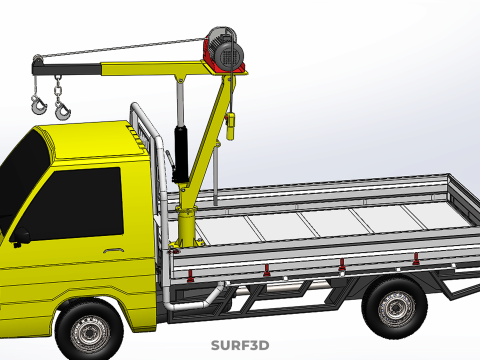

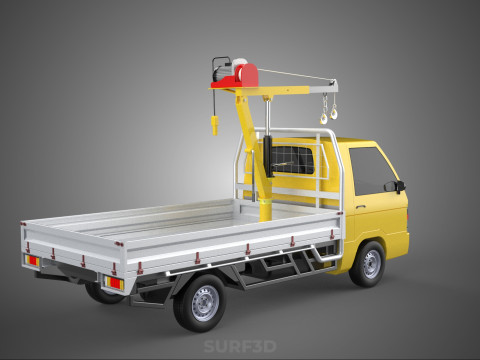

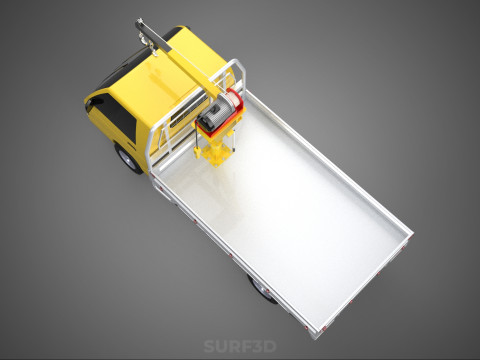

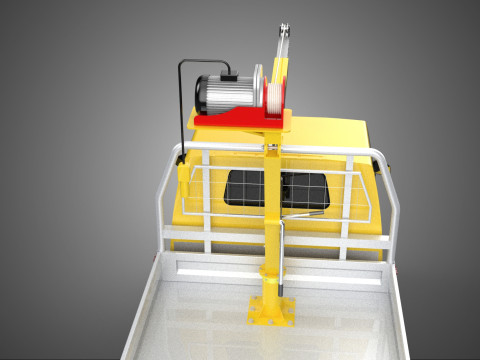

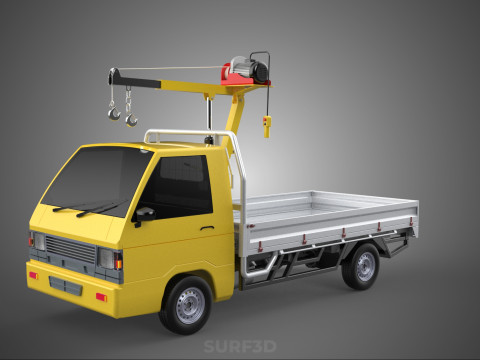

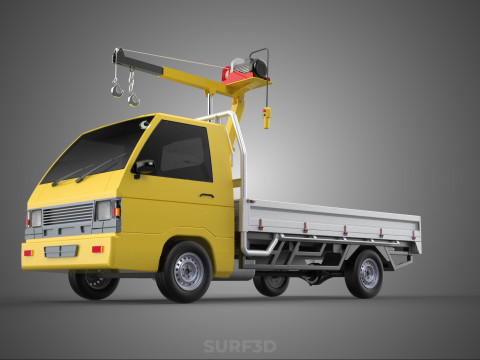

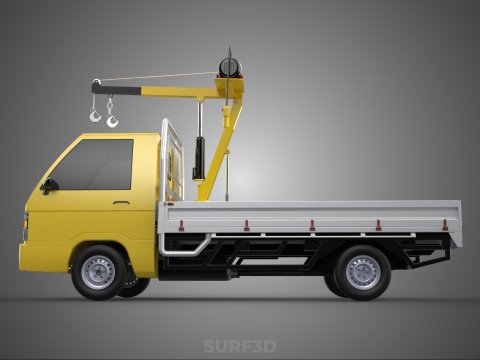

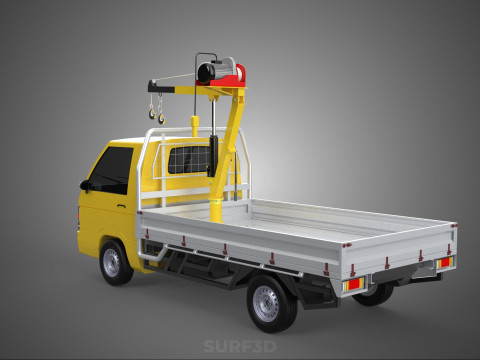

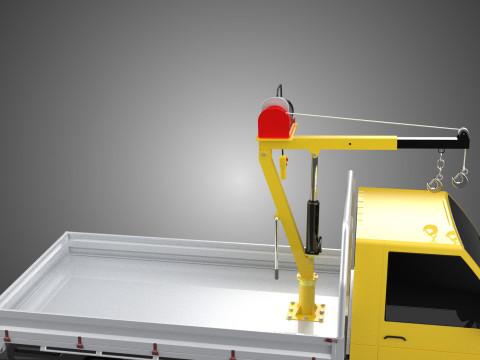

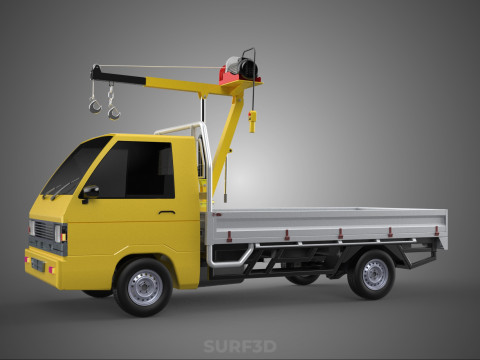

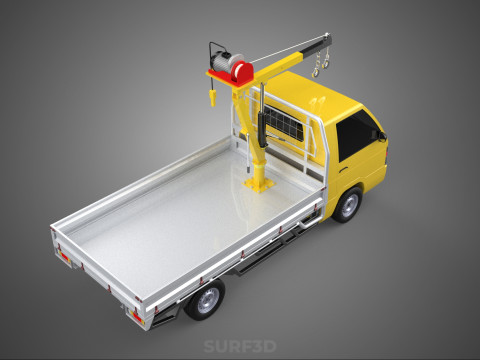

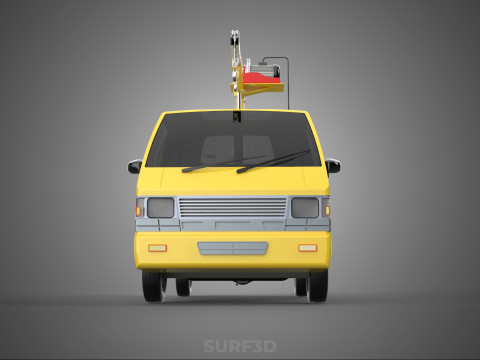

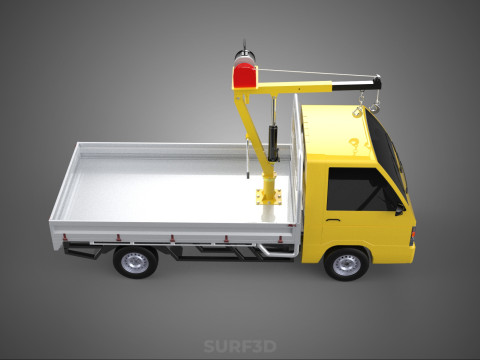

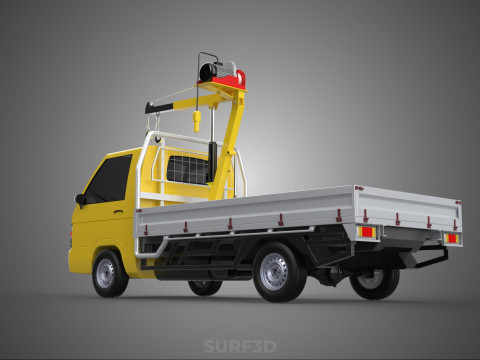

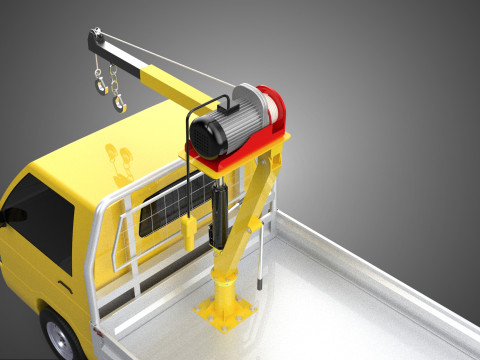

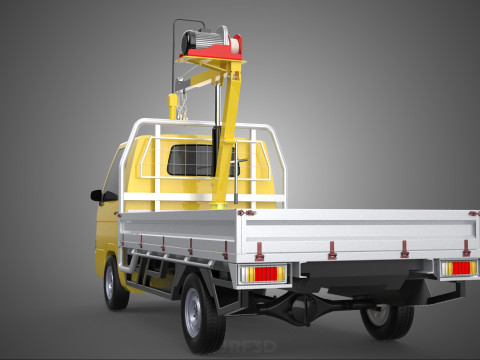

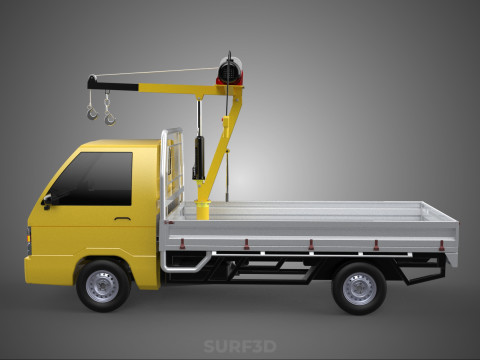

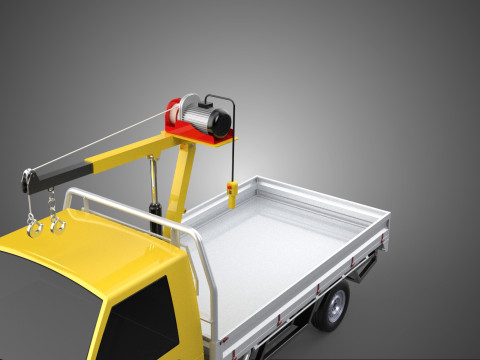

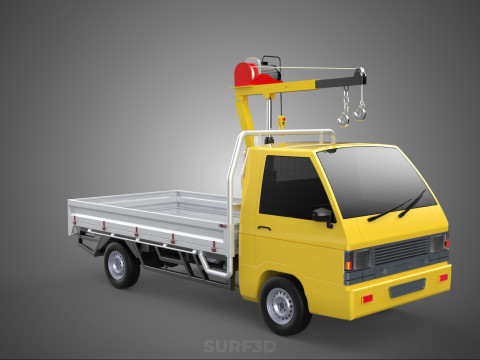

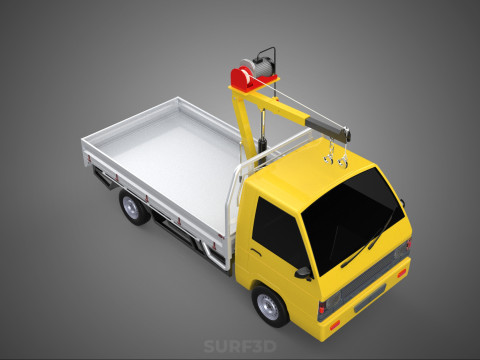

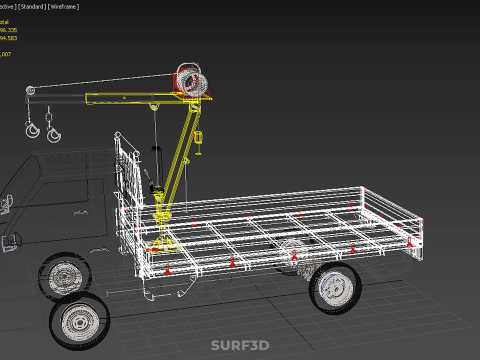

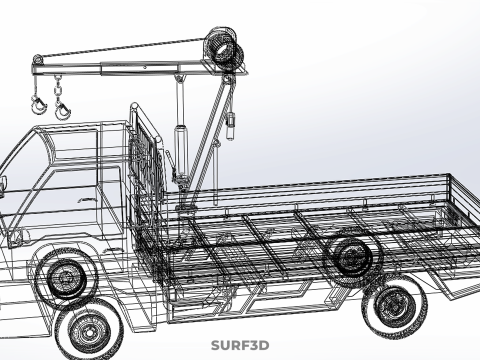

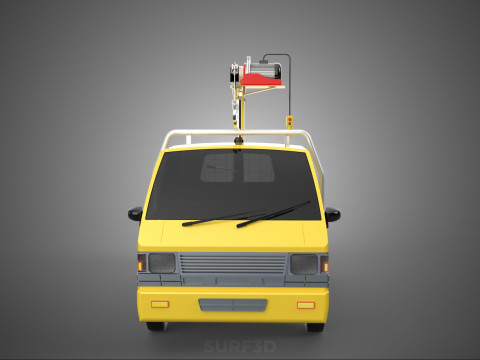

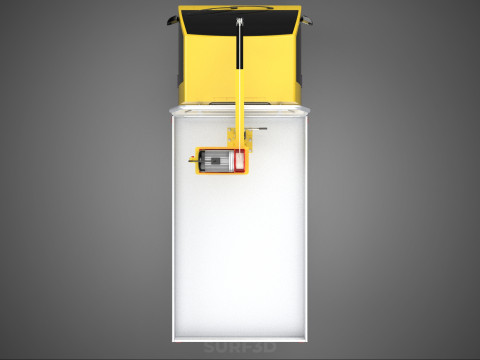

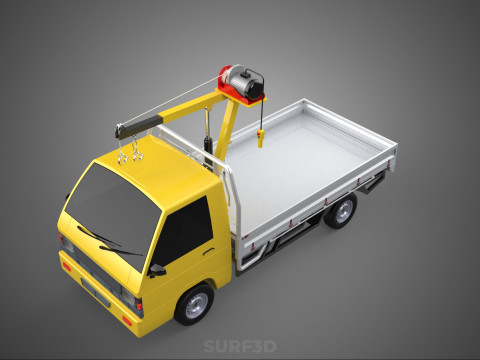

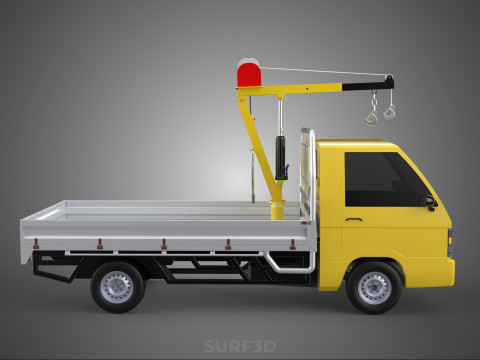

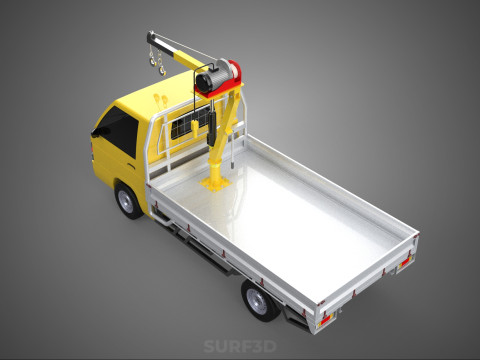

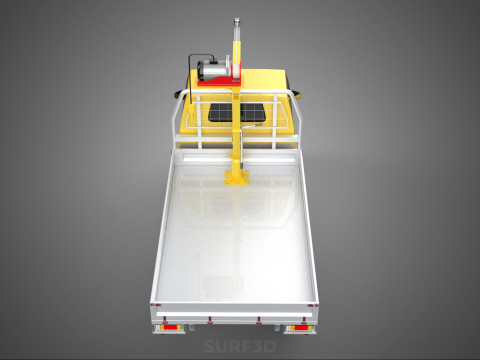

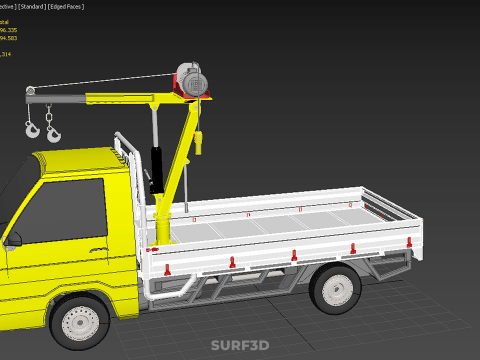

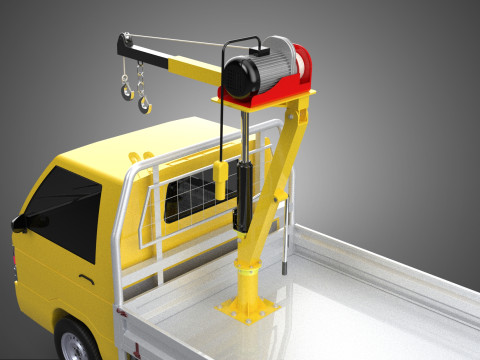

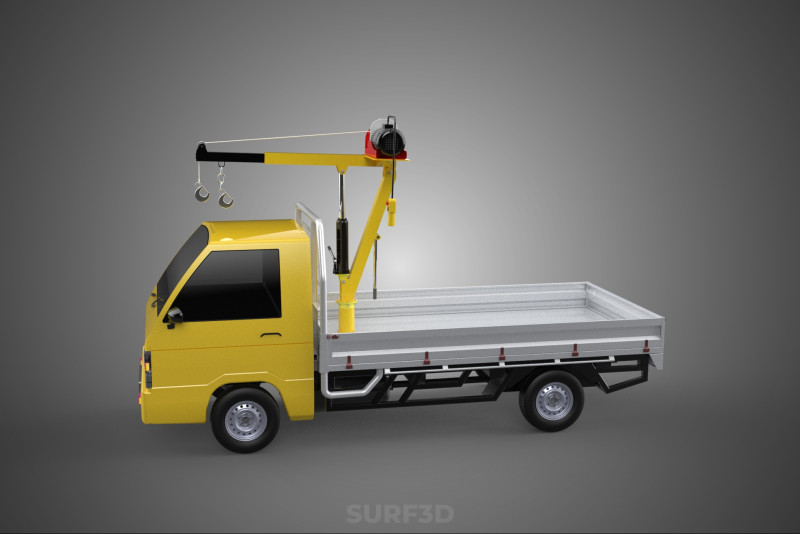

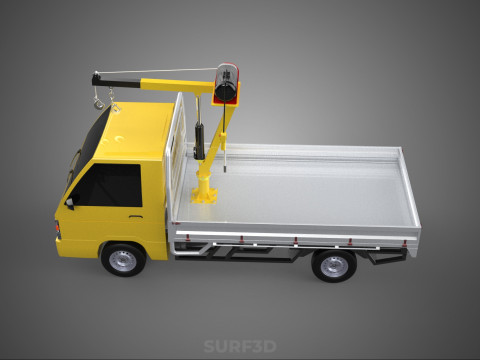

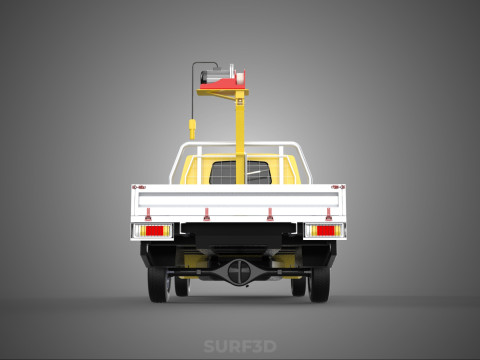

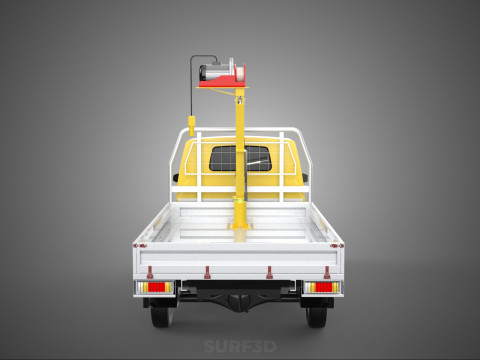

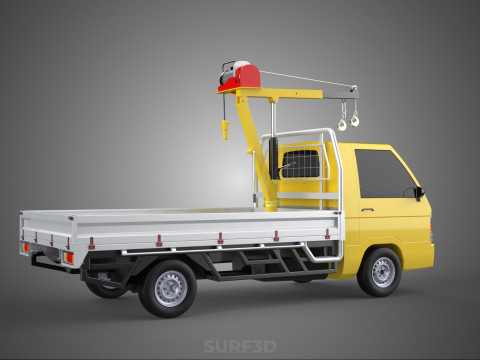

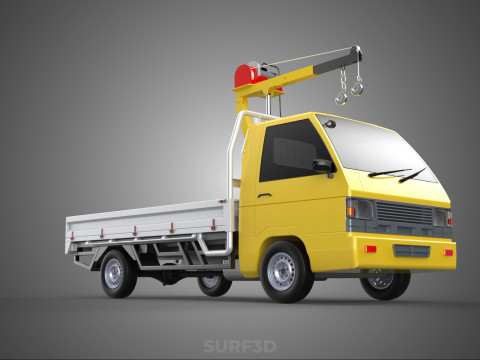

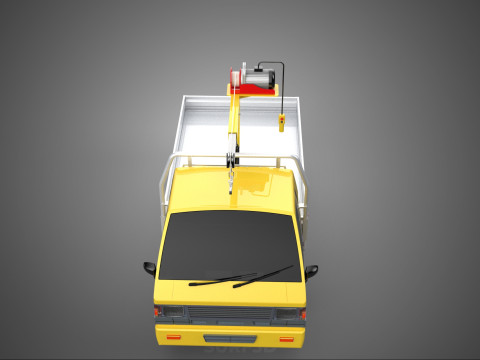

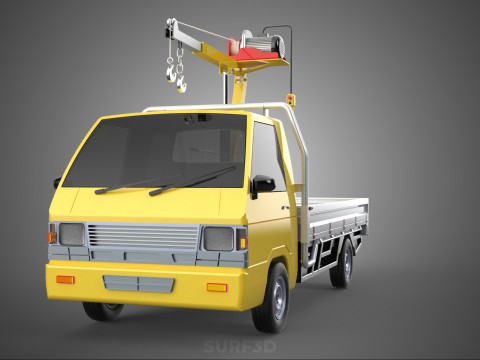

TRUCK PICKUP ELECTRIC WINCH HOIST LIFT BOOM HYDRAULIC CRANE JIB 3D Модель

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "TRUCK PICKUP ELECTRIC ***CH HOIST LIFT BOOM HYDRAULIC CRANE JIB" refers to a sophisticated, multi-component mobile lifting system specifically engineered for light to medium-duty material handling tasks, primarily designed for installation onto the bed or chassis of a pickup truck or similar utility vehicle. This integrated apparatus combines several distinct technologies to provide a highly versatile, self-contained, and portable lifting solution.

At its core, this system is a compact **Hydraulic Crane**, utilizing fluid power to actuate its movements. The **Lift Boom**, which forms the primary structural arm, is articulated through hydraulic cylinders, enabling smooth and controlled luffing (raising and lowering the boom angle) and often sle***g (rotation) of the entire crane assembly relative to its base. Some advanced models may also incorporate hydraulic telescoping sections within the boom to extend its reach. A **Jib** may be present as an extension to the main boom, typically a fixed or manually adjustable secondary arm that further extends the crane's reach or allows for more precise positioning of loads in confined spaces or around obstacles.

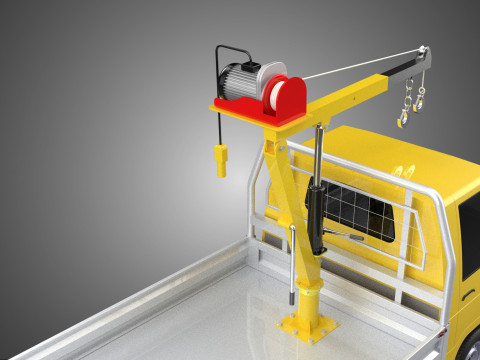

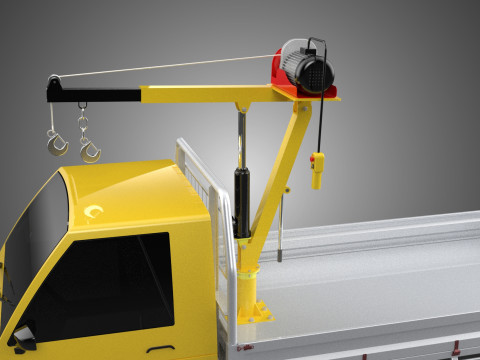

The actual vertical lifting and lowering of the load is performed by an **Electric ***ch Hoist**. This component comprises an electric motor, a gearbox, and a spooling drum around which a high-strength cable or wire rope is wound. The "electric" designation indicates that the ***ch draws its power from the host vehicle's electrical system, typically 12V or 24V DC. The term "hoist" broadly describes the mechanism for lifting and lowering objects, while "***ch" specifies the drum-based, cable-spooling method. The cable extends from the ***ch, typically runs over pulleys integrated into the boom and jib, and terminates in a lifting hook, to which the load is attached.

The entire assembly is mounted onto a **Truck Pickup**, leveraging the vehicle's mobility to transport the lifting capability to various job sites. This makes the system ideal for field service, remote construction, agricultural operations, utility work, and emergency response where traditional, larger cranes are impractical or inaccessible. The integration with a pickup truck means the vehicle also serves as the power source for the electric ***ch and, in many cases, for the hydraulic pump that powers the crane's articulation.

**Operational Principles:**
Operation typically involves a wired pendant control or a wireless remote control unit, allo***g the operator to stand at a safe distance while manipulating the hydraulic boom movements (luffing, sle***g, telescoping) and the electric ***ch (hoisting and lowering). Safety features often include overload protection, emergency stop buttons, and interlocks to prevent unstable operations. Due to the inherent stability challenges of lifting loads from a mobile platform, these systems usually require the deployment of stabilizing outriggers or proper counterweighting to prevent the vehicle from tipping.

**Key Characteristics and Applications:**
This type of lifting system is characterized by its portability, self-sufficiency, and relative ease of use. It bridges the gap ***ween manual lifting and dedicated heavy-duty cranes, offering a cost-effective and versatile solution for tasks such as:
* Loading and unloading heavy equipment or materials from the truck bed.
* Servicing machinery in the field (e.g., engines, pumps).
* Installing components at height (e.g., signs, HVAC units).
* Retrieving items from challenging locations.
* General material handling in landscaping, construction, and agricultural settings.

In summary, the "TRUCK PICKUP ELECTRIC ***CH HOIST LIFT BOOM HYDRAULIC CRANE JIB" represents a synergistic engineering solution, providing a powerful, precise, and mobile lifting capability by combining hydraulic articulation with electric hoisting, all powered and transported by a standard pickup truck.

KEYWORDS: Pickup Truck Crane, Hydraulic Crane, Electric ***ch, Hoist, Lifting Boom, Jib Extension, Mobile Lifting, Material Handling, Service Crane, Utility Crane, Field Service, Vehicle Mounted Crane, DC Powered, Load Lifting, Articulated Boom, Telescoping Boom, Sle***g, Luffing, Outriggers, Remote Control, Portable Crane, Compact Crane, Work Truck Equipment, Load Management, Vertical Lift, Overhead Lift, Small Crane, Truck Crane, Crane System, Light Duty Crane.
