Molde para Neumático de Tractor Escala 41 Modelo de impresión 3D

Descripción

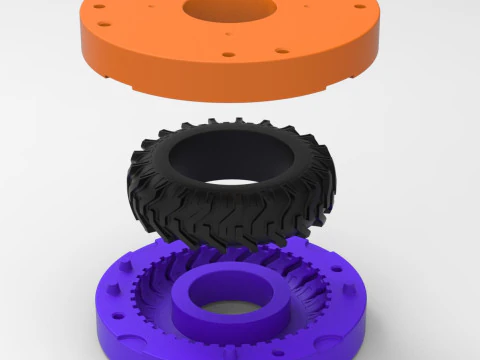

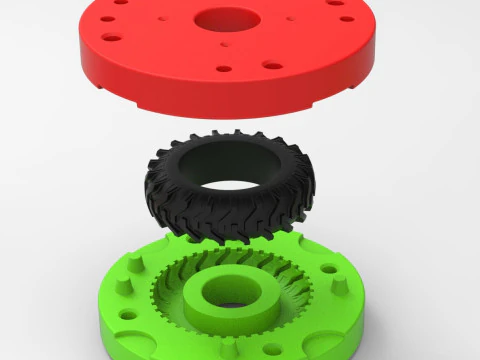

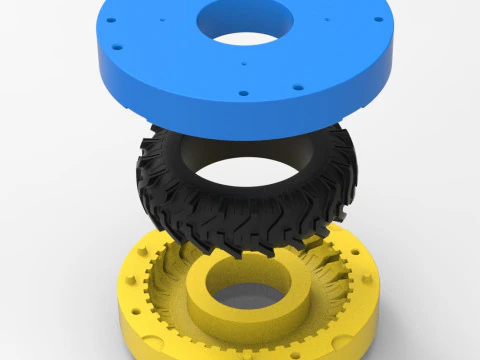

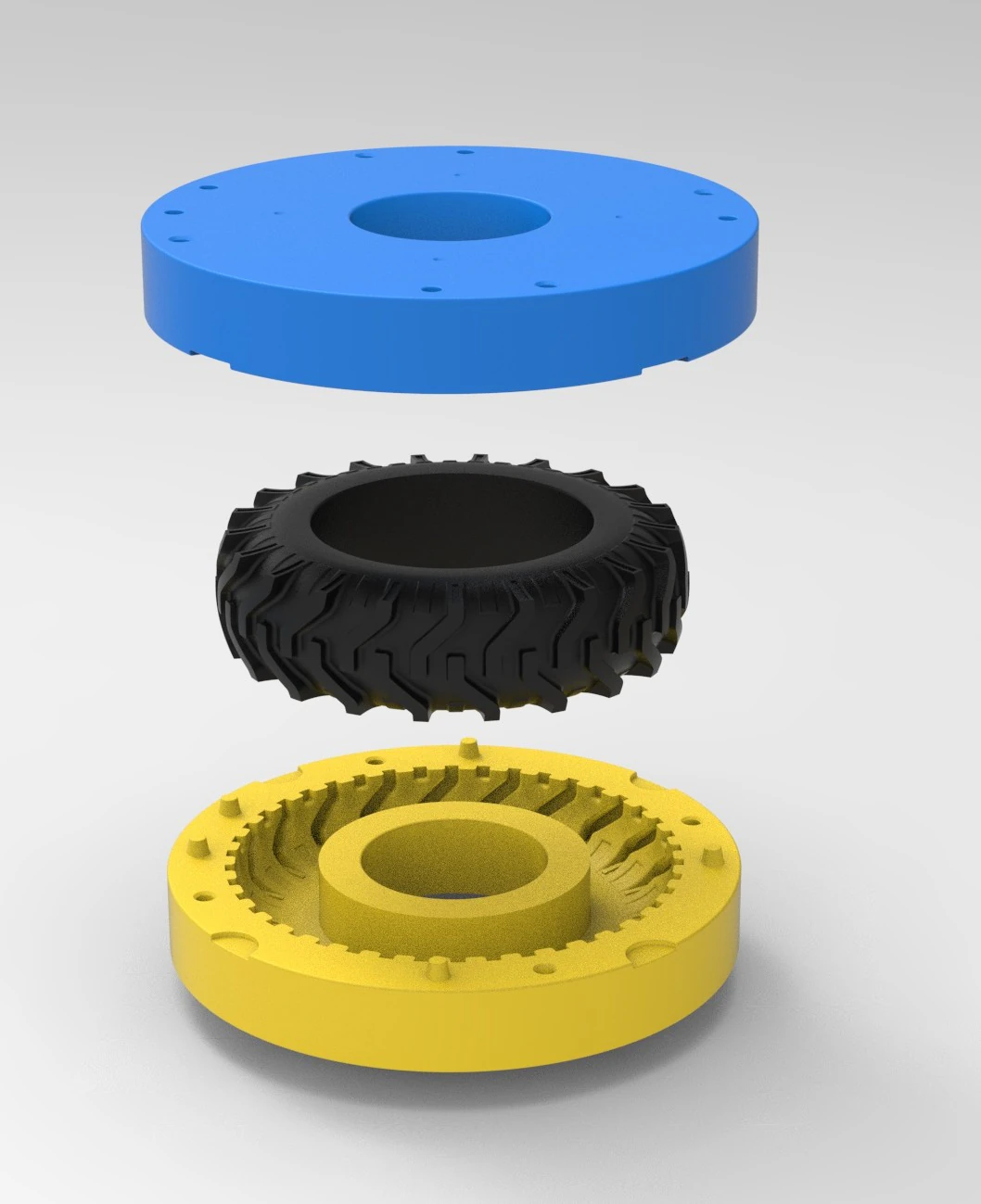

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

- diameter – 200 mm

- height – 60 mm

Tire dimensions 1:10:

-        outer diameter – 160 mm

-        overall width – 45 mm

-        inner diameter – 95 mm

Mold dimensions 1:14:

- diameter – 154 mm

- height – 42 mm

Tire dimensions 1:14:

-        outer diameter – 114 mm

-        overall width – 32 mm

-        inner diameter – 68 mm

Mold dimensions 1:25:

- diameter – 104 mm

- height – 28 mm

Tire dimensions 1:25:

-        outer diameter – 64 mm

-        overall width – 18 mm

-        inner diameter – 38 mm

If you want a different wheel size, simply scale the mold.

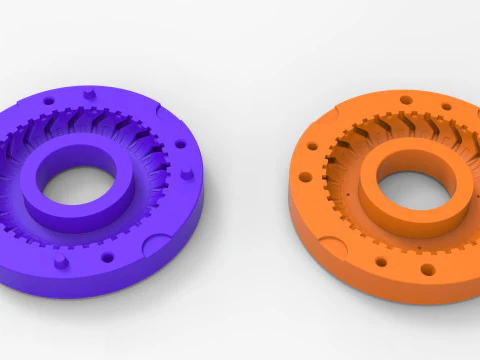

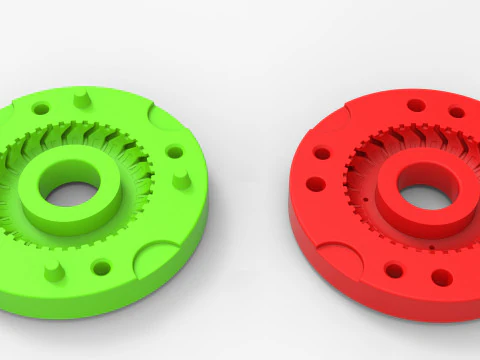

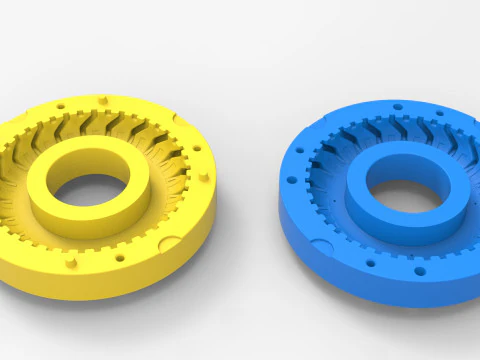

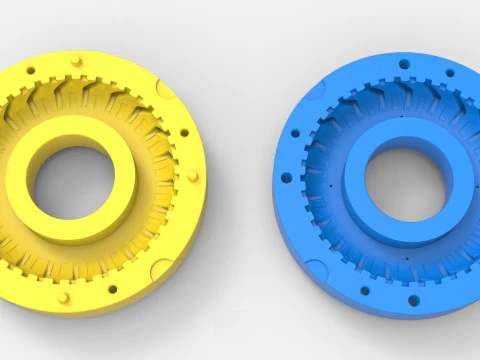

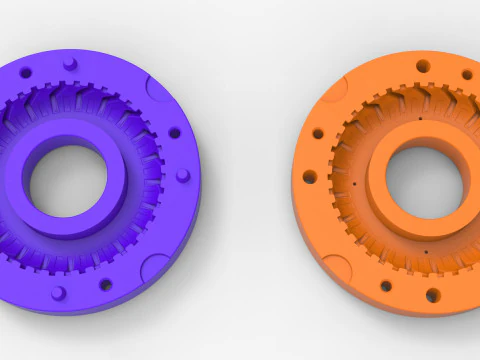

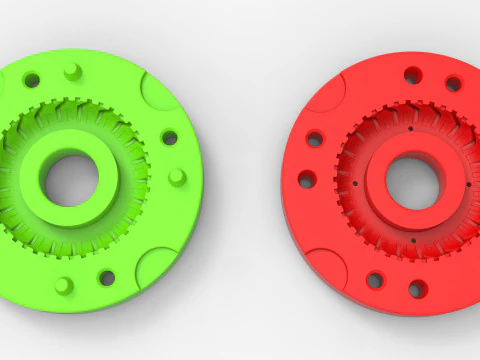

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

Note! Only the mold! This is not a tire!
