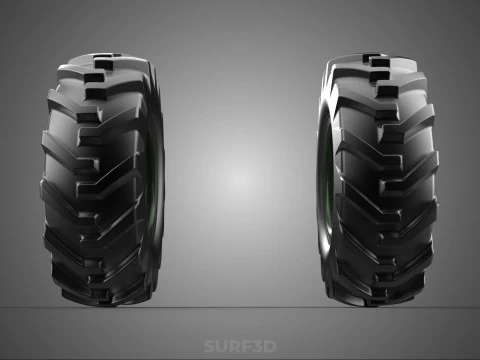

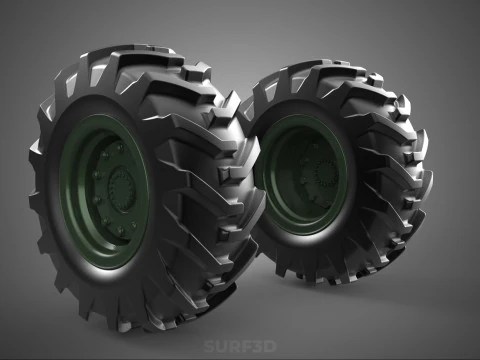

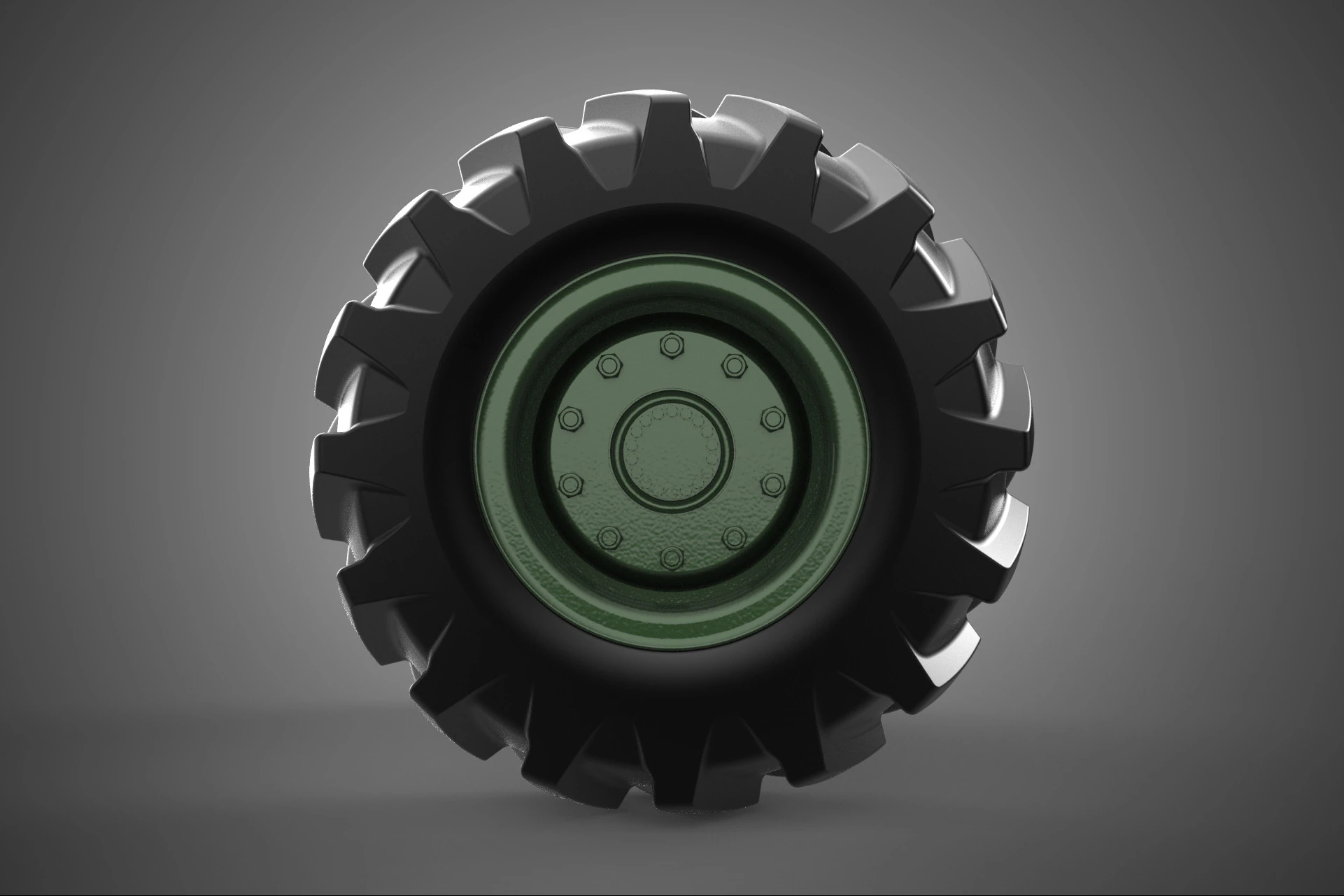

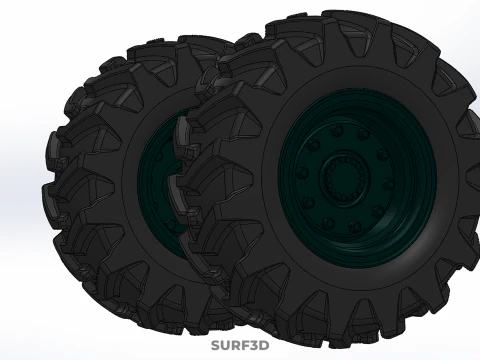

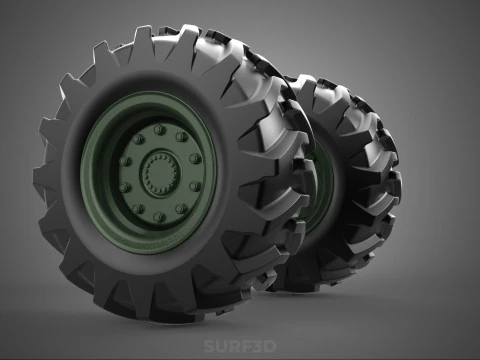

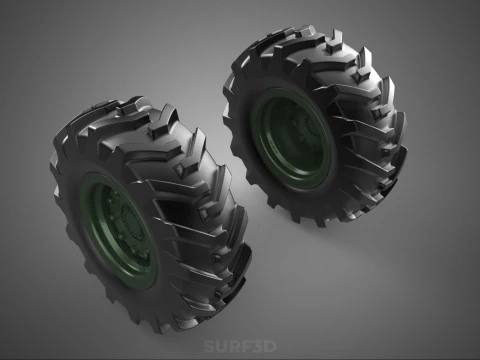

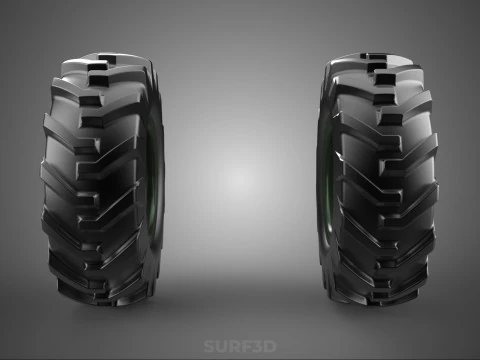

APC IFV AIFV MRAP 탱크 육군 군용 타이어 타이어 휠 림 차량 3D 모델

설명

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content

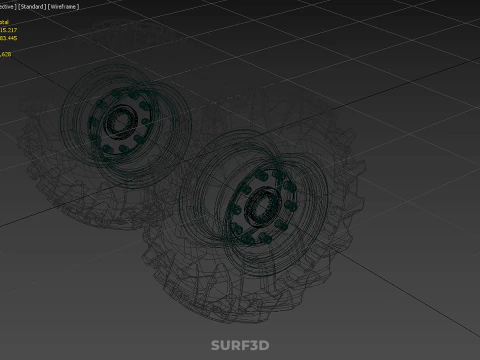

• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**MILITARY GROUND VEHICLE MOBILITY COMPONENTS: TIRES, WHEELS, AND RIM ASSEMBLIES**

The functionality and survivability of modern military ground vehicles—encompassing Armored Personnel Carriers (APC), Infantry Fighting Vehicles (IFV), Armored Infantry Fighting Vehicles (AIFV), Mine-Resistant Ambush Protected (MRAP) vehicles, and wheeled logistical support platforms—are fundamentally dependent upon highly specialized wheel, rim, and tire (or tyre) assemblies. These components are engineered to withstand extreme operational conditions, including high payload stress, aggressive off-road terrain, ballistic impact, and environmental extremes, ensuring critical mobility for the Army and military forces worldwide.

**I. Vehicle Categorization and Mobility Requirements**

While Main Battle Tanks (TANK) primarily utilize track systems for optimal weight distribution and traction on soft terrain, the majority of tactical and logistical vehicles utilize robust wheeled architectures.

* **APC/IFV/AIFV:** These combat platforms (e.g., Stryker, Boxer, Piranha) require superior cross-country mobility coupled with high-speed road performance. Their mobility components must manage gross weights often exceeding 25 tons while accommodating space constraints imposed by internal armor systems.
* **MRAP:** Designed specifically for occupant protection against blast threats and ballistic attack, MRAP vehicles are inherently heavy. The wheel and tire systems must possess exceptional load-bearing capacity and utilize sophisticated blast-mitigation geometry to dissipate shock energy away from the chassis.

**II. Engineering and Construction of Military Tires**

Military specification tires are functionally distinct from standard commercial or even heavy-duty trucking tires. They prioritize durability, longevity under stress, and, most critically, **run-flat capability (RFC)**.

1. **Load and Ply Rating:** Military tires feature significantly higher ply ratings and reinforced bead areas to support the substantial mass of armored vehicles. The construction utilizes proprietary rubber compounds engineered for resistance to cutting, tearing, and heat buildup resulting from sustained high-speed operations.
2. **Tread Pattern:** Tread designs are characteristically deep, aggressive, and often non-directional (N.D.), providing maximum traction across diverse surfaces, including mud, sand, snow, and rocky environments.
3. **Run-Flat Technology:** RFC is mandatory for tactical survivability, allowing a vehicle to remain mobile after sustaining tire deflation due to puncture or shrapnel. This is achieved through two primary methods:
* **Internal Support Inserts:** Solid rubber or composite polyurethane rings are installed inside the tire, transferring the vehicle's weight directly to the rim and supporting the vehicle’s movement at reduced speeds (typically 30–50 km/h) for a specified distance (e.g., 50 to 100 km).
* **Self-Sealing Compounds:** Some designs utilize polymer sealant layers integrated into the tire lining to automatically seal small punctures.

**III. Wheel and Rim Assembly Technologies**

The wheel RIM assembly must complement the advanced properties of the military tire. These components are generally fabricated from high-strength forged aluminum alloys or specialized steel to manage severe shock loading and minimize unsprung weight where possible.

1. **Central Tire Inflation Systems (CTIS):** CTIS is a pivotal feature of tactical wheeled vehicles. It allows the vehicle operator to adjust tire pressure dynamically from the cabin while moving. Lowering pressure increases the tire footprint, optimizing traction on soft or unstable terrain (e.g., sand dunes or muddy fields). Increasing pressure optimizes road performance, improving fuel efficiency and reducing rolling resistance.
2. **Multi-Piece Rims:** Many military rims are designed as multi-piece assemblies (often two or three components) rather than single castings. This facilitates field maintenance, allowing for easier mounting of tight-fitting run-flat inserts and providing a secure seal necessary for CTIS function.
3. **Bead-Lock Systems:** Essential for maintaining tire integrity, bead-lock systems mechanically clamp the tire bead firmly against the rim flange. This prevents the tire from rotating relative to the rim, which is critical during low-pressure operation (common with CTIS on soft ground) or after partial deflation.

**IV. Operational Significance**

The engineering convergence of military-grade tires, rims, and integrated mobility systems dictates the tactical effectiveness and reach of ground forces. Failures in these components compromise mission objectives, expose personnel to undue risk, and impede logistical supply lines. Continuous research and development focus on enhancing ballistic resistance, reducing tire weight, and improving the durability of CTIS seals to maintain superiority in complex battlespaces.

KEYWORDS: APC, IFV, AIFV, MRAP, TANK, TIRE, TYRE, WHEEL, RIM, MILITARY, ARMY, VEHICLE, CTIS, Run-Flat, Mobility, Survivability, Armored, Tactical, Bead-Lock, Puncture Resistance, Load Rating, Ply Rating, Tracked, Wheeled, Combat, Logistics, Ground Vehicle, Multi-Piece Rim, Ballistic Resistance, Off-Road.
