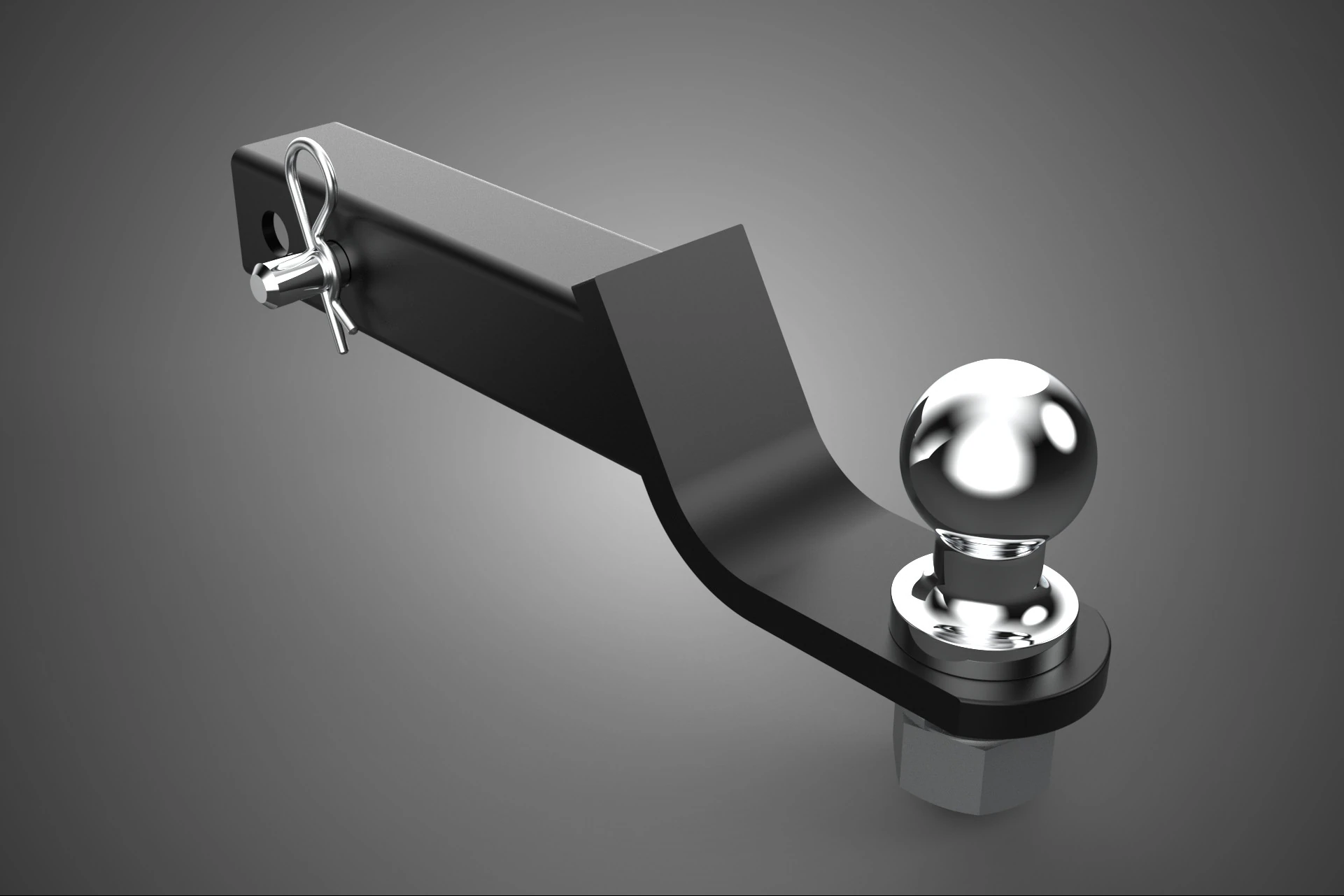

RECEIVER HITCH BALL DRAWBAR JOINT TOW TOWING MOUNT TRAILER PIN 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Receiver Hitch Ball Drawbar Joint is a standardized, modular mechanical assembly used to establish a secure and articulated coupling between a primary towing vehicle (tractor) and a secondary unpowered unit (trailer) for the purpose of transportation and hauling. This system is the dominant conventional towing mechanism employed globally for light and medium-duty applications, defined by its removable ball mount configuration and standardized connection geometries.

### Core Components and Function

The system is defined by three primary interactive elements: the receiver, the drawbar (ball mount), and the coupling components (hitch ball and pin).

#### 1. The Receiver Hitch (Mount)

The receiver is the permanent or semi-permanent structural component affixed directly to the chassis or frame of the towing vehicle. It is engineered to withstand substantial static and dynamic loads, including vertical load (tongue weight, TW) and horizontal tension/compression (Gross Trailer Weight, GTW). The critical feature is the square or rectangular receptacle—the receiver tube—into which the drawbar slides. Standardized dimensions for these tubes typically follow SAE J684 specifications, most commonly 1.25 inches (Class I/II) or 2.0 inches (Class III/IV/V) square. The receiver serves as the foundation for the entire towing apparatus.

#### 2. The Drawbar (Ball Mount)

The drawbar, or ball mount, is a removable shank designed to slide snugly into the receiver tube. Its primary function is to bridge the receiver and the hitch ball, often incorporating a “drop” or “rise” necessary to align the hitch ball height precisely with the trailer’s coupler height, ensuring level towing. The drawbar typically features a reinforced platform at the terminus where the hitch ball is mounted. The drawbar shank is perforated with a transverse hole that aligns with corresponding holes in the receiver tube.

#### 3. The Hitch Pin and Hitch Ball Joint

**Hitch Pin:** The hitch pin is a hardened steel locking device inserted through the aligned holes of the receiver tube and the drawbar shank. This critical component secures the drawbar against horizontal movement, preventing withdrawal from the receiver during towing maneuvers. Locking variants of the pin provide anti-theft security for the drawbar and ball.

**Hitch Ball:** The hitch ball provides the spherical articulation joint necessary for safe maneuvering, allowing rotational movement in three axes (pitch, yaw, and roll). The ball is bolted through the drawbar platform and must correspond in diameter and load rating to the trailer’s coupler mechanism. Standard hitch ball diameters include 1-7/8 inches, 2 inches, and 2-5/16 inches, with capacities increasing substantially with diameter.

### Operational Principles

When coupled, the trailer utilizes a complementary component, the trailer coupler, which clamps securely around the hitch ball, creating the robust ball-and-socket joint. The entire assembly transfers the trailer’s tongue weight (vertical load) through the drawbar to the vehicle frame via the receiver, while the horizontal tension associated with pulling the gross trailer weight is managed by the secure mechanical connection provided by the hitch pin.

Towing systems are rigorously classified based on the maximum permissible GTW and TW. Components—the receiver, the drawbar, and the hitch ball—must all meet or exceed the lowest rated component in the system to maintain safe operational capacity. Failure to adhere to these ratings can lead to structural failure of the joint, resulting in a loss of control of the trailer.
