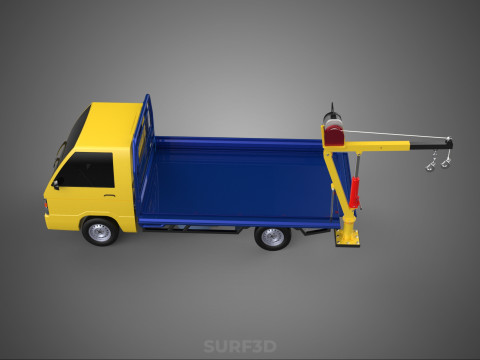

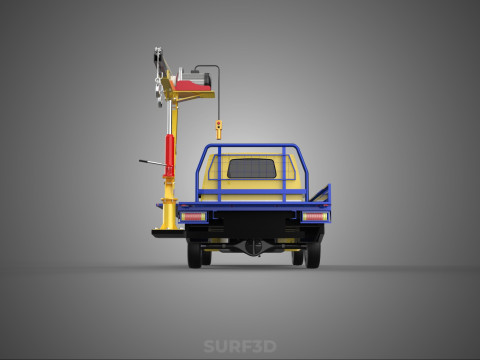

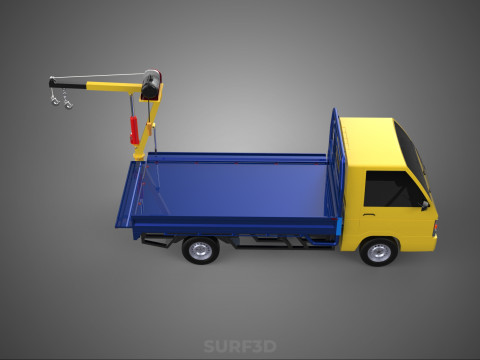

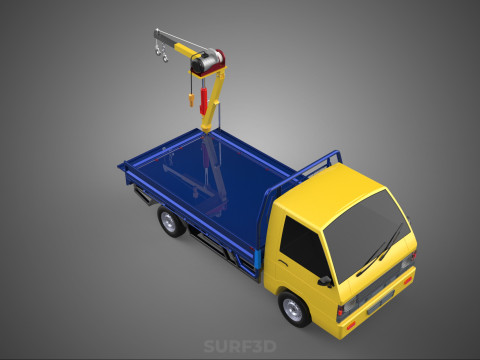

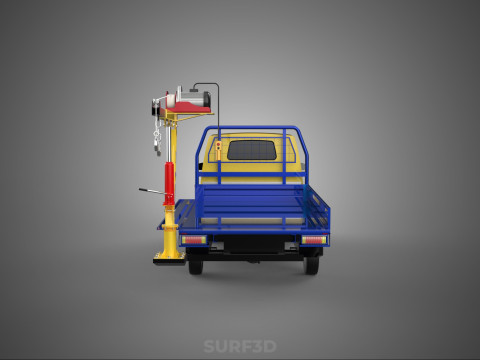

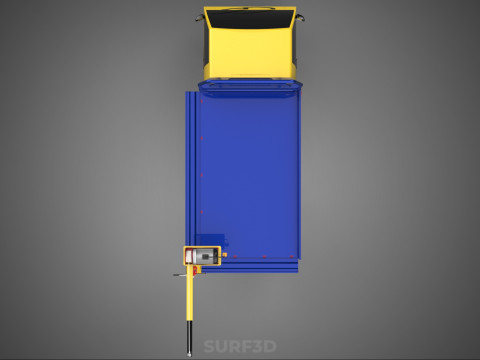

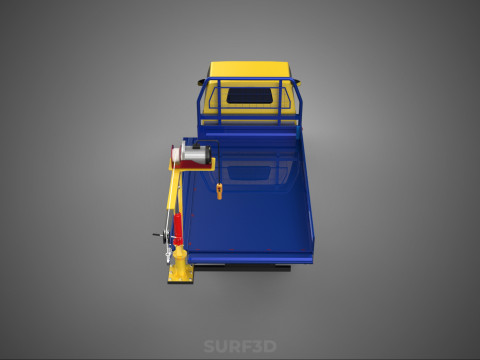

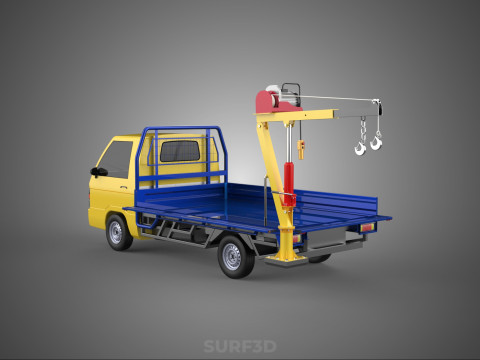

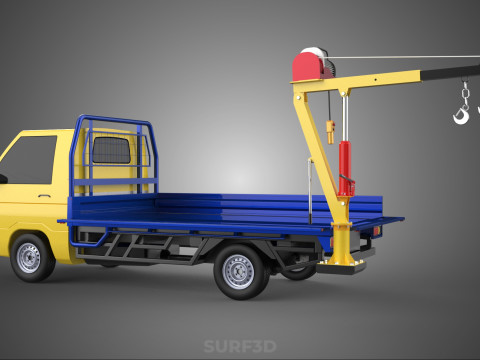

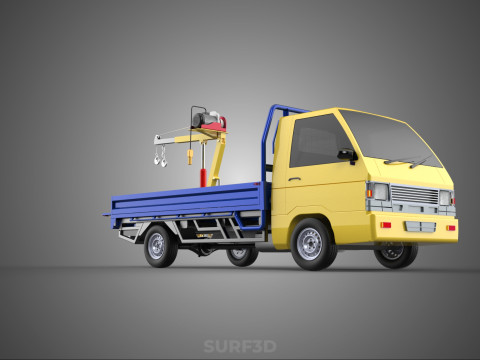

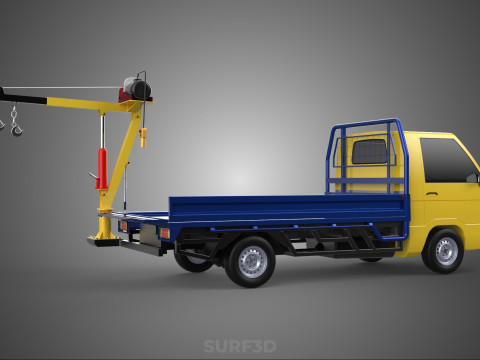

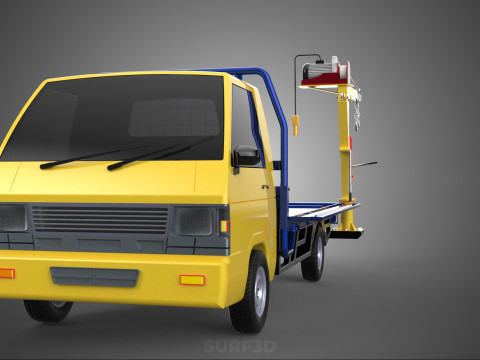

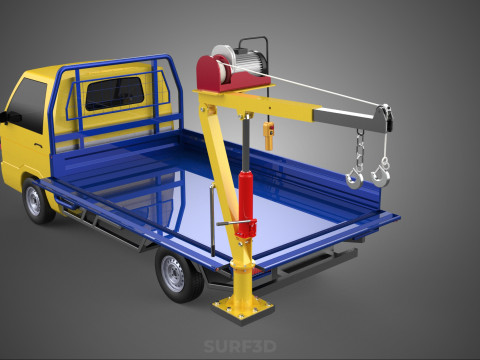

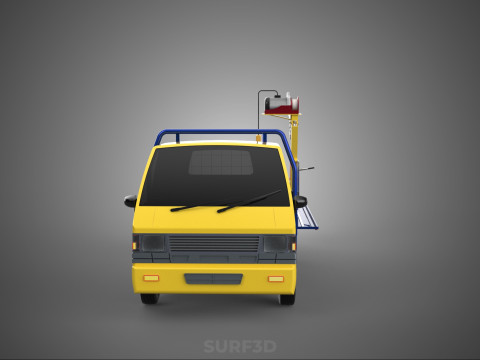

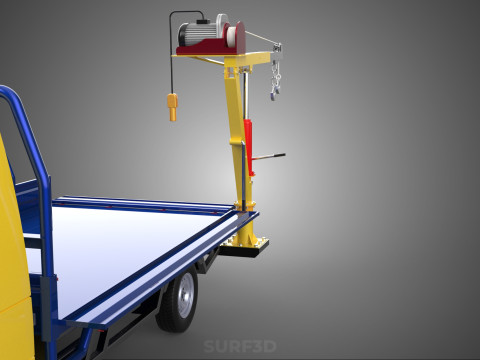

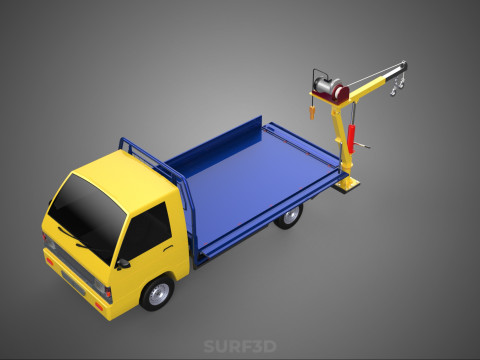

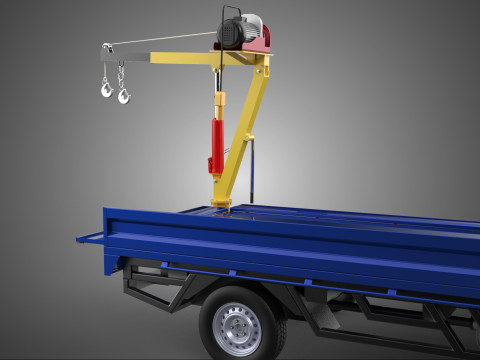

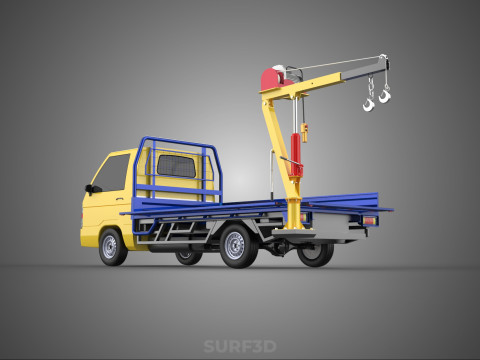

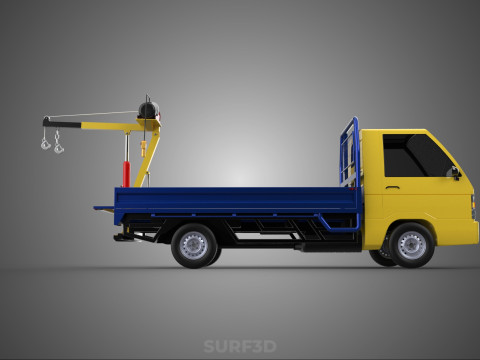

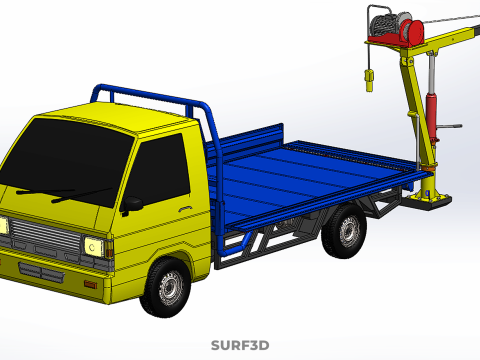

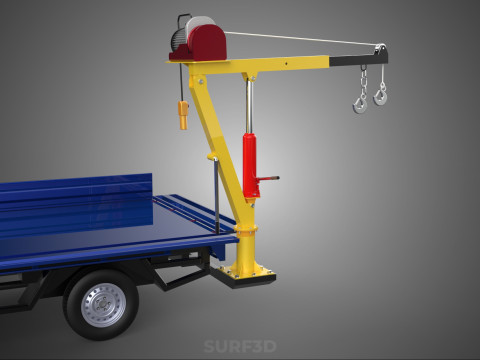

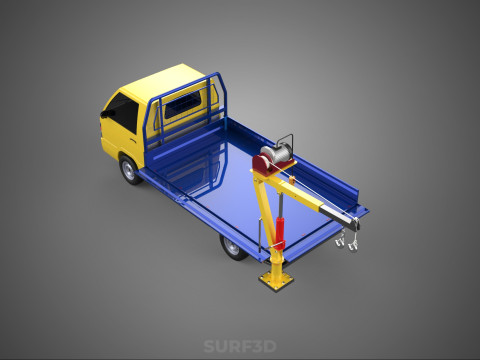

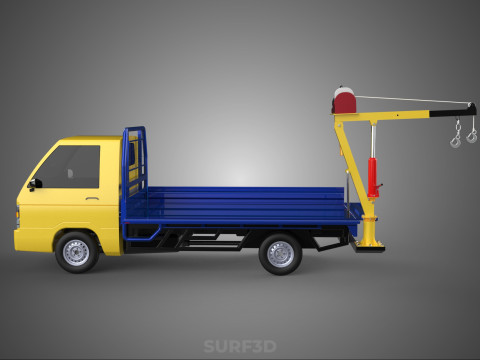

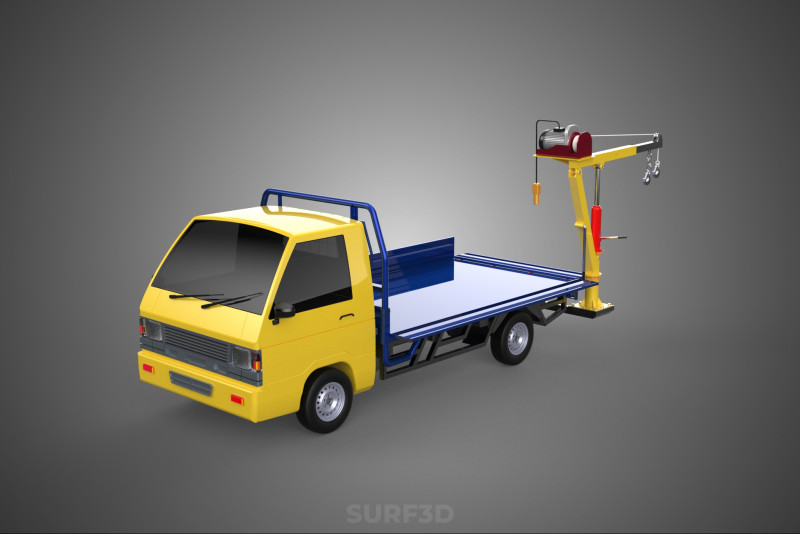

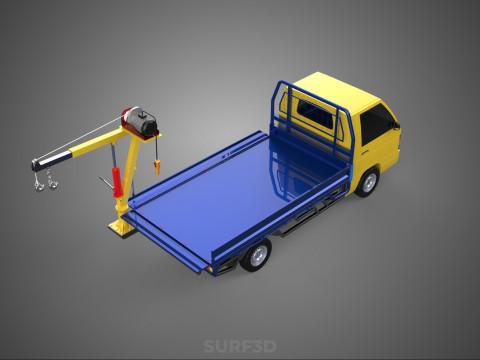

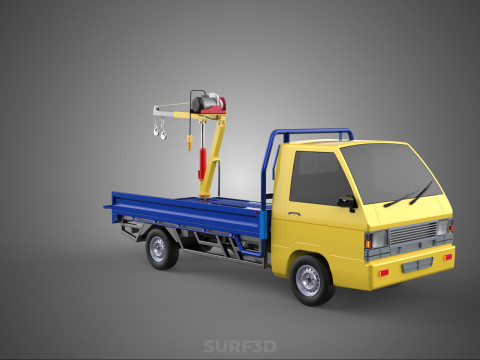

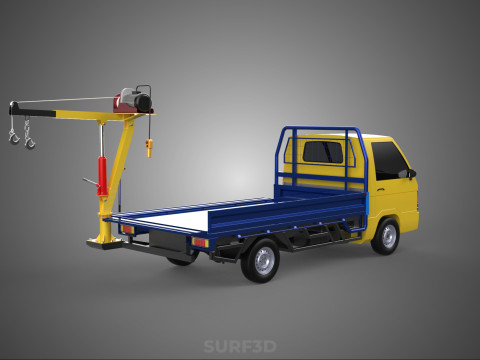

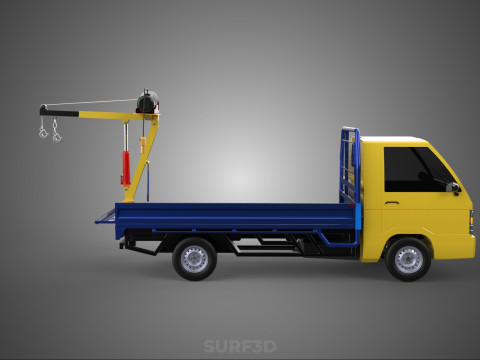

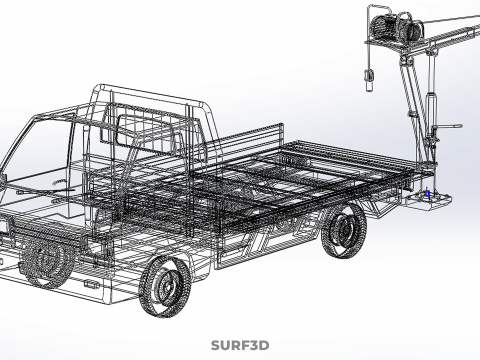

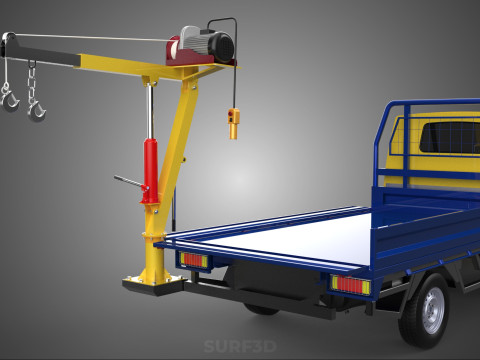

ATTACHED HYDRAULIC JACK LIFT REMOTE HOIST JIB CRANE PICKUP TRUCK 3D 모델

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and ****ed for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An "Attached Hydraulic Jack Lift Remote Hoist Jib Crane Pickup Truck," more commonly known as a **pickup truck-mounted service crane** or **utility crane**, is a specialized piece of mobile material handling equipment designed for integration onto the chassis of a light- to medium-duty commercial pickup truck. This system combines the mobility of a conventional pickup truck with the lifting capabilities of a compact jib crane, powered hydraulically and typically controlled remotely, to facilitate the lifting, lowering, and lateral positioning of various loads.

**Nomenclature and Functionality:**
The verbose title describes the core attributes of the equipment:
* **Attached:** Denotes its permanent or semi-permanent fixture to the vehicle, distinguishing it from standalone or trailer-mounted units.
* **Hydraulic Jack Lift:** Refers to the primary lifting mechanism, which utilizes hydraulic cylinders for boom elevation and extension, providing robust and controlled vertical movement. The term "jack lift" emphasizes its function as a lifting device powered by hydraulics.
* **Remote Hoist:** Indicates that the hoisting (lifting and lowering of the load hook) function, and often other crane movements, are actuated via a remote control system. This enhances operator safety by allo***g control from a safe distance and providing a ***ter vantage point for load manipulation.
* **Jib Crane:** Identifies the structural configuration. A jib crane consists of a horizontal member (jib or boom) that supports a movable hoist and is attached to a vertical mast or pillar. This design allows for a radial work area, as the boom can typically slew (rotate) through a significant arc, often 360 degrees, around its mounting point.
* **Pickup Truck:** Specifies the mobile platform, highlighting its suitability for scenarios requiring portability, maneuverability, and operation in diverse environments where larger dedicated cranes may not be practical or cost-effective.

**Components and Operational Principles:**
A typical pickup truck-mounted service crane comprises several key components:
1. **Mounting Base:** A robust steel structure that secures the crane directly to the truck's frame, usually in the cargo bed area, providing the necessary stability for lifting operations.
2. **Mast/Pedestal:** The vertical column extending from the mounting base, which supports the jib/boom and the sle***g mechanism.
3. **Jib/Boom:** The extendable arm that supports the hoist and hook. Booms are often telescopic, allo***g for variable reach, and are elevated by one or more hydraulic cylinders.
4. **Hydraulic System:** This is the power core. It typically consists of a hydraulic pump (often electric motor-driven, dra***g power from the truck's 12V DC electrical system), a fluid reservoir, control valves, and hydraulic cylinders for boom extension/elevation and a hydraulic motor for sle***g.
5. **Hoist/***ch:** A drum and cable system, driven by an electric or hydraulic motor, responsible for the vertical lifting and lowering of the load via a hook attached to the cable.
6. **Sle***g Mechanism:** Allows the boom to rotate horizontally, expanding the crane's operational envelope. This can be manually operated on smaller units but is typically hydraulically powered on larger models.
7. **Outriggers/Stabilizers:** Essential for stability during lifting operations, especially when handling loads that exceed the truck's inherent stability. These extendable legs are deployed from the truck's chassis to provide a wider, more stable base.
8. **Control System:** Facilitates operator interaction. Modern units predominantly use wired or wireless remote controls, providing fine-tuned command over all crane functions (hoist, boom elevation, extension, sle***g) from a safe distance. Manual lever controls might also be present as a backup or for specific functions.

**Applications:**
Pickup truck-mounted service cranes are widely utilized across various industries due to their versatility and mobility. Common applications include:
* **Construction:** Lifting tools, equipment, and materials on job sites.
* **Field Service:** Servicing heavy machinery, generators, pumps, and other equipment in remote locations.
* **Utility Services:** Handling transformers, poles, cables, and other components for electrical, telecommunications, and gas companies.
* **Municipal Services:** Assisting in roadside assistance, park maintenance, and public works.
* **Agriculture:** Moving heavy farm equipment parts, feed, or supplies.
* **Landscaping:** Positioning heavy rocks, trees, or construction materials.

**Advantages:**
The primary advantages of these systems include their high degree of mobility, self-sufficiency (often powered by the truck's electrical system), reduced need for dedicated heavy lifting equipment for smaller loads, and enhanced safety through remote operation and reduced manual labor. They offer a cost-effective solution for tasks requiring intermittent lifting capability in varied environments.

**Safety Considerations:**
Operation requires adherence to strict safety protocols, including understanding load charts (which define the crane's lifting capacity at different boom lengths and angles), proper deployment of outriggers, maintaining a clear operational area, and ensuring the truck is on level ground. Operator training is paramount to prevent rollovers, overloads, and other hazards associated with crane operation.

KEYWORDS: Pickup Truck Crane, Service Crane, Utility Crane, Truck-Mounted Crane, Hydraulic Crane, Jib Crane, Remote Control Crane, Hoist System, Material Handling, Lifting Equipment, Mobile Crane, Telescopic Boom, Outriggers, Field Service, Construction Equipment, Vehicle-Mounted Lift, DC Powered Crane, Load Chart, Stability, Industrial Lifting, Work Truck, Boom Crane, Portable Lifting, Heavy Equipment, Hydraulic Lift, ***ch System, Commercial Vehicle, Maintenance Crane, Remote Operation, Compact Crane.
