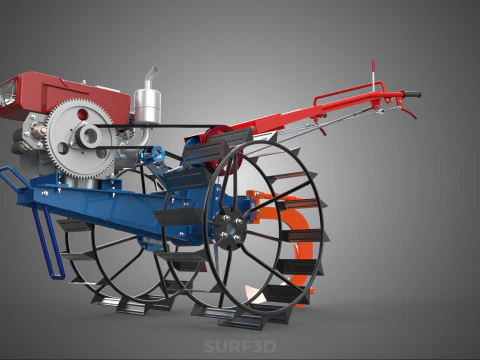

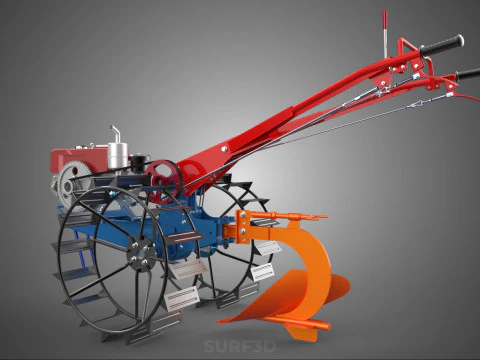

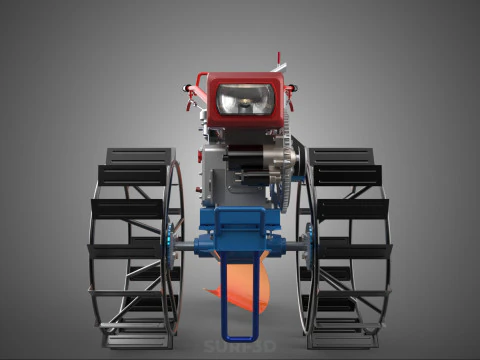

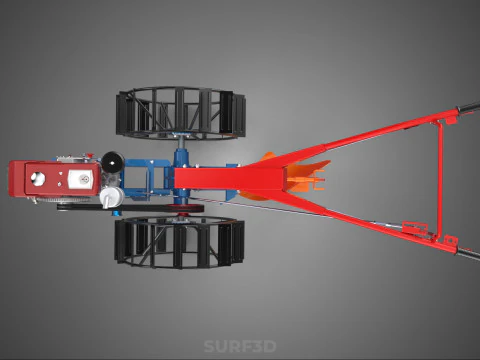

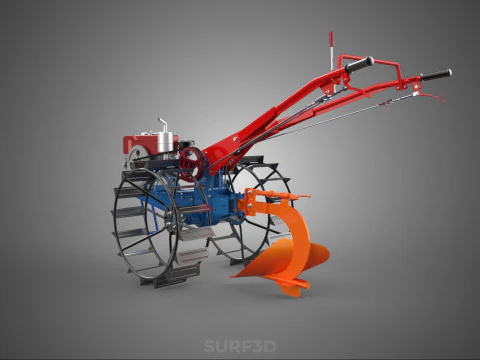

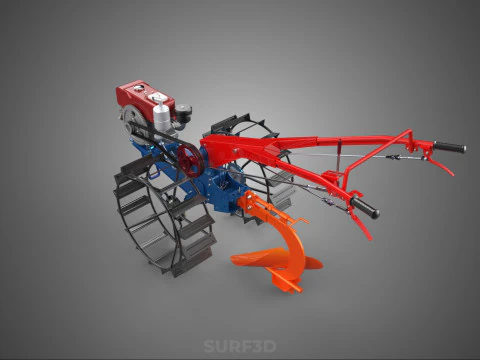

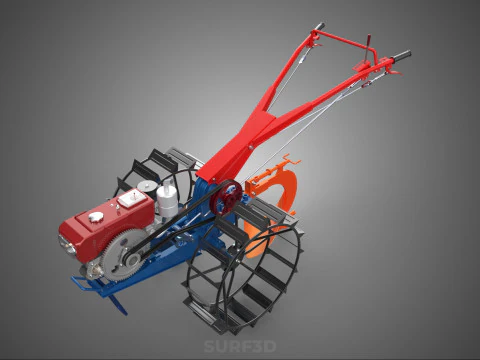

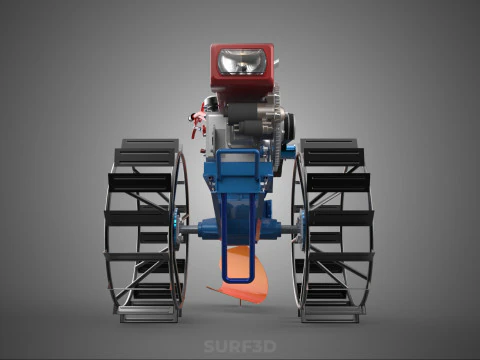

MOLDBOARD PLOW HAND WALKING TRACTOR MOUNTED FURROW PLOUGH SHARE 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

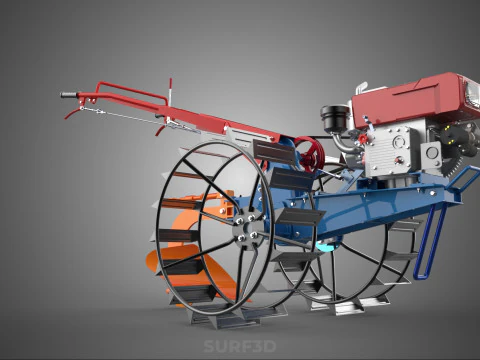

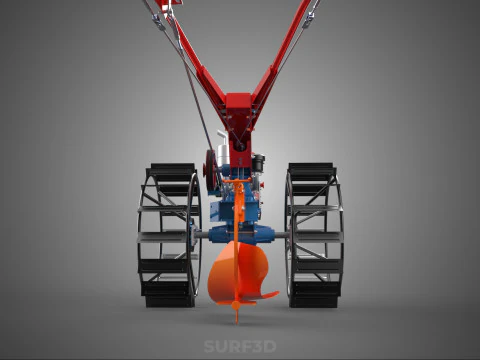

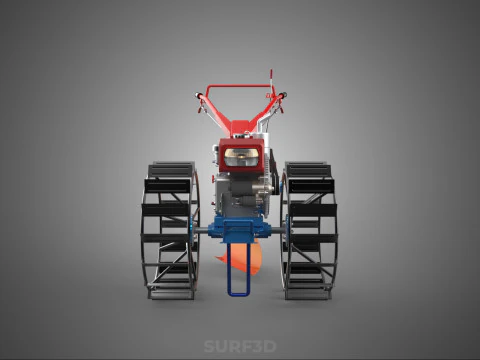

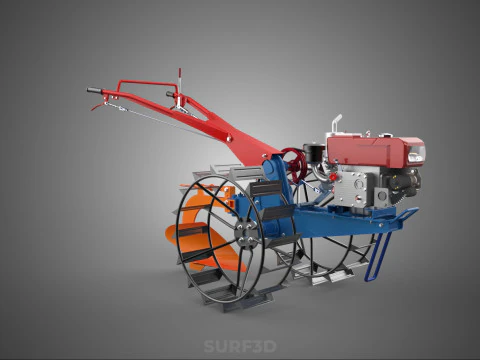

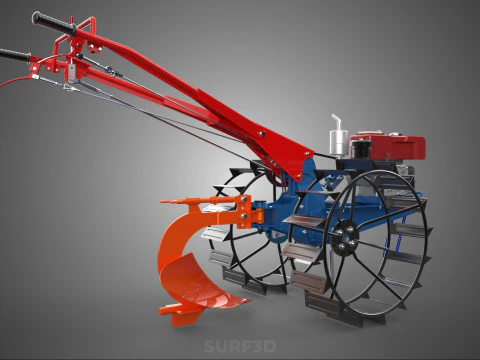

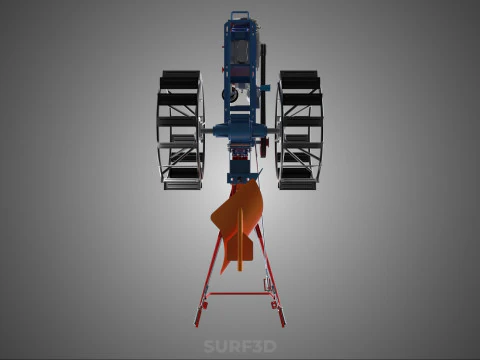

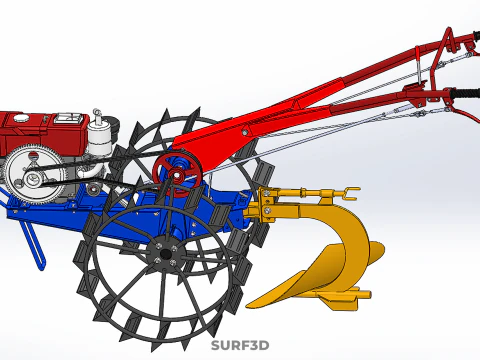

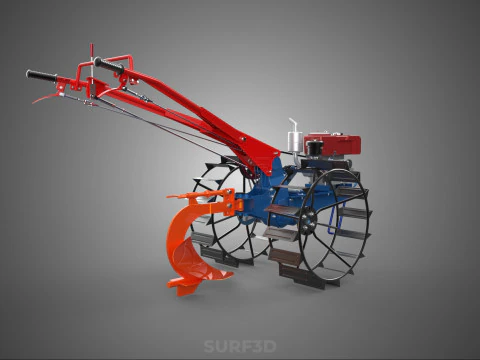

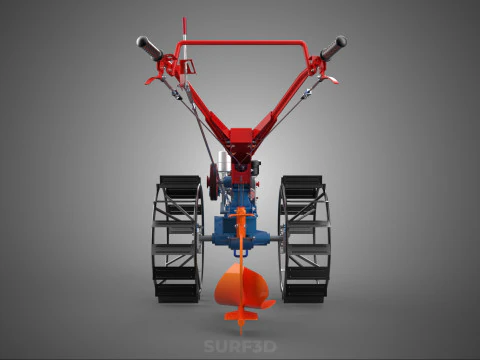

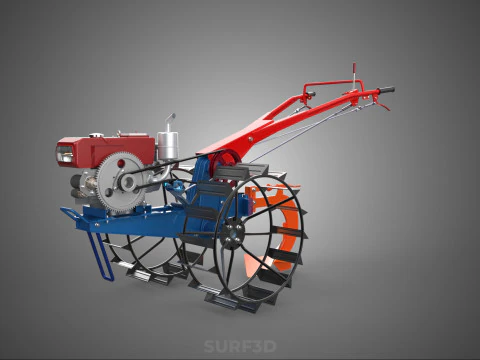

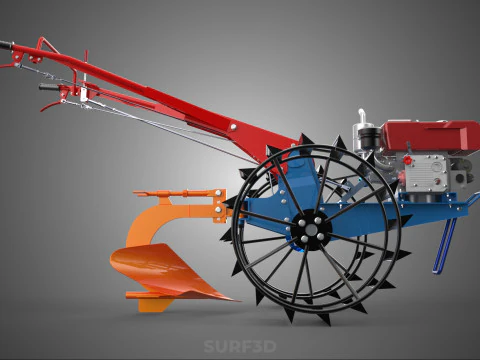

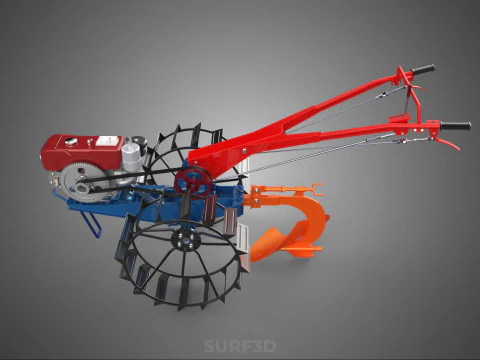

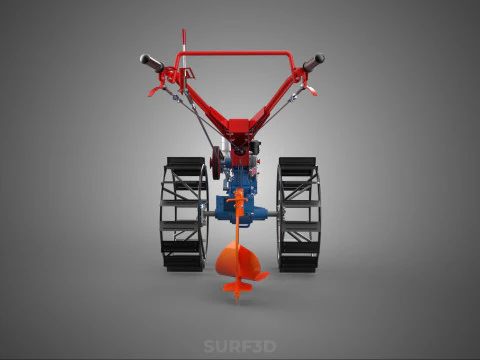

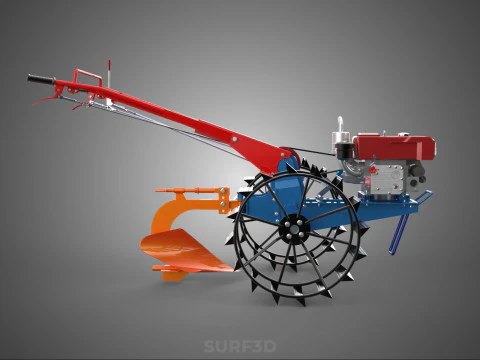

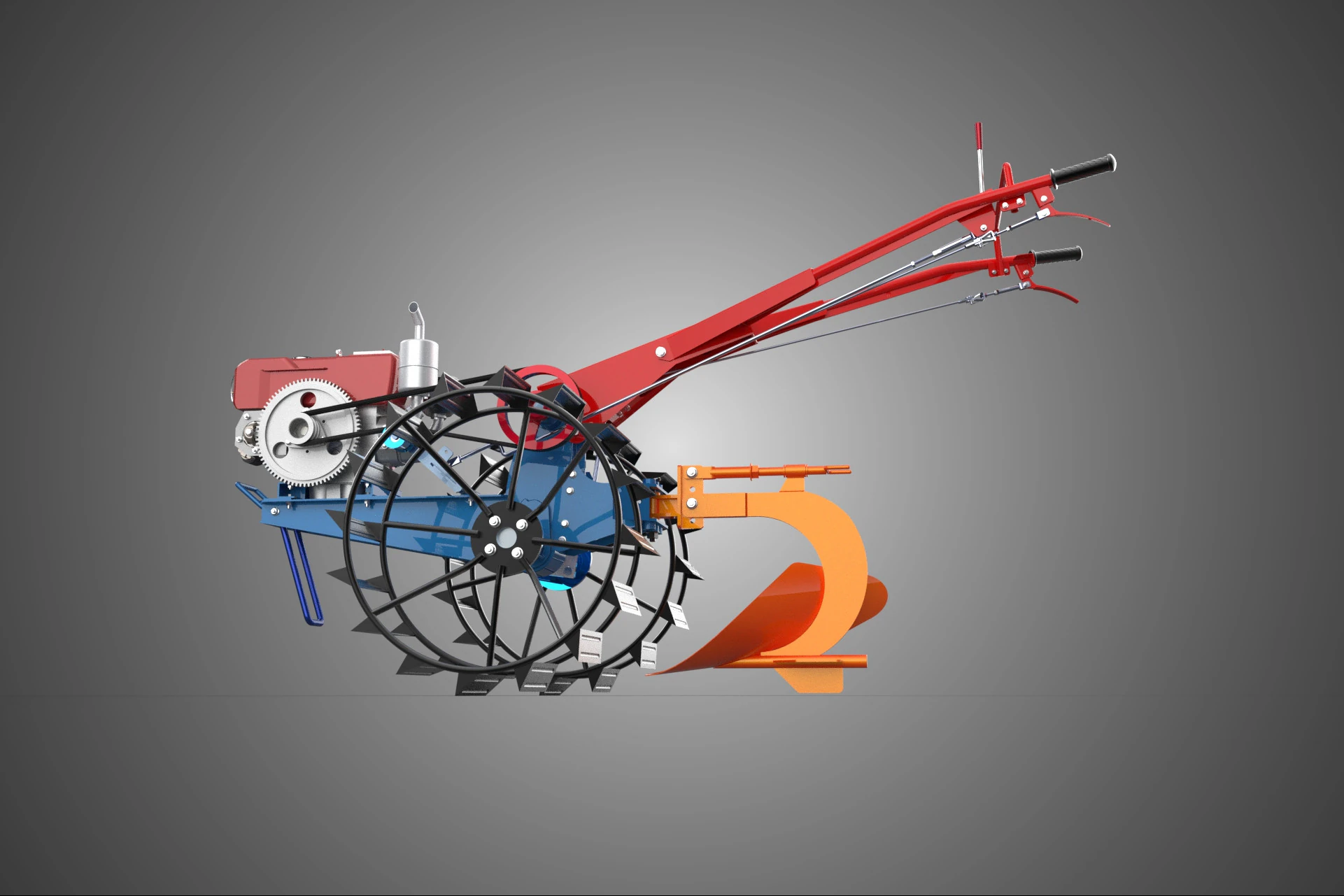

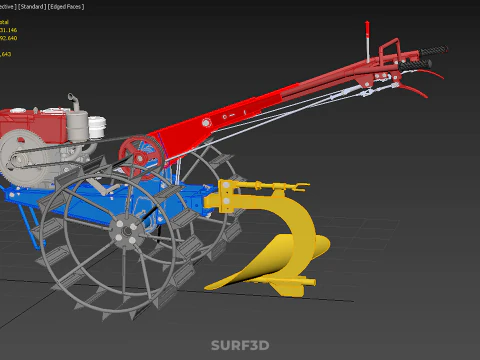

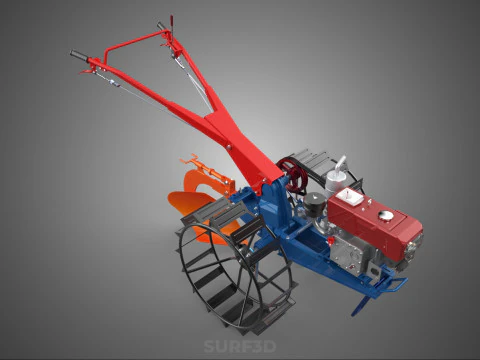

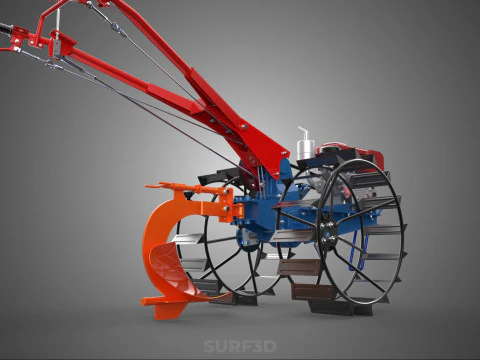

The implement described is a specialized single-bottom moldboard plow designed for mechanical integration with a hand walking tractor (also known as a power tiller or two-wheel tractor). This apparatus serves as a primary tillage tool, executing the processes of cutting, lifting, and inverting soil to prepare a seedbed, create defined furrows for row planting, or manage water flow and drainage. It represents a critical mechanized solution for small-scale and subsistence farming operations globally, particularly prevalent in densely populated or geographically challenging regions where larger four-wheel tractors are impractical.

### Nomenclature and Context

The formal name highlights the implement's core mechanics and application: the **Moldboard Plow** defines the mechanism of soil turning, the **Hand Walking Tractor Mounted** specifies the necessary power unit and integration method, and the **Furrow Plough Share** references the specific working objective (furrow creation) and its essential cutting component. The entire assembly constitutes a low-draft, single-furrow plow bottom designed to operate effectively with the limited horsepower (typically 5 to 15 hp) and restrictive weight constraints of pedestrian-operated machinery.

### Mechanical Structure and Operation

The plow attaches rigidly to the walking tractor’s implement coupling system via a three-point or simpler hitch structure, allowing for precise depth and lateral angle adjustments. The working parts, collectively known as the plow bottom, consist of several high-wear components fastened to a central structural member called the **frog**:

1. **Plough Share (or Point):** This is the leading, horizontal cutting edge. Fabricated from hardened steel, its function is to slice the soil mass (the furrow slice) from the subsoil horizontally. The wear life of the share is the primary factor dictating maintenance intervals.
2. **Moldboard:** A precisely curved metal surface positioned immediately behind the share. The geometry of the moldboard is engineered to receive the lifted soil slice and progressively turn it over, ensuring thorough inversion (typically 135 to 180 degrees). This action buries surface residue, aerates the soil, and controls weed populations.
3. **Landside:** A flat, robust plate that runs along the side of the previously cut furrow wall (the land). Its function is crucial for stability, absorbing the considerable lateral thrust generated as the moldboard turns the soil, thereby maintaining the implement’s straight course.
4. **Hitch and Depth Control:** The mounting frame usually includes a depth gauge wheel or adjustable skid. The operator uses manual leverage on the tractor handles and specific settings on the hitch to control the working depth and the degree of soil inversion.

### Applications and Agricultural Significance

The hand walking tractor moldboard plow is highly valued for its versatility in intensive cultivation. Its primary functions include:

* **Primary Tillage:** Breaking up compacted soil layers, providing deep aeration, and initiating the process of seedbed preparation.
* **Furrowing and Bedding:** Creating uniform rows and furrows essential for irrigation control and the planting of row crops such as maize, potatoes, vegetables, or groundnuts. This functionality is particularly important in regions employing ridge and furrow agriculture.
* **Residue Management:** Effectively burying crop stubble and weeds, which aids in pest control and accelerates the decomposition of organic material.

Due to the low operating speed and the operator’s close proximity, these plows offer exceptional maneuverability and control, making them superior to larger machinery in fields with irregular boundaries, steep slopes, or terraced agricultural landscapes common in East and Southeast Asia.
