Mold for Tractor tire 44 Scale 3D Druckmodell

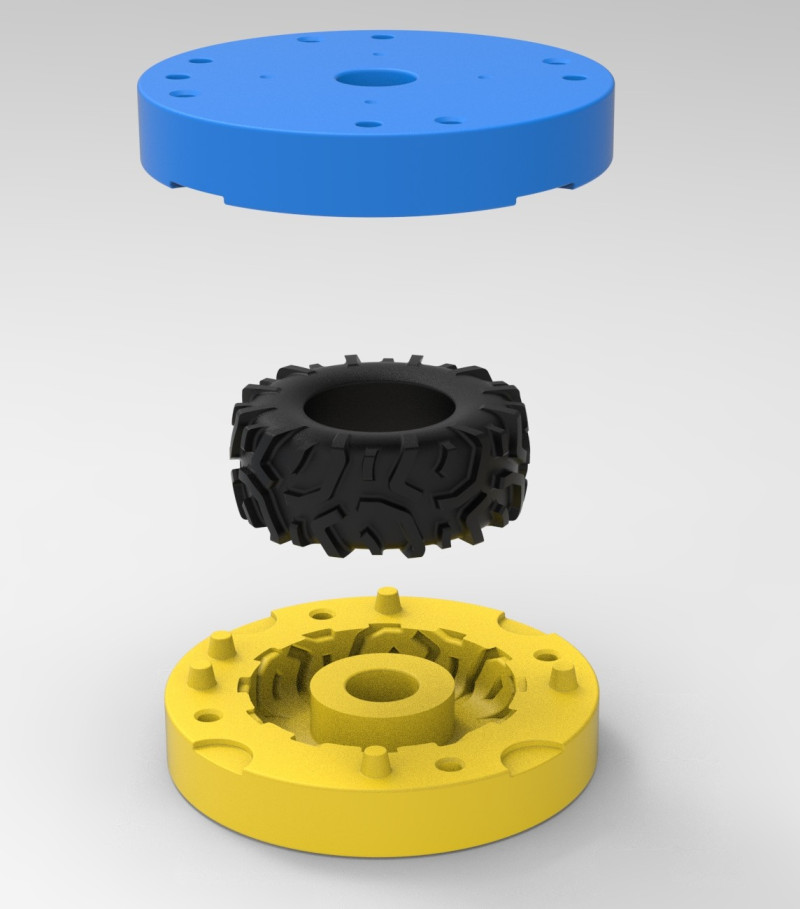

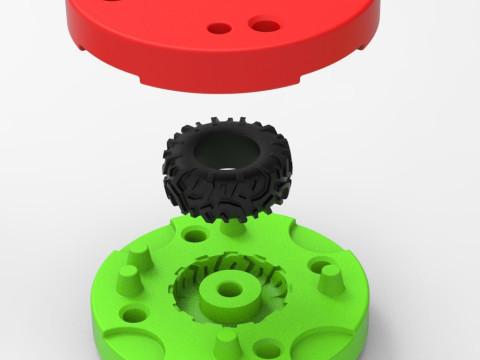

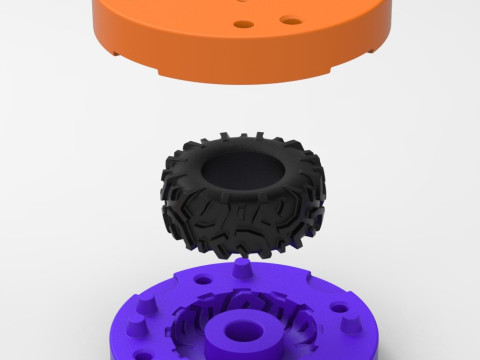

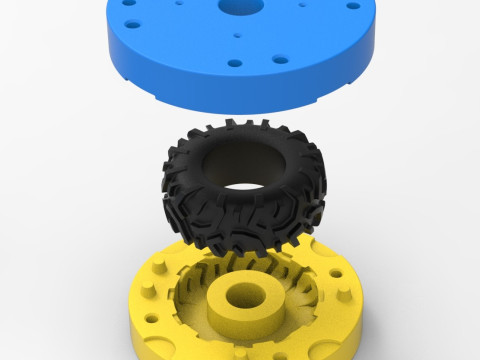

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

- diameter – 120 mm

- height – 40 mm

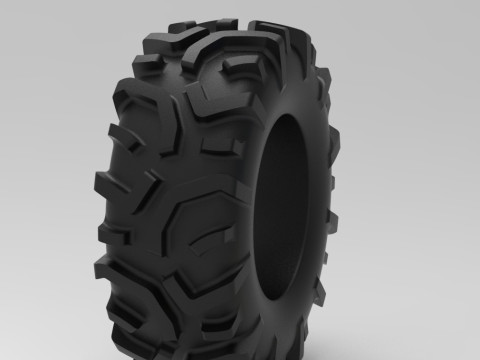

Tire dimensions 1:10:

-        outer diameter – 80 mm

-        overall width – 30 mm

-        inner diameter – 40 mm

Mold dimensions 1:14:

- diameter – 97 mm

- height – 32 mm

Tire dimensions 1:14:

-        outer diameter – 57 mm

-        overall width – 22 mm

-        inner diameter – 28,5 mm

Mold dimensions 1:25:

- diameter – 72 mm

- height – 22 mm

Tire dimensions 1:25:

-        outer diameter – 32 mm

-        overall width – 12 mm

-        inner diameter – 16 mm

If you want a different wheel size, simply scale the mold.

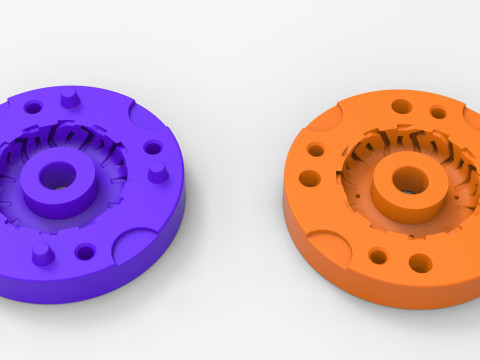

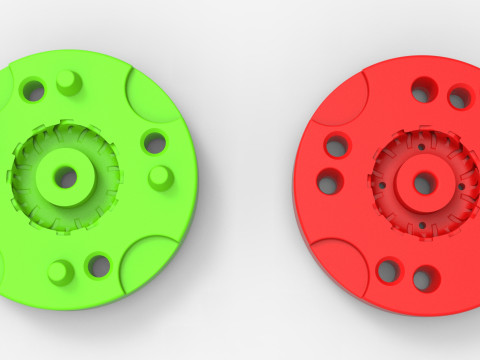

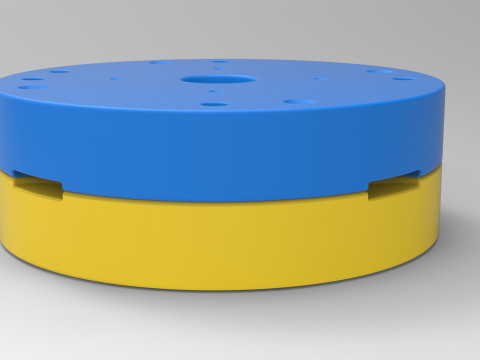

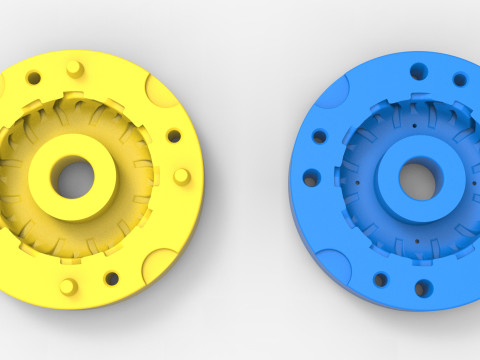

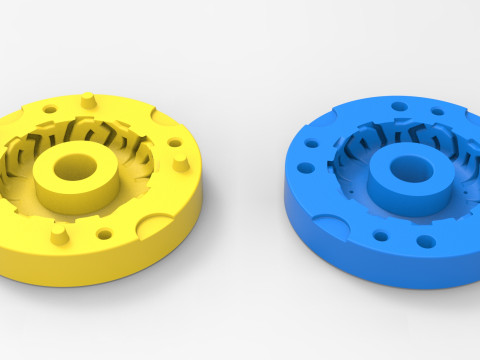

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.

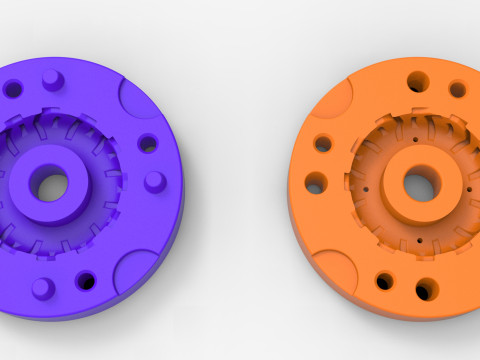

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

Note! Only the mold! This is not a tire!
