STANDARDKUPPLUNG, KUGELGELENK, ANHÄNGERWAGEN, TROLLEY FÜR ANHÄNGERWAGEN 3D Modell

Beschreibung

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The standard hitch ball joint is a ubiquitous mechanical coupling device utilized globally to establish a secure and articulated connection between a prime mover (towing vehicle) and a trailing apparatus (trailer, cart, or trolley). This assembly, often referred to simply as a tow ball or hitch system, is the predominant mechanism for light-to-medium duty towing, offering kinematic flexibility necessary for safe operation across varying terrain and during complex maneuvers.

### Nomenclature and Components

The complete towing system involves three primary components:

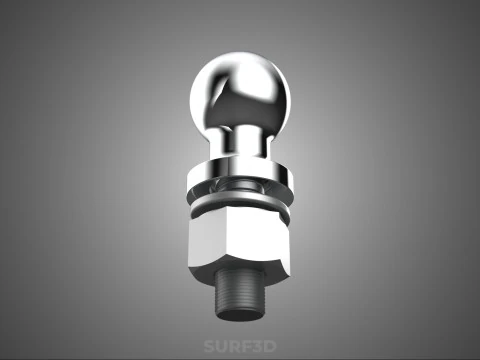

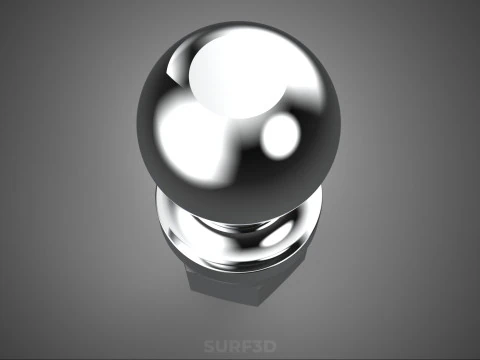

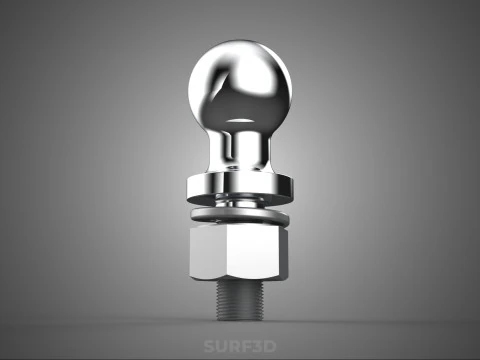

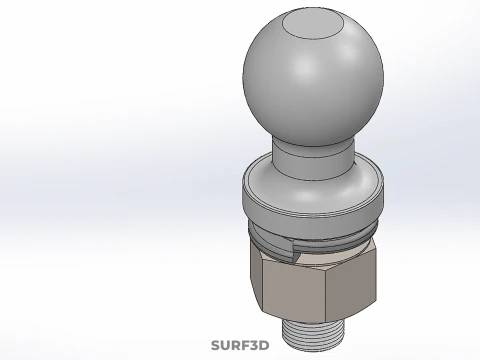

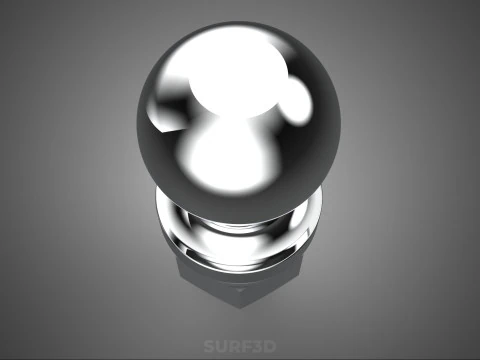

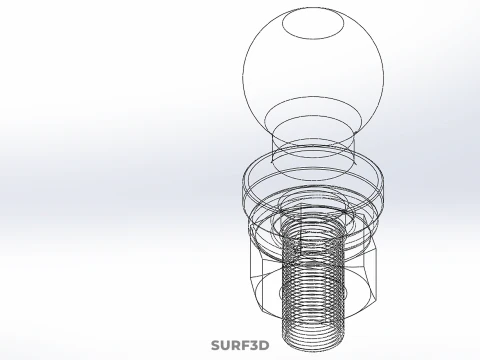

1. **The Hitch Ball (Towball):** A spherically shaped terminal component, typically constructed from high-strength steel alloys and often chrome-plated for corrosion resistance. The ball attaches securely, via a threaded shank, to the ball mount. Standardized diameters ensure compatibility with matching couplers.
2. **The Ball Mount (Drawbar):** A structural component designed to extend the hitch ball rearward and vertically adjust its height relative to the ground. In modern automotive applications, the mount is usually removable and slides into a square **Receiver Tube** fixed to the towing vehicle's frame or chassis.
3. **The Coupler (Socket/Receiver):** The corresponding receiving mechanism located on the drawbar or tongue of the trailer. The coupler includes a latching mechanism that secures the ball within the socket, preventing vertical disengagement and axial separation under tension or compression (braking or acceleration).

### Function and Mechanical Principle

The fundamental function of the ball joint is to provide an articulation point with controlled degrees of freedom. The spherical interface allows for the trailing unit to pivot relative to the towing vehicle in three principal axes:

* **Yaw (Horizontal Rotation):** Necessary for turning and maneuvering.
* **Pitch (Vertical Rotation):** Crucial for traversing undulating terrain, mitigating stress on the chassis when ascending or descending hills or bumps.
* **Roll (Lateral Rotation):** Allows the trailer to lean independently of the vehicle on uneven surfaces, ensuring stability and preventing torsional chassis strain.

Crucially, the locked coupler provides a strong axial constraint, transferring longitudinal forces (towing effort and braking force) while maintaining continuous mechanical linkage.

### Standardization and Classification

To ensure interoperability and safety, hitch ball joints adhere to rigorous national and international standards, most notably those defined by the Society of Automotive Engineers (SAE) in North America (e.g., SAE J684) and various ISO standards internationally.

**Common Ball Diameters:**
Standardized diameters are critical for load rating and secure coupling:
* 1-7/8 inches (47.6 mm): Typically restricted to Class I and light-duty applications.
* 2 inches (50.8 mm): The most common standard globally for Class II and Class III systems.
* 2-5/16 inches (58.7 mm): Utilized for Class IV and Class V heavy-duty applications, including large RVs and commercial trailers.

**Towing Classes (SAE J684):** Towing capacities are categorized based on the Gross Trailer Weight (GTW), the maximum allowable weight of the fully loaded trailer, and Tongue Weight (TW), the static vertical load exerted on the hitch ball.

| Class | Max GTW (Approx.) | Typical Usage |
|---|---|---|
| Class I (Light Duty) | Up to 2,000 lbs (907 kg) | Bicycle racks, small utility trailers |
| Class II (Medium Duty) | Up to 3,500 lbs (1,588 kg) | Small boats, medium utility trailers |
| Class III (Heavy Duty) | Up to 8,000 lbs (3,629 kg) | Large boats, medium RVs, car hauling |
| Class IV/V (Extra Heavy Duty) | 10,000+ lbs (4,536+ kg) | Commercial hauling, large equipment |

### Applications

The standard hitch ball joint is central to numerous sectors:
* **Recreational Towing:** Used extensively for recreational vehicles (RVs), camping trailers, and personal watercraft (PWC) trailers.
* **Utility and Commercial:** Employed for utility trailers, landscaping carts, construction equipment transport, and specialized maintenance trolleys.
* **Agricultural:** Used on smaller farm carts and implements, though larger agricultural machinery often utilizes heavier-duty linkages like pintle hooks or drawbar hitches.

### Maintenance and Safety Considerations

Proper maintenance involves regular inspection of the hitch ball for wear, deformation, or corrosion, ensuring the coupler mechanism is lubricated and functioning correctly, and verifying that all locking pins and fasteners are secured. Exceeding the specified GTW or TW rating for the hitch class presents a significant safety hazard and can lead to mechanical failure or loss of control of the trailing unit.
