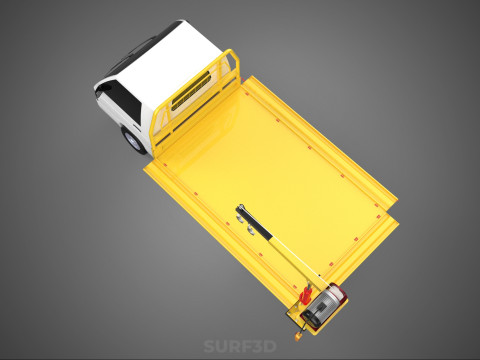

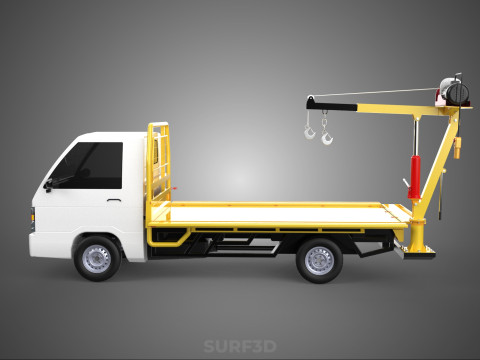

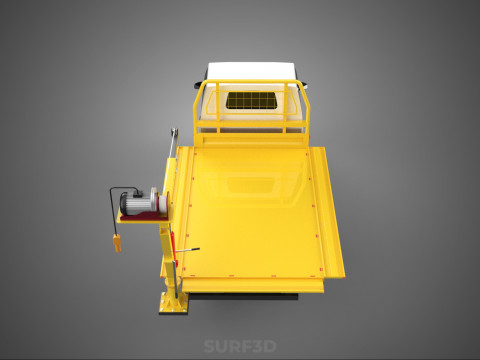

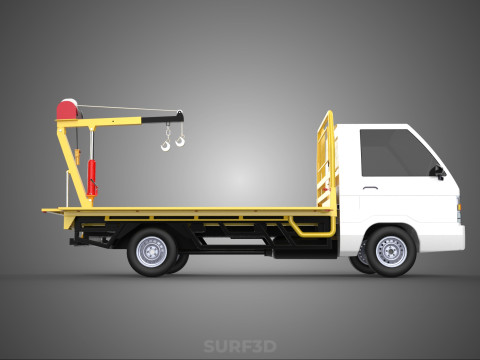

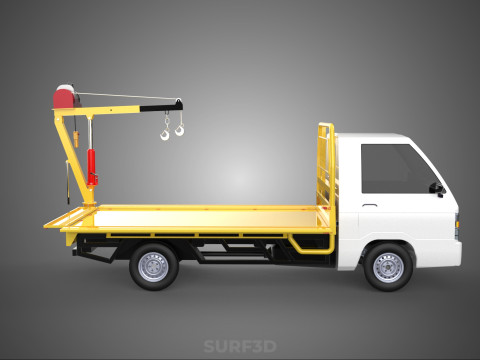

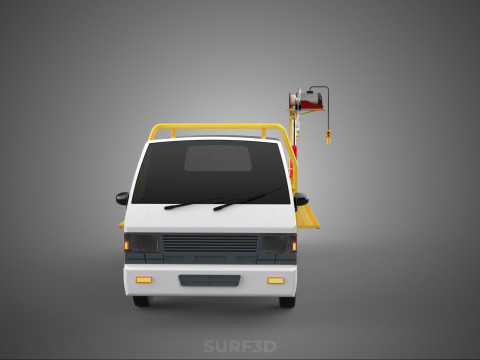

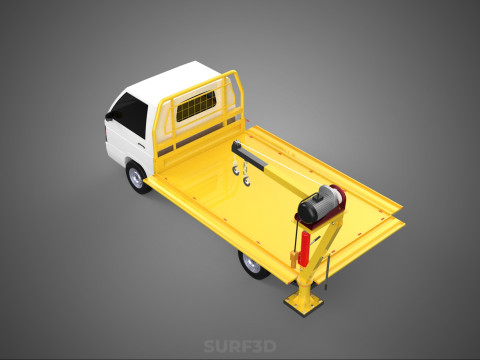

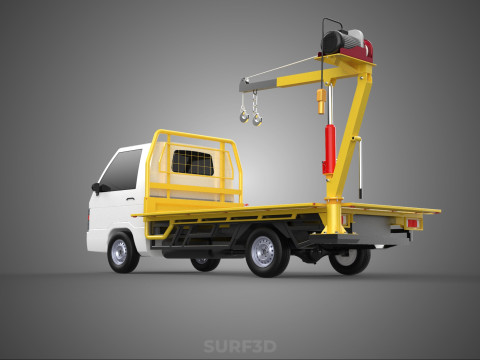

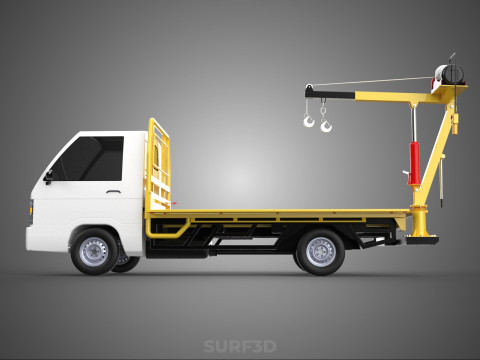

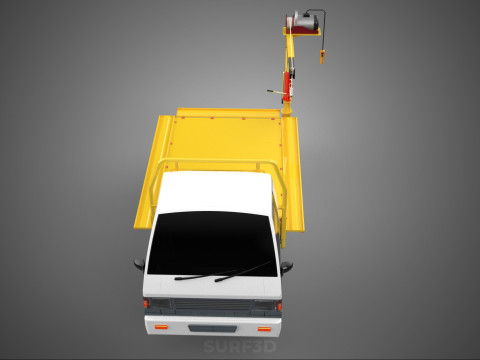

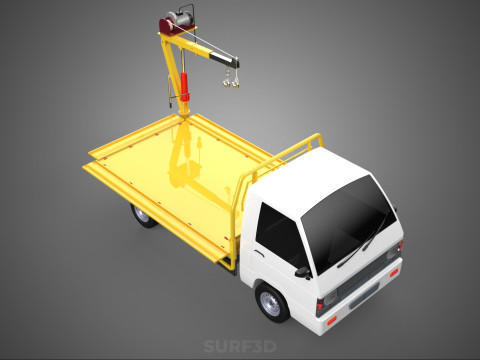

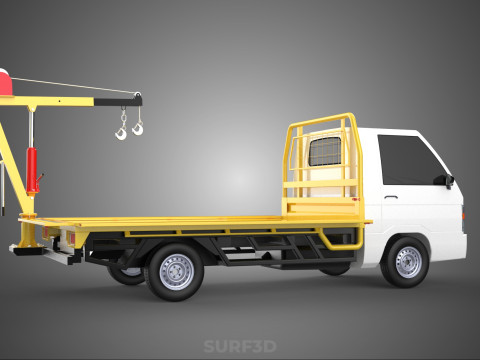

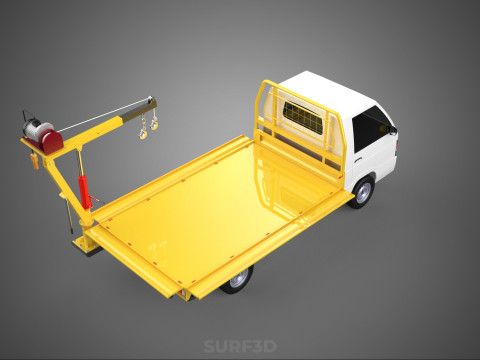

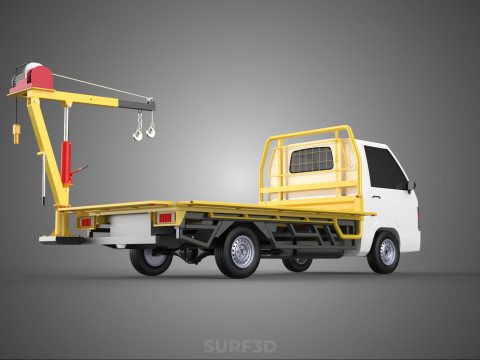

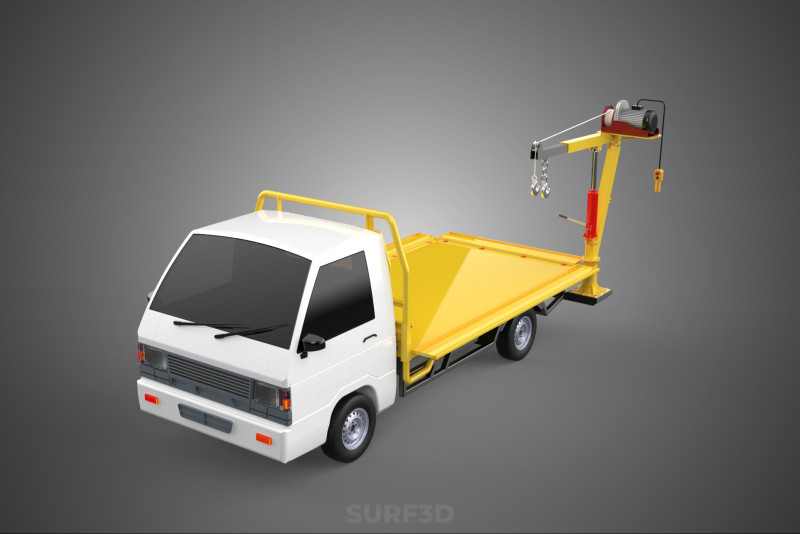

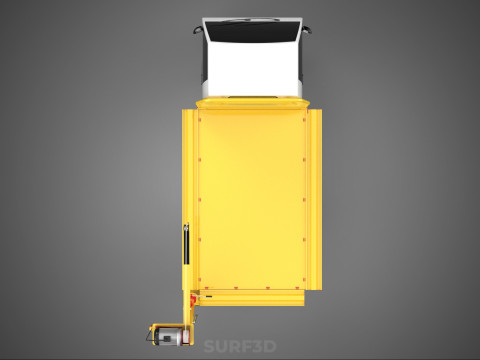

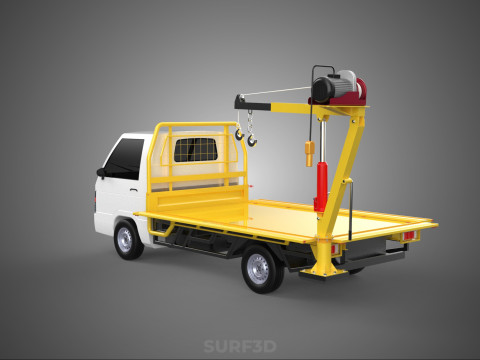

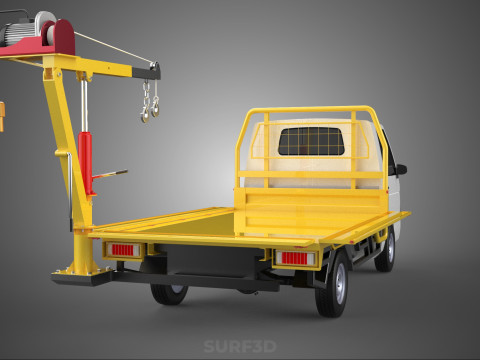

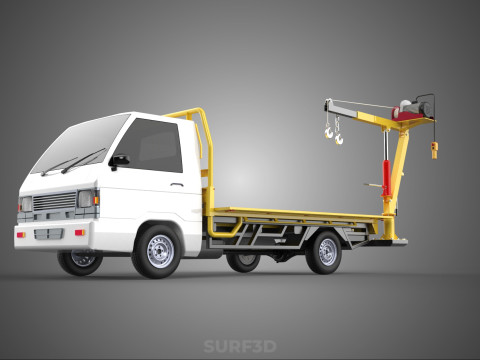

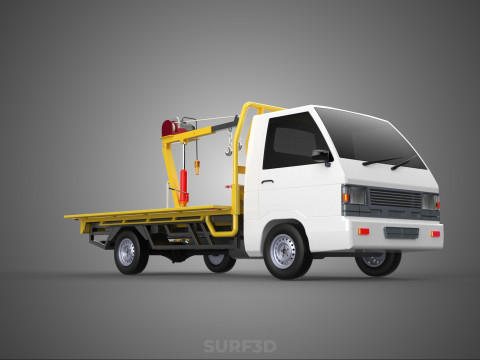

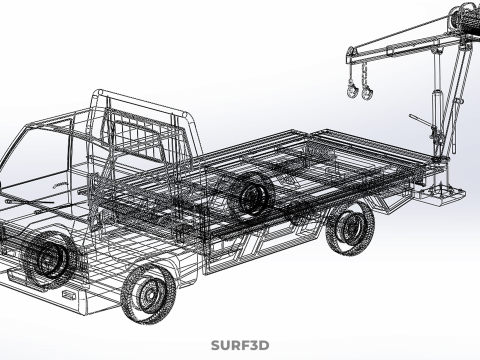

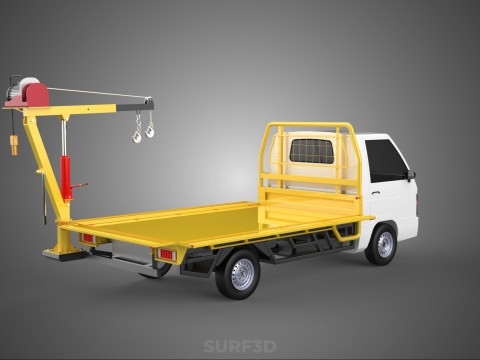

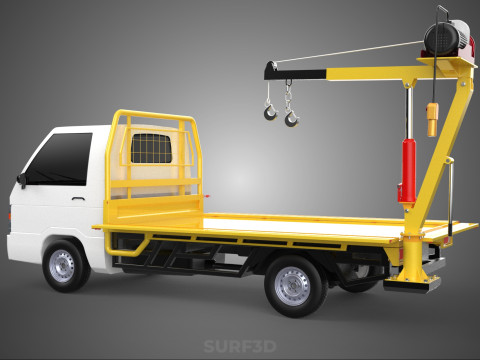

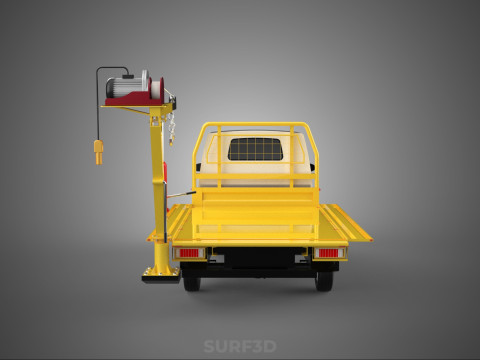

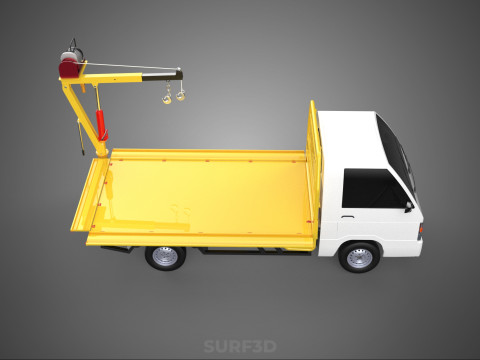

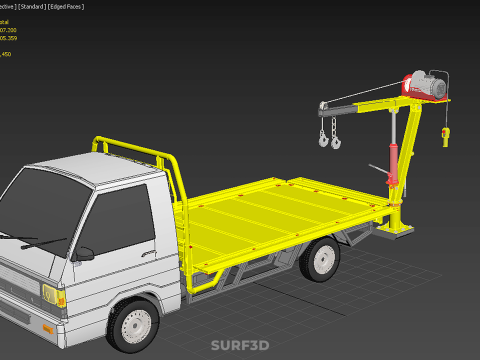

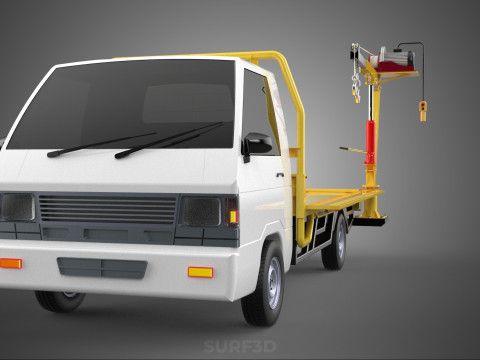

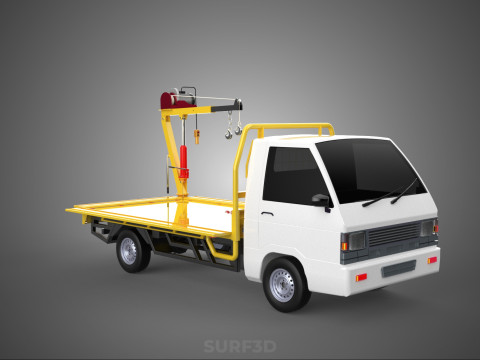

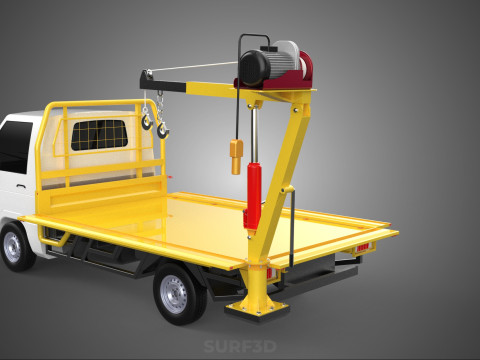

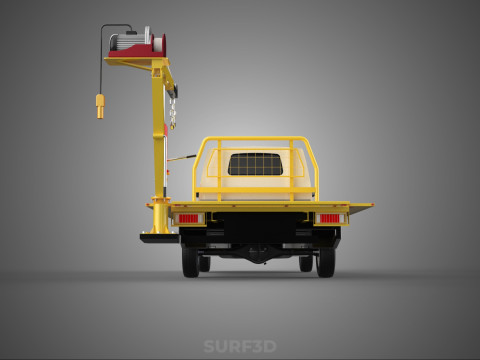

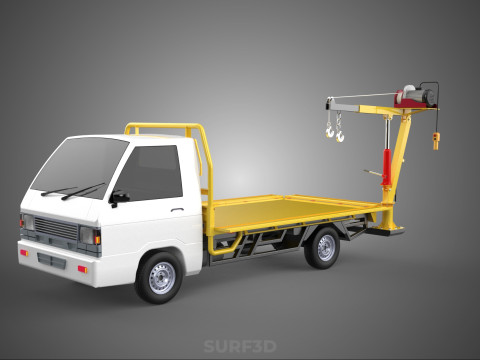

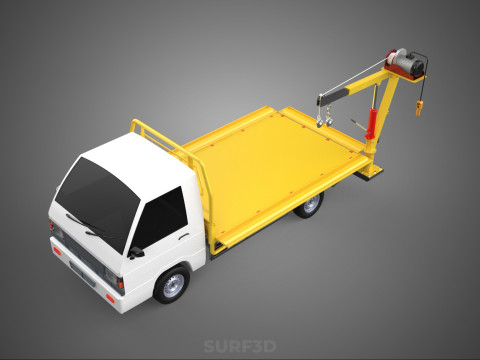

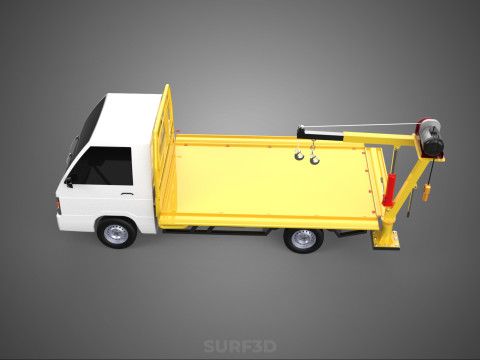

3 WAY WIDE DECK CRANE HOIST REMOTE ELECTRIC WINCH TRUCK PICKUP 3D Modell

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content

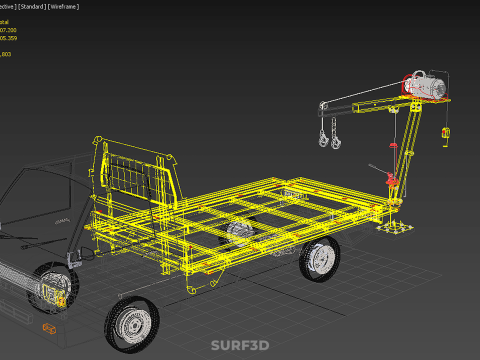

• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "3 Way Wide Deck Crane Hoist Remote Electric Winch Truck Pickup" refers to a highly specialized and versatile mobile lifting and material handling system, meticulously integrated onto the chassis of a light- to medium-duty pickup truck. This robust combination creates a self-contained unit capable of efficiently executing a broad spectrum of loading, unloading, and positioning tasks, particularly in environments requiring mobility and adaptable lifting capabilities.

**System Overview**
This designation describes a utility vehicle equipped with a compact crane that incorporates an electric winch as its primary hoisting mechanism. The entire lifting operation is managed via remote control, and the system is mounted on a truck featuring an expanded, often custom-fabricated, loading deck. The "3 Way" aspect signifies the crane's multi-directional operational capability, typically encompassing vertical lift, horizontal reach/extension, and rotational (slew) movement, further enhanced by the deck's versatility for multi-directional load placement.

**Components and Functionality**

1. **Crane System and "3 Way" Functionality:**

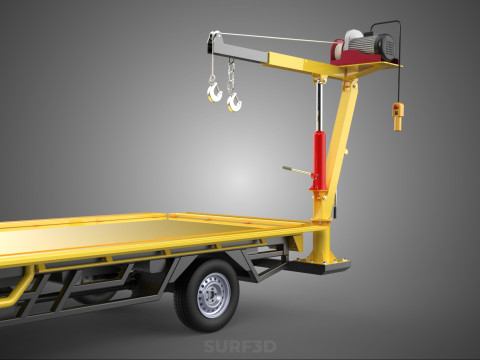

The core lifting apparatus is a compact, typically hydraulic or electro-hydraulic, articulating or telescopic boom crane. The "3 Way" descriptor highlights its ability to manipulate loads across three principal axes or planes:
* **Vertical Movement (Hoist):** The primary function of lifting and lowering loads, powered by the integrated electric winch.
* **Horizontal Reach (Boom Extension/Retraction):** Adjusting the load's horizontal distance from the crane's pivot point, extending or retracting the boom.
* **Rotational Movement (Slew):** Pivoting the entire crane assembly horizontally, usually through a significant arc (e.g., 180°, 270°, or 360° continuous rotation), to position loads laterally.
This comprehensive articulation, combined with the "wide deck" design, also facilitates the versatile loading and unloading of materials from multiple sides onto the truck's platform.

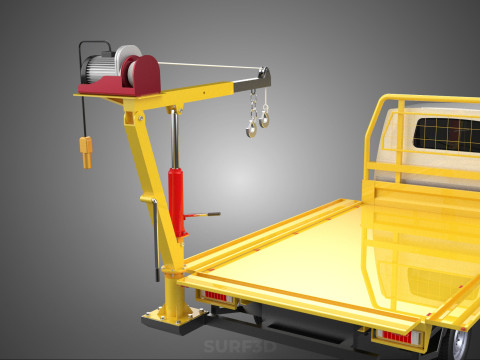

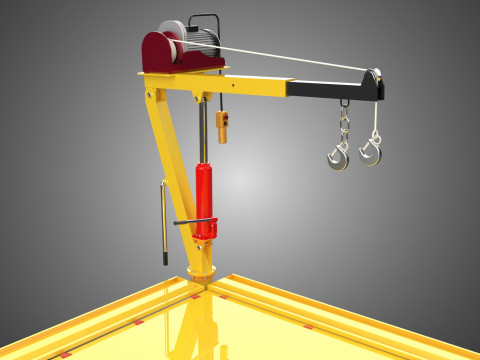

2. **Hoist and Electric Winch:**
The actual lifting mechanism is an integrated electric winch. These units are favored for their reliability, consistent pulling power, and ease of power integration with the vehicle's electrical system (typically 12V DC or 24V DC, sometimes augmented by a dedicated battery bank). Key characteristics include:
* **Electric Motor:** A high-torque DC motor provides the necessary power.
* **Gearbox:** A robust planetary or worm gear system ensures efficient power transmission and provides mechanical advantage for lifting.
* **Braking System:** An automatic mechanical brake (e.g., dynamic or disc brake) securely holds the load at any position when power is disengaged, a critical safety feature.
* **Cable:** High-strength steel wire rope or synthetic rope, terminated with a safety hook, is used for lifting.
* **Capacity:** Lifting capacities can vary significantly, ranging from a few hundred pounds to several thousand pounds (e.g., 500 lbs to 6,000 lbs or more), dependent on the winch's specifications and the crane's load chart.

3. **Wide Deck System:**
The "wide deck" refers to an enlarged, robust flatbed or utility body installed on the truck chassis. This platform is typically broader and often longer than a standard pickup truck bed, offering several advantages:
* **Increased Loading Area:** Accommodates larger, bulkier, or irregularly shaped cargo that might not fit in a conventional bed.
* **Enhanced Accessibility:** Its width and open design facilitate easier loading and unloading from the sides, rear, and sometimes front, complementing the crane's multi-directional positioning.
* **Structural Integrity:** Constructed from high-strength steel or aluminum, it is designed to withstand heavy point loads and resist the stresses associated with crane operation and cargo transport.
* **Integrated Storage:** Often includes under-deck compartments or side-mounted toolboxes for secure storage of equipment and tools.

4. **Remote Control Operation:**
A defining feature is the remote control system, which can be a wired pendant or, more commonly, a wireless radio frequency (RF) remote. This technology offers substantial benefits:
* **Enhanced Safety:** The operator can maintain a safe distance from the load and potential pinch points, providing a clearer view of the lifting operation and surroundings.
* **Improved Precision:** Allows for more accurate and delicate load placement from an optimal vantage point.
* **Increased Efficiency:** Enables single-person operation for many tasks, reducing labor requirements and increasing productivity.
* **Ergonomics:** Reduces physical strain on the operator by eliminating the need to manually manipulate controls directly on the crane.

5. **Truck Platform (Pickup):**
The "truck pickup" component signifies that the entire system is mounted onto the chassis of a pickup truck. While the term "pickup truck" might evoke lighter-duty vehicles, in this context, it generally refers to a heavy-duty pickup (e.g., 3/4-ton or 1-ton models) or a specialized chassis cab utility truck. The truck serves as the mobile base, providing:
* **Mobility:** Allows for rapid deployment and transport of the lifting system and cargo to diverse job sites.
* **Power Source:** The truck's engine and electrical system provide the necessary power for the electric winch and, if applicable, the hydraulic pump for crane articulation.
* **Stability:** Stabilizing outriggers are almost universally equipped and deployed during crane operations to transfer load forces directly to the ground, preventing vehicle tip-over and ensuring safe lifting.

**Applications**
This type of specialized vehicle finds extensive use across various industries requiring mobile lifting and transport capabilities, including:
* **Construction:** Lifting and positioning building materials, tools, and small equipment.
