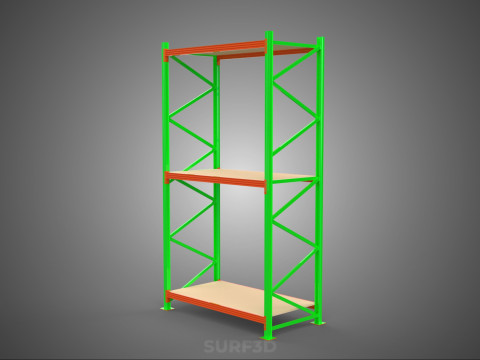

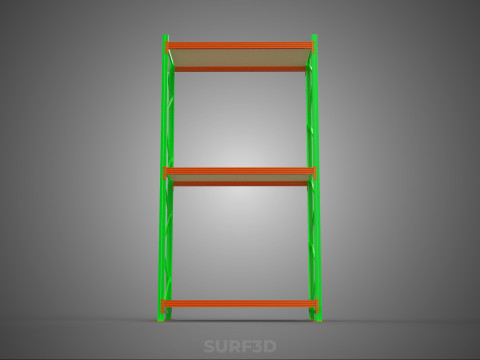

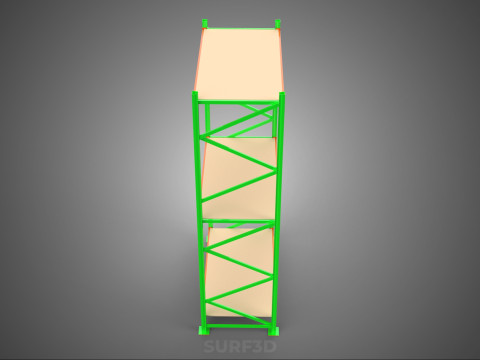

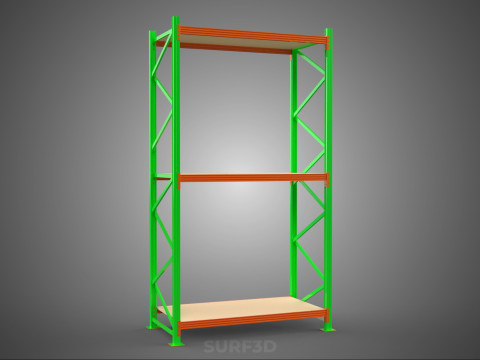

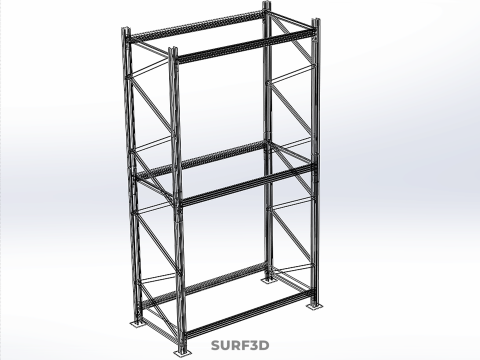

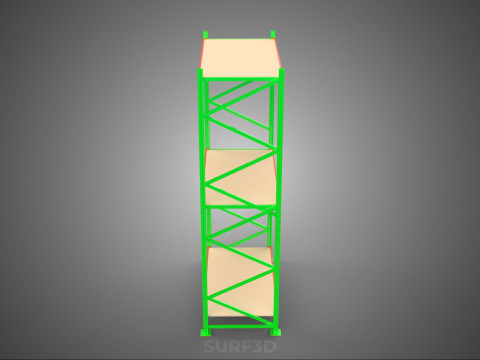

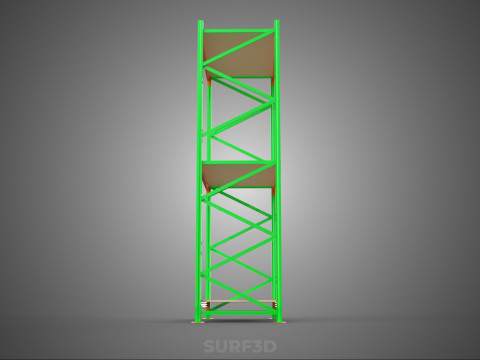

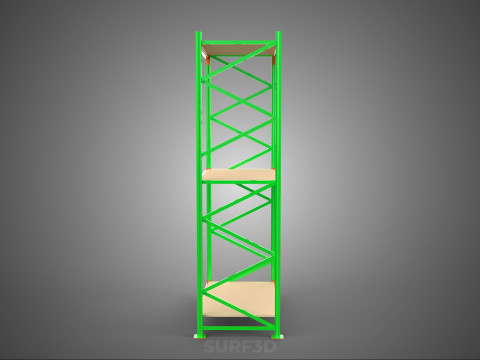

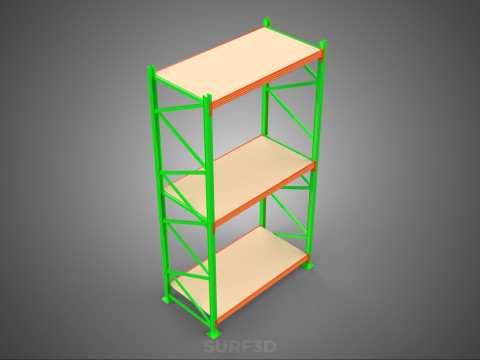

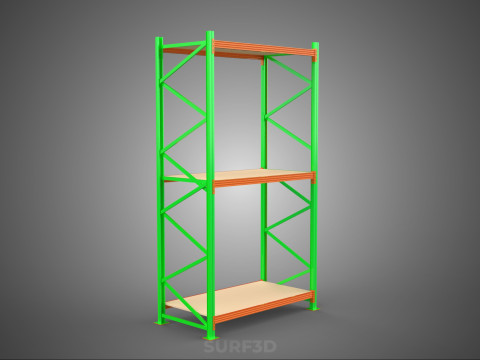

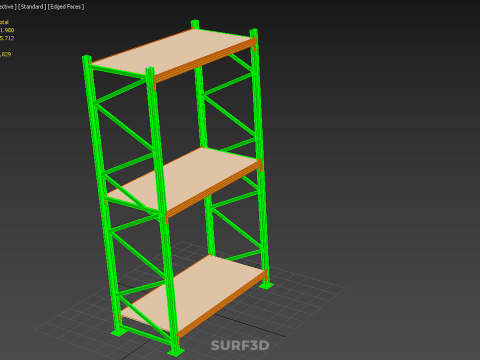

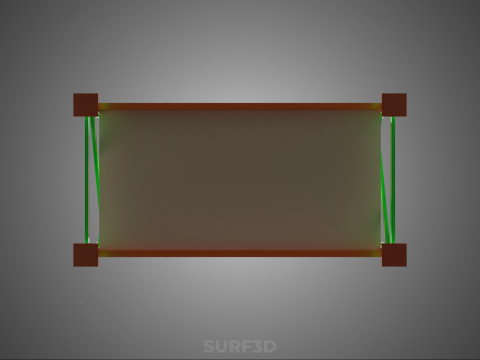

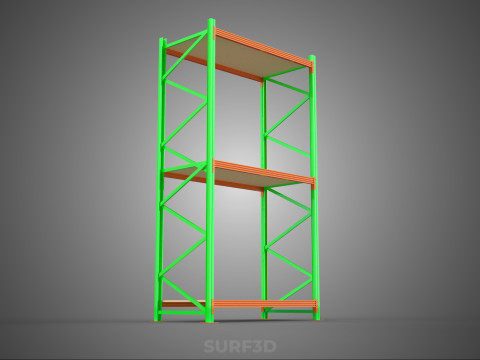

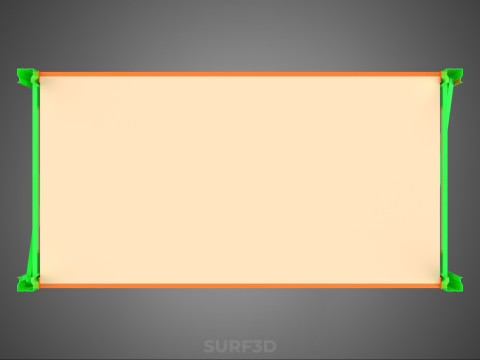

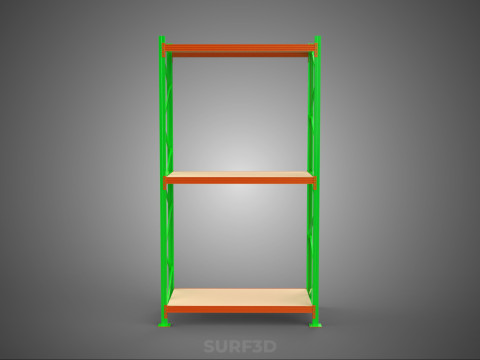

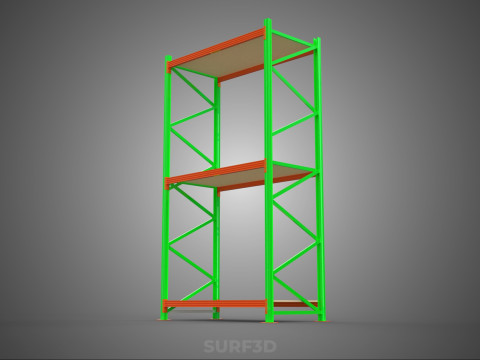

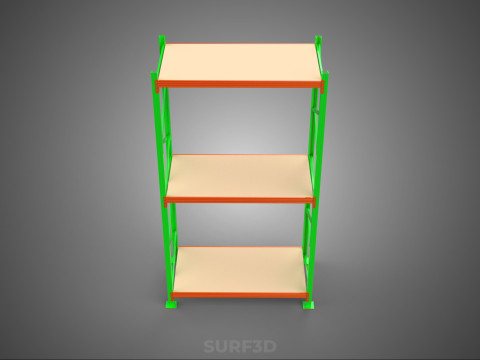

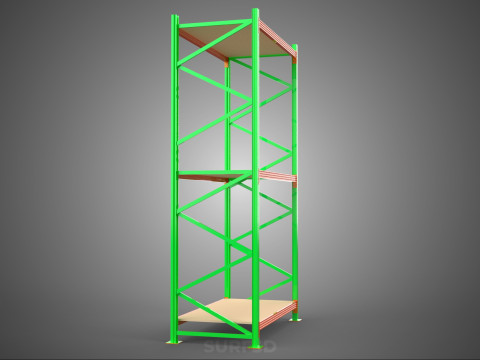

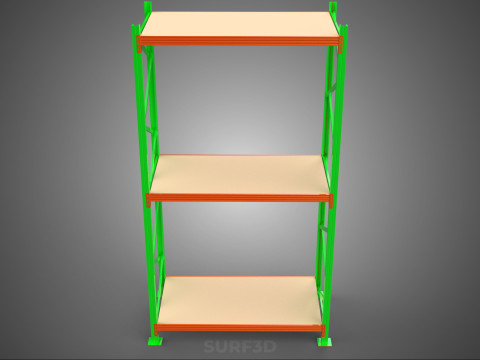

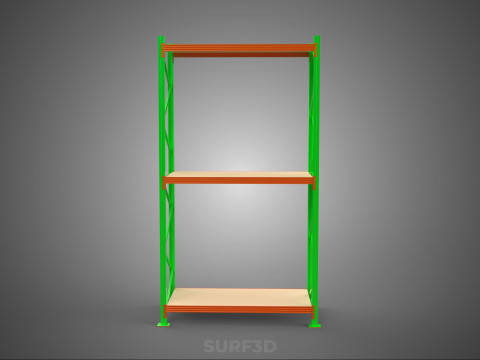

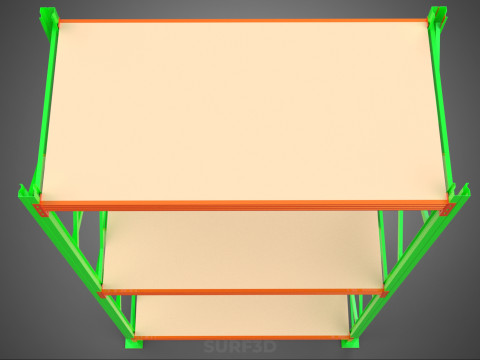

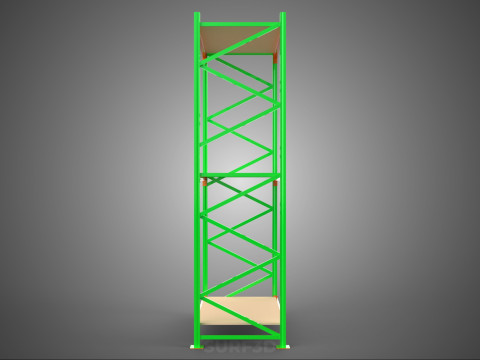

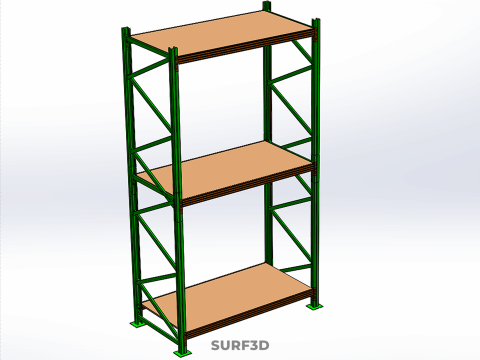

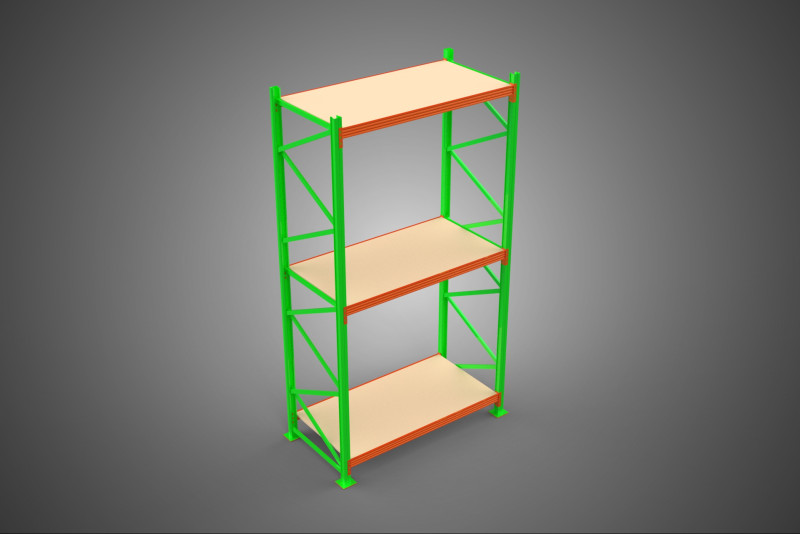

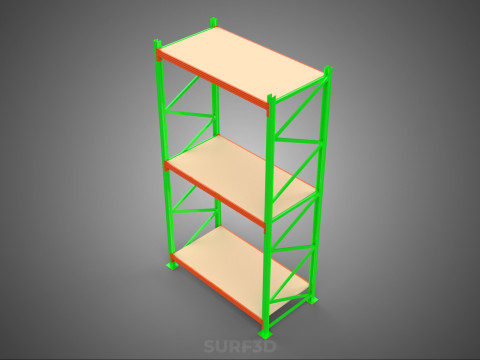

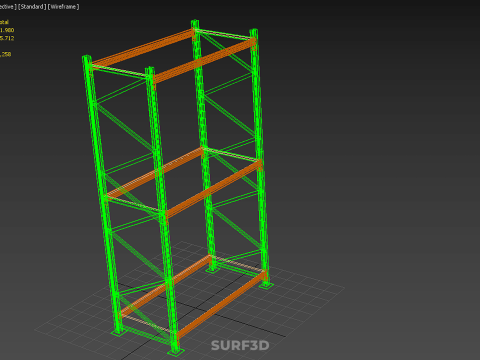

FRAME RACK SHELF WOOD STEEL WAREHOUSE METAL SHELVES STORAGE TRAY 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Frame Rack Shelf Wood Steel Warehouse Metal Shelves Storage Tray" system denotes a versatile and robust modular storage solution primarily utilized in industrial, commercial, and institutional environments, particularly warehouses, for the organized containment and retrieval of diverse goods. This classification refers to a storage apparatus characterized by its hybrid construction, typically featuring a structural framework made from steel and horizontal shelving platforms that commonly incorporate both wood and metal components, with an emphasis on efficient space utilization and load-bearing capacity.

**Nomenclature and Core Components:**

The descriptive title encomp***** the primary elements of such a storage system:

* **Frame (or Upright Frame):** Constitutes the vertical structural integrity of the shelving unit. Typically fabricated from cold-formed steel sections (e.g., C-channels, open-back uprights), each frame consists of two vertical posts braced together by horizontal and diagonal members to ensure stability and resist lateral forces. These frames provide the primary support for the horizontal shelf levels.
* **Rack (or Shelving System):** Refers to the complete assembly of frames and shelves, designed for multi-level storage. While "rack" can be a broad term in material handling (e.g., pallet racking), in this context, "frame rack shelf" specifically signifies shelving systems engineered for storing individual items, boxes, or components, rather than solely palletized loads, although heavy-duty variants can accommodate substantial weights.
* **Shelf:** The horizontal platforms upon which items are placed. These are crucial for load distribution and item accessibility:
* **Wood Shelves:** Commonly constructed from engineered wood products such as particleboard, plywood, or medium-density fiberboard (MDF). These decks are typically supported by steel beams or cross-members spanning between the upright frames. Wood offers a cost-effective, easily replaceable, and relatively lightweight decking solution, often chosen for its versatility and economical performance.
* **Metal Shelves:** Fabricated from sheet steel, often galvanized or powder-coated for enhanced corrosion resistance and durability. Metal shelves can be solid, perforated, or wire mesh. They provide superior fire resistance, greater longevity, and a higher aesthetic finish in certain applications compared to wood, and are particularly suitable for demanding environments or specific material handling requirements.
* **Storage Tray:** This term can signify a specific design feature of a shelf or an organizational accessory. It may refer to a shelf deck configured with a slight perimeter lip or shallow pan-like profile to contain loose items and prevent them from rolling or falling off the edge. Alternatively, "storage tray" often denotes an independent container, frequently manufactured from plastic or metal, that is placed upon a standard shelf. These trays are used to compartmentalize smaller components, tools, or parts, thereby enhancing organization, streamlining inventory management, and facilitating efficient pick-and-pack operations.

**Materials and Construction:**

The construction relies on a robust combination of **steel** and **wood**.

* **Steel:** As the primary structural material, steel provides the requisite strength, rigidity, and longevity for industrial storage applications. Upright frames, horizontal beams, and often the shelf decks themselves are precision-engineered from high-grade steel. Finishes typically include durable powder coatings for aesthetics and corrosion protection, or galvanization for superior environmental resistance. Steel components are designed for modularity, often featuring boltless assembly mechanisms (e.g., rivet shelving, keyhole slot systems) for rapid installation, reconfiguration, and scalability, though bolted designs are also available for maximum rigidity in heavy-duty applications.
* **Wood:** Predominantly utilized for shelf decking, particularly in cost-effective and general-purpose shelving systems. The use of engineered wood products leverages their structural integrity and economical manufacturing. Wood shelves are supported by steel beams, combining the tensile strength of steel with the versatile surface properties of wood.

**Warehouse and Industrial Application:**

These storage systems are specifically engineered for **warehouse** and broader industrial environments that necessitate robust, high-capacity, and adaptable solutions for inventory management. Their suitability for such demanding settings is attributed to several key characteristics:

* **High Load Capacity:** Designed to support substantial weights, with individual shelf capacities ranging from light-duty (hundreds of pounds) to heavy-duty (thousands of pounds), accommodating a diverse array of inventory.
* **Modularity and Scalability:** Standardized components allow for effortless expansion, reconfiguration, and integration into existing storage layouts. Units can be connected side-by-side or back-to-back to create extensive, multi-aisle storage configurations.
* **Durability:** Constructed to withstand the rigors of warehouse operations, including potential impacts from material handling equipment (though protective barriers are recommended), and to endure varying environmental conditions.
* **Space Optimization:** Efficiently utilizes vertical space, maximizing cubic storage capacity and reducing the overall floor footprint required for storing goods.

**Conclusion:**

The "FRAME RACK SHELF WOOD STEEL WAREHOUSE METAL SHELVES STORAGE TRAY" system represents a foundational and highly adaptable storage apparatus essential to modern logistics and operational infrastructure. Characterized by its robust steel framework and versatile shelving options—predominantly wood with metal alternatives—it is specifically engineered to meet the demanding conditions and extensive storage requirements of industrial and warehouse settings.
