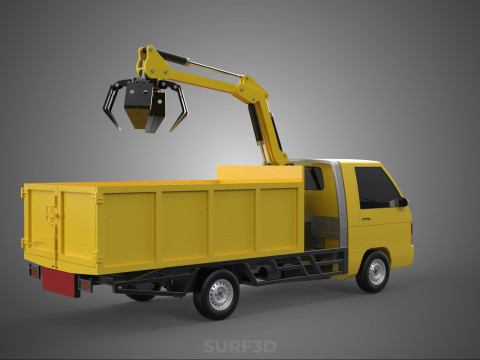

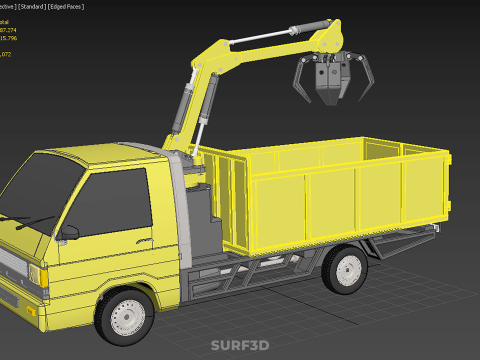

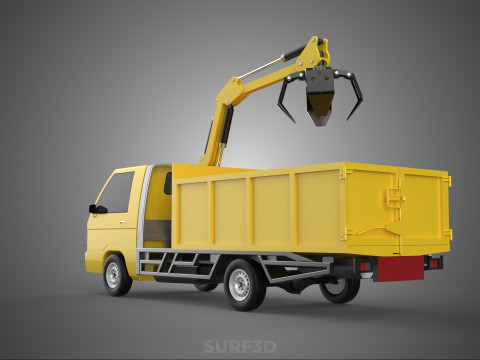

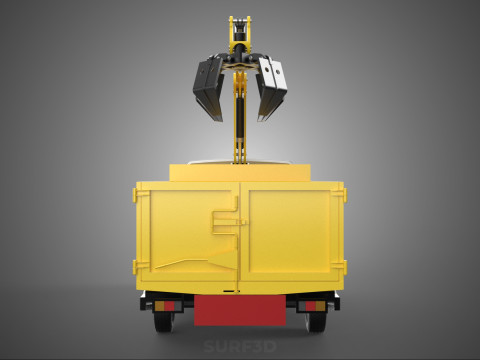

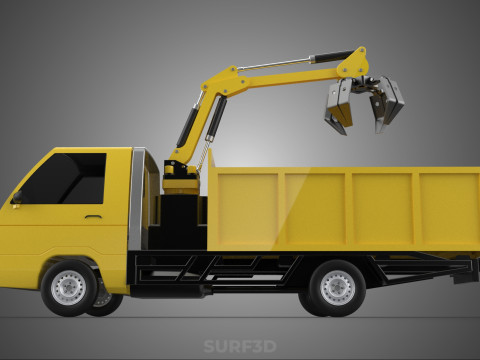

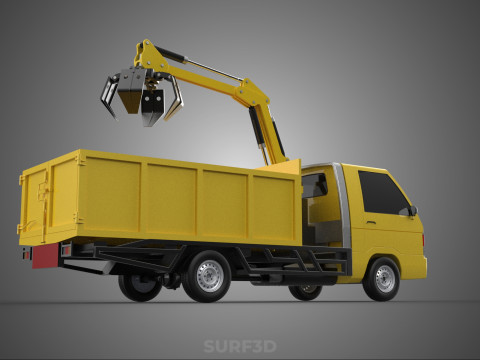

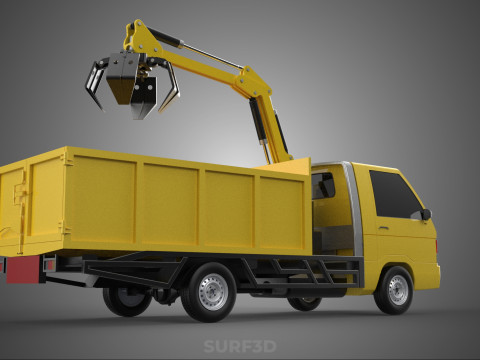

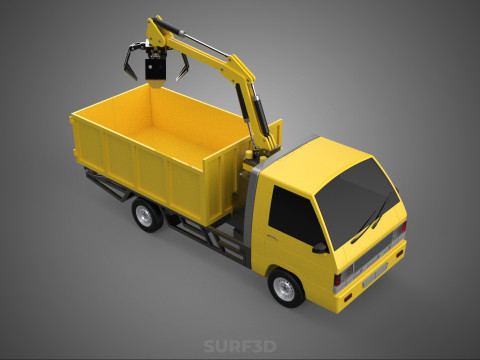

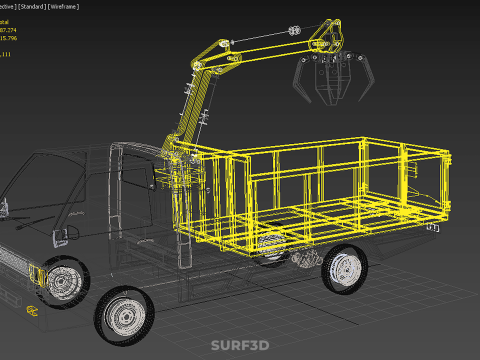

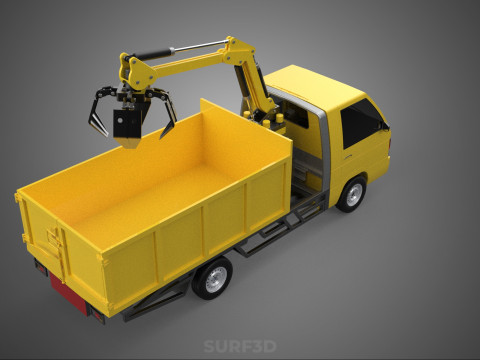

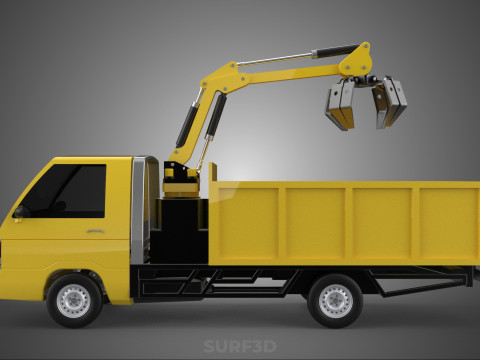

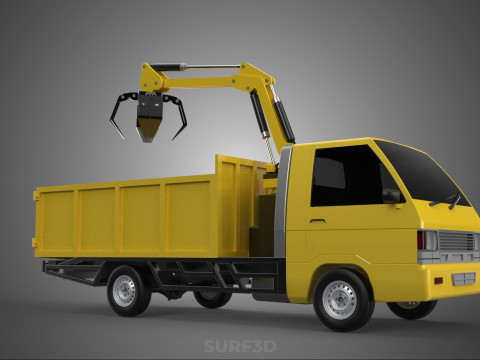

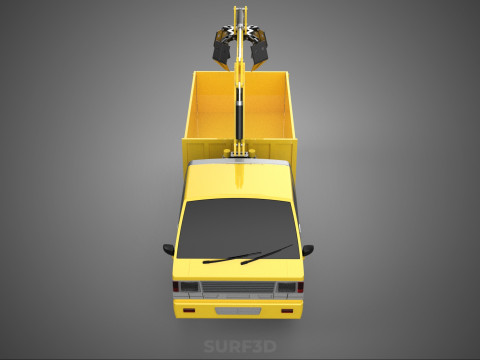

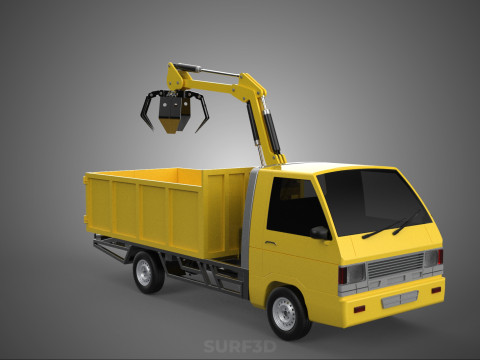

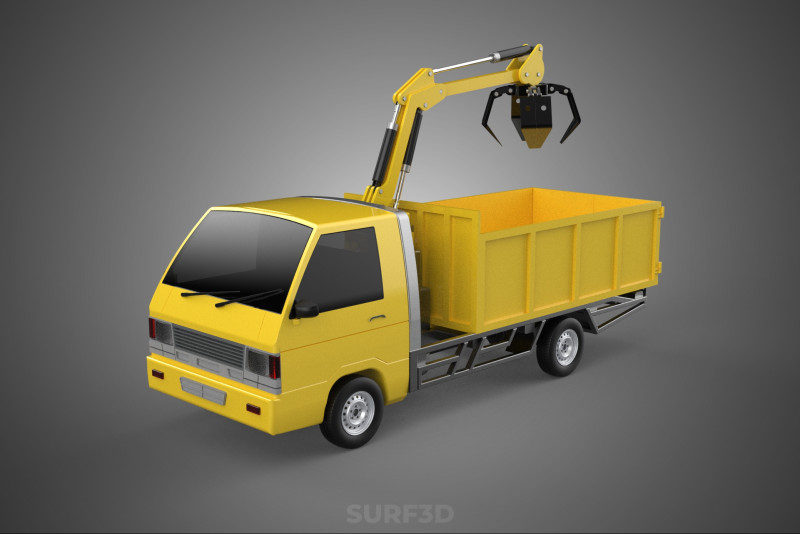

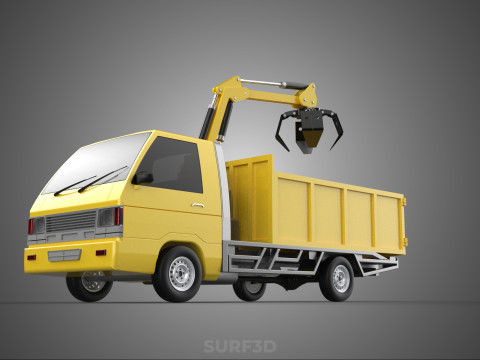

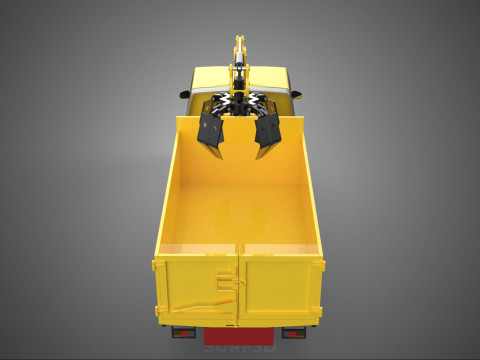

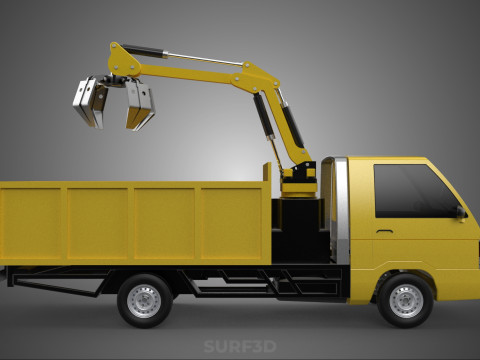

TRUCK HYDRAULIC CRANE GRAPPLE ARM SKIP BIN WASTE RECYCLE PICK UP 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

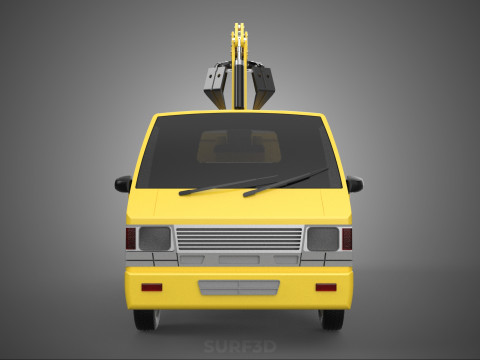

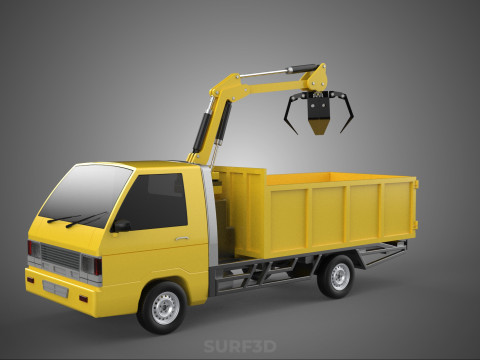

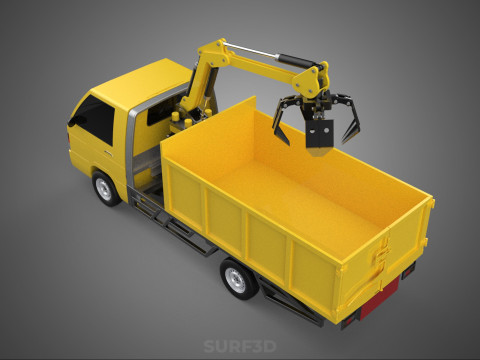

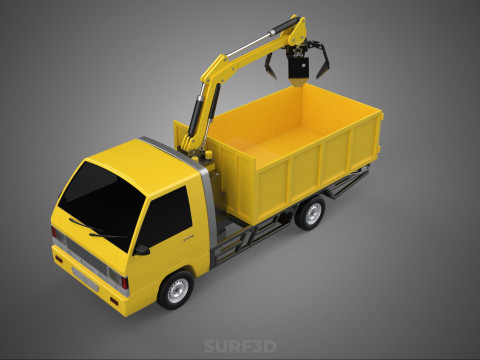

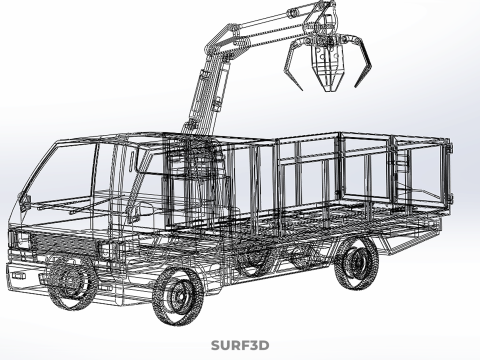

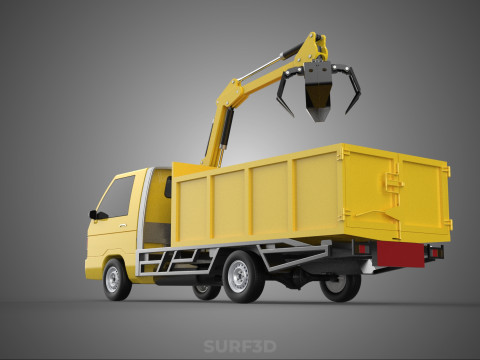

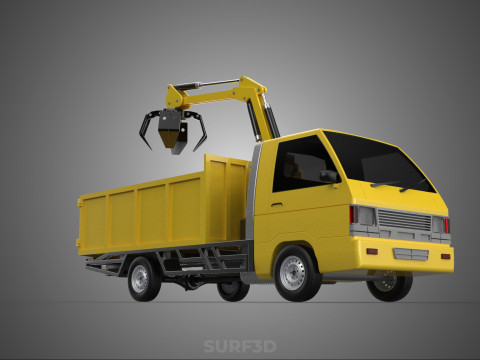

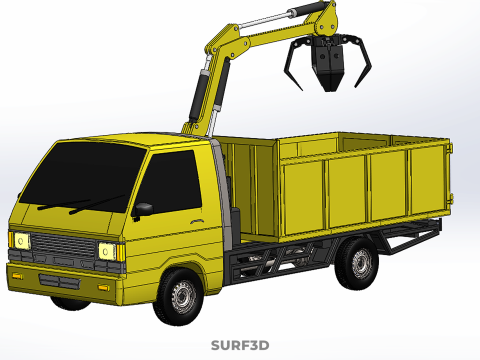

**Small Truck Hydraulic Crane Grapple Arm Skip Bin Waste Recycle**

This entry describes a specialized commercial vehicle system designed for the collection, transportation, and management of waste and recyclable materials contained within skip bins. The designation "small TRUCK HYDRAULIC CRANE GRAPPLE ARM SKIP BIN WASTE RECYCLE" encapsulates its primary components and function: a relatively small or medium-duty truck chassis equipped with a hydraulically operated articulating (******* boom) crane featuring a grapple-style end effector, specifically configured for lifting and manipulating skip bins in waste management and recycling operations.

**Nomenclature:** The descriptive title is a functional summary rather than a formal engineering term. This type of vehicle is often referred to more generally as a crane truck with grapple, a material handler truck, or a specialized waste collection vehicle. The key elements distinguish it from standard skip loaders (which use tilting arms) or hook loaders.

**Components:**

1. **Truck Chassis:** Typically a rigid, two-axle or occasionally three-axle truck with a gross vehicle weight rating (GVWR) suitable for urban and suburban environments. Its size (relative to larger articulated trucks or roll-off vehicles) facilitates maneuverability in confined spaces. The chassis provides the platform for mounting the crane and carrying the skip bin. It is equipped with a power take-off (PTO) or auxiliary engine to provide hydraulic power for the crane.
2. **Hydraulic Crane:** An articulating or ******* boom crane is mounted, usually behind the cabin or at the rear of the chassis. This type of crane offers excellent maneuverability and precision, allowing the operator to reach over obstacles and position the skip bin accurately. The crane's lifting capacity and reach are specified to handle the weight and dimensions of common skip bin sizes within the truck's capacity limitations. Operation is entirely hydraulic, providing smooth and controlled movements. Stabilizing outriggers are typically deployed during crane operation to prevent tipping.
3. **Grapple Arm:** This is the specific end effector attached to the crane's boom. Unlike hooks or other lifting devices, the grapple arm is a hydraulic attachment featuring multiple tines or jaws designed to securely grip the rim, structure, or contents of a skip bin. Grapples are versatile and can handle various types of open containers or even bulky loose material if necessary, though its primary design here is for gripping skips.
4. **Skip Bin:** Open-top containers, typically rectangular or trapezoidal, used for temporary storage of waste or recyclable materials. These vehicles handle skip bins of various sizes, commonly ranging from small mini-skips up to larger sizes compatible with the truck's crane capacity and bed dimensions.

**Function and Operation:**

The primary function of this integrated system is the efficient handling of loaded or empty skip bins. The truck maneuvers to the location of a skip bin. The crane's outriggers are extended for stability. The hydraulic crane is deployed, and the grapple arm is positioned over the skip bin. The grapple is closed hydraulically, securely gripping the skip. The crane then lifts the skip bin, maneuvers it over the truck bed, and lowers it into position for transport. The process is reversed for offloading. This system allows for flexible pickup and delivery of skips, particularly in locations where space is limited or precision is required.

**Applications:**

This vehicle configuration is widely used in:

* **Waste Collection:** Particularly for commercial businesses, residential renovations, construction sites, and public areas where skip bins are the preferred method for temporary waste accumulation.
* **Recycling Programs:** Facilitating the collection of segregated recyclable materials placed in specific skip bins (e.g., scrap metal, construction & demolition (C&D) waste, green waste, sorted dry recyclables).
* **Material Handling:** Moving and positioning various containers or bulk materials using the grapple, although its specialized role is skip bins.
* **Situations Requiring Precision:** Placing skips in tight locations or lifting them over walls or other obstacles.

**Advantages:**

* **Maneuverability:** The relatively small truck size allows access to narrow streets, alleys, and congested urban sites.
* **Versatility:** The crane and grapple can often handle different skip bin types and sizes (within limits) and offer flexible positioning.
* **Precision:** The articulating crane provides precise control over lifting and placement.

**Limitations:**

* **Capacity:** Limited by the truck's GVWR and the crane's lifting capacity compared to larger roll-off trucks or dedicated heavy skip loaders.
* **Volume:** Can typically only carry one or a limited number of skip bins per trip, depending on size.

**Context:**

This vehicle system occupies a specific niche in the waste management fleet, complementing larger roll-off trucks and standard skip loaders by offering enhanced maneuverability and lifting precision for skip bin handling, especially valuable for waste streams directed towards recycling facilities.

KEYWORDS: Truck, small truck, rigid truck, commercial vehicle, hydraulic crane, articulating crane, ******* boom crane, crane truck, grapple, hydraulic grapple, grapple arm, end effector, lifting equipment, skip bin, skip, waste container, waste management, waste collection, recycling, waste handling, material handling, debris removal, construction waste, demolition waste, hydraulic system, PTO, lifting, gripping, loading, transporting, specialized vehicle, municipal services.
