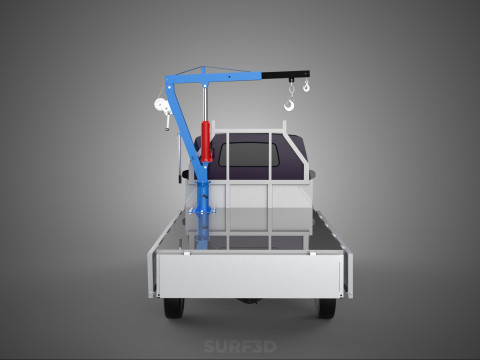

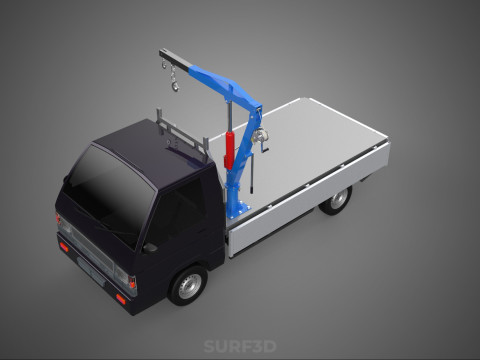

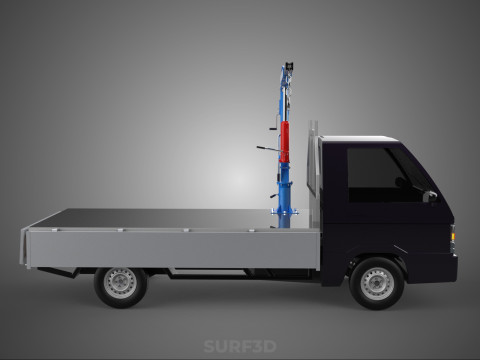

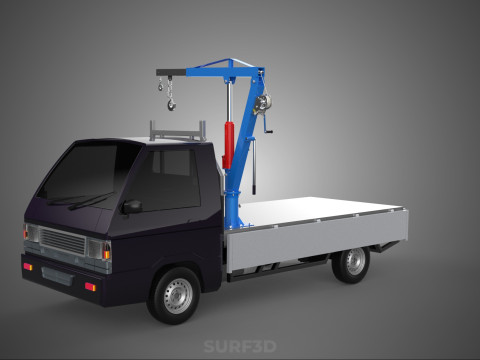

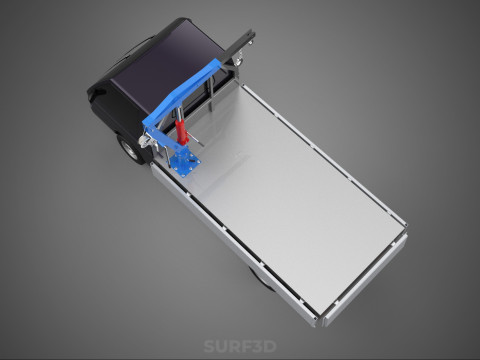

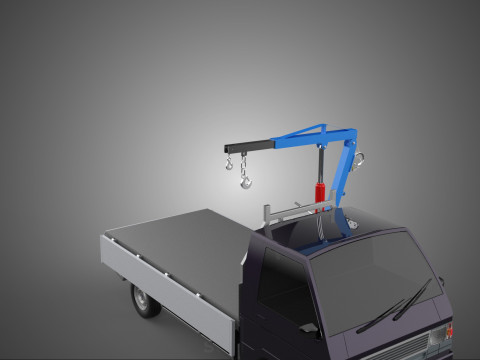

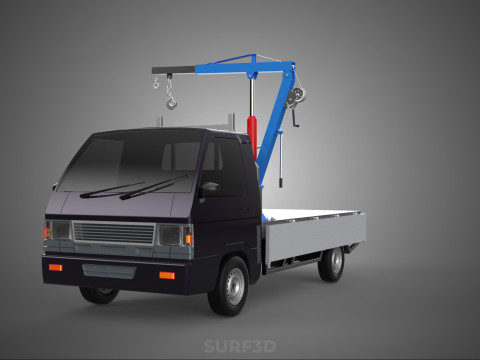

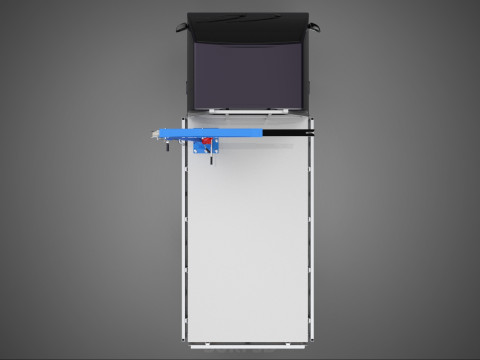

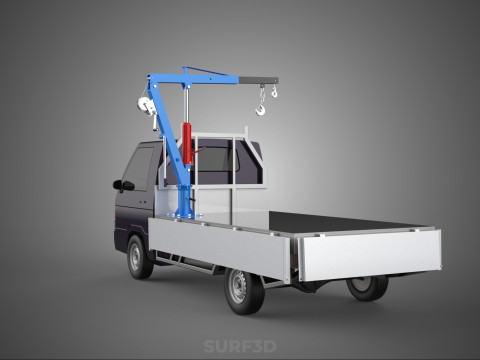

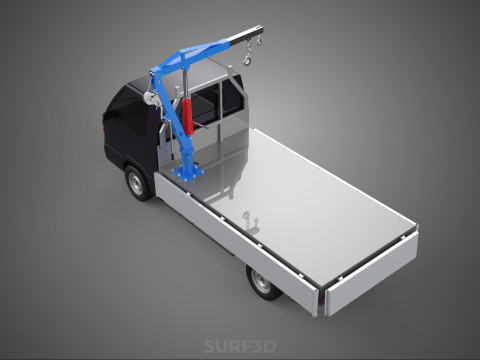

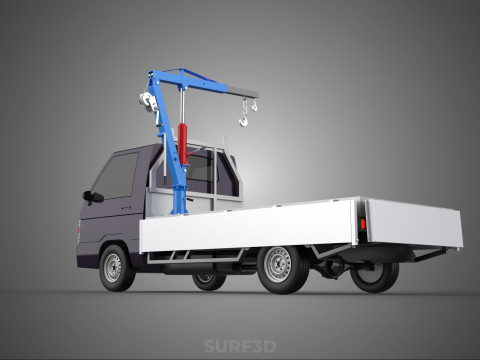

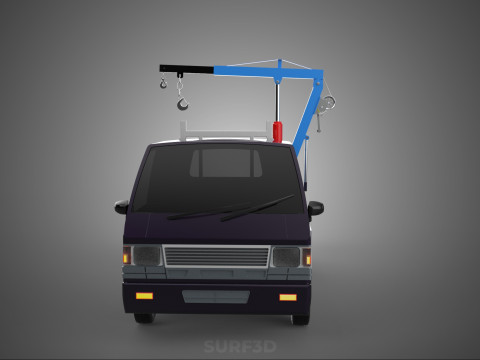

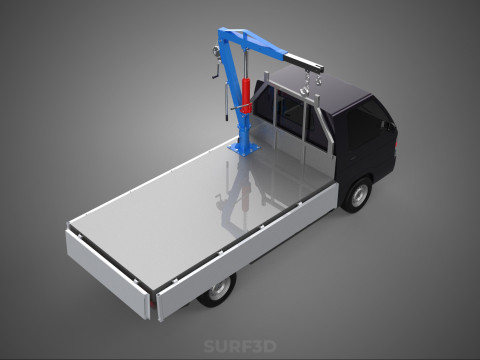

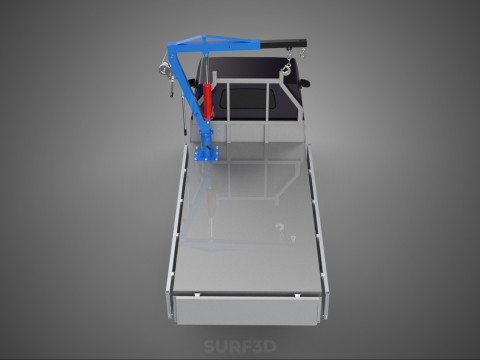

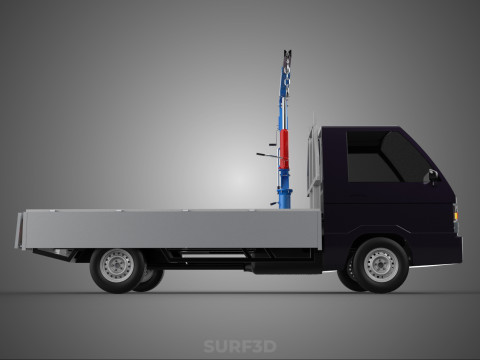

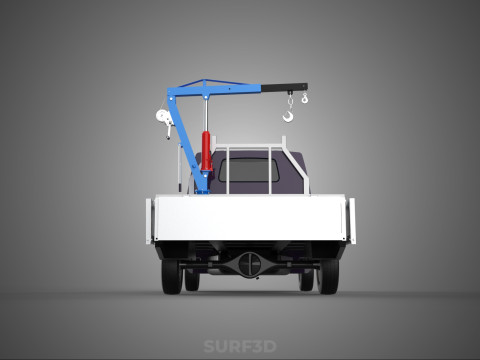

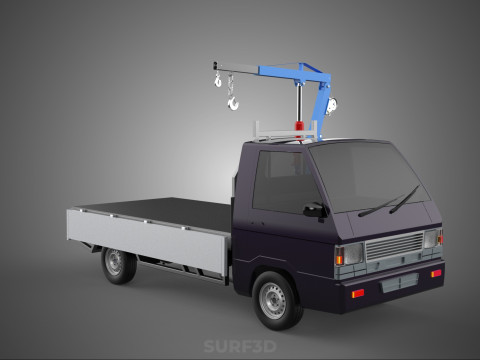

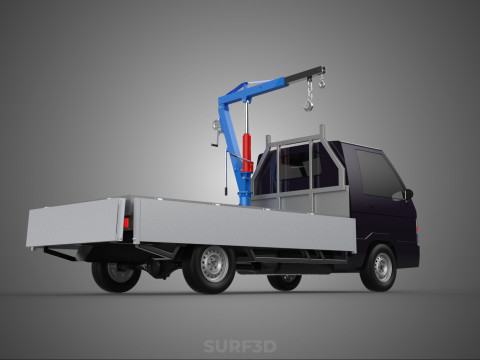

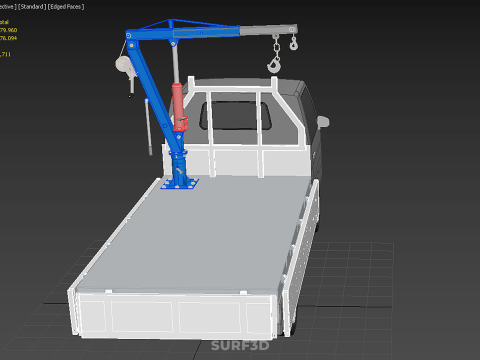

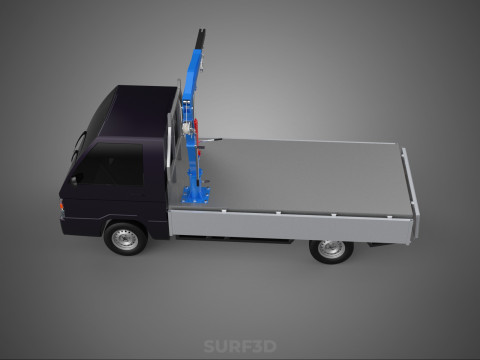

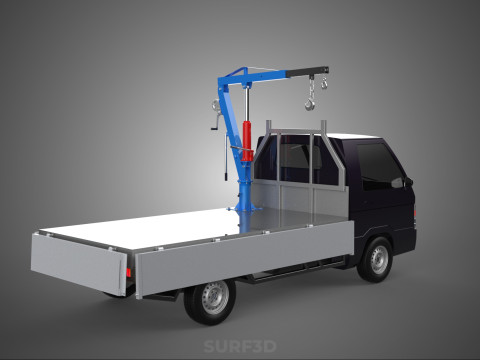

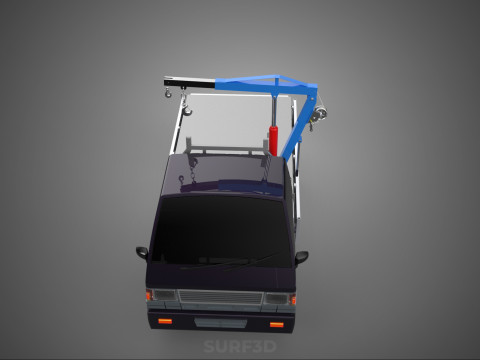

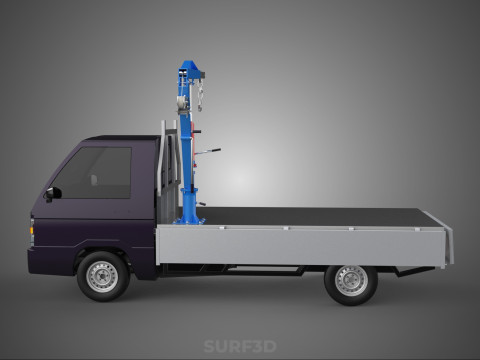

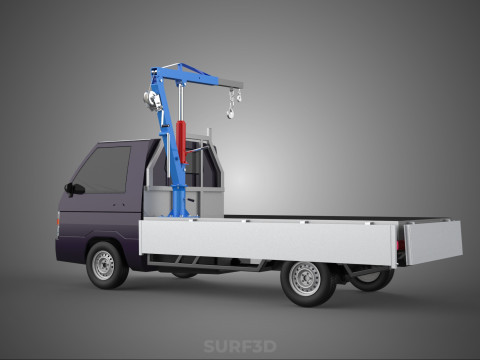

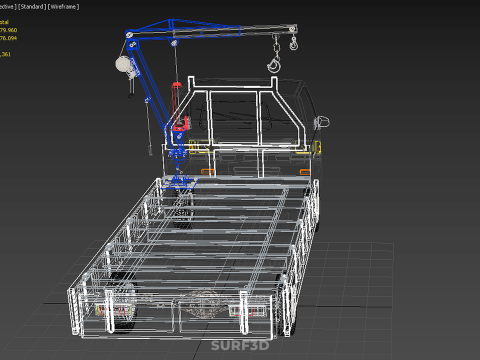

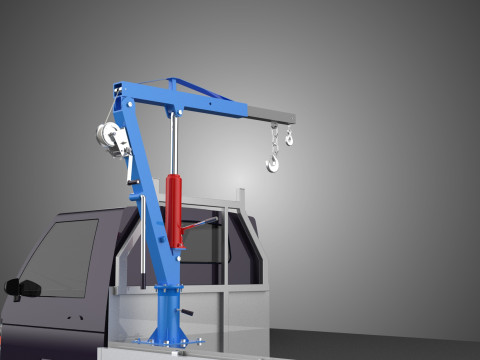

WIDE DECK JIB CRANE LIFT HOIST MANUAL WINCH HOOK TRUCK PICKUP 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

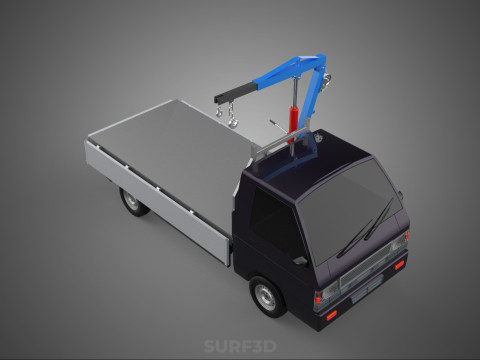

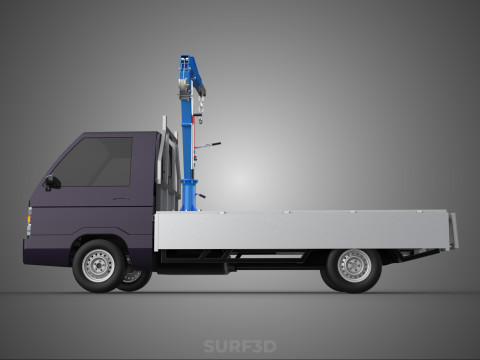

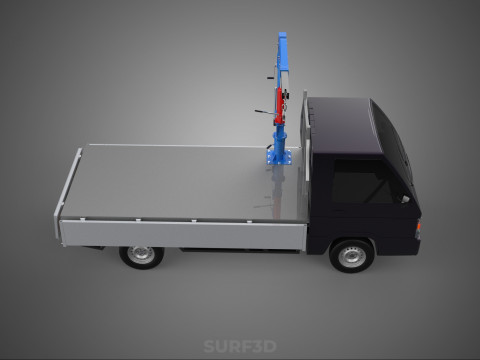

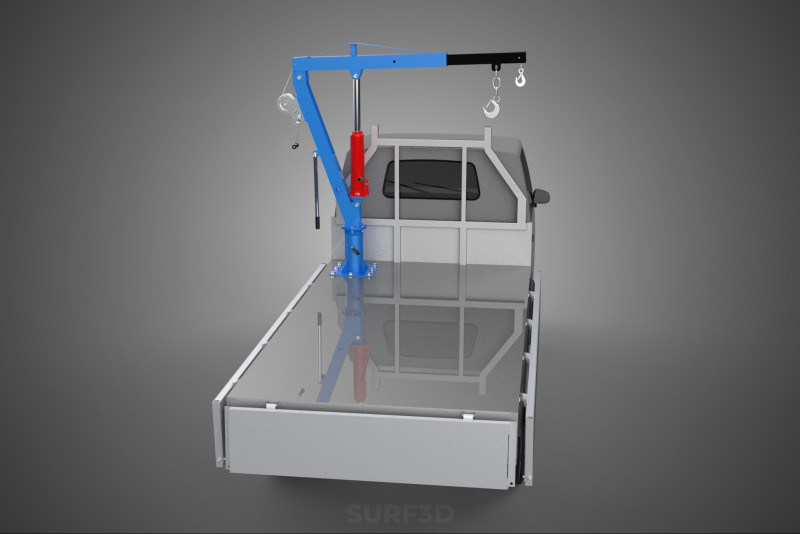

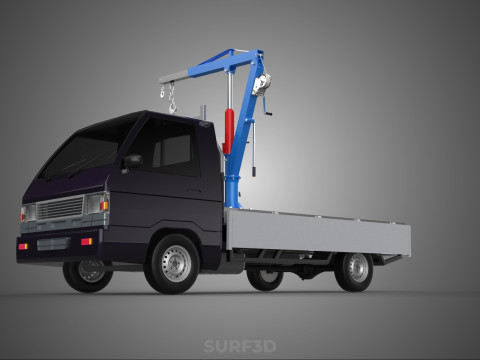

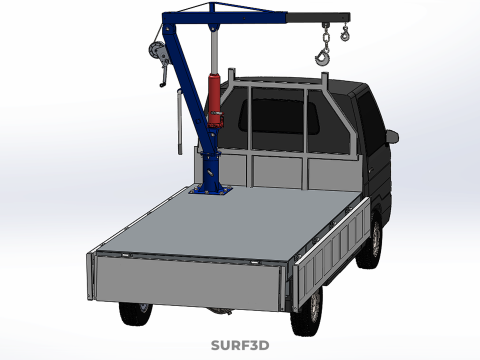

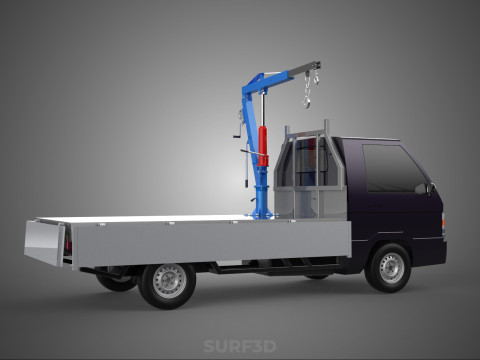

A "Wide Deck Jib Crane Lift Hoist Manual Winch Hook Truck Pickup" refers to a specialized, vehicle-mounted material handling system designed for the efficient lifting, lowering, and traversing of loads in diverse operational environments. This apparatus integrates several key components into a cohesive, mobile unit, primarily intended for deployment on the cargo bed or an engineered deck of a pickup truck.

**Components and Functionality:**

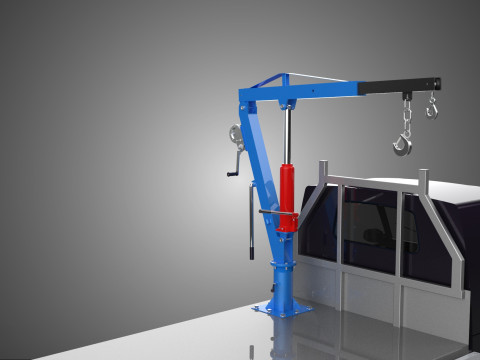

1. **Jib Crane:** At its core, the system is a type of jib crane, characterized by a horizontal boom (jib) extending from a vertical mast. This design allows for a radial work envelope, enabling the lifting and swinging of loads within a defined circular area. The mast is typically affixed to a robust base that is bolted or otherwise securely mounted to the truck's deck. The jib itself may be fixed, telescoping, or foldable, offering varying degrees of reach and stowage compactness.

2. **Wide Deck Mounting:** The "wide deck" aspect emphasizes a stable, broad base for the crane's installation on the pickup truck. This wide footprint is critical for distributing the load forces evenly across the truck's bed or a specially reinforced platform. This design element enhances the crane's stability during lifting operations, minimizing the risk of vehicle instability or structural damage, particularly when handling loads at the maximum permissible radius or weight. Outriggers may supplement this wide base for additional stability during heavy lifts.

3. **Lift Hoist (Manual Winch):** The primary mechanism for vertical load movement is a manual winch. This component comprises a hand-cranked drum around which a steel cable or synthetic rope is wound. Through a system of gears, the manual effort applied to the crank is multiplied, allowing the operator to lift loads that significantly exceed direct human strength. The manual winch offers several advantages, including independence from external power sources (e.g., electricity, hydraulics), simplicity of operation and maintenance, and suitability for remote or off-grid locations. However, it typically results in slower lifting speeds and lower maximum lifting capacities compared to powered hoists, and requires direct operator exertion.

4. **Hook:** The terminal lifting attachment, usually a robust steel hook with a safety latch, is affixed to the end of the winch cable. This hook provides a secure and easily detachable point for connecting to the load, utilizing slings, chains, or other lifting accessories.

5. **Truck Pickup Integration:** The entire system is engineered for integration with a standard pickup truck. This mobile platform grants the crane exceptional portability, enabling it to be transported to various job sites, construction areas, agricultural fields, or remote locations where traditional, larger cranes are impractical or inaccessible. The inherent mobility makes it ideal for tasks requiring frequent relocation or fieldwork.

**Operational Characteristics and Applications:**

The "Wide Deck Jib Crane Lift Hoist Manual Winch Hook Truck Pickup" system is generally designed for light to medium-duty lifting tasks. Its lifting capacity is primarily limited by the strength of the manual winch mechanism and the stability of the truck it is mounted on. Operational safety protocols, including load charts, proper outrigger deployment (if equipped), and adherence to rated capacities, are paramount to prevent tipping or structural failure.

Common applications for this type of equipment include:
* **Construction:** Lifting and placing building materials, small equipment, or tools on job sites.
* **Agriculture:** Handling feed bags, small machinery components, or other farm implements.
* **Automotive/Mechanical:** Lifting engine blocks, transmissions, or other heavy vehicle parts for repair or installation.
* **Utility Work:** Assisting in the placement or removal of poles, pipes, or equipment in the field.
* **Field Service:** Providing lifting capability for technicians and service personnel in remote locations.

This configuration offers a cost-effective, versatile, and independent solution for localized material handling requirements where the availability of power is limited or where the mobility of a truck-mounted system is a critical advantage.
