Lager- en afdichtingsringmontageapparatuur SolidWorks bewerkbaar 3D Model

Beschrijving

Bearing and sealing ring assembly equipment SolidWorks editable

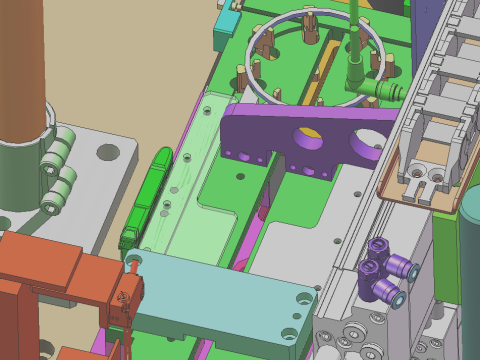

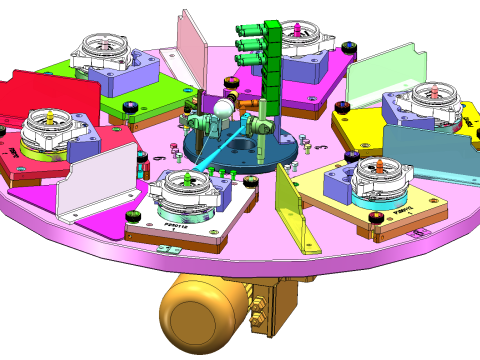

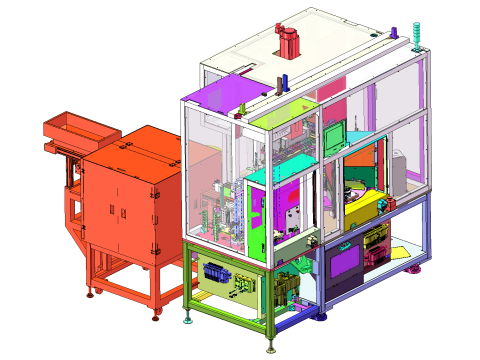

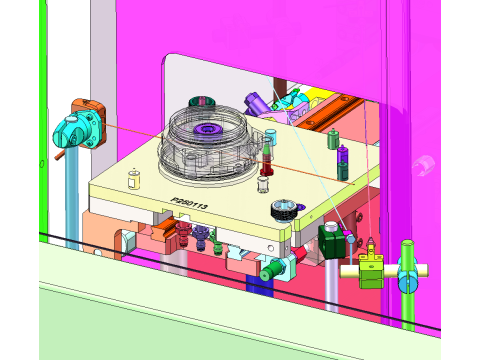

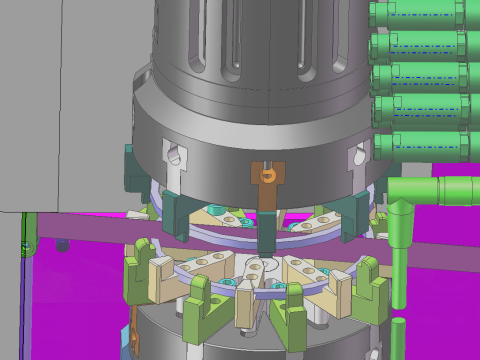

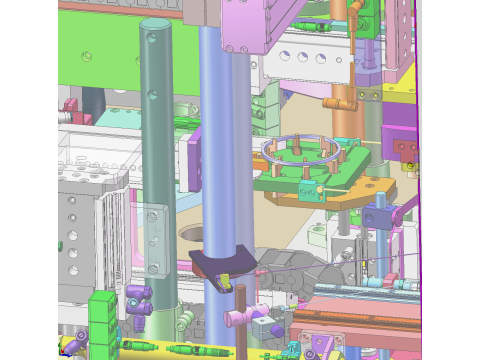

This equipment is a bearing and seal ring assembly machine for a certain enterprise. It mainly consists of a lower frame, an upper cover, a six station turntable component, a laser marking component, a scanning and bearing transfer component, a bearing automatic feeding component, a bearing riveting component, etc. The equipment is mainly used for automated or semi automated assembly of bearings and seals. The following are some key features and functions of the bearing and seal ring assembly equipment: The automated bearing assembly machine can be used to install different types of bearings, including deep groove ball bearings, tapered roller bearings, self-aligning ball bearings, etc. Equipment usually includes functions such as bearing positioning, bearing pressing, bearing rotation, and bearing detection. A high-precision press fit mechanism can ensure that the bearing is uniformly and accurately pressed into the shaft or bearing seat. Some devices also have the function of automatic lubrication and cleaning of bearings. Sealing ring assembly equipment: The automated sealing ring assembly machine is used to install various types of sealing rings, such as O-rings, X-rings, Y-rings, etc. The equipment is capable of automatic feeding, positioning, and installation of sealing rings, suitable for sealing rings of various sizes and shapes. The high-precision positioning system ensures that the sealing ring is correctly installed in the predetermined position.
