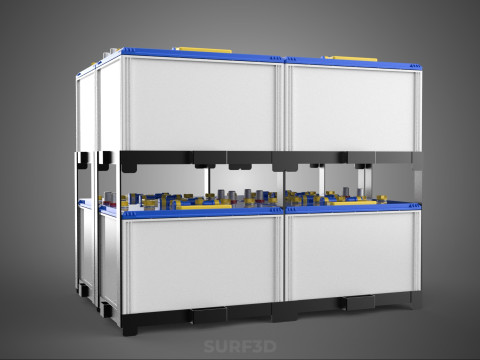

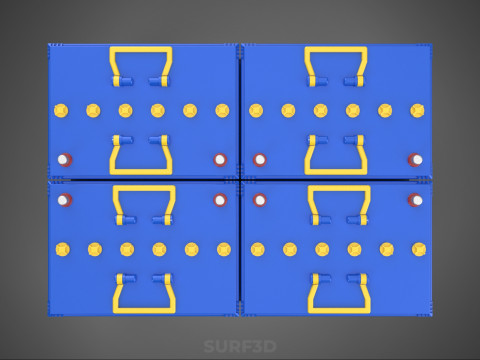

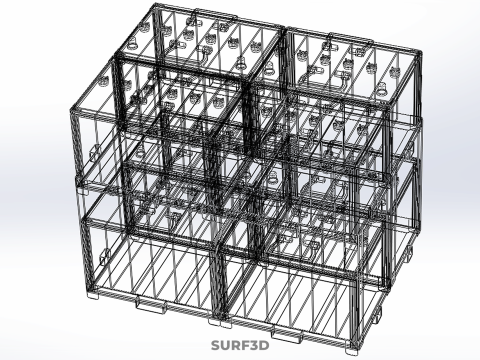

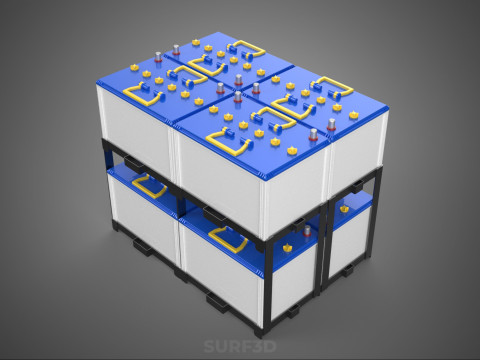

SERIA ARRAY RÓWNOLEGŁY ZESTAW AKUMULATORÓW TACA MONTAŻ WSPORNIKA W SKOKU Model 3D ^nowy

Opis

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **ARRAY SERIES PARALLEL ACCU BATTERY STACK TRAY RACK BRACKET MOUNT** system describes the comprehensive, integrated infrastructure utilized for the organized physical support and electrical interconnection of multiple secondary cells or modules, commonly referred to as accumulator (ACCU) batteries. This specialized system is a critical component in large-scale energy storage systems (ESS), ensuring optimal performance, safety, accessibility, and thermal management for the battery array.

### Electrical Architecture and Array Configuration

The system dictates the precise arrangement of battery units to achieve required operational parameters, primarily voltage and capacity. The term **Array** signifies the complete, structured grouping of batteries.

1. **Series Connection:** Batteries are connected end-to-end to cumulatively increase the output voltage of the array. This is essential for matching the high voltage requirements of certain power inverters or DC buses.
2. **Parallel Connection:** Batteries are connected across common points to increase the overall available energy capacity (measured in Ampere-hours, Ah) and the maximum continuous discharge current. Parallel connections inherently enhance redundancy, as failure of one module does not typically result in total system outage.

The complexity of the system often involves a combination of both series strings that are then connected in parallel, optimizing the power delivery profile while minimizing resistive losses and ensuring compliance with the operational voltage window of the associated power conditioning equipment.

### Mechanical Infrastructure and Mounting

The mechanical components are designed to provide robust physical support, facilitate maintenance, and manage environmental factors, particularly heat dissipation.

* **Stack/Tray:** Individual battery cells or modules are grouped into modular **trays** or **stacks**. These are typically the smallest manageable unit of the array, designed for ease of installation, replacement (hot-swapping), and protection against physical damage. Trays often incorporate proprietary connectors for quick electrical integration.
* **Rack:** The **rack** serves as the primary structural frame, organizing multiple trays or stacks into standardized vertical units. Racks are constructed from materials (e.g., steel, aluminum) selected for high tensile strength, load-bearing capacity, and, often, fire resistance. Modern battery racks are often designed with standardized footprints (e.g., 19-inch cabinet dimensions) for seamless integration into industrial environments.
* **Bracket/Mount:** **Brackets** and **Mounts** are the fixtures responsible for securing the racks and associated control hardware (such as the Battery Management System or fire suppression controls) to the facility structure (floor, wall, or enclosure). Mounting systems are engineered to withstand seismic events, absorb vibration, and maintain electrical isolation from grounding structures where necessary.

### Functional Requirements

The integration of the electrical array design with the mechanical stacking system is crucial for safety and longevity:

1. **Thermal Management:** The structure of the trays and racks must permit efficient circulation of air or coolant. Adequate spacing (stacking geometry) and integrated ducting are essential to prevent localized overheating, thermal gradients, and the potential for thermal runaway, thereby maximizing battery cycle life.
2. **Safety and Containment:** Racks and enclosures are typically required to meet stringent fire codes and incorporate passive or active containment systems for potential off-gassing, electrolyte leakage, or fire suppression agents.
3. **Accessibility and Maintenance:** The modular tray and rack design ensures that maintenance technicians can safely access and service individual modules without requiring a full system shutdown.

This comprehensive array and mounting system provides the necessary physical scaffolding and standardized electrical interconnections fundamental to reliable, high-density power storage installations in applications ranging from grid-scale storage (GSS) to large commercial uninterruptible power supplies (UPS).

KEYWORDS: Energy Storage System, Accumulator Battery, Battery Array, Series Connection, Parallel Connection, Battery Rack, Battery Tray, Rack Mount, Bracket System, Stack Configuration, Thermal Management, Battery Module, Structural Integrity, Grid Storage, UPS System, High-Density Storage, Electrical Interconnection, Safety Standard, Fire Suppression, Modular Design, Vibration Damping, Load Bearing, DC Bus, Capacity Optimization, Voltage Regulation, Battery Management System, Power Conditioning, Industrial Enclosure, Seismic Rating, Battery Stack.
