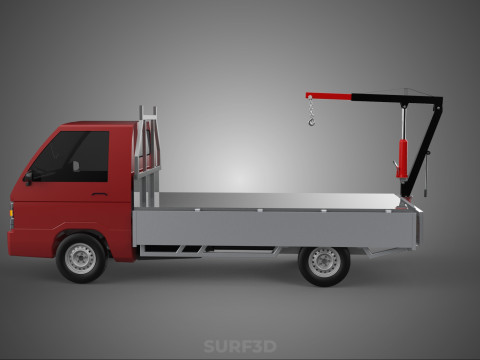

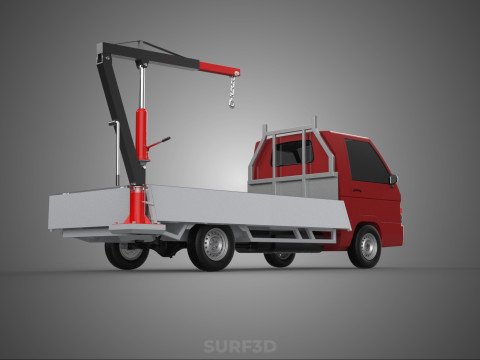

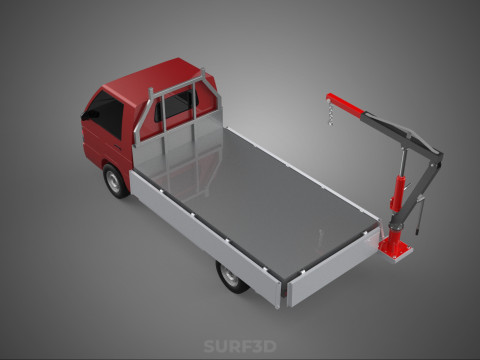

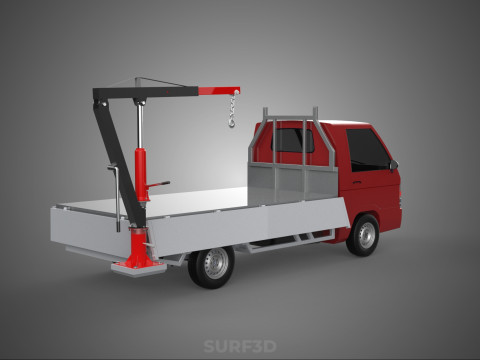

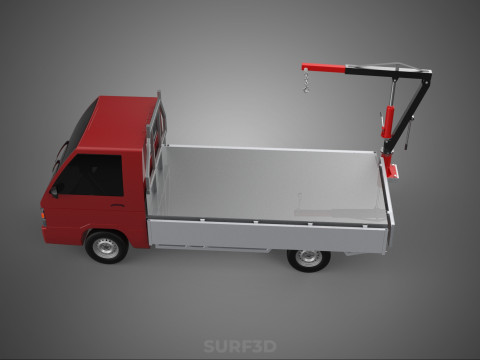

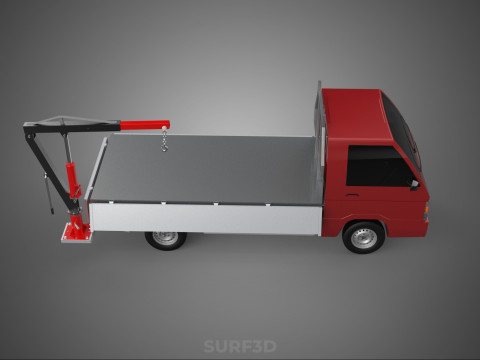

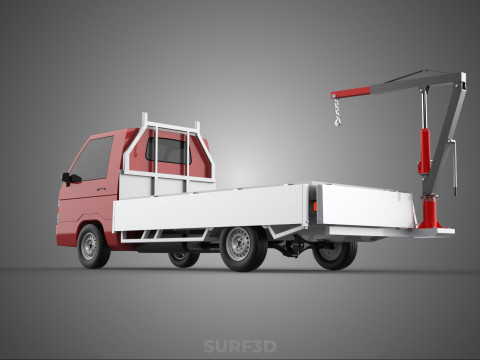

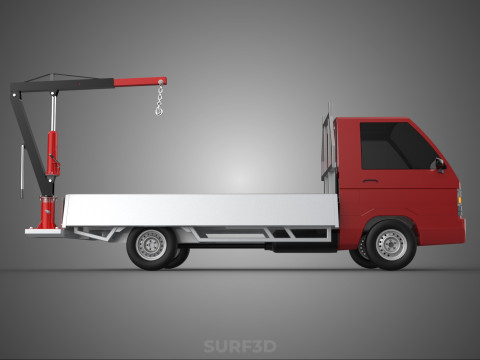

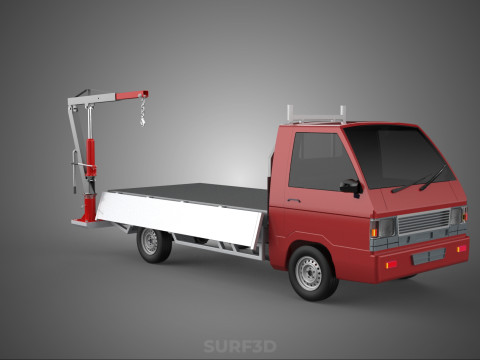

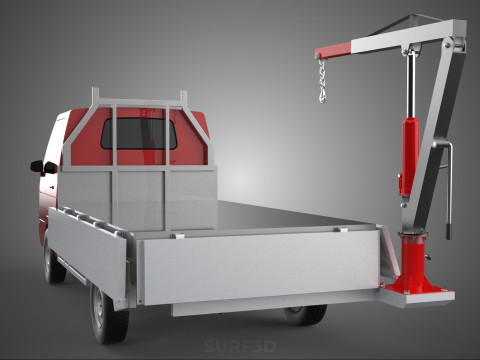

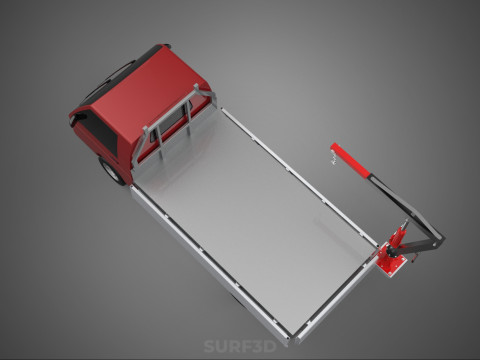

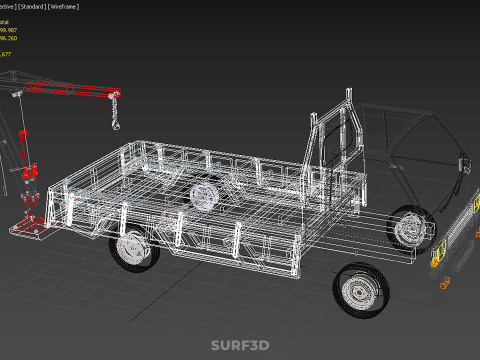

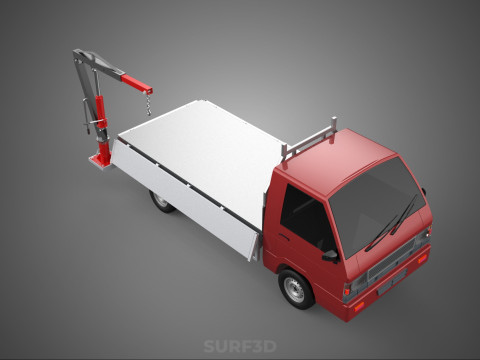

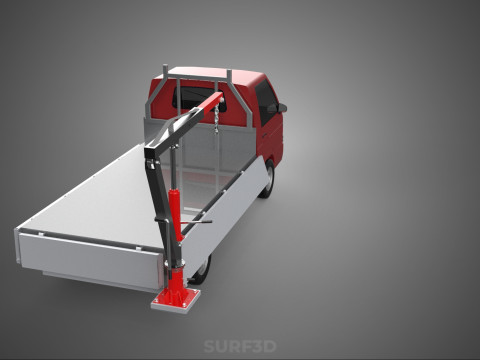

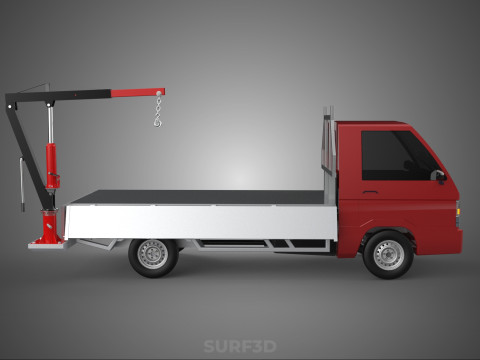

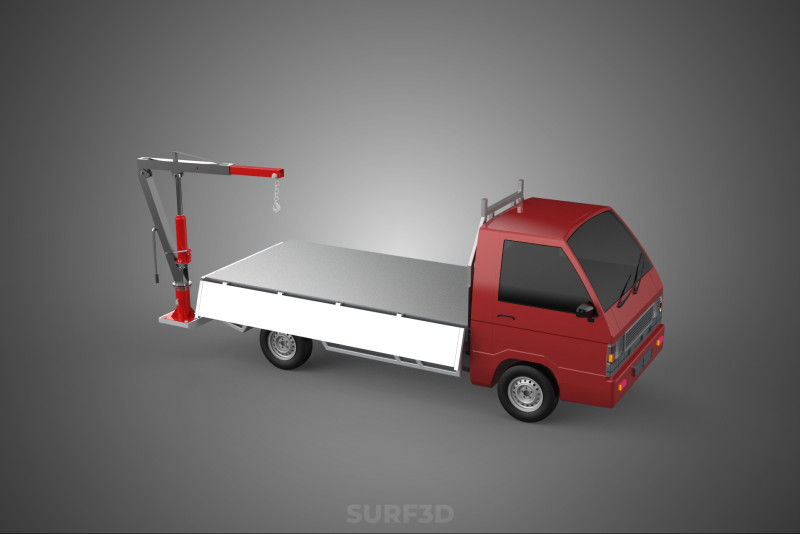

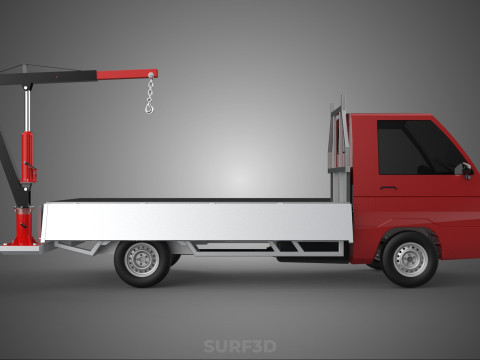

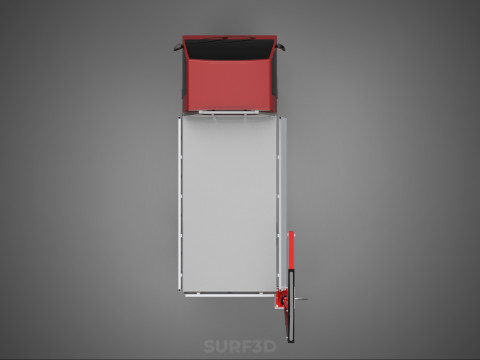

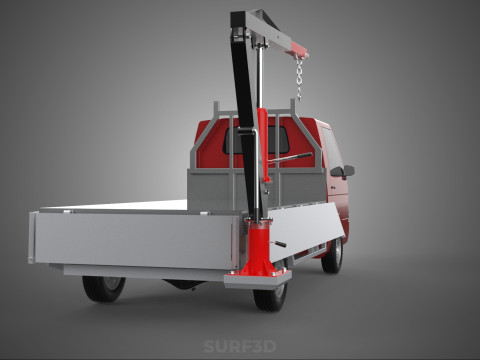

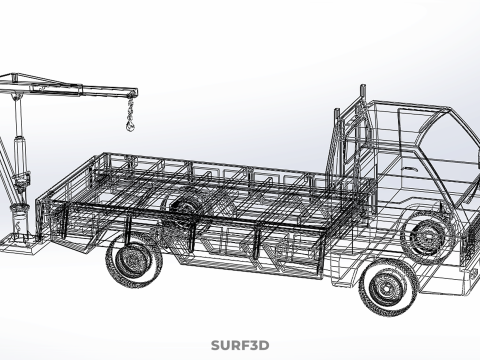

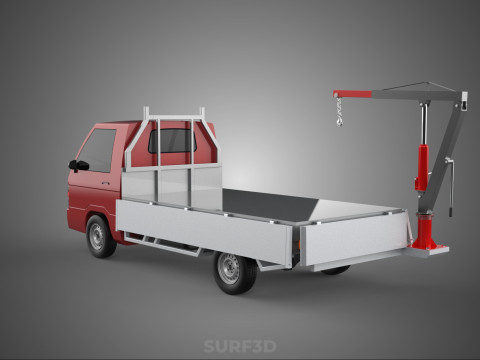

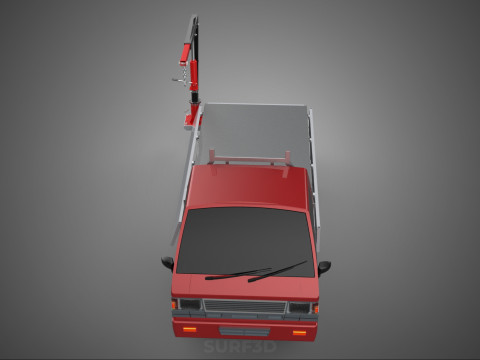

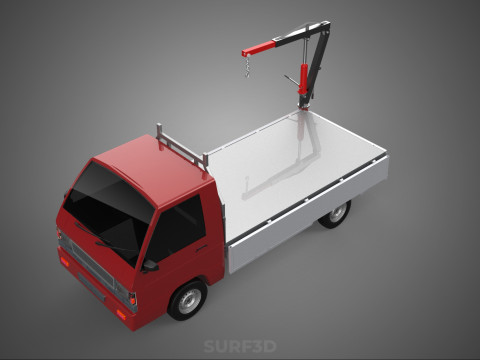

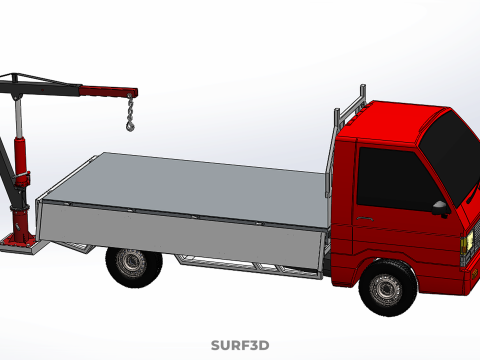

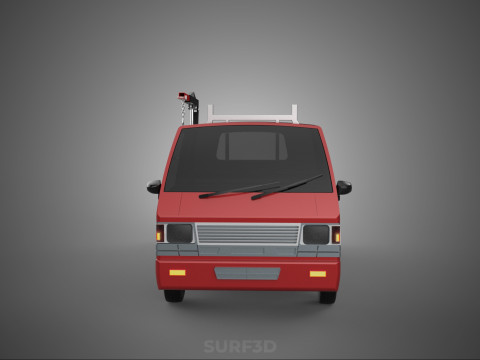

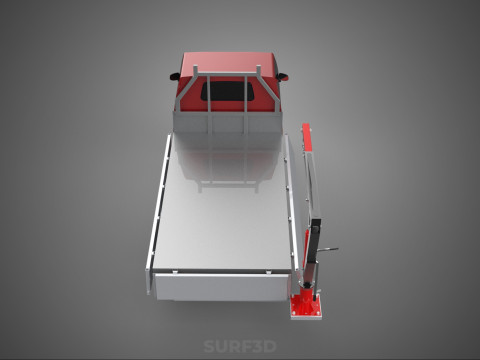

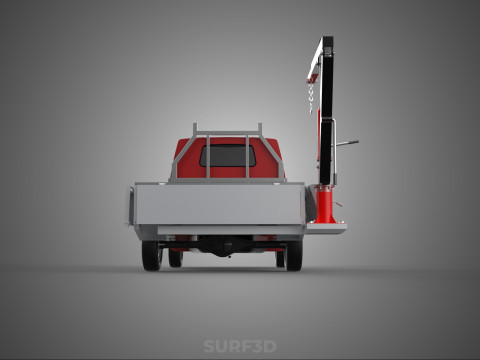

ATTACHMENT HYDRAULIC LIFT JIB CRANE WINCH WIDE DECK PICKUP TRUCK Model 3D

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support

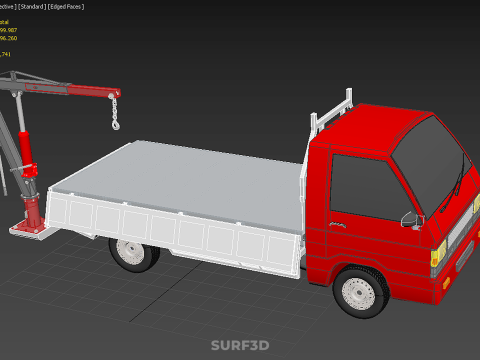

• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

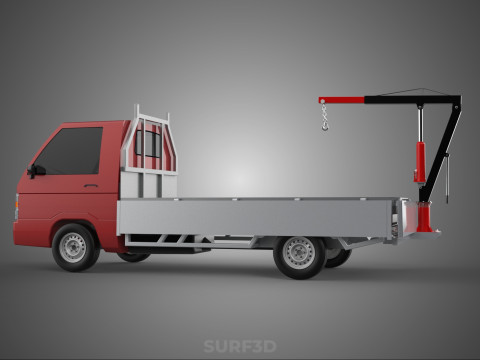

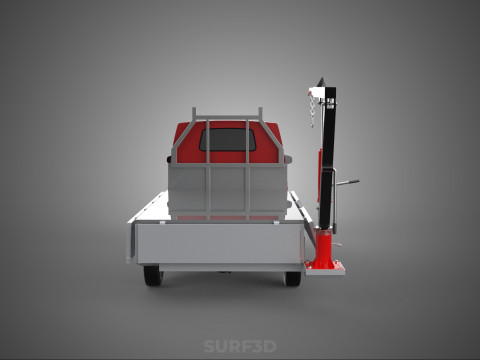

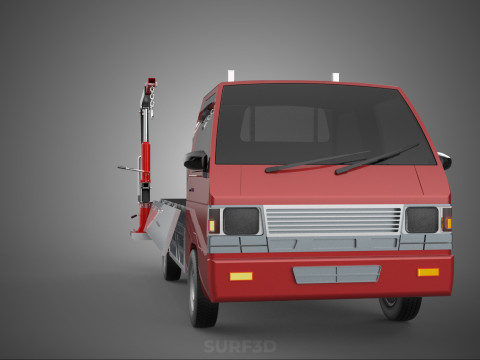

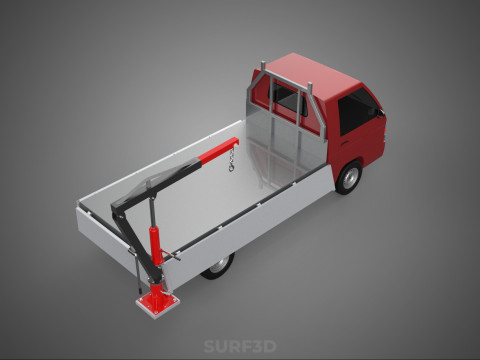

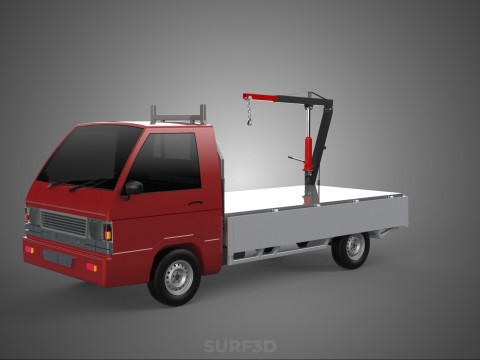

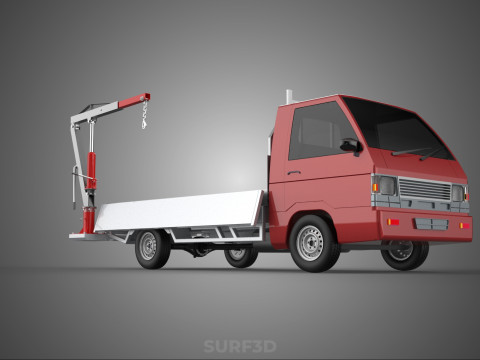

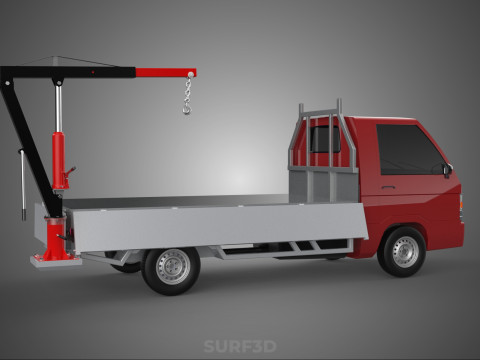

**Attachment Hydraulic Lift Jib Crane Winch Wide Deck Pickup Truck**

An "Attachment Hydraulic Lift Jib Crane Winch Wide Deck Pickup Truck" describes a specialized, integrated vehicle system designed for mobile material handling and lifting operations, particularly in environments where traditional heavy lifting equipment is either impractical, too costly, or inaccessible. This system transforms a conventional pickup truck into a versatile mobile crane, combining transport capabilities with significant lifting power.

**Core Components and Functional Integration:**

1. **Pickup Truck Base:** The foundational element of this system is a robust pickup truck, typically a heavy-duty model (e.g., 3/4-ton or 1-ton), selected for its chassis strength, payload capacity, and often, its four-wheel-drive capability for navigating diverse terrains. The "Wide Deck" designation specifically refers to a modified or aftermarket truck bed, frequently a flatbed conversion or a specialized utility body, that offers a broader and more stable platform than a standard pickup box. This wider deck facilitates the secure mounting of the crane system, provides increased cargo space, and contributes to the overall stability of the vehicle during lifting operations.

2. **Attachment System:** The entire crane assembly is integrated as an "attachment," signifying that it is an add-on or aftermarket modification rather than an inherent factory component of the truck. This modular design allows for flexible installation onto various compatible pickup truck chassis. The attachment structure is engineered to distribute the crane's weight and operational stresses effectively across the truck's frame, often involving direct bolting or welding to the chassis for maximum structural integrity and safe load transfer.

3. **Hydraulic Lift System:** The power source for the crane's movements is a sophisticated hydraulic system. This typically includes a hydraulic pump (often driven by the truck's engine via a Power Take-Off (PTO), or by a dedicated auxiliary engine/electric motor), a fluid reservoir, control valves, and hydraulic cylinders/motors. Pressurized hydraulic fluid is meticulously directed to power the various functions of the crane, including vertical lifting, boom extension (if applicable), and slewing (rotation), offering precise control, high lifting capacity relative to its compact size, and smooth, consistent operation.

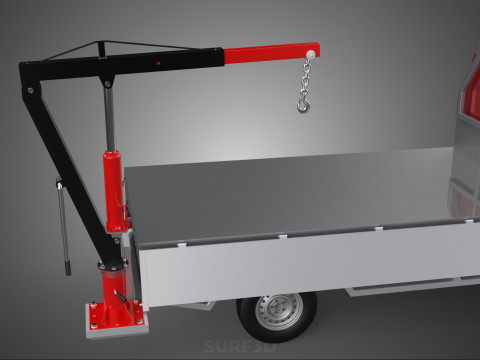

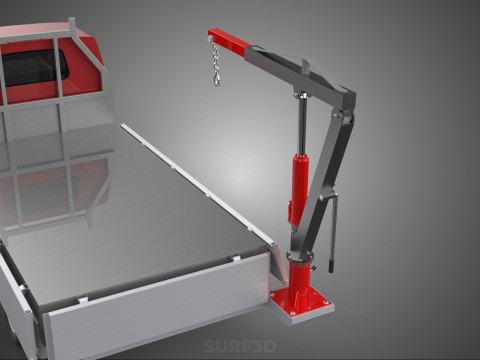

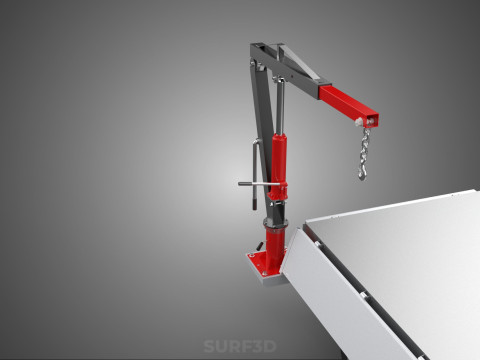

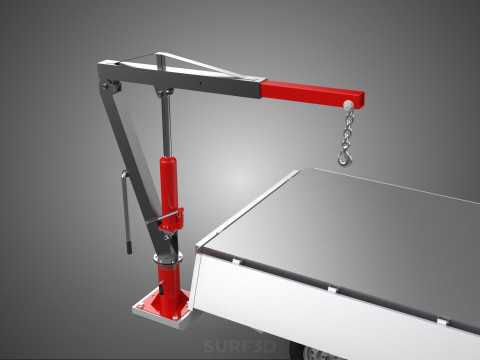

4. **Jib Crane:** The "Jib Crane" constitutes the primary lifting apparatus. It comprises a vertical mast securely anchored to the truck's wide deck and chassis, from which a horizontal or angled boom (the "jib") extends. This jib is designed to rotate or "slew" around the mast, often through a full 360-degree arc, enabling the operator to pick up loads from various positions surrounding the truck and deposit them accurately onto the deck or at an adjacent location. The jib's design is optimized for both vertical lift and horizontal reach.

5. **Winch System:** An integral "Winch" is typically mounted on or near the end of the jib crane's boom. This component, usually hydraulically driven, consists of a drum around which a high-strength steel cable or synthetic rope is wound. The cable extends from the jib, terminating in a load hook. The winch provides the direct vertical lifting and lowering force for the load. Its capacity is a critical specification, matched to the maximum weight the crane is designed to handle safely at its maximum reach and height.

**Operational Principles and Safety Features:**

For safe and stable operation, these systems are invariably equipped with **outriggers** or stabilizer legs. These extend manually or hydraulically from the truck's chassis to the ground, significantly increasing the vehicle's footprint and preventing overturning under load. Modern systems incorporate advanced safety features such as load moment indicators, anti-two-block devices, overload protection systems, and emergency stop buttons. Control interfaces often include wired or wireless remote controls, allowing operators to position themselves optimally for visibility and safety.

**Applications:**

The versatility and mobility of an Attachment Hydraulic Lift Jib Crane Winch Wide Deck Pickup Truck make it indispensable across numerous industries:
* **Construction:** For lifting and positioning building materials, tools, or small machinery on diverse job sites.
* **Utility Services (Electric, Gas, Telecommunications):** Essential for handling poles, transformers, conduits, and other infrastructure components during installation or repair.
* **Field Service and Maintenance:** Facilitates the transport and installation of heavy components or equipment for repairs in remote or challenging locations.
* **Agriculture:** Used for loading and unloading agricultural implements, feed bags, or harvested produce.
* **Landscaping:** Effective for moving large rocks, trees, or bags of bulk materials.
* **Emergency and Recovery Operations:** Assists in clearing debris, facilitating light vehicle recovery, or deploying specialized equipment.

**Advantages and Considerations:**

The primary advantages of this integrated system include its exceptional mobility, self-sufficiency, and ability to access confined or off-road areas inaccessible to larger, dedicated crane vehicles. It offers a cost-effective and flexible solution for businesses requiring intermittent heavy lifting capabilities without the significant investment and operational overhead of full-sized crane trucks. The wide deck concurrently enhances the vehicle's cargo capacity and stability.

However, operators must possess proper training and strictly adhere to load charts, understanding the vehicle's stability limits under various loading conditions. The Gross Vehicle Weight Rating (GVWR) and payload capacity of the base pickup truck are paramount considerations, as the combined weight of the attachment, crane, and lifted load must never exceed these manufacturer-specified limits to ensure safe operation and compliance.
