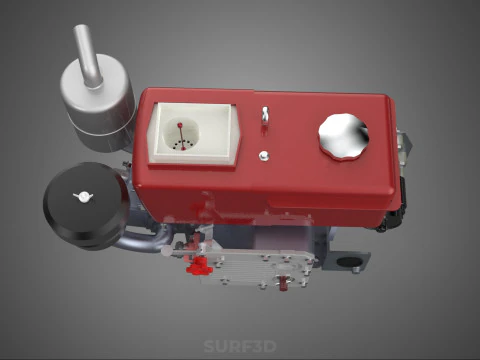

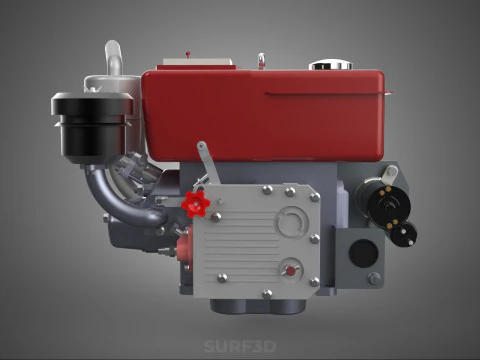

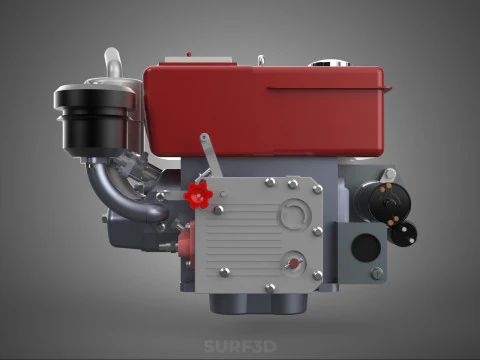

CHINY MAŁY SILNIK WYSOKOPRĘŻNY ELEKTRYCZNY KOŁO ZAMACHOWE SILNIKA SAMOROZRUSZNIKA Model 3D

Opis

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**CHINA SMALL DIESEL ENGINE ELECTRIC SELF STARTER MOTOR FLYWHEEL**

The integrated electromechanical starting system of the small diesel engine, heavily standardized and mass-produced in the People's Republic of China, constitutes a vital subsystem for the initiation of combustion. This system encompasses the Electric Self Starter Motor, the engine Flywheel, and the associated coupling mechanisms necessary to convert stored electrical energy (typically 12V or 24V DC battery power) into the required rotational kinetic energy (cranking torque) to achieve self-sustaining engine operation. These small engines, often single-cylinder or small multi-cylinder types (e.g., ranging from 3 kW to 15 kW), are fundamental power sources for agricultural machinery, small-scale industrial equipment, generator sets, and water pumps globally.

### I. The Small Diesel Engine Context

Small diesel engines manufactured in China are characterized by high volume standardization, efficiency, and robustness. Due to the intrinsic operational principle of compression-ignition engines, which rely on high compression ratios (typically 16:1 to 22:1) to generate the necessary heat for auto-ignition, the required cranking effort is significantly higher than that of spark-ignition engines of comparable size. The electric self-starter system supplanted historical manual methods (such as handle cranking), offering enhanced convenience, safety, and reliability, especially under cold-start conditions.

### II. Components and Functionality

The starting system is comprised of three primary functional components: the Electric Self Starter Motor, the Flywheel, and the connecting drive mechanism.

#### A. The Electric Self Starter Motor

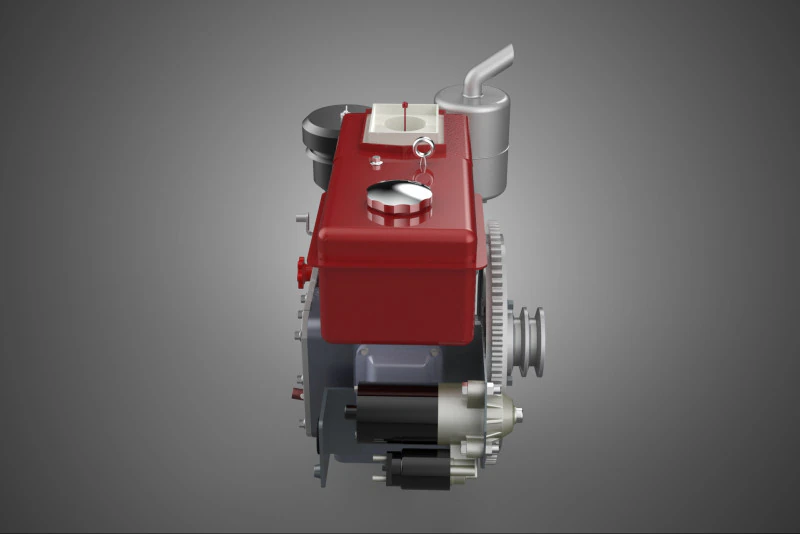

The starter motor is typically a specialized Direct Current (DC) motor, often of the series-wound or, more modernly, the Permanent Magnet Gear Reduction (PMGR) type. It is engineered to draw extremely high instantaneous current (up to several hundred amperes) to produce maximum torque at very low rotational speeds, overcoming the inertia and compression resistance of the engine.

1. **Solenoid Switch:** Mounted atop the starter motor housing, the solenoid serves a dual function. It acts as a high-current electromagnetic switch, closing the circuit between the battery and the motor windings. Simultaneously, it mechanically actuates the shift lever (fork) necessary to engage the pinion gear.
2. **Motor Housing and Armature:** The internal configuration utilizes robust windings and brushes designed for short-duration, high-power operation. PMGR designs incorporate internal planetary gear sets to multiply torque while reducing the size and weight of the motor itself.

#### B. The Flywheel and Ring Gear

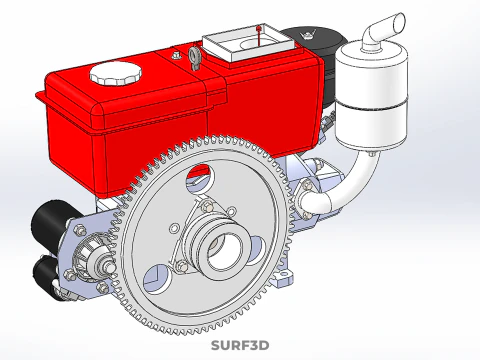

The engine flywheel is a massive disk mounted to the crankshaft, integral to smoothing rotational impulses and providing a surface for clutch engagement in vehicular applications. Crucially for the starting process, the periphery of the flywheel is fitted with a **ring gear** (or starter gear). This hardened steel gear provides the point of mechanical coupling for the starter motor. The mass of the flywheel assists in maintaining the minimum cranking speed achieved by the starter motor long enough for the engine to achieve self-sustaining combustion.

#### C. The Drive Mechanism (Pinion and Clutch)
The mechanical connection between the starter motor and the flywheel is achieved by the pinion gear, which is housed on the starter motor shaft.

1. **Pinion Engagement:** When the operator initiates the start sequence, the solenoid pushes the pinion along the splined shaft until its teeth mesh with the flywheel ring gear.
2. **Overrunning Clutch:** The pinion assembly incorporates an overrunning clutch, frequently a modified Bendix drive or a roller-type mechanism. This clutch ensures that once the engine fires and the flywheel rotational speed exceeds that of the starter motor shaft, the torque transmission is immediately interrupted. This protective measure prevents the engine from over-speeding and destroying the delicate, high-ratio starter motor armature.
3. **Disengagement:** Upon release of the ignition switch, the solenoid de-energizes, and a return spring retracts the pinion gear from the flywheel ring gear.

### III. Operational Sequence

1. **Initiation:** The operator turns the key switch to the "Start" position.
2. **Solenoid Activation:** The switch sends a low-current signal to the solenoid coil, generating a magnetic field.
3. **Mechanical Throw-out:** The magnetic field pulls the plunger, simultaneously connecting the heavy battery cables to the motor terminals and pushing the pinion gear toward the flywheel.
4. **Cranking:** The DC motor receives full power, generating maximum torque. The pinion meshes with the ring gear, and the high gearing reduction ratio rapidly accelerates the flywheel and crankshaft.
5. **Combustion:** Once the engine reaches the minimum cranking speed (typically 150–250 RPM), sufficient heat is generated via compression for the injected fuel to ignite.
6. **Clutch Disengagement and Retraction:** The overrunning clutch disengages the pinion from the starter motor armature (preventing back-drive), and when the key is released, the solenoid retracts the pinion, preparing the system for the next starting cycle.

KEYWORDS: Small Diesel Engine, Electric Starter, Self-Starter Motor, Flywheel, Ring Gear, Solenoid, Bendix Drive, Cranking Torque, Compression Ignition, China Manufacturing, Single-Cylinder, Agricultural Machinery, Power Tiller, Generator Set, Overrunning Clutch, DC Motor, Series-Wound, PMGR, High Torque, Electromechanical, Standardization, 12V System, Engine Start-up, Power Source, Starter Pinion, Armature, Battery Current, Starter Circuit, Gear Reduction.
