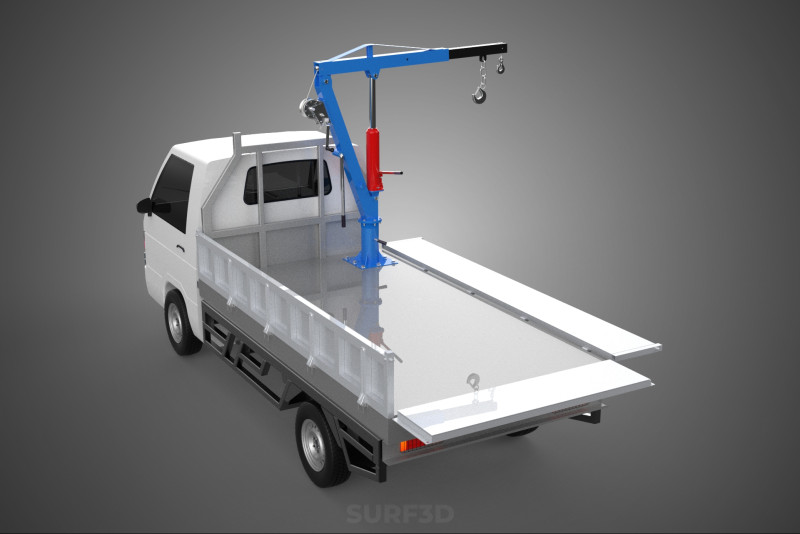

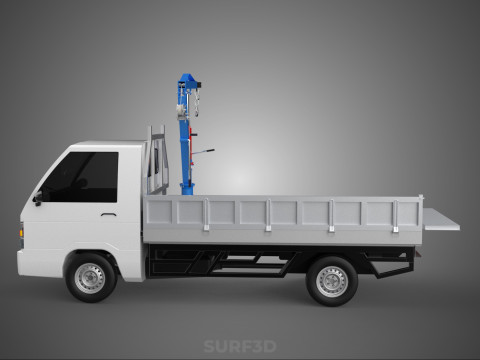

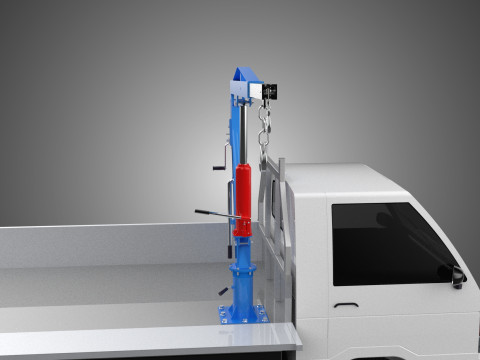

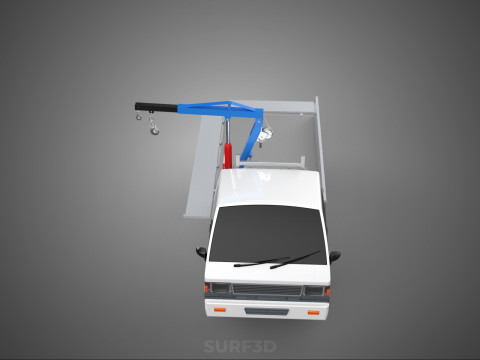

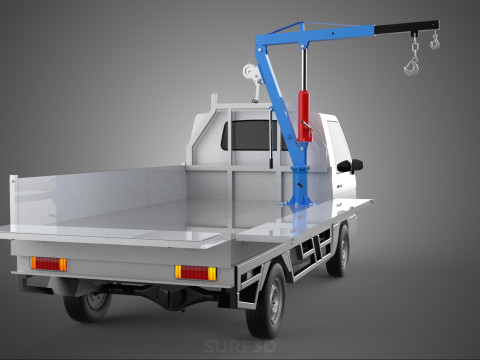

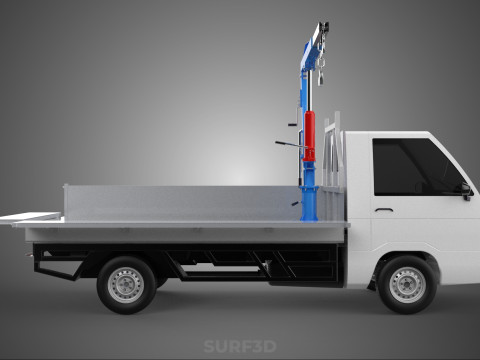

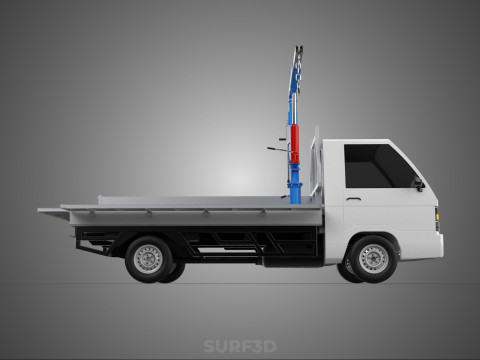

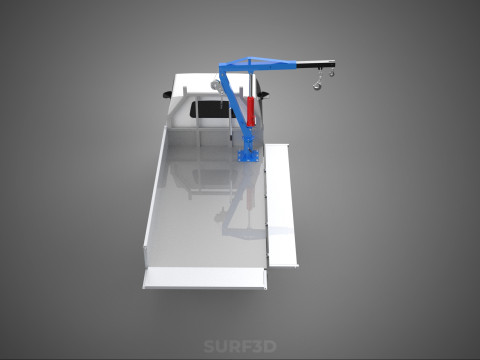

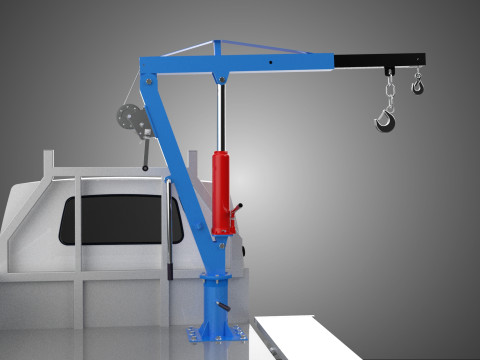

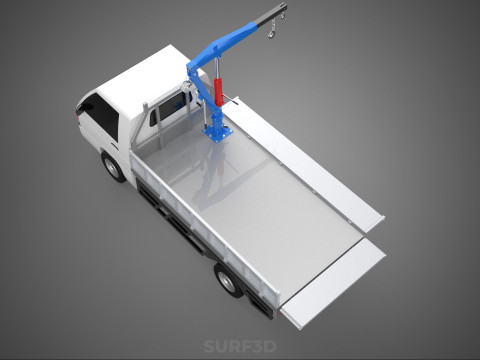

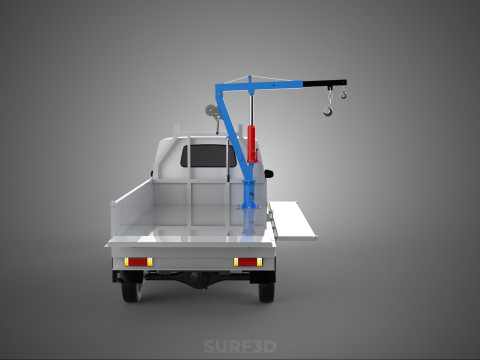

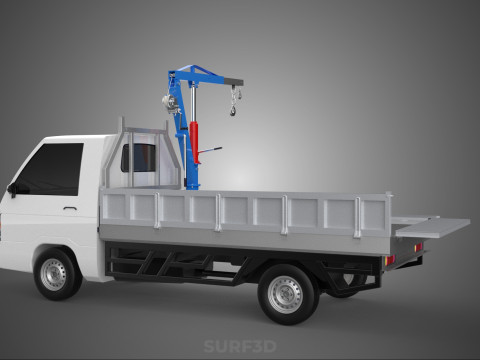

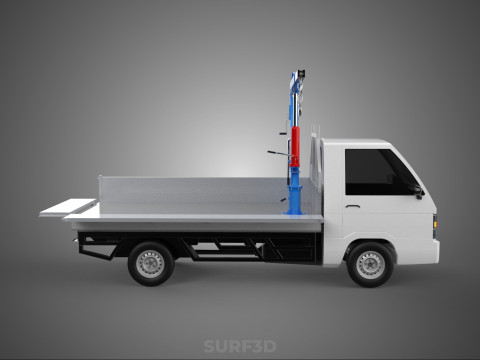

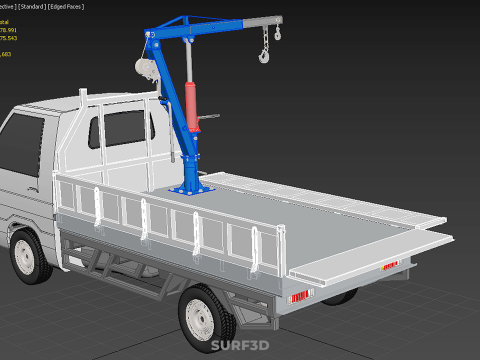

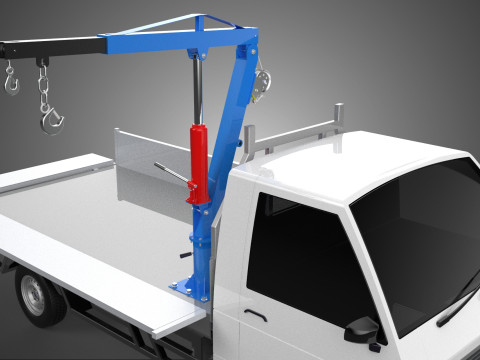

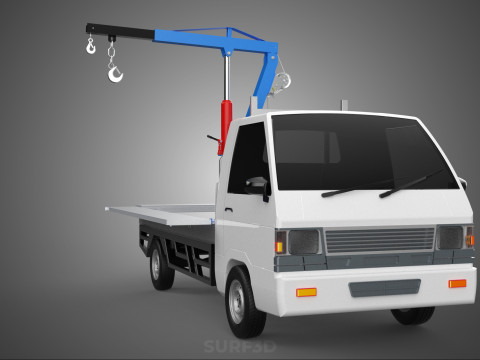

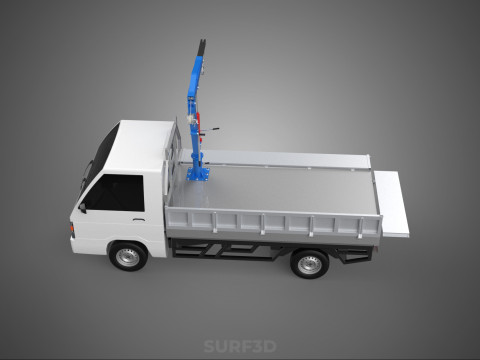

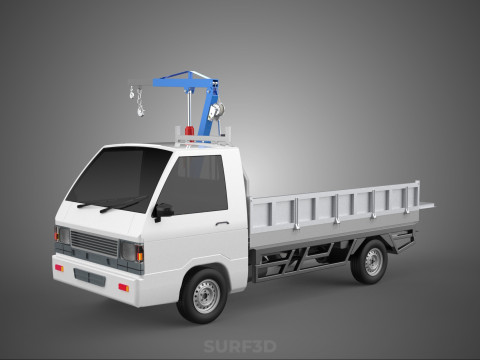

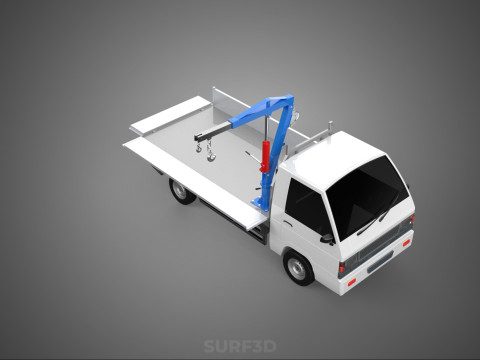

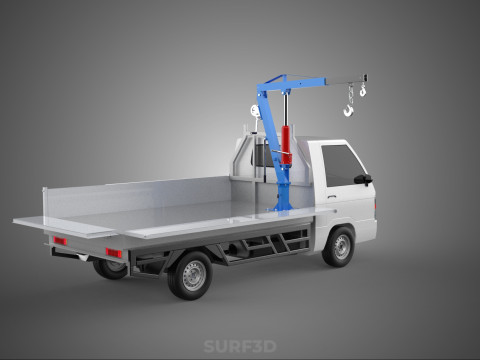

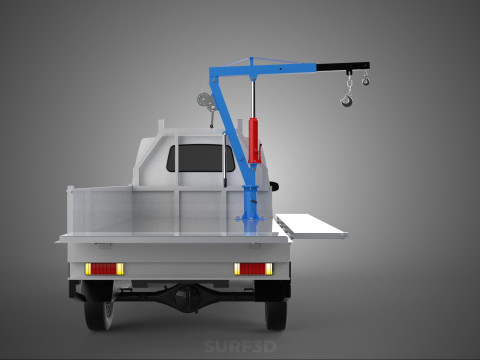

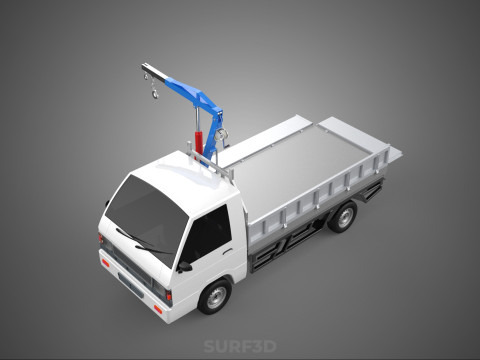

DROPSIDE FOLDING JIB CRANE HOIST HAND CRANK WINCH TRUCK PICKUP Model 3D

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

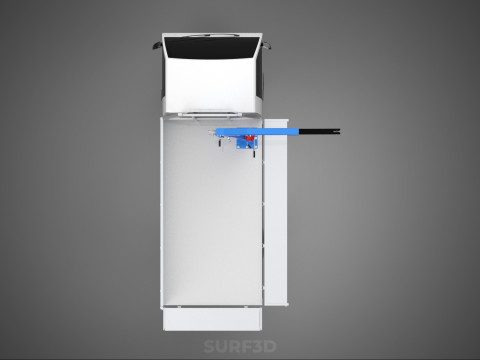

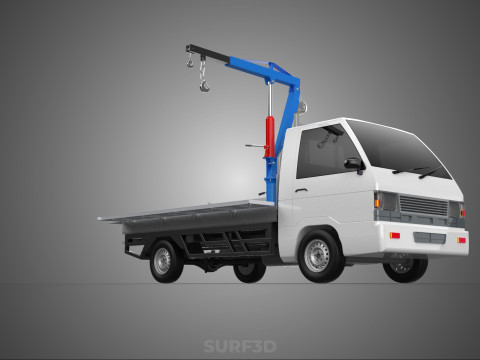

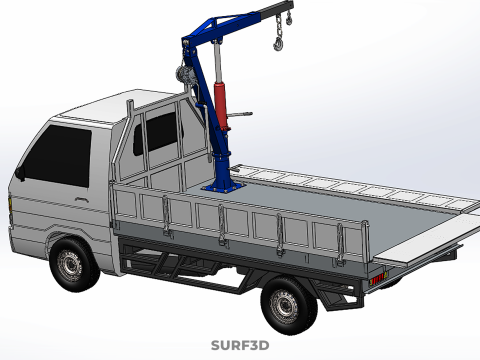

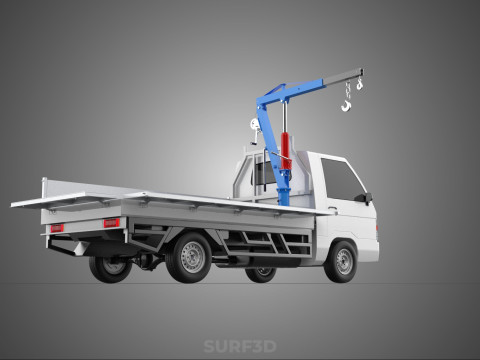

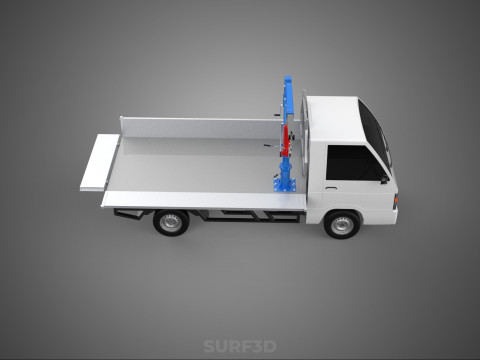

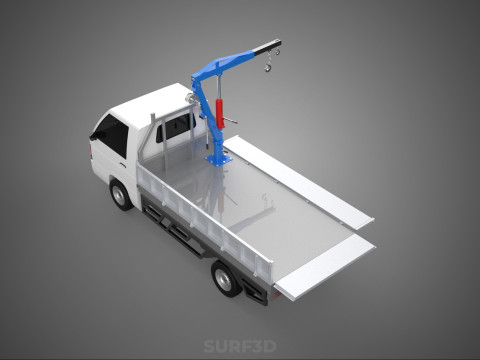

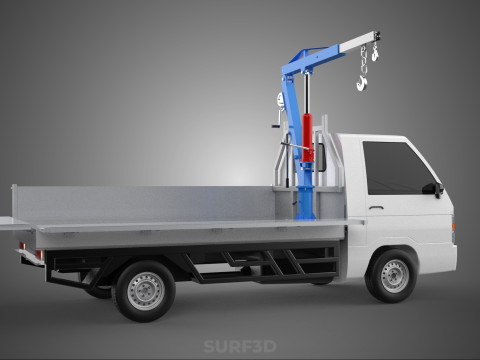

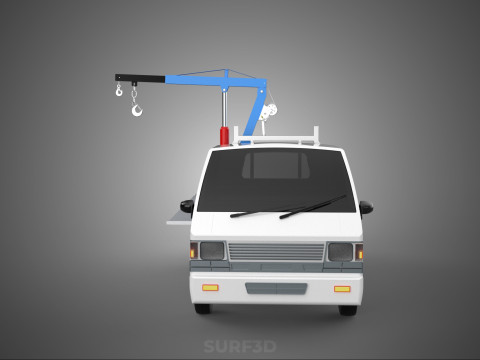

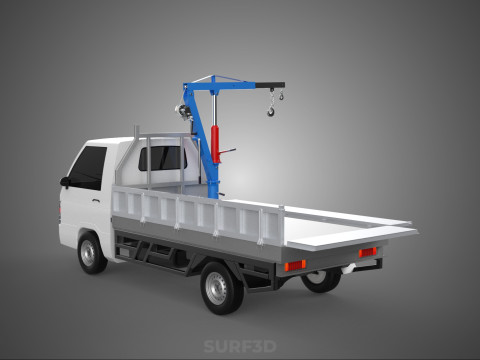

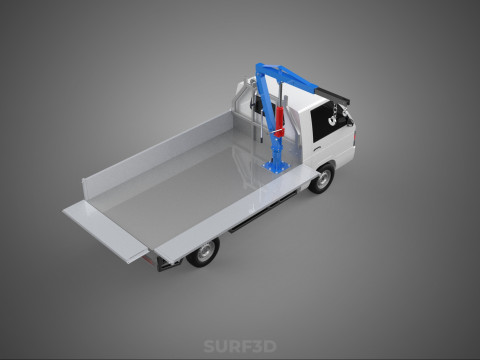

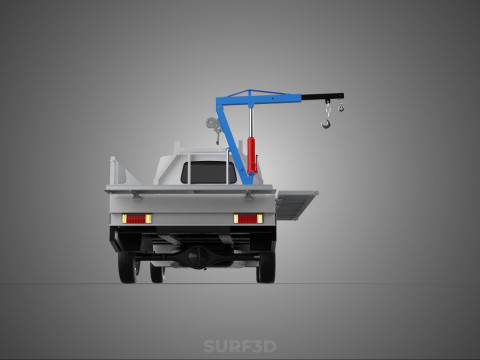

A "Dropside Folding Jib Crane Hoist Hand Crank Winch Truck Pickup" refers to a specialized, manually operated lifting apparatus specifically engineered for secure attachment to the cargo bed of light-duty and medium-duty pickup trucks. This integrated system is designed to facilitate the mechanical loading and unloading of heavy, bulky, or cumbersome items, thereby significantly reducing manual labor and enhancing operational efficiency for a diverse range of applications, including utility work, agriculture, construction, and personal use.

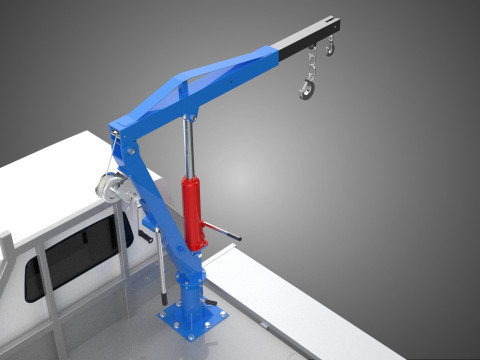

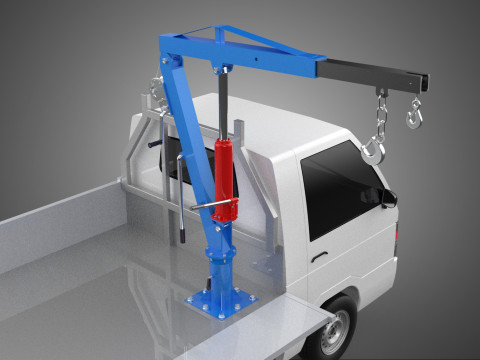

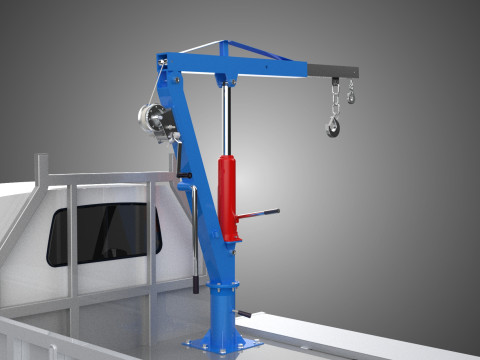

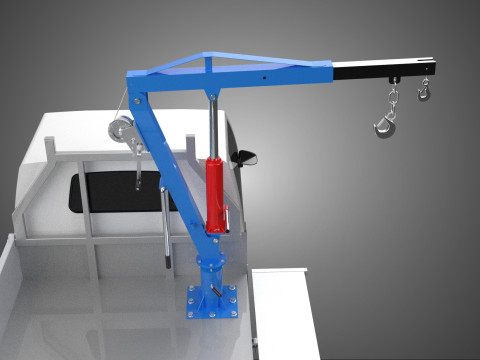

The core of this system is a **jib crane**, typically comprising a robust vertical mast or pillar that mounts securely to the truck bed, often reinforced at a corner or near the tailgate for optimal stability. Extending from this mast is a horizontal or slightly angled boom, known as the jib. A defining characteristic of this particular unit is its **folding** capability; the jib arm can be articulated, retracted, or collapsed into a compact position when not in use. This crucial feature substantially reduces the overall height and footprint of the crane, enabling the vehicle to navigate low-clearance areas, fit into standard garages, and minimize obstruction during transit or storage.

Integral to the jib crane structure is the **hoist mechanism**, which provides the essential vertical lifting power. In this specific configuration, the hoist is powered by a **hand crank winch**. This mechanical device consists of a drum around which a steel cable or high-strength rope is wound, operated by a manual crank handle. The hand crank winch offers distinct advantages: it requires no external power source, such as electricity or hydraulics, making it highly reliable and suitable for remote or off-grid operations where power is unavailable. However, it is important to note that its lifting speed and maximum capacity are typically lower compared to powered hoists, necessitating manual effort from the operator.

The designation "**dropside**" in the title underscores the crane's particular suitability for pickup trucks equipped with cargo beds where the side panels can be lowered or entirely removed. This design allows for unparalleled access to the truck bed from multiple angles, greatly simplifying the placement and retrieval of loads, especially when the crane is strategically positioned to swing over an open side. The crane's mounting on a "**truck pickup**" chassis indicates its engineering for the specific load capacities, structural integrity, and bed dimensions commonly found in these vehicles.

Operation involves manually extending the folding jib arm to position the hoist's hook directly over the load. The hand crank winch is then operated to lower the hook, attach it securely to the item, and subsequently raise the load. Once suspended, the jib can be manually rotated to swing the item over the truck bed for secure placement, or away from the truck for unloading onto the ground or another platform.

This type of crane system finds widespread application among:
* **Tradespeople:** For effortlessly lifting and positioning tools, equipment, and materials (e.g., generators, air compressors, engine components) onto and off their work vehicles.
* **Farmers and Agriculturists:** For handling feed sacks, small machinery, irrigation components, or game.
* **Outdoor Enthusiasts:** For loading heavy recreational gear such as ATVs, boat engines, or hunting equipment.
* **Homeowners:** For various DIY projects involving heavy objects like landscaping stones, timber, or construction debris.
Its manual nature, combined with its compact and foldable design, positions it as an accessible, cost-effective, and practical solution for users requiring occasional, moderate lifting capability without the complexity or expense associated with hydraulic or electric systems.

While robust, the maximum lifting capacity of a hand crank winch crane is strictly limited and must never be exceeded to prevent structural failure, equipment damage, or personal injury. Proper installation, strict adherence to stated load limits, and ensuring stable ground conditions are paramount for safe operation. Regular inspection of the cable, winch mechanism, and all mounting hardware is essential to maintain operational integrity and extend the lifespan of the apparatus. This apparatus represents a pragmatic solution for enhancing the utility of pickup trucks, transforming them into more versatile work platforms capable of managing loads that would otherwise necessitate multiple individuals or more specialized, heavy-duty machinery.

KEYWORDS: Jib crane, Folding crane, Pickup truck crane, Truck hoist, Hand crank winch, Manual hoist, Dropside truck, Vehicle crane, Lifting equipment, Material handling, Cargo loader, Utility vehicle accessory, Portable crane, Compact crane, Loading aid, Unloading device, Mechanical hoist, On-board crane, Light-duty crane, Farm equipment, Construction tool, Tradesman equipment, Truck bed accessory, Rotary crane, Boom crane, Winch system, Load lifting, Pickup truck utility, Manual lifting, Mobile crane
