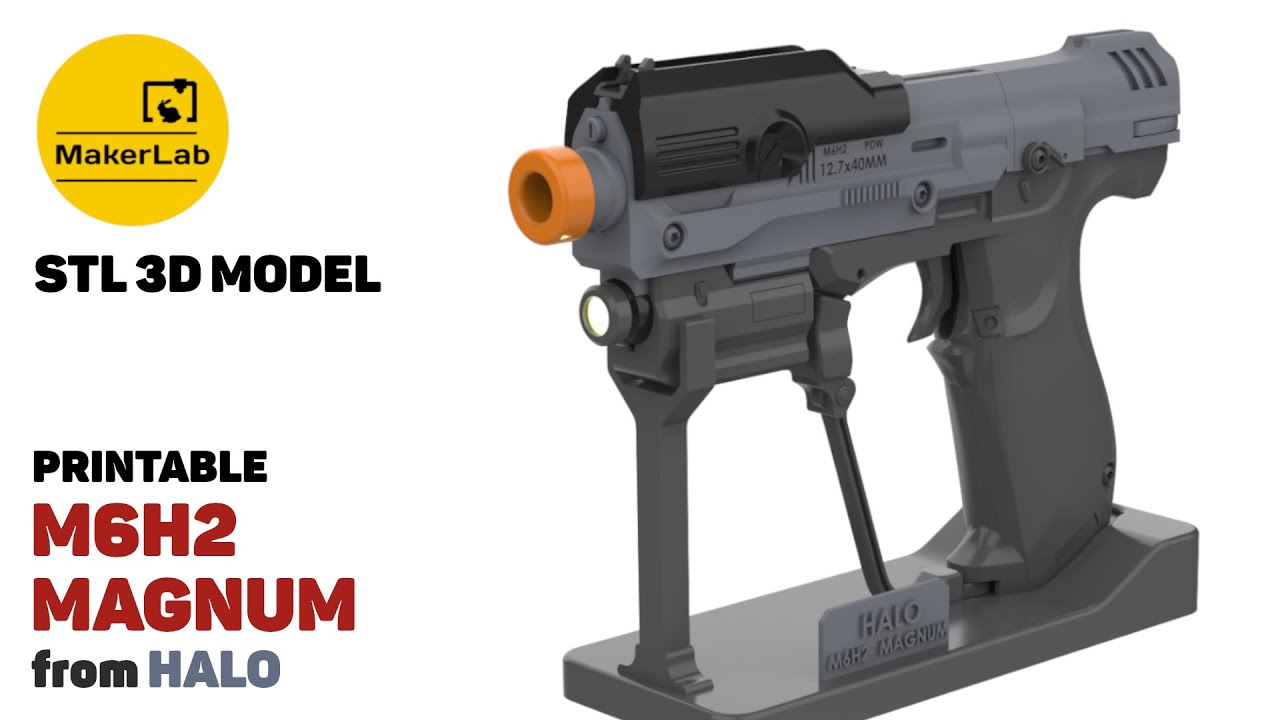

M6H2 Magnum-Halo-do druku-pliki STL-do użytku osobistego Model do druku 3D

Opis

Hi! We glad introduce you 3d model - STL files - to print your own M6H2 Magnum from Halo.

Model include:

- 26 stl files to 3d printing (biggest part 200x27x80mm).
- Digital Instruction for assembling.
- List of components you will needs for assembling.

The model contains a removable magazine, demo stand and backlight.

Dimensions: 242x186x37mm (9.5x7.3x1.5")

Model feautures:

- model include a demo stand
- model include the possibility of installing led backlight
- model is divided into parts by color, taking into account the comfort of printing and assembly
- model include removable magazine
- model powered from CR2032 batterie
- instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components
- model include an exploded view showing the assembly sequence and a list of all components required for assembly
- model include a part sheets that will help control the printing and assembly process
- model include a sectional view that will help you understand how to fit parts and components together
- the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

- 8*8mm button switch
- screws M3 (12,16mm)
- magnets D10x5mm
- LEDs 3x4x2mm
- CR2032 battery slot
- insert nut 3x5x4mm
- resistor 24ohm

Video:

-----------------------------------------------------------------------------------------------------------

Legal notice
This is not an officially licensed product and is only considered Fan Art, the item is 3D model designed for fan art by me.

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
