carbon steel butt weld schedule 40 pipe fittings Modello 3D

Descrizione

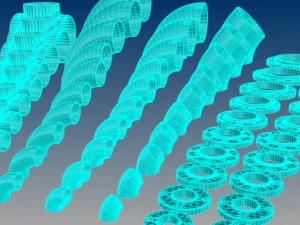

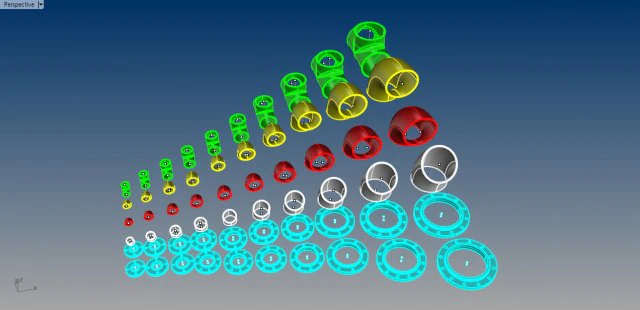

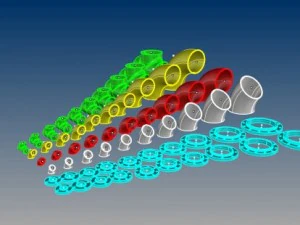

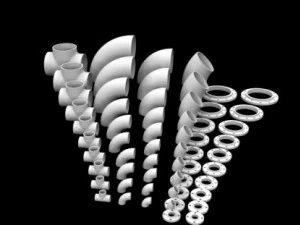

in this archive is a library of 3-d models of ansi standard pipe fittings. each model is a block and inserted into a single file for convenience.

this library contains carbon steel ****-weld fittings as follows
elbow, 90 degree, sch. 40, lr 2" - 12"
elbow, 45 degree, sch. 40, lr 2" - 12"
elbow, 90 degree, sch. 40, sr 2" - 12"
tees, sch. 40 2" - 12"
flange, slip on 150 lb. rf 2" - 12"
flange, slip on 150 lb. ff 2" - 12"

each model has a point object at each insertion point for ease in snapping together components. for instance, connecting pipes to one of the tees only requires snapping to each of the three point objects. the insertion point of the block is at the intersection of the three center lines, as you would expect.

this library, along with the three others (cs/sw, sil-brz, and wrought copper) are perfect for
mechanical design
pulp and paper design
chemical plant design
waste water facilities design
marine design

models are available as shown in the listing. also included is a text file to be used as an autocad attribute block extract template in your autocad drawings

more libraries are in the works. if you don't find what you need, feel free to ask a question on this or the other libraries and let me know what's missing. Stampa Pronta: No
