Loader on tractor. Technical Drawing

This comprehensive pack contains detailed technical drawings for manufacturing and assembly. Available in PDF (for easy viewing and printing), DXF (for laser/plasma cutting and CNC machining), and DWG (for full editing in AutoCAD and other CAD software).

The drawings include:

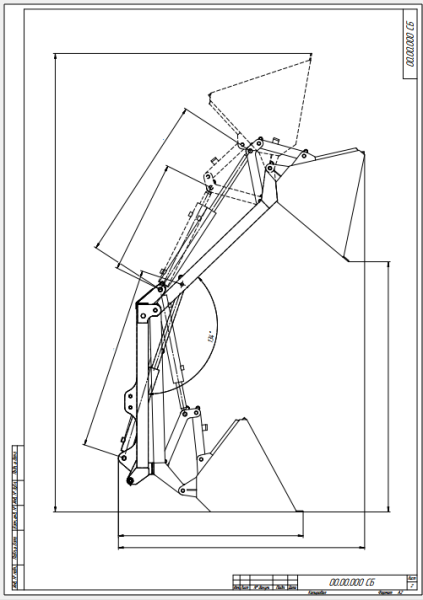

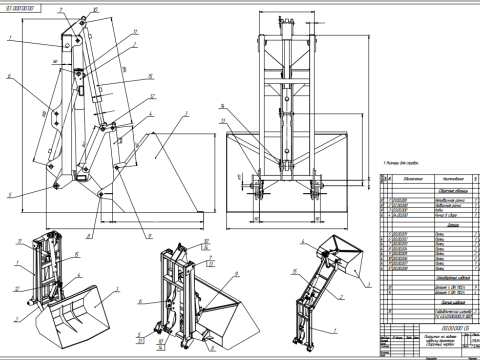

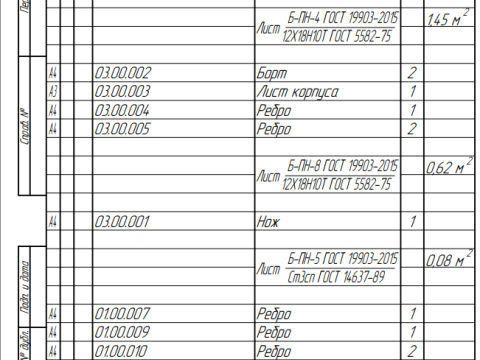

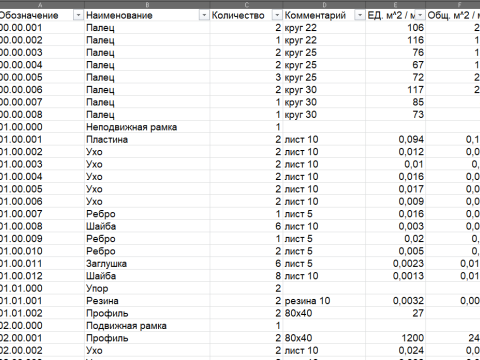

General Assembly with key dimensions and BOM.

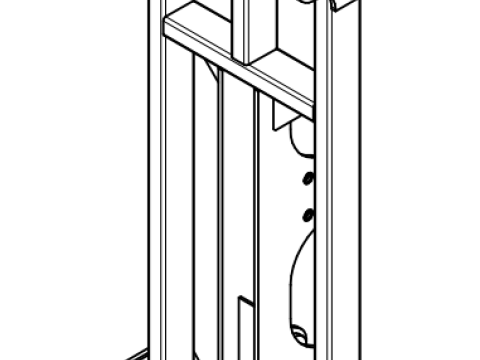

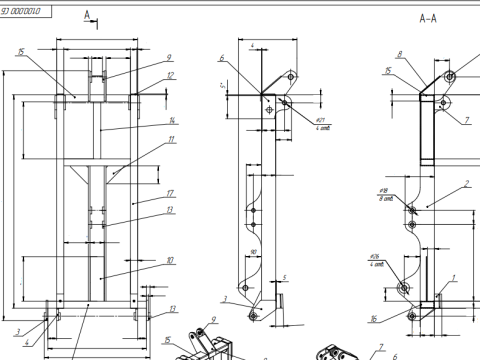

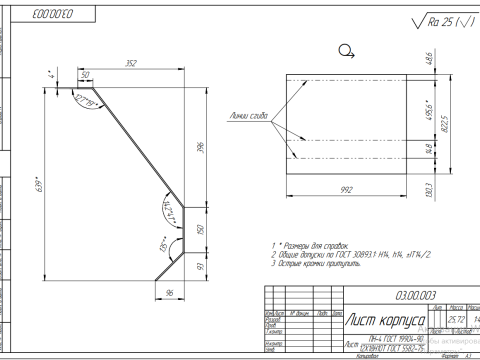

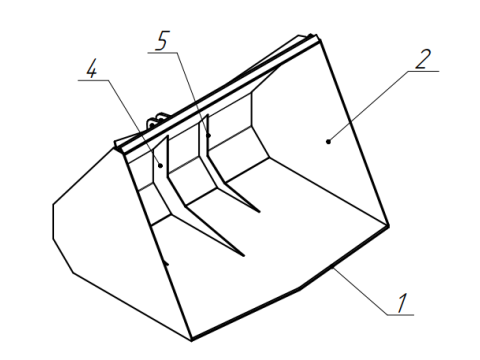

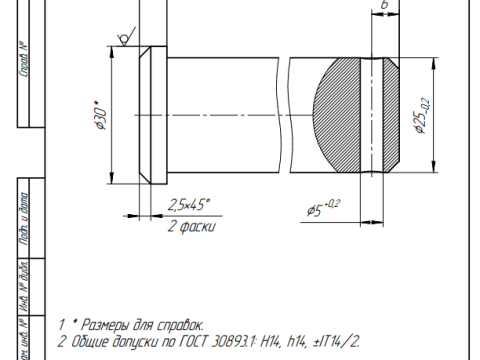

Detailed part drawings for all components (boom arms, bucket, mounting frame, linkages).

Specifications for materials, welding, and machining.

3D model - https://3dexport.com/3d-model-loader-on-tractor-595934

Stampa Pronta: No
Hai bisogno di ulteriori formati?
Se hai bisogno di diversi formati, aprire un nuovo Ticket i Supporto e una richiesta per questo. Convertiamo modelli 3D a: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Non convertiamo scene 3d e formati come .step, .iges, .stp, .sldprt.!

Scaricato Loader on tractor Technical Drawing Modello 3D dwg dxf pdf Da LabsCAD

3d 3dmodel model trailer transport truck machine loader tractor minitractor rear-mounted bucket pdf dxf dwg cad blueprints
