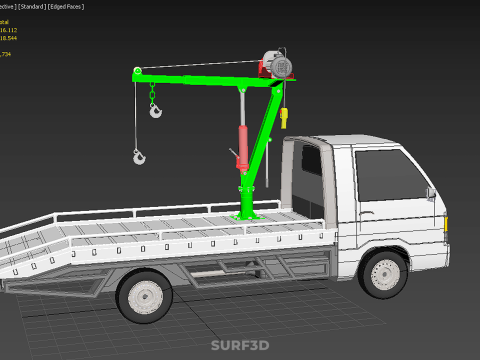

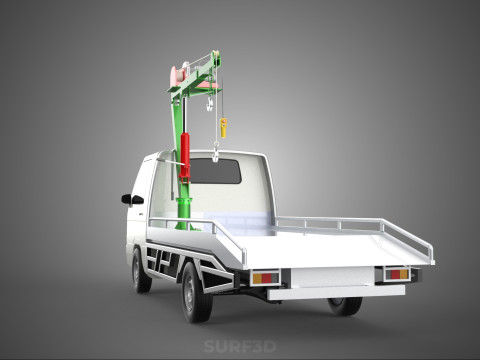

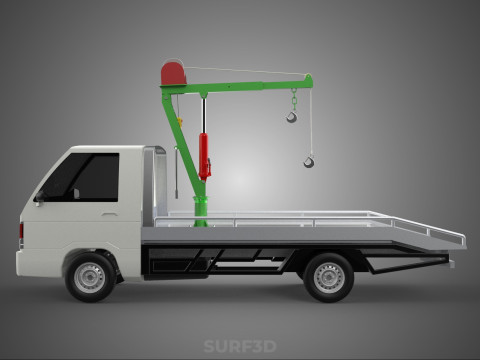

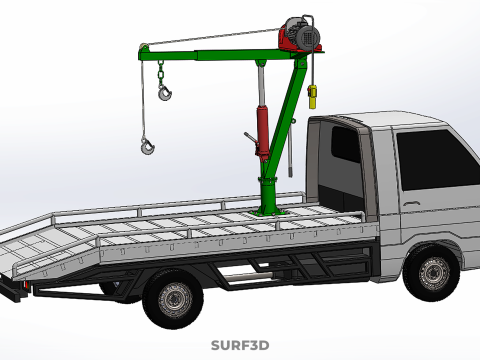

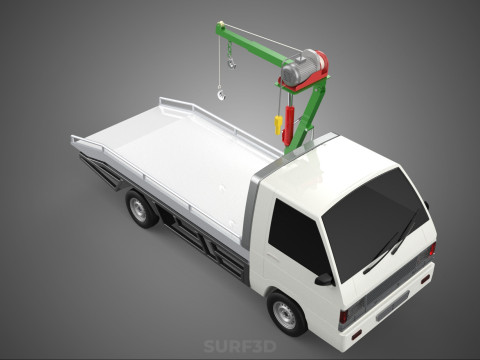

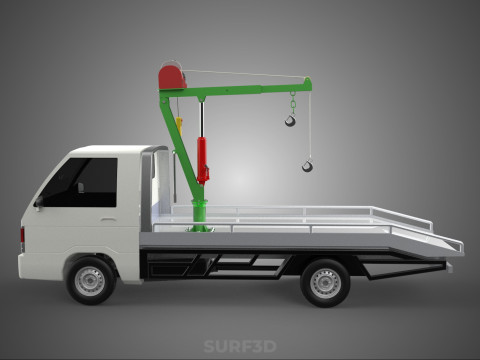

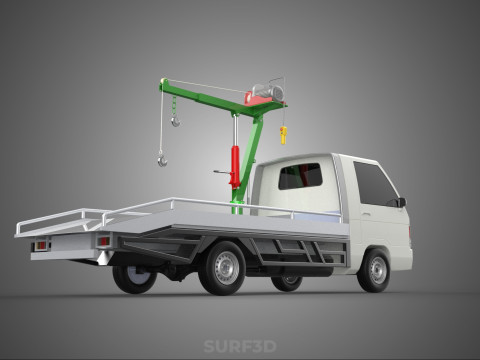

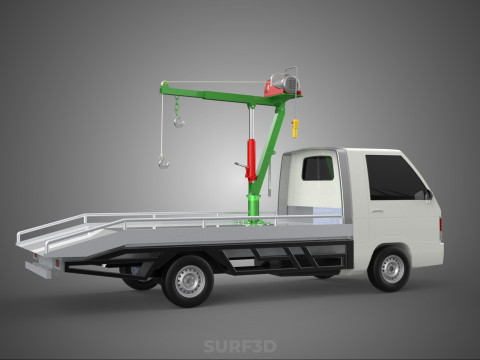

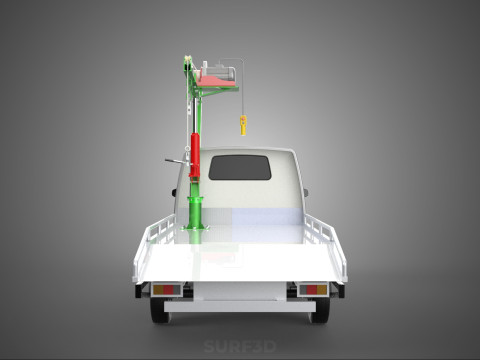

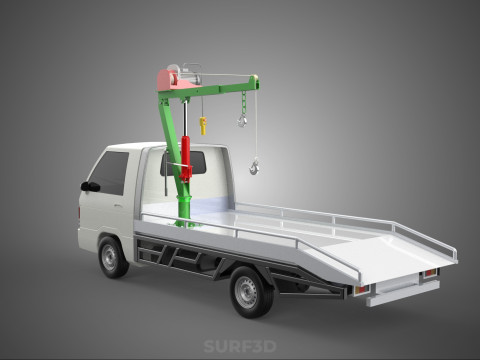

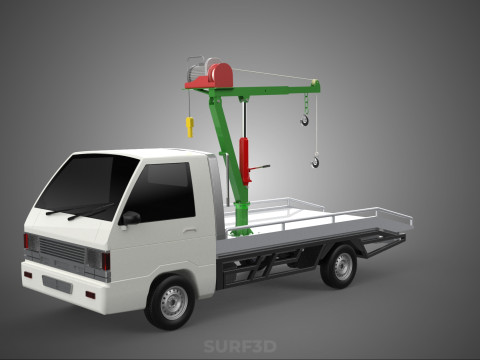

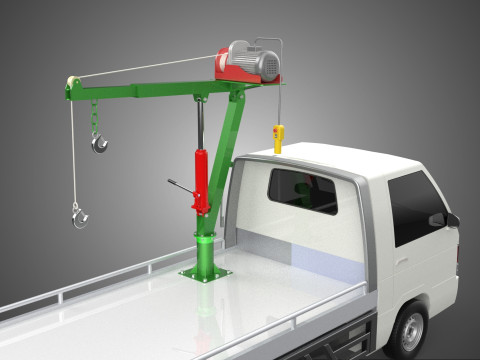

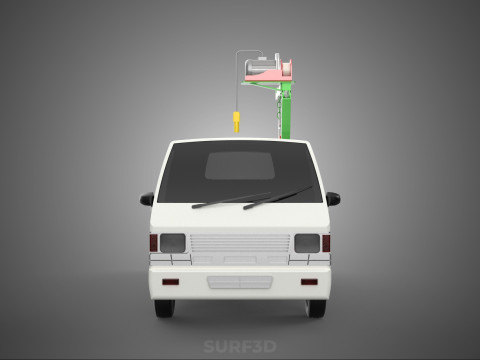

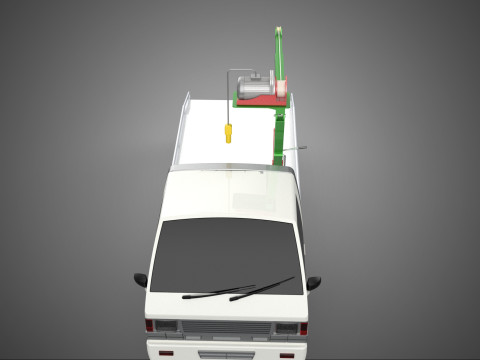

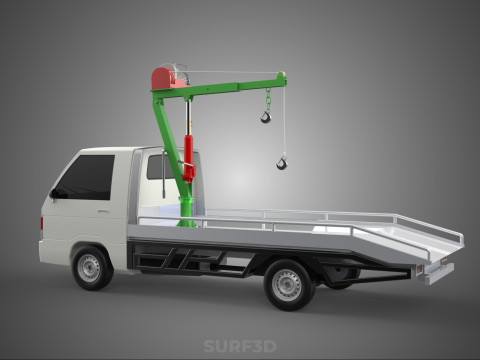

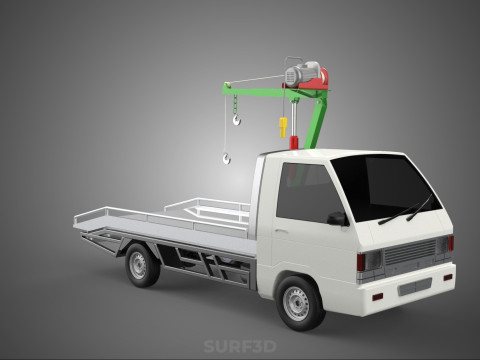

REMOTE ELECTRIC WINCH HOIST SWIVEL CRANE HOOK JIB TRUCK PICKUP Modello 3D

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and ****ed for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

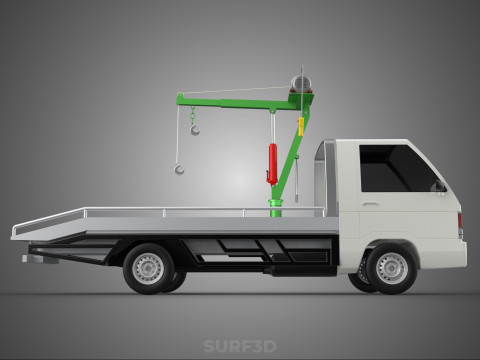

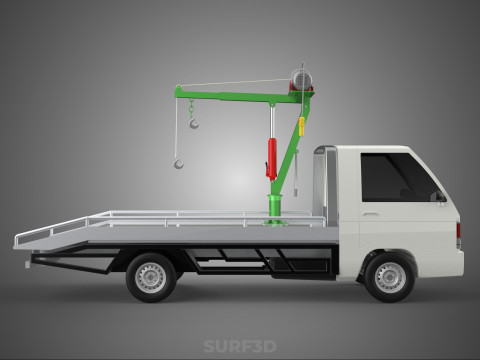

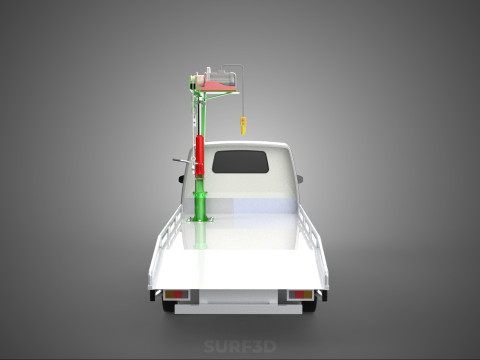

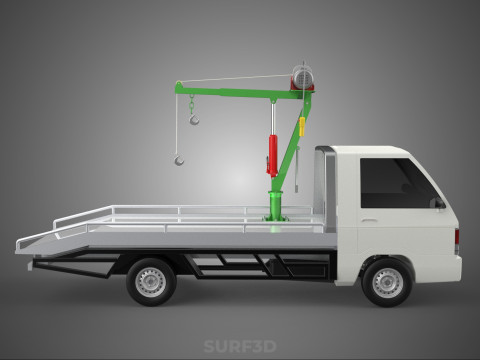

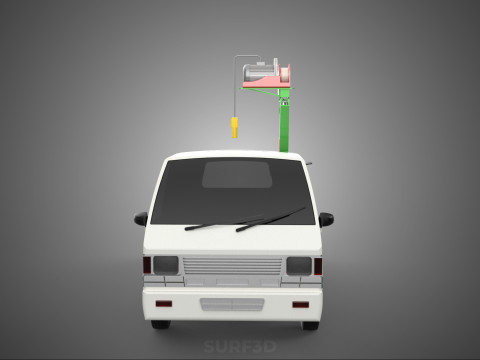

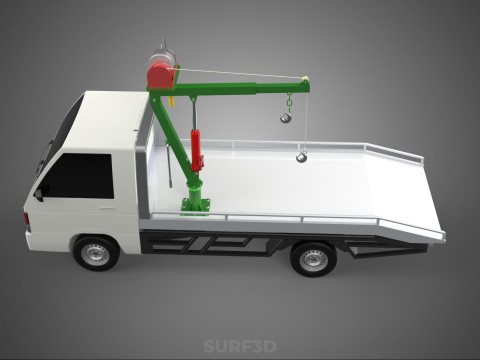

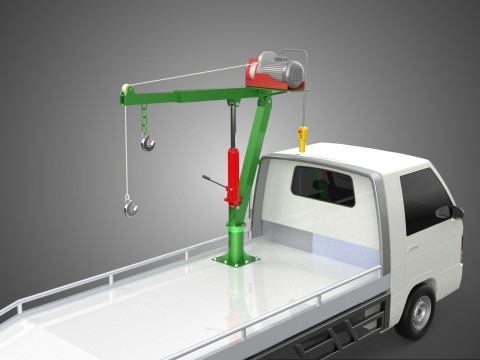

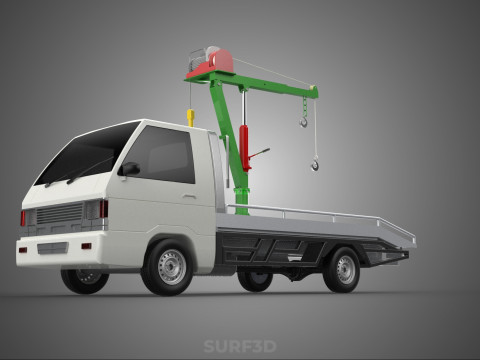

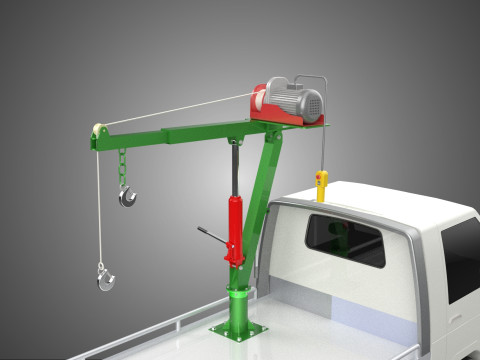

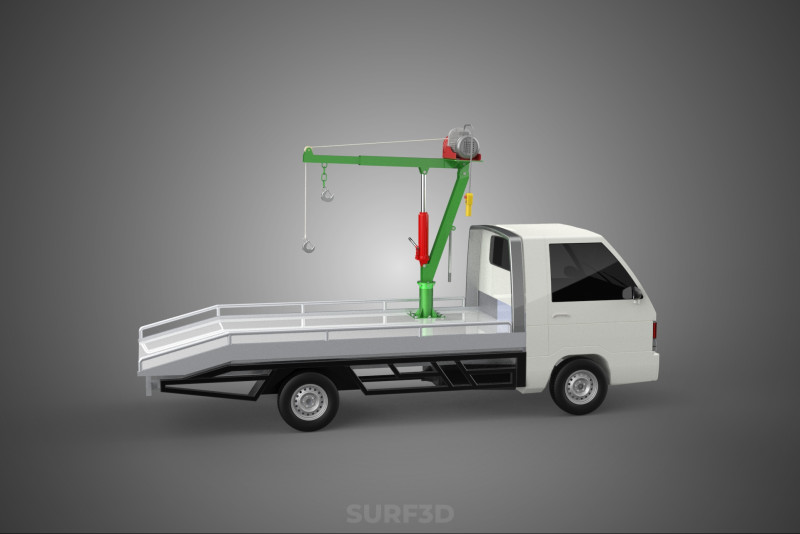

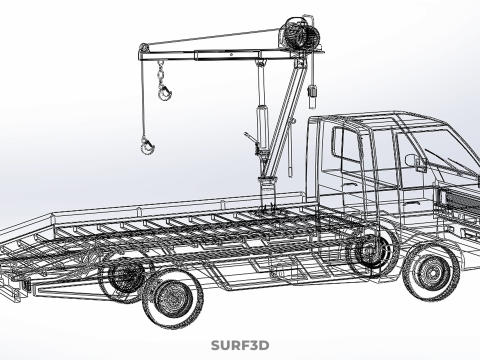

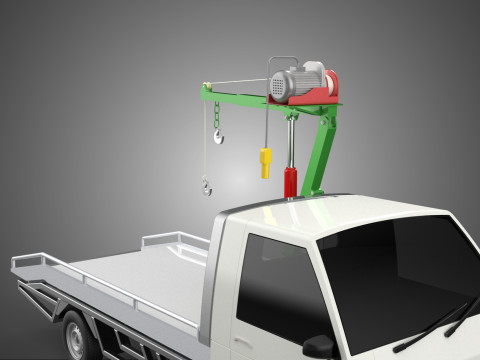

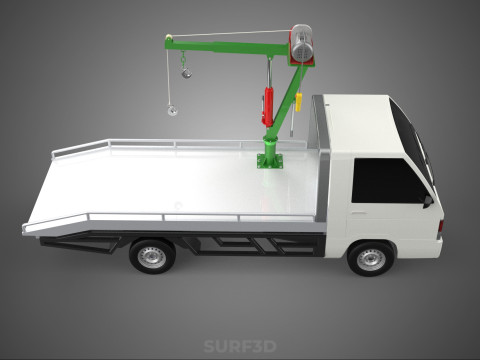

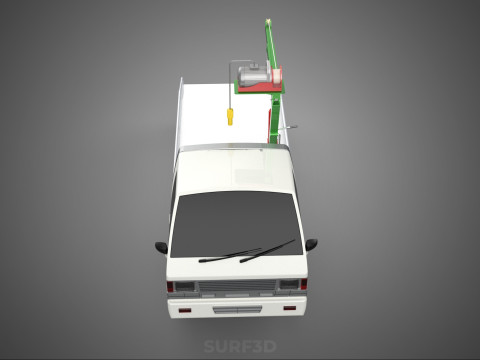

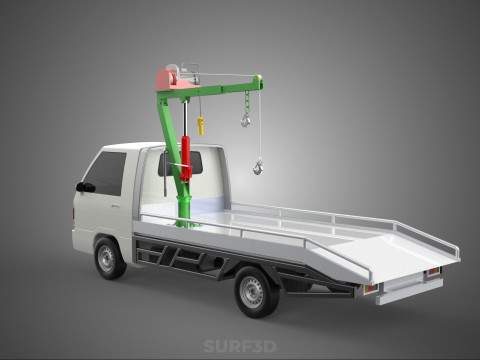

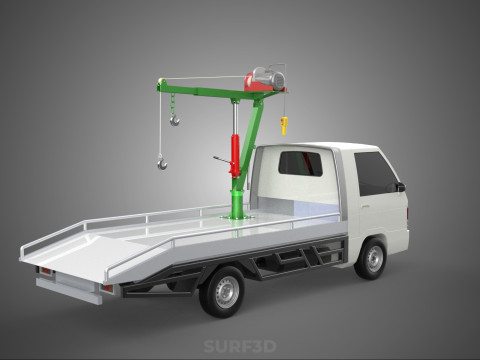

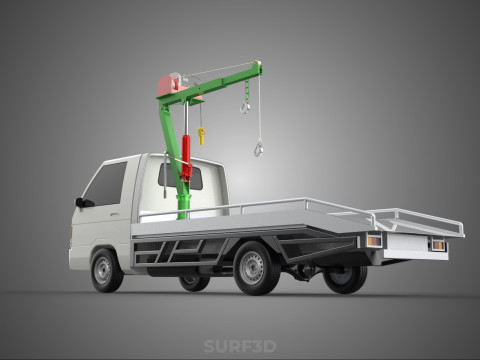

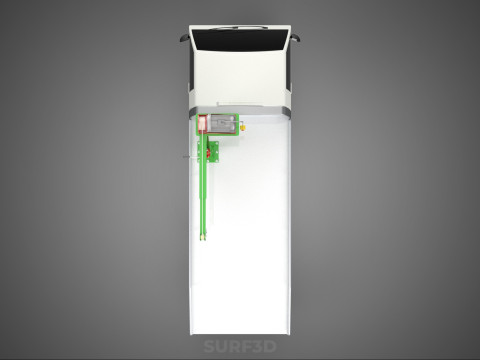

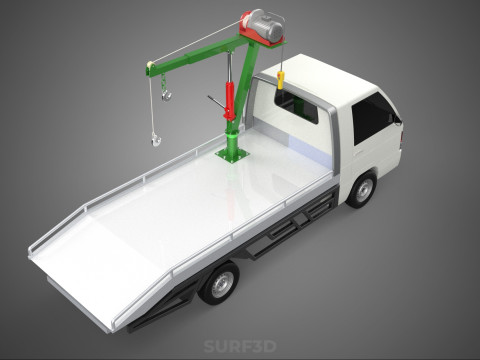

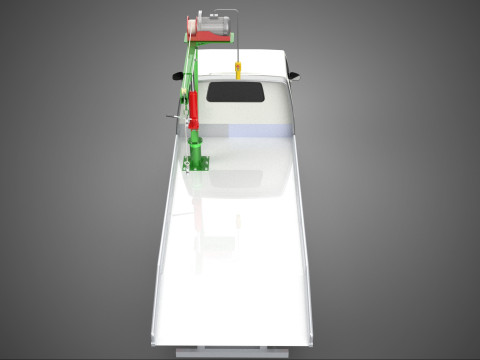

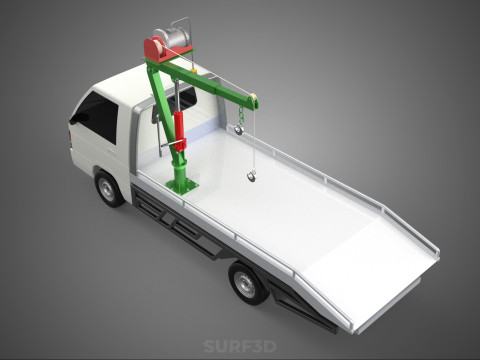

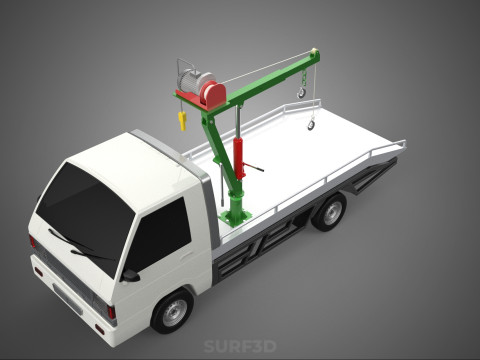

A "Truck Pickup-Mounted Electric ***ch Hoist Swivel Jib Crane System with Remote Control" is a specialized, mobile lifting apparatus designed for material handling operations, integrated directly onto the cargo bed or frame of a light-duty or medium-duty pickup truck. This configuration transforms a standard utility vehicle into a portable lifting platform, enabling the efficient loading, unloading, and positioning of heavy objects in various field environments where conventional fixed cranes are impractical or inaccessible.

**Components and Functionality:**
The system comprises several interconnected components, each contributing to its overall capability:

1. **Pickup Truck (Mobile Platform):** Serves as the stable, mobile base for the entire assembly. The truck's robust chassis provides the necessary foundation for mounting the crane, while its onboard electrical system (typically 12V DC) supplies power to the electric ***ch and control mechanisms. The truck's inherent mobility allows the crane to be rapidly deployed to diverse job sites, enhancing operational flexibility.

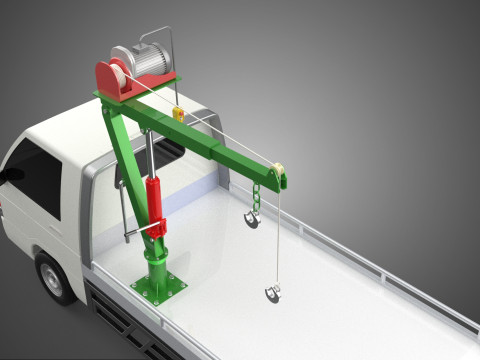

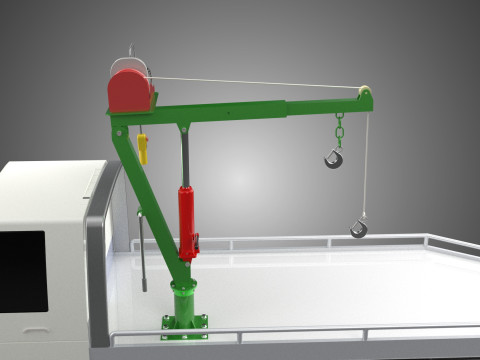

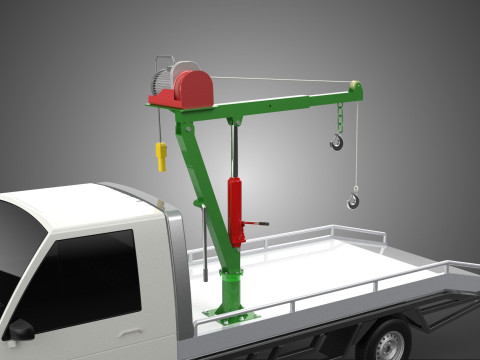

2. **Jib Crane Assembly:** This is the structural arm of the system, typically constructed from high-strength steel. Key features include:
* **Mounting Base:** A heavy-duty pedestal or plate securely bolted to the truck's bed or frame, designed to distribute lifting forces effectively and safely to the vehicle chassis.
* **Swivel Mechanism:** Integrated into the base, this allows the jib arm to rotate (often through a full 360 degrees or a specified arc), providing versatile positioning of the load without needing to reposition the entire truck. Rotation can be manual, with a locking pin, or motorized for greater precision.
* **Boom (Jib Arm):** The extendable or fixed arm that projects outwards from the mounting base. Some models feature a telescoping boom to vary the reach, optimizing for both compact storage and extended operational range.

3. **Electric ***ch/Hoist:** This is the primary lifting mechanism, responsible for vertical movement of the load.
* **Motor:** Powered by the truck's 12V DC electrical system, the electric motor drives a drum.
* **Drum and Cable/Rope:** A durable steel cable or high-strength synthetic rope is wound around the drum, engineered for the specified lifting capacity.
* **Gearbox:** An integrated gearbox reduces motor speed while simultaneously increasing torque, enabling the hoist to lift substantial loads.
* **Braking System:** An automatic, often dynamic, braking system is integrated to securely hold the load in place when power is removed or operation stops, preventing uncontrolled descent.
* **Safety Features:** Many systems incorporate overload protection (e.g., current limiters, pressure sensors) to prevent lifting beyond the rated capacity, protecting both the equipment and operators. Upper limit switches prevent the hook block from impacting the boom, while lower limit switches can prevent excessive cable un***ding.

4. **Crane Hook:** The terminal end of the lifting cable, typically a robust forged steel hook equipped with a spring-loaded safety latch. This latch prevents accidental disengagement of the load from the hook during lifting and maneuvering operations.

5. **Remote Control Unit:** This crucial component provides operational safety, precision, and flexibility by allo***g the operator to control the crane from a safe distance.
* **Wired Remote:** Connected via a durable cable to the ***ch/hoist, offering direct control from a safe vantage point, away from the immediate load area.
* **Wireless Remote (Radio Frequency):** Offers even greater freedom of movement and eliminates the potential hazard of tangled cables. Wireless units typically include an emergency stop button for immediate power cut-off.
* **Functions:** Common controls include "Lift Up," "Lower Down," and often "Boom Rotate" (if motorized swivel is present) and "Boom Extend/Retract" (if telescoping).

**Operational Principle and Applications:**
The system operates by positioning the pickup truck at the desired location. The jib arm is then deployed and rotated as needed. The electric ***ch lifts the object via the hook, and the boom's swivel capability allows the load to be maneuvered into or out of the truck bed, or to another nearby position.

Primary applications for such a system include:
* **Construction:** Lifting and positioning building materials, tools, and smaller machinery on job sites.
* **Agriculture:** Moving heavy feed bags, engine components, pumps, or other farm equipment around properties.
* **Utility Services:** Assisting with the installation or removal of utility poles, transformers, and related infrastructure.
* **Maintenance and Repair:** Field servicing of heavy machinery, facilitating engine removal/installation, or transferring heavy components in remote locations.
* **Landscaping:** Lifting large rocks, trees, planters, or bags of soil.
* **Recreational/Personal Use:** Conveniently loading heavy recreational vehicles like ATVs, motorcycles, or bulky gear onto a truck bed.

**Technical Specifications (Typical Ranges):**
* **Lifting Capacity:** Varies significantly based on model and design, commonly ranging from 500 lbs (227 kg) to 2,000 lbs (907 kg), with some heavy-duty commercial models exceeding this.
* **Boom Length/Reach:** Typically adjustable from 3 ft (0.9 m) to 10 ft (3 m) from the pivot point.
* **Swivel Range:** Up to 360 degrees, depending on the model and mounting configuration.
* **Power Source:** Primarily 12V DC, supplied directly from the vehicle's battery.
* **Safety Features:** In addition to internal safety mechanisms, external considerations like the use of outriggers or stabilizers may be required for heavier loads or uneven terrain to maintain vehicle stability and prevent tipping.

**Conclusion:**
The "Truck Pickup-Mounted Electric ***ch Hoist Swivel Jib Crane System with Remote Control" represents a versatile, cost-effective, and highly mobile solution for light to medium-duty lifting requirements. Its seamless integration with a common utility vehicle provides unparalleled flexibility for material handling in diverse environments, significantly enhancing productivity and reducing manual labor while prioritizing operator safety through remote control capabilities.

KEYWORDS: Electric ***ch, Hoist, Swivel Crane, Jib Crane, Truck Mounted Crane, Pickup Truck Crane, Mobile Lifting System, Remote Control Crane, Material Handling, Portable Crane, Vehicle Crane, Lifting Equipment, Load Handling, DC Powered Crane, Utility Crane, Field Operations, Industrial Hoist, Automotive Crane, Telescoping Jib, Crane Hook, Cargo Lift, Worksite Crane, Heavy Duty Lift, Safety Equipment, Equipment Relocation, On-site Lifting, Mobile Work Platform, Pickup Bed Crane, Boom Crane, Outrigger.
