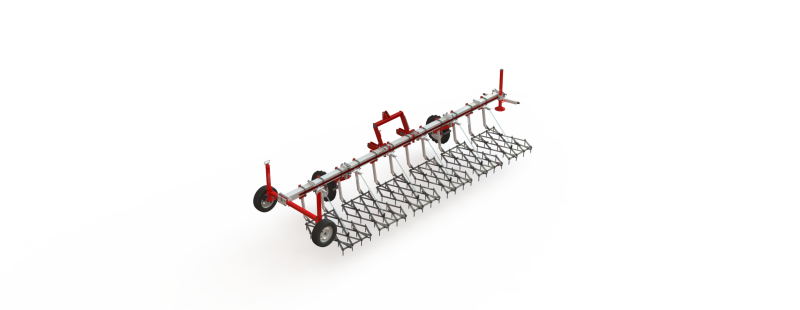

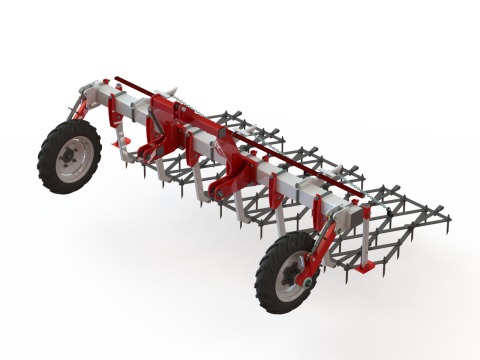

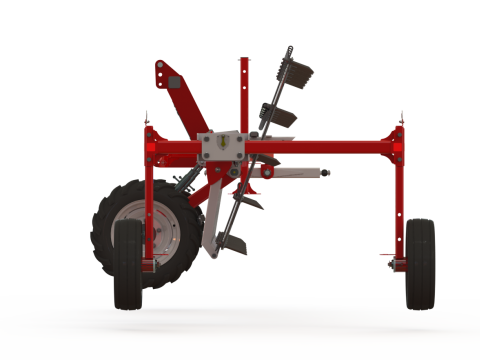

WG 0012 - Gamma completa di erpici portati a 5 denti pesanti Modello 3D

Descrizione

The documentation package includes the following equipment:

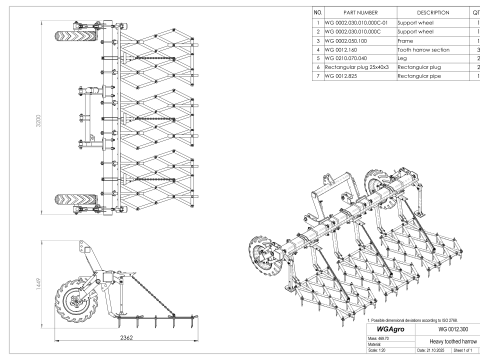

1. WG0012-300 – mounted heavy toothed harrow with a fixed frame, 3.0 m working width
2. WG0012-400 – mounted heavy toothed harrow with a fixed frame, 4.0 m working width

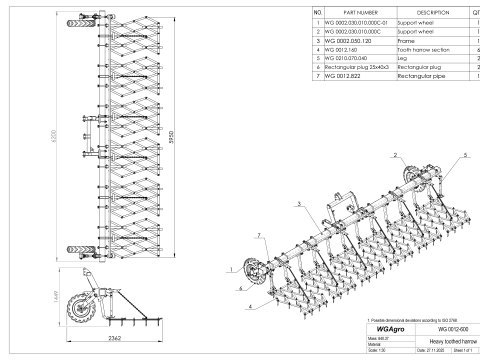

3. WG0012-600 – mounted heavy toothed harrow with a fixed frame, 6.0 m working width

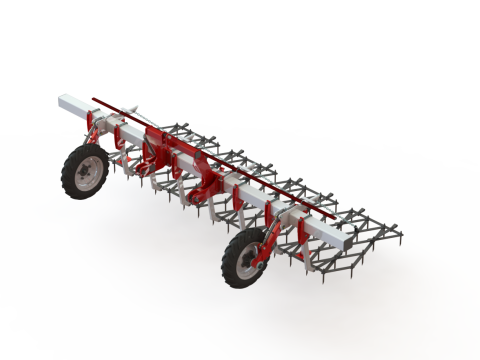

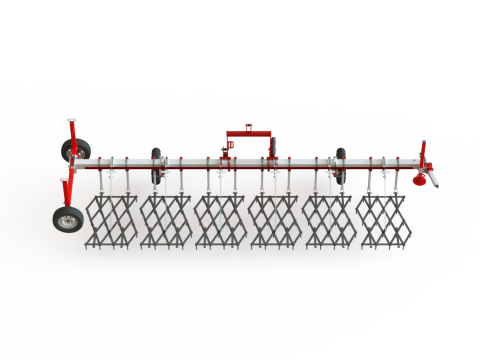

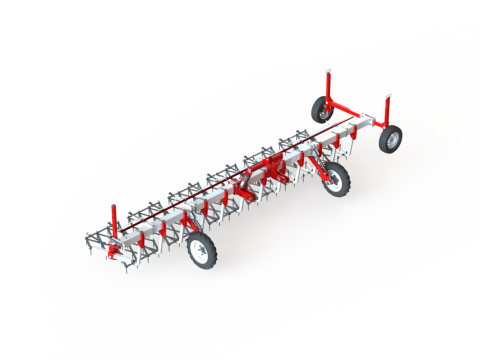

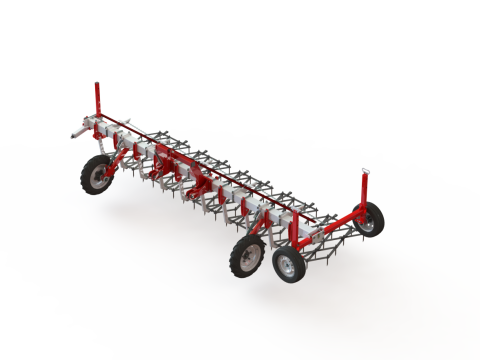

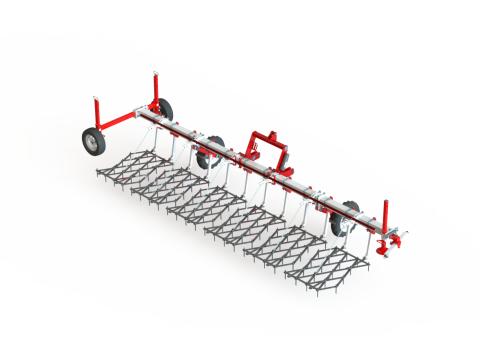

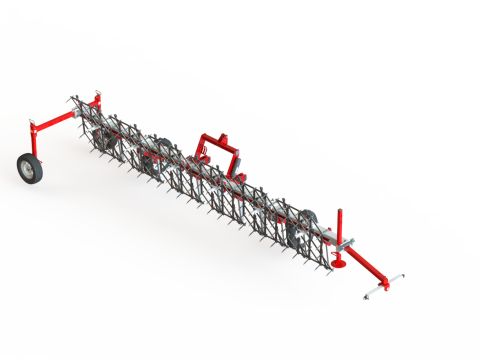

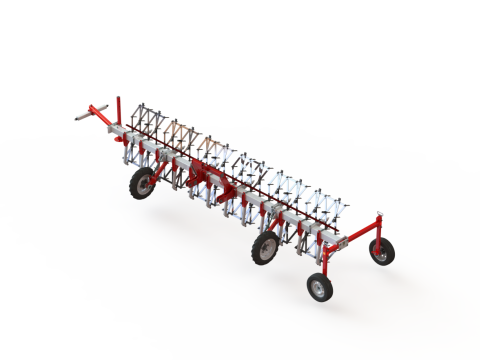

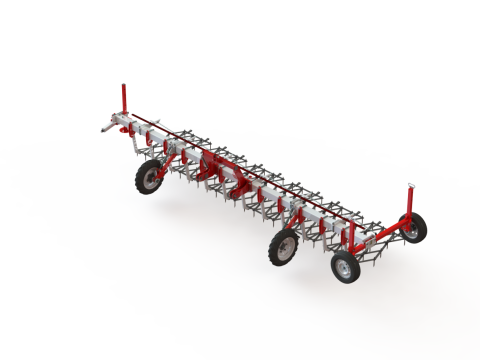

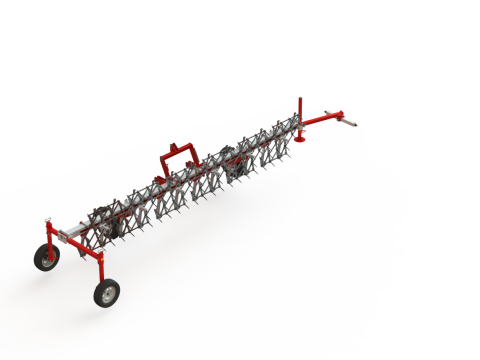

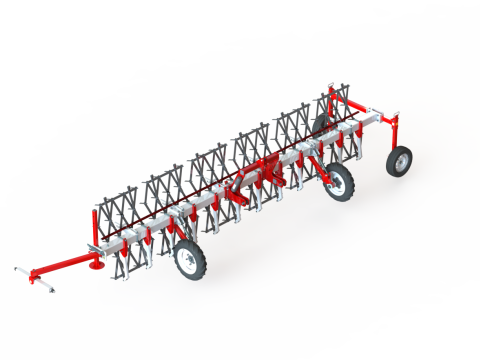

4. WG0012-501 – mounted heavy toothed harrow with a frame and transport device, 5 m working width

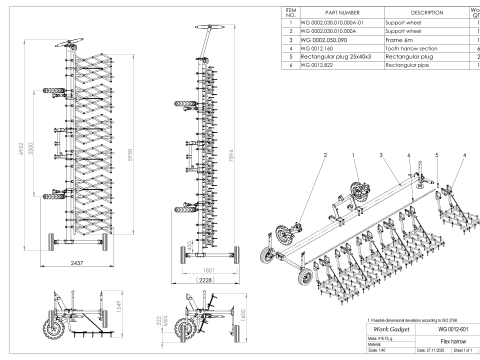

5. WG0012-601 – mounted heavy toothed harrow with a frame and transport device, 6 m working width

For safe and efficient transportation of oversized rigid-frame units on public roads, we recommend our low-bed trailer – WG 0027.

The heavy toothed harrow is designed for intensive soil cultivation and preparation of the seedbed for cereals, technical, and fodder crops. Its robust tines efficiently break up clods, level the soil, and control weeds, ensuring uniform soil structure. Suitable for use on fields with high residue content and variable soil conditions, it guarantees reliable performance and consistent results. Ideal for medium to large tractors, it is a durable and efficient tool for professional soil management.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP + Parasolid + CATIA).Ready for modification, prototyping, or production use.
This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

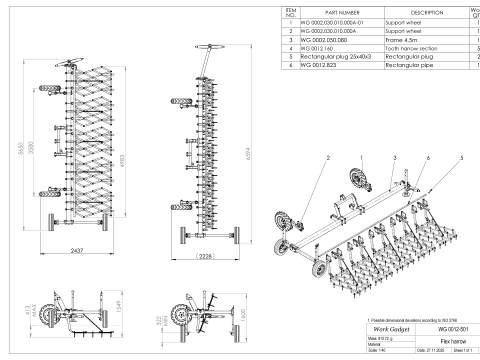

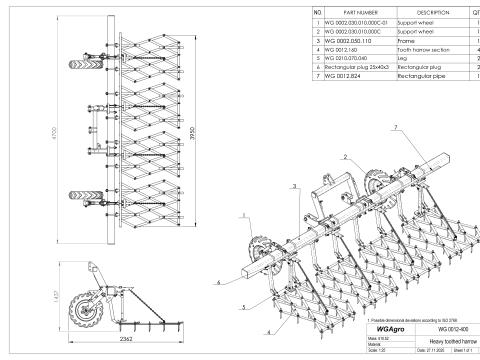

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files,  Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:
Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
Textures not included. This is a solid CAD model, not polygonal mesh.
Need your own version of this model? I can modify or create new equipment to suit your needs.
