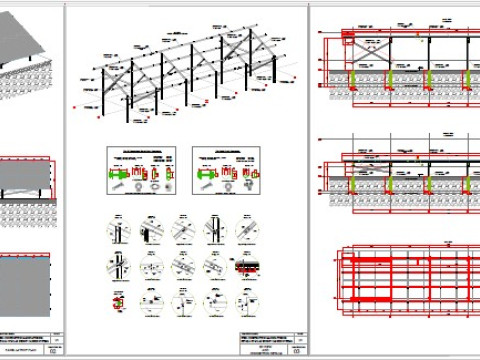

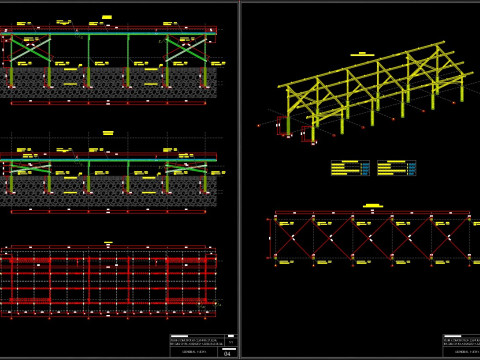

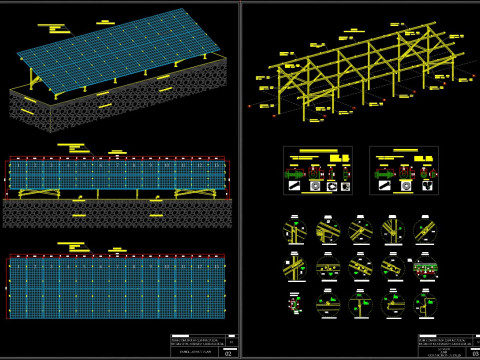

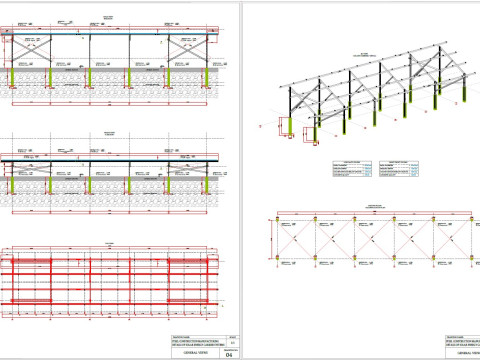

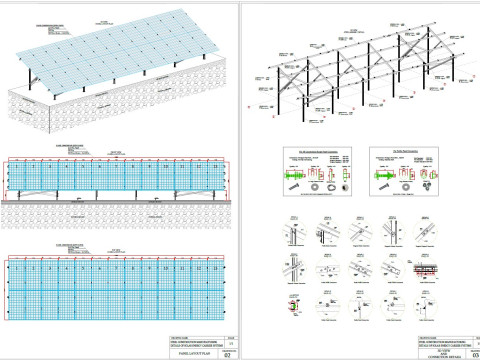

1MW -AC- SOLAR PLANT-Autocad Static Project


Static Steel Fabrication Project

2x13 Vertical Panel Layout

Ground Connection Type; Steel Driven Column + Concrete

Distance of Columns Below Ground 1200 mm and 1000 mm.

Panel Dimensions : 2278 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 14,3 kWp power in 1 hour

The system consists of 6 axles and the distance between each axle is 2650 mm and 2750 mm.

Distance between two columns 2700 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.


Prepared With AutoCAD Version 2023
