1MW -AC- SOLAR PLANT-Autocad Static Project 3D Model

$ 60.00
License:
No AI Training
1MW -AC- SOLAR PLANT-Autocad Static Project 3D Model
$ 60.00
Remove Bookmark Bookmark This Item
  • Available formats:
    Free Format Conversion
    Autodesk Maya (.mb / .ma) 13.09 kb
    Autodesk AutoCAD (.dwg) 4.53 MB
    Portable Document (.pdf) 3.39 MB
  • Animated:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materials:
    No
  • Low-poly:
    No
  • Collection:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Print Ready:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • AI Training:
    No
  • Geometry:
    Polygonal
  • Unwrapped UVs:
    Unknown
  • Views:
    169
  • Date: 2025-08-10
  • Item ID:
    591855
Report This Item

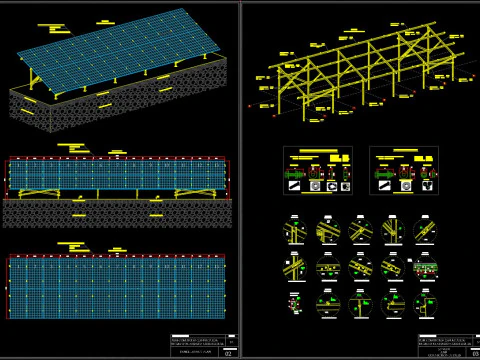

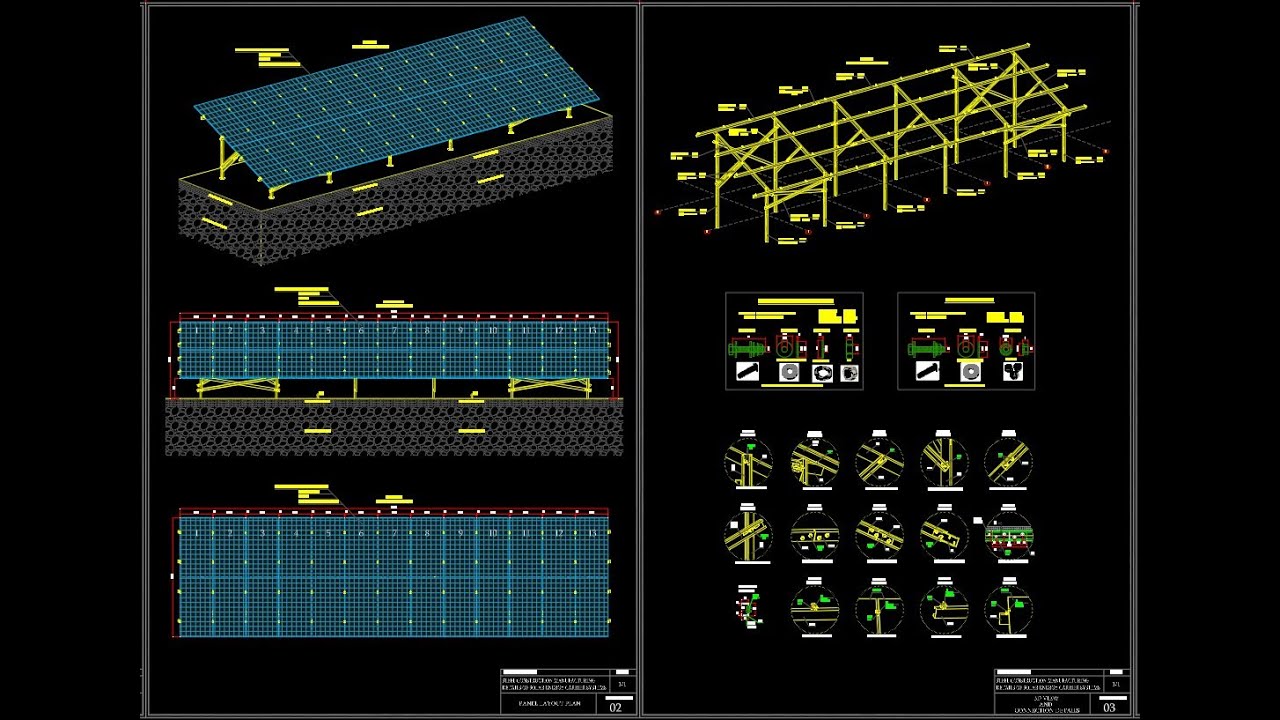

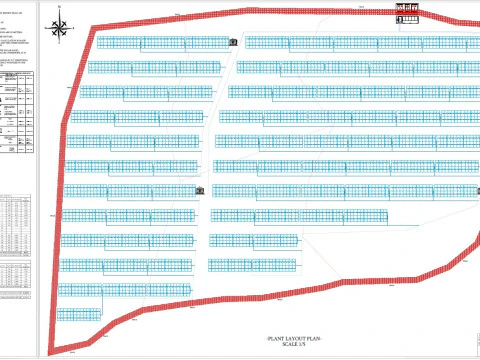

1MW -AC- SOLAR PLANT-Autocad Static Project

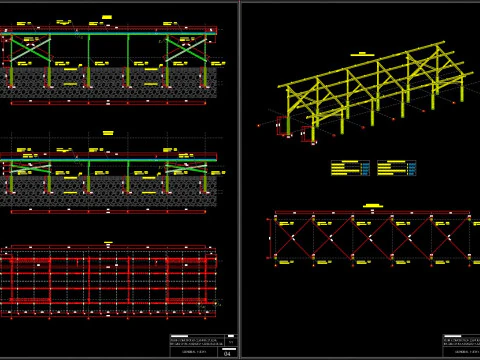

Static Steel Fabrication Project

2x13 Vertical Panel Layout

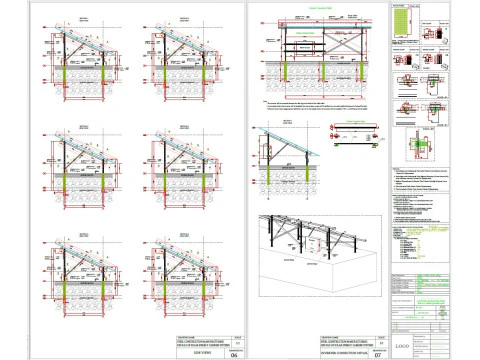

Ground Connection Type; Steel Driven Column + Concrete

Distance of Columns Below Ground 1200 mm and 1000 mm.

Panel Dimensions : 2278 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 14,3 kWp power in 1 hour

The system consists of 6 axles and the distance between each axle is 2650 mm and 2750 mm.

Distance between two columns 2700 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.


Prepared With AutoCAD Version 2023

Print Ready: No
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

1MW -AC- SOLAR PLANT-Autocad Static Project 3D Model mb, dwg, pdf, from YasinTezcan

autocad solarplant static project manufacturing dwg dxf pdf solarenergy
