Sample Assembly for New Framed Solar Panel 3D Model
- Request product support by the author
- Available formats:
- Item ID:542416
- Date: 2024-11-23
- Polygons:270955
- Vertices:375928
- Animated:No
- Textured:
- Rigged:No
- Materials:
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:
- AI Training:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:1617
Description

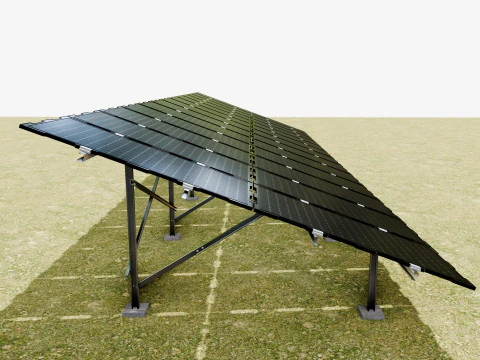

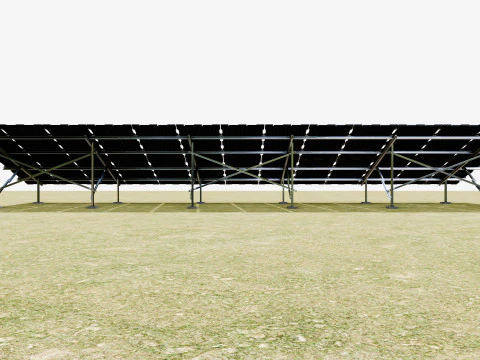

Sample Assembly for New Framed Solar Panel

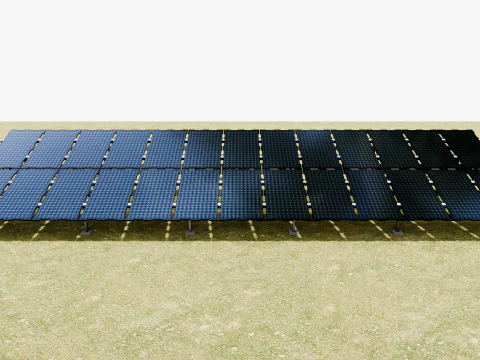

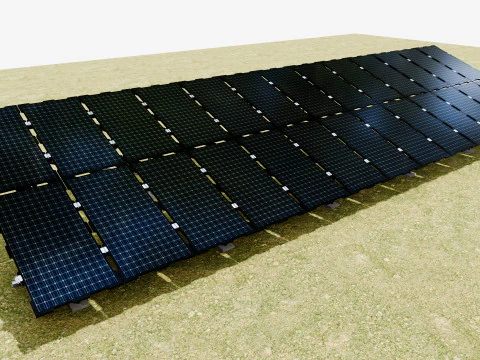

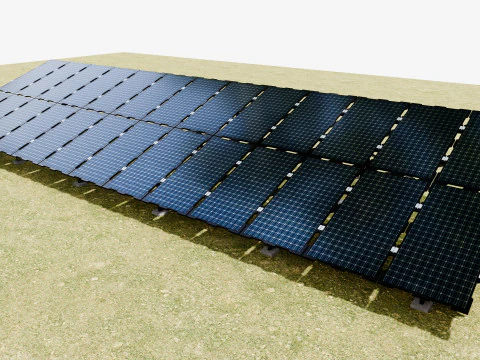

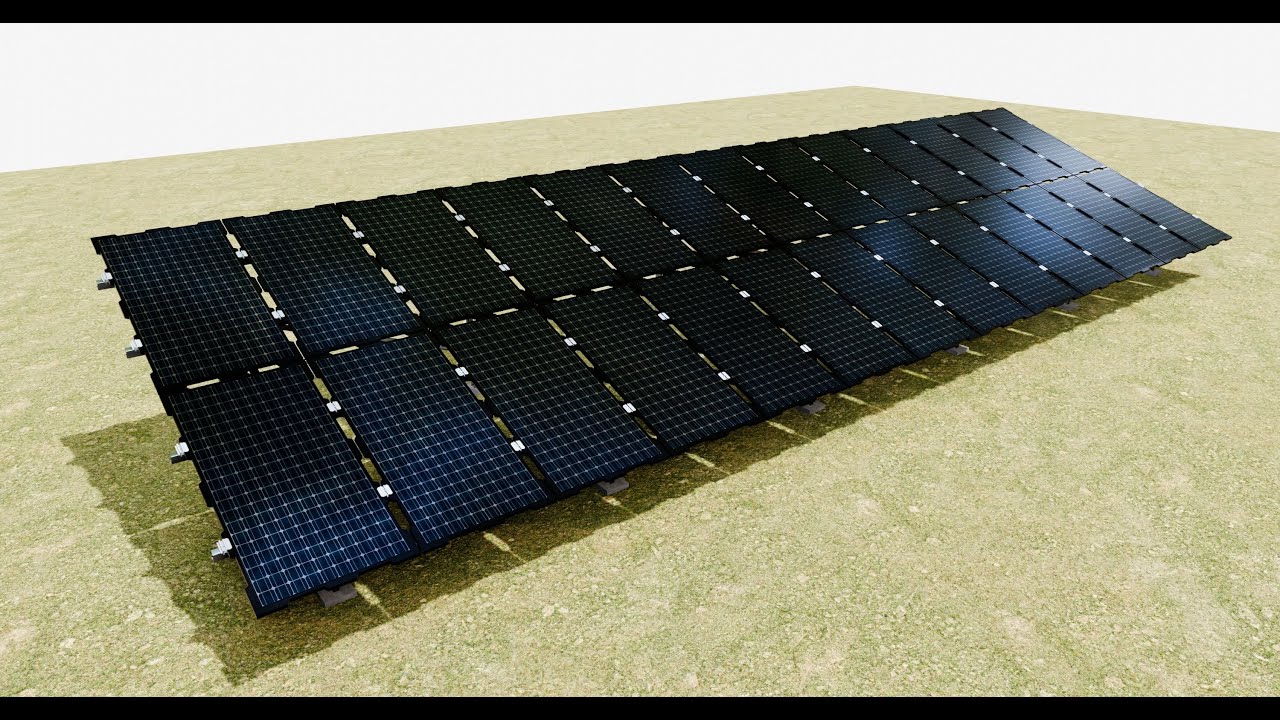

2x13 Vertical Solar Glass Panel Layout

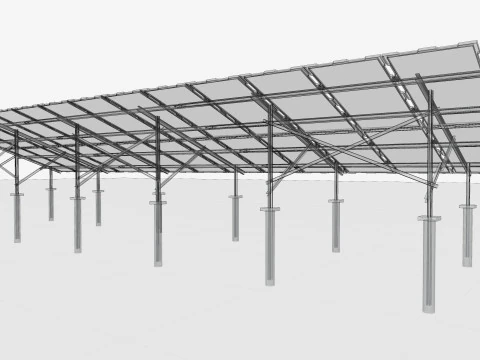

Ground Connection Type; With Concrete Friction Pile
Panel Dimensions : 2278 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

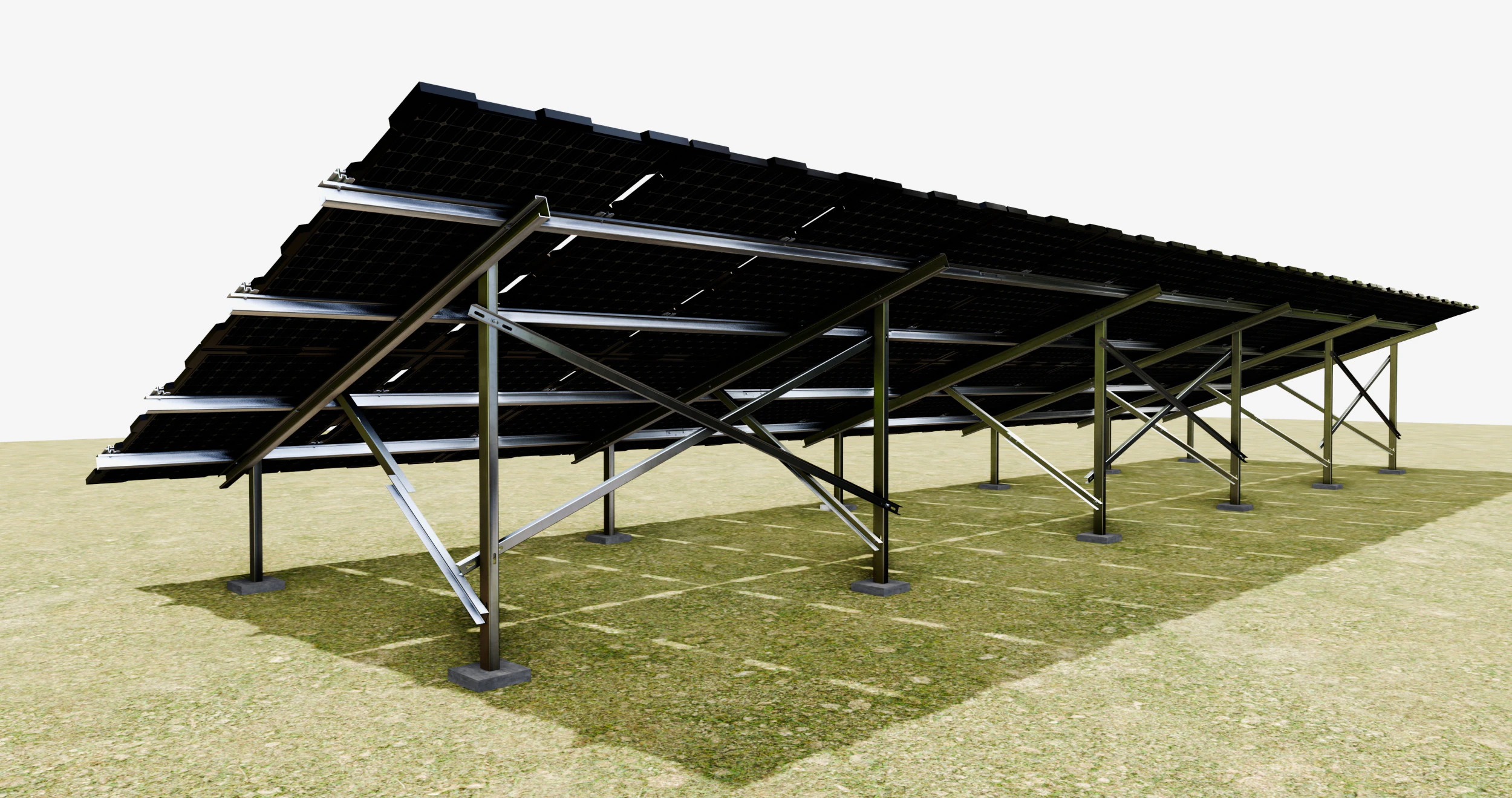

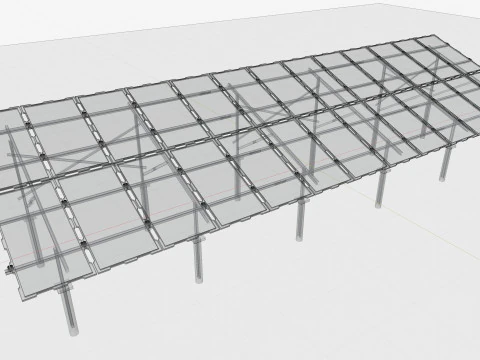

The system consists of 6 axles and the distance between each axle is 2650 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 600 mm.
New Frame Solar Panel
1- 550 Watt 2278x1134x35mm New Frame Solar Panel
2- 630 Watt 2465x1134x35mm New Frame Solar Panel
3- 320 Watt 1950x990x35mm New Frame Solar Panel
4- 160 Watt 1480x670x35mm New Frame Solar Panel
- Bifacial Solar Panel
- Modern New Design Frame

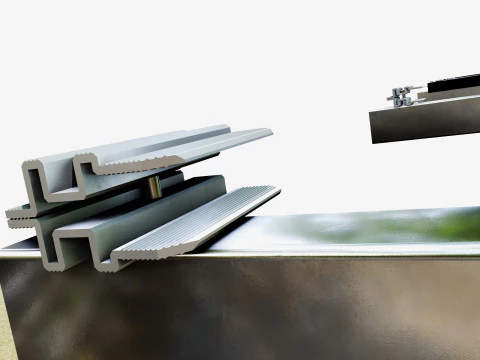

- Middle and End Clamp Compatible With the New Frame Design

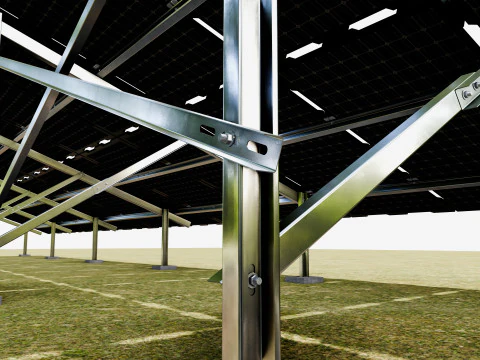

- Hexagon Head Bolt, Large Diameter Washer and Flanged Nut Design
Hexagon head bolt; ideal for the bottom tightening method
**Assembly Example Made With 550W Panel

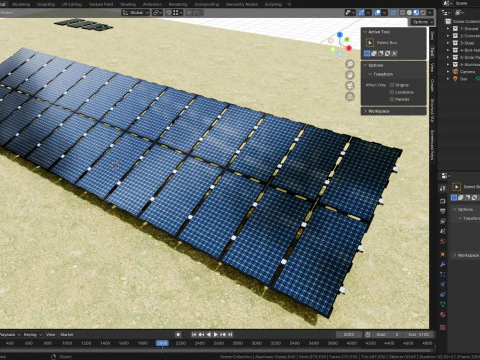

Prepared With BLENDER Version 4.0.1
Polygons : 270955
Vertices : 375928
Objects : 649
Print Ready: NoNeed more formats?
