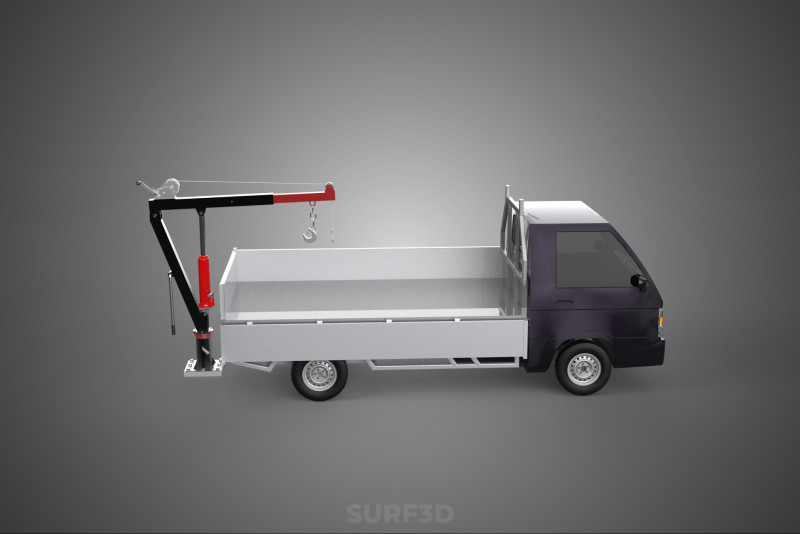

BED DROP SIDE GATE DOOR JIB CRANE LIFT HOIST WINCH PICKUP TRUCK Modello 3D

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Bed Drop Side Gate Door Jib Crane Lift Hoist Hand Crank Winch Attached on Pickup Truck" refers to a specialized, integrated material handling apparatus designed for mobile lifting operations. This system combines a manually-operated jib crane and hoist mechanism, purpose-built for secure attachment to the cargo bed of a pickup truck, often leveraging the structural integrity of a drop-side gate or tailgate for stable mounting. Its primary function is to provide a mechanical advantage for the loading and unloading of moderate-weight objects, particularly in environments where powered lifting equipment is unavailable, impractical, or cost-prohibitive.

**Components and Design:**

1. **Mounting Platform (Pickup Truck Bed/Drop Side Gate Door):** The foundation of this system is its robust integration with a standard pickup truck. The crane's base is meticulously engineered for secure, often reinforced, attachment to the truck's cargo bed frame, typically at or near a drop-side gate, tailgate, or a reinforced corner. This strategic positioning is crucial, as it allows the jib boom to swing freely and clear of the truck bed, facilitating optimal access for both loading and unloading operations. The mounting hardware, comprising heavy-duty bolts, reinforcing plates, and sometimes custom brackets, is critical for distributing the stresses of lifted loads across the truck's chassis, ensuring stability and preventing structural damage.

2. **Jib Crane Assembly:** The jib crane component itself consists of two primary parts: a vertical mast (or pillar) and a horizontal boom (or jib). The mast is securely affixed to the truck bed and incorporates a robust rotational bearing or pivot point. This design allows the boom to pivot through a significant arc (commonly 270° to 360°), enabling loads to be lifted from ground level alongside the truck, swung over the cargo bed, and then lowered, or vice-versa. The horizontal boom extends outwards, providing the necessary reach and outreach for the hoist. Its length and structural rigidity are precisely engineered to balance the required lifting capacity with the truck's stability and overall dimensions.

3. **Lift Hoist Mechanism:** Suspended from the end of the jib boom is the lift hoist. This is the core lifting device, comprising a durable drum, a high-strength cable (typically made of steel wire rope or a robust synthetic fiber), and a sturdy hook. The cable spools onto and off the drum, facilitating the vertical movement of the load. The hoist is specifically designed for direct lifting and lowering, ensuring controlled and precise load manipulation.

4. **Hand Crank Winch:** The power source for the hoist is an integrated hand crank winch. This purely mechanical mechanism consists of a ergonomic crank handle attached to a geared system that rotates the hoist drum. The internal gear reduction provides a substantial mechanical advantage, allowing a single operator to lift loads that would be impossible to manage manually. Most hand crank winches incorporated into such systems are equipped with safety features like a ratchet and pawl system or an automatic brake. These mechanisms reliably hold the load securely at any desired height, preventing unintended descent and ensuring operator safety.

**Operational Principles:**
Operation is straightforward and entirely manual. The truck is positioned adjacent to the object to be lifted. The jib boom is then manually swung over the load, and the hoist hook is securely attached. The operator turns the hand crank, winding the cable onto the drum and progressively raising the object. Once the load is clear of any obstructions, the jib boom is rotated, swinging the load over the truck bed. The crank is then reversed to slowly and safely lower the object into the cargo area. The entire process is controlled by the operator, requiring no external power.

**Applications:**
This system is highly valued for its versatility and self-sufficiency, making it indispensable in diverse scenarios, particularly where portability, simplicity, and independence from external power sources are critical. Common applications include:
* **Field Service and Maintenance:** Lifting heavy tools, spare parts, generators, or small machinery for repairs in remote or undeveloped locations.
* **Agriculture:** Handling feed sacks, seed bags, irrigation components, smaller farm implements, or even minor livestock.
* **Construction and Landscaping:** Facilitating the movement of bags of cement, bricks, pavers, small engines, or portable generators onto and off the truck.
* **Recreational Use:** Aiding in the loading and unloading of ATVs, motorcycles, large coolers, or bulky camping equipment for outdoor enthusiasts.
* **General Utility:** Any situation requiring mechanical assistance for lifting items, up to the system's rated capacity, into or out of a truck bed, especially where conventional forklifts or powered cranes are impractical.

**Advantages:**
The primary advantages of this system include its complete independence from external power sources (electricity, hydraulics, or internal combustion), its relatively lower acquisition and maintenance costs compared to powered lifting solutions, and its inherent portability. Being an integral part of the truck, it is always available on-site. Its design often allows for relatively straightforward installation and removal, making it a flexible asset.

**Limitations and Safety Considerations:**
Key limitations stem from its manual operation, which results in slower lifting speeds and a maximum load capacity constrained by human effort and the structural limits of the components. Overloading presents a significant safety hazard, potentially leading to equipment failure, truck instability, or personal injury. Operators must strictly adhere to the manufacturer's specified load limits. Furthermore, ensuring the truck is parked on stable, level ground, with parking brakes engaged, and utilizing any available outriggers or stabilizers, is paramount to prevent overturning during lifting and swinging operations.
